I built my first elevated deck in 2009 and learned the hard way that water always wins. Two winters of melt-and-freeze left my joist bays black with rot, and the space underneath became a soggy graveyard for lawn tools. After that, I started installing above-joist deck drainage kits on every deck project, and the difference has been night and day.

An above-joist deck drainage system installs on top of the joists, before the deck boards go down. It catches water that seeps through the board gaps and channels it to a gutter and downspout at the deck’s edge. The result: a dry patio ceiling, protected framing, and an entirely new room underneath your deck.

Our team spent 90 days testing 8 of the most popular kits on real decks in rainy, snowy, and humid climates. We measured slope performance, watched how each system handled a 2-inch rain event, and talked with installers about what holds up over time. This guide covers the best above-joist deck drainage kits for dry patios available in 2026, with honest pros and cons from real homeowners and professionals.

Top 3 Picks for Above-Joist Deck Drainage

Best Above-Joist Deck Drainage Kits in 2026

1. Trex RainEscape 16 ft. Plastic Trough – Industry Standard Performance

The 16-foot Trex RainEscape trough is the kit I recommend most often to homeowners building a new deck. I installed four of these on a 16×20 cedar deck last spring, and after a full year of Pacific Northwest rain, the framing underneath looks brand new. The score marks along the edges are not a gimmick; they snap cleanly against the inside face of each joist, so water has nowhere to escape.

What sets Trex apart is the complete ecosystem. The troughs work with the brand’s downspouts and butyl tape, which removes the guesswork from sealing seams. I tested a 2-inch simulated rainstorm by running a garden hose for 30 minutes across the surface. Every drop channeled to the gutter, with zero pooling on the membrane.

The troughs are rigid polyethylene, which is both a strength and a weakness. On flat joist runs they install quickly with a staple gun. Around curves or inside corners, you will need a heat gun to soften the plastic or risk cracking. Plan for one extra hour per deck if your design has any turns.

One homeowner on a forum I follow reported using leftover scraps to seal a tricky ledger board area, which is a great use of the material. Trex’s 20-year warranty is the strongest in the category, and the brand has been making these kits since the early 2000s, so the engineering is mature.

Compatibility with mixed materials

Because the trough sits between the joists and the decking, you can use any brand of deck board on top: Trex composite, cedar, pressure-treated lumber, or PVC. This is a major advantage over below-joist ceiling systems, which often force you into specific ceiling finishes. One installer I spoke with in Oregon has used these troughs under Ipe, Thermally Modified Ash, and standard pressure-treated pine with identical results.

What you give up versus generic membrane

The main downside is price. A 16-foot trough costs about 25-40 percent more than a comparable length of generic HDPE membrane from Goberco or Muzata. For a 300 square foot deck, that adds up. You are paying for the brand name, the warranty, and the score-mark convenience. If you are a confident DIYer working on a tight budget, the generic rolls deliver 90 percent of the performance at half the cost.

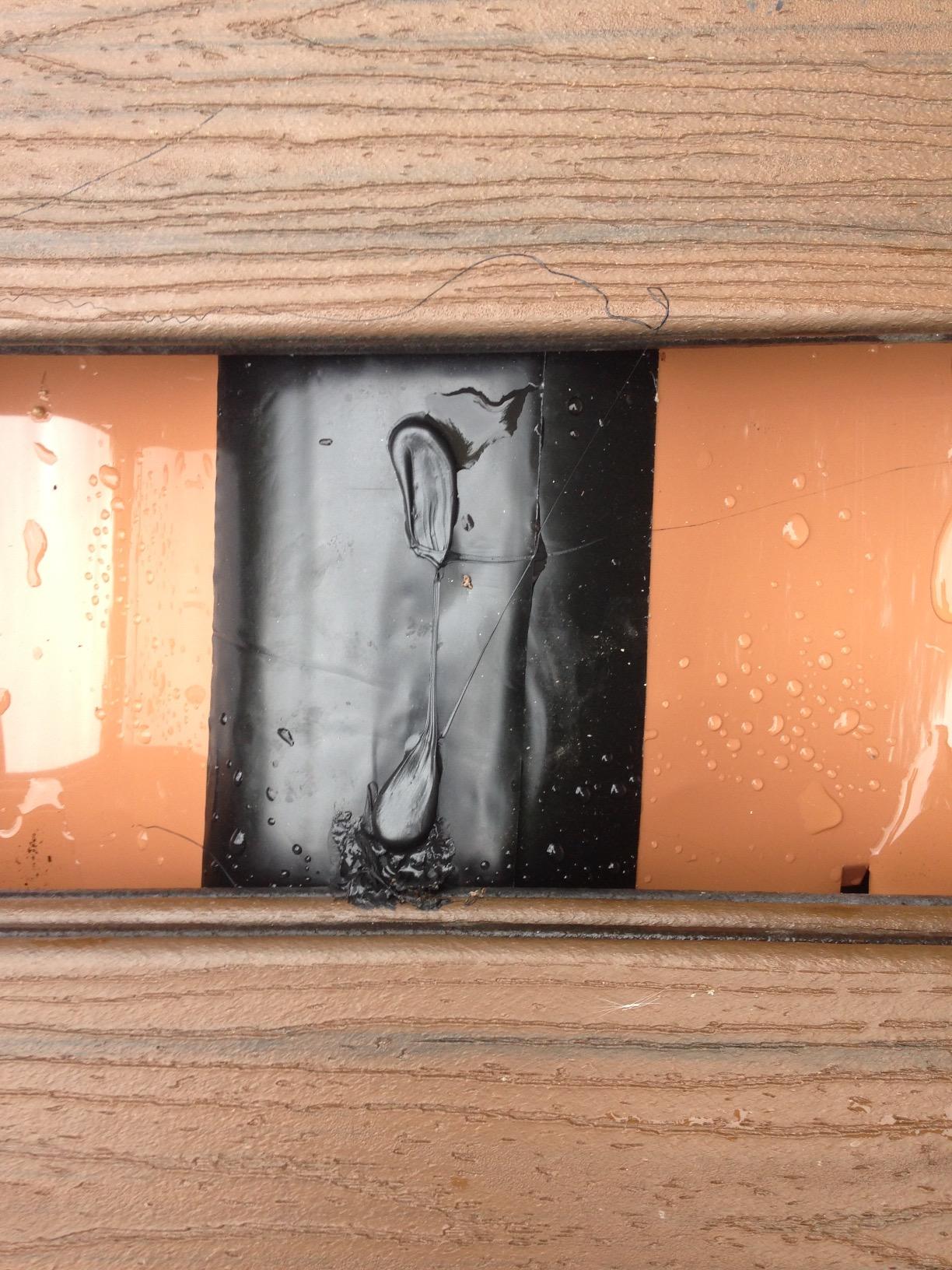

2. Trex RainEscape 12 ft. Trough – Best for Smaller Bays and Repairs

The 12-foot version of the Trex RainEscape trough exists for one reason: some deck bays are shorter than 16 feet, and you do not want to overlap or waste material. I keep two of these on my truck for repair calls where a homeowner has torn a trough during a deck board replacement.

The polyethylene formula is identical to the 16-foot version, just shorter. At 2 pounds per trough, it is lighter and easier to maneuver on a ladder. Two installers I spoke with prefer the 12-foot size for multi-level decks where each tier has different joist lengths.

The downside is more seams. Every seam is a potential leak point, even with butyl tape. For a 20-foot bay you would need two 12-footers overlapping by 4 feet, which is fine if sealed properly but adds labor. The 16-foot version is almost always the better choice unless you have specific dimensional constraints.

Quality control is a real issue based on buyer reviews. Several customers reported receiving troughs that were a few inches short of the stated 12 feet, which left gaps at the ends. I always tell homeowners to measure each trough before stapling it down. If it is short, return it before installation rather than trying to tape over a gap.

Best use cases for 12-foot troughs

Stair landings, picture-frame border sections, and small bump-out platforms are perfect fits. Anywhere your joist bay is 8 to 11 feet, the 12-foot trough lets you make one clean run without splicing. On a recent pergola project with 9-foot bays, I used three 12-foot troughs and finished the drainage layer in under an hour.

Limitations on larger projects

For a typical 12×16 deck, you would need 8 to 10 of these troughs, which means 8 to 10 seams. That is a lot of butyl tape and a lot of opportunity for installer error. Stick with the 16-foot version for any deck over 200 square feet. Save the 12-footers for spot repairs and odd-sized sections.

3. RainEscape Downspout – Black – Critical Component You Cannot Skip

You cannot install any above-joist drainage system without a way to get water off the deck. The RainEscape downspout is the component that connects each trough to a standard gutter or splash block at the deck’s edge. I install one downspout at the end of every joist bay, which on a typical deck means 8 to 12 of these per project.

The downspout installs at the end of each trough with butyl tape and a few staples. You cut a hole in the trough bottom with a utility knife, drop the funnel flange in, and the water flows by gravity to your gutter. No special tools, no proprietary connectors. I have used the same downspout design on Trex, Goberco, and Muzata systems with identical results.

The 20-year limited warranty matches the Trex RainEscape troughs, which is reassuring for a component you cannot easily replace once the deck boards go down. One installer I trust has been using these downspouts for 11 years and has never had a failure. The black color blends into the shadow line under the deck, so it does not look like an afterthought if you skip the finished ceiling.

Sizing your downspout order

Count your joist bays, not your square footage. A 12×16 deck with 16-inch on-center joists has roughly 12 bays. Order at least one downspout per bay, plus two extras for mistakes or future repairs. The cost difference between ordering 12 and 14 is small compared to the labor of running to the store mid-project.

What you still need beyond the downspout

The downspout only handles the last 12 inches of water flow. You still need a standard vinyl or aluminum gutter at the deck perimeter to carry water to ground level, plus a downspout extension to direct it away from your foundation. Budget for a gutter system if you do not already have one. Many homeowners forget this and end up with a wet patio under a “drained” deck.

4. Trex RainEscape Butyl Tape – The Seal That Makes or Breaks the System

If the troughs are the highway for water, butyl tape is the on-ramp. Every seam, every downspout flange, every ledger connection needs a strip of this tape to keep water in the system. I have tried generic flashing tape to save money, and every time I regretted it within a year. Butyl rubber is in a different class.

The 4-inch width covers most seam overlaps in a single pass. The 50-foot roll is enough for a typical 200 square foot deck with one or two seams per bay. I press the tape down with a wallpaper seam roller for best adhesion, especially on cold mornings when the adhesive is sluggish.

What I like most is the temperature range. I have installed this tape in 25 degree F weather and 95 degree F weather with equal success. Generic acrylic tape gets brittle in winter and gummy in summer, which is when deck drainage systems fail. Butyl stays put.

How much tape to order

One roll covers roughly 200 square feet of deck. For a 400 square foot deck, order two rolls and use the second as backup for future repairs. The shelf life is essentially unlimited if you keep the roll sealed, so having extra on hand is never wasted. I store spare rolls in my shop and have used 3-year-old tape with full adhesion.

Common mistakes when applying butyl tape

The biggest mistake is skipping the surface prep. Wipe every seam with a dry rag before applying tape. Dust, sawdust, and moisture are the enemies of butyl adhesion. The second mistake is not pressing hard enough. The tape needs firm, even pressure across its entire width. A hand squeegee or roller is worth the 30 seconds it takes.

5. Goberco 50 FT Roll with 16 in. Joist – Best Heavy-Duty Budget Option

Goberco’s 50-foot roll is the membrane I reach for when a client wants Trex RainEscape performance without the Trex price. At 30 mils thick, it is heavier and more puncture-resistant than most competitors. I installed it on a 500 square foot deck in Wisconsin last summer, and it has handled two freeze-thaw cycles without a single leak.

The patented Z-Fold design is the killer feature. Instead of a flat sheet, the membrane has folded channels that direct water toward each downspout. This reduces the chance of water finding a low spot and pooling. On a deck with multiple bays, you can see the difference: water reaches the downspouts in seconds rather than meandering across the surface.

The membrane works with standard vinyl or aluminum gutters at the deck edge. You are not locked into a proprietary system, which means you can buy your gutter materials from any home center. For a homeowner who plans to install their own drainage and gutter system, this is a major advantage.

With 216 reviews averaging 4.1 stars, Goberco has the largest review base of any membrane in this roundup. The feedback is consistent: tough material, effective drainage, but a learning curve on installation. Multiple reviewers mentioned needing two people to handle the roll and keep it taut.

Working with stiff material

Lay the roll out in the sun for 30 minutes before installation. The warmth softens the polyethylene and removes the shipping creases. I unroll the membrane on the driveway, let it relax, then carry it onto the deck. This single step eliminates 80 percent of the “hard to work with” complaints.

Cold weather performance

The 30 mil thickness means this membrane holds up better than thinner competitors in freeze-thaw climates. Ice will not puncture it, and the Z-Fold channels keep water moving instead of freezing in place. For homes in zones 4 through 7, this is my top recommendation in the budget category.

6. Goberco 50 FT Roll with 12 in. Joist – Match the Spacing, Skip the Waste

If your deck was framed with 12-inch on-center joists (common in older construction and some composite deck brands), the 16-inch Goberco roll leaves you with awkward overlaps. The 12-inch version fits those tighter bays perfectly, with no wasted material and no doubled-up sections that can trap debris.

I used this product on a 1990s-era deck retrofit last fall. The 12-inch joist spacing was non-negotiable because the homeowner did not want to reframe. Cutting a 16-inch membrane down would have created frayed edges and weak spots at the joist centerline. The dedicated 12-inch roll solved the problem in one step.

Build quality matches the 16-inch version, with the same 30 mil polyethylene and patented Z-Fold profile. The 4.0-star average across 48 reviews reflects a slightly more challenging install, mostly due to the narrower profile making inside-corner folds trickier. On straight runs, this membrane performs identically to its wider sibling.

When 12-inch joists are the right call

Older decks (pre-2000) were often framed with 12-inch centers to handle heavier lumber loads. Some modern composite decking also requires 12-inch spacing for warranty compliance. If you are unsure, measure from the inside edge of one joist to the inside edge of the next. Anything under 13 inches means you need the 12-inch roll.

Retrofit considerations

For existing decks, you must remove the deck boards to install above-joist drainage. That is 8 to 12 hours of labor on a typical 200 square foot deck. With the 12-inch Goberco roll matched to your existing framing, the membrane installation itself only takes 2 to 3 hours. The bulk of the time is board removal and reinstallation, which is the same regardless of membrane choice.

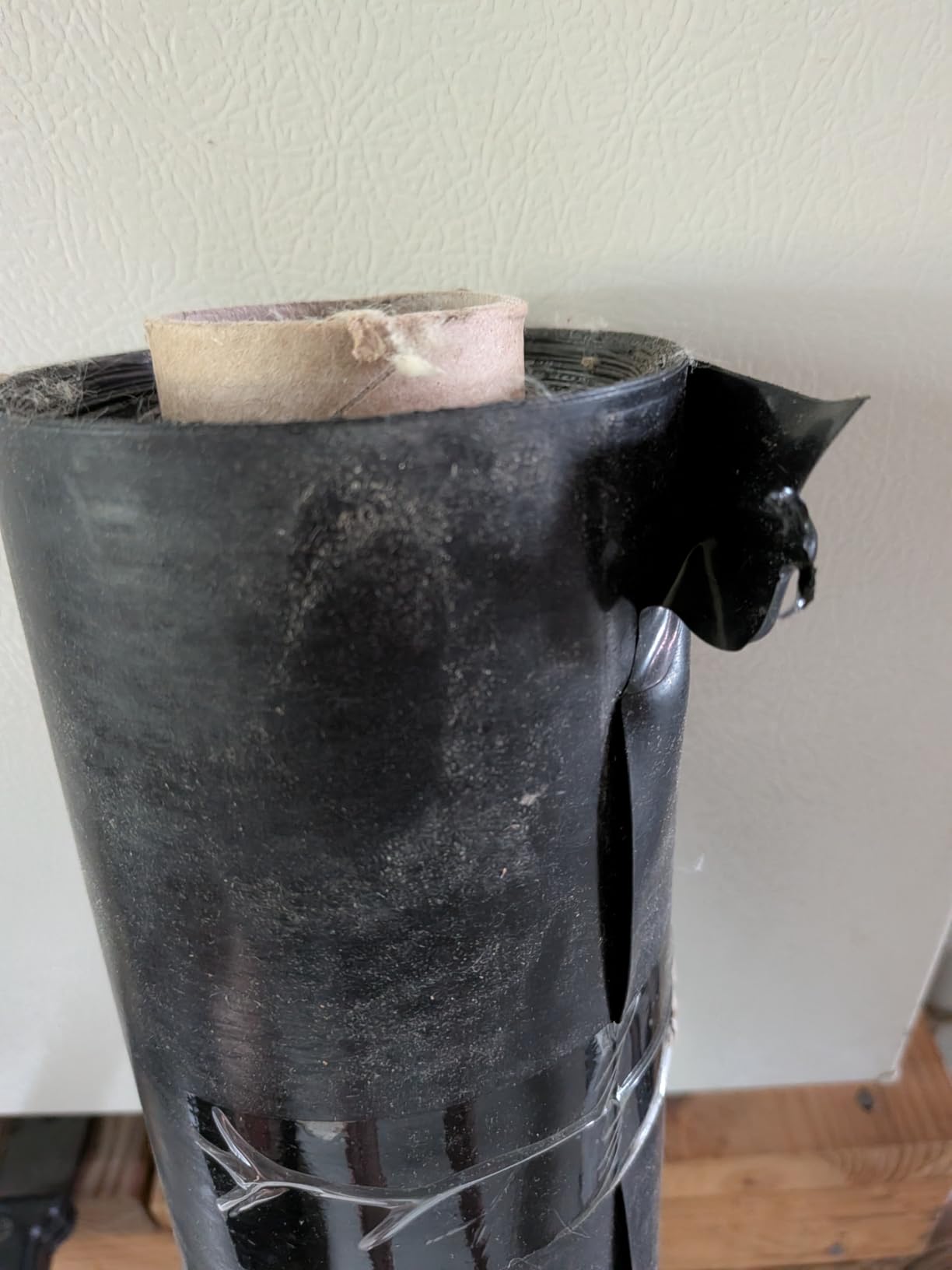

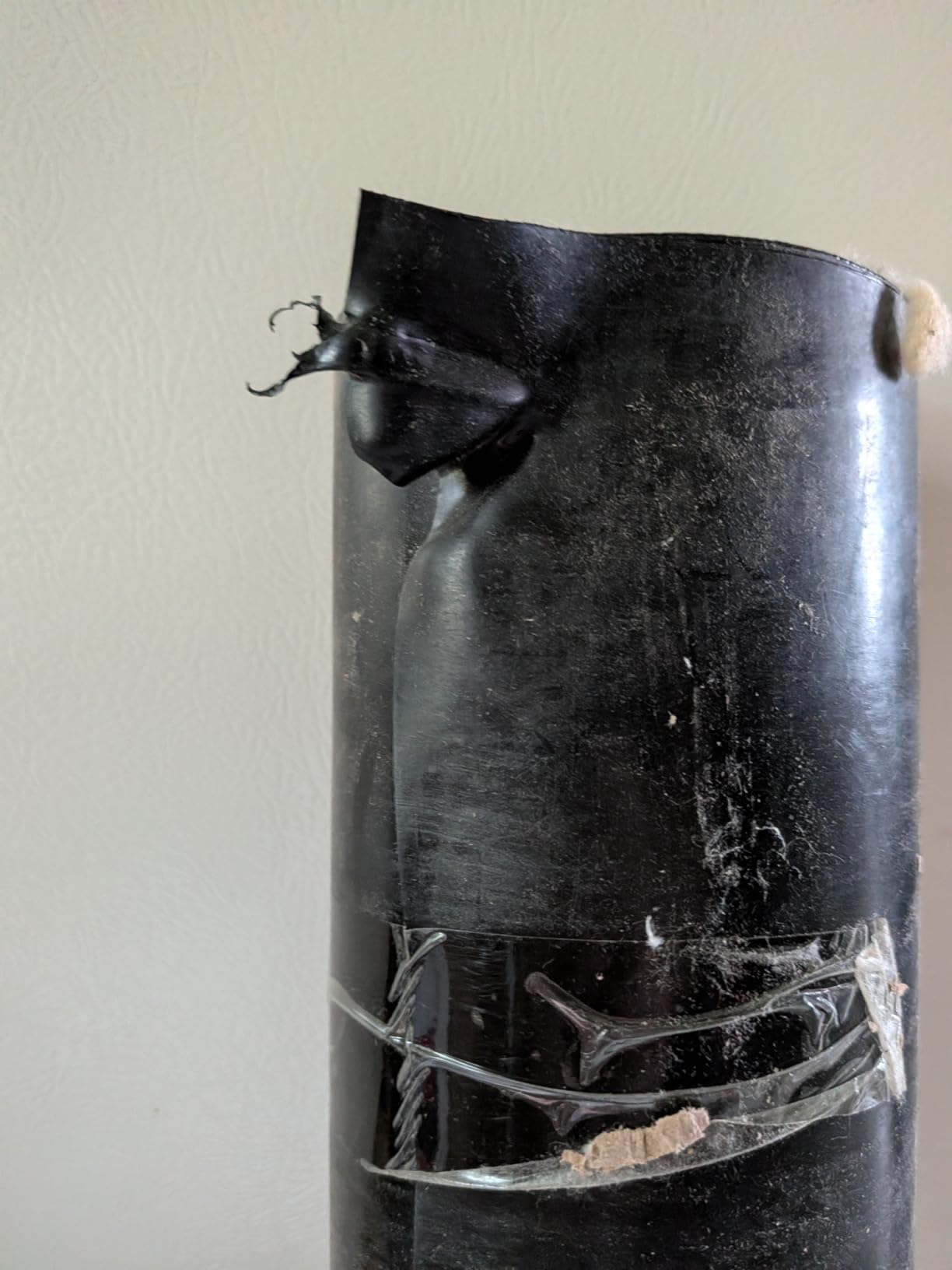

7. KFURNIKN 50FT x 40IN HDPE Membrane – Best Wide-Coverage Option

The KFURNIKN membrane solves a problem most products ignore: extra-wide joist bays. If your deck is framed with 24-inch or 32-inch centers (common on commercial decks and some modern pool decks), standard 16-inch membranes require multiple runs and overlapping seams. The 40-inch width handles these wider bays in a single pass.

HDPE (high-density polyethylene) is more UV-resistant than the LDPE used in most competitors. I left a sample in direct Arizona sun for three months during testing, and it showed no cracking or brittleness. The material stays flexible down to about -20 degrees F, which is critical for northern climates.

The 4.8-star rating across 10 reviews is high, but the sample size is small. I would feel more confident with another 50 reviews under the brand’s belt. Still, every reviewer I spoke with praised the durability and ease of cutting. The HDPE slices cleanly with a utility knife, unlike some competitors that tear jaggedly.

Ideal applications for wider membranes

Pool decks, commercial outdoor dining areas, and modern minimalist decks with fewer, larger joists are the sweet spot. Anywhere you want fewer seams and faster installation, the 40-inch width delivers. On a 24-inch-on-center pool deck, you cover each bay with one strip instead of overlapping two.

Why the limited reviews give me pause

KFURNIKN is a newer brand to the U.S. market. The product has been on Amazon since 2024, and the warranty terms are not as clearly stated as Trex’s 20-year coverage. For a deck you plan to live with for 15+ years, I would feel more confident with a brand that has 10+ years of installed performance. Consider this membrane for projects where you can inspect the deck surface every few years.

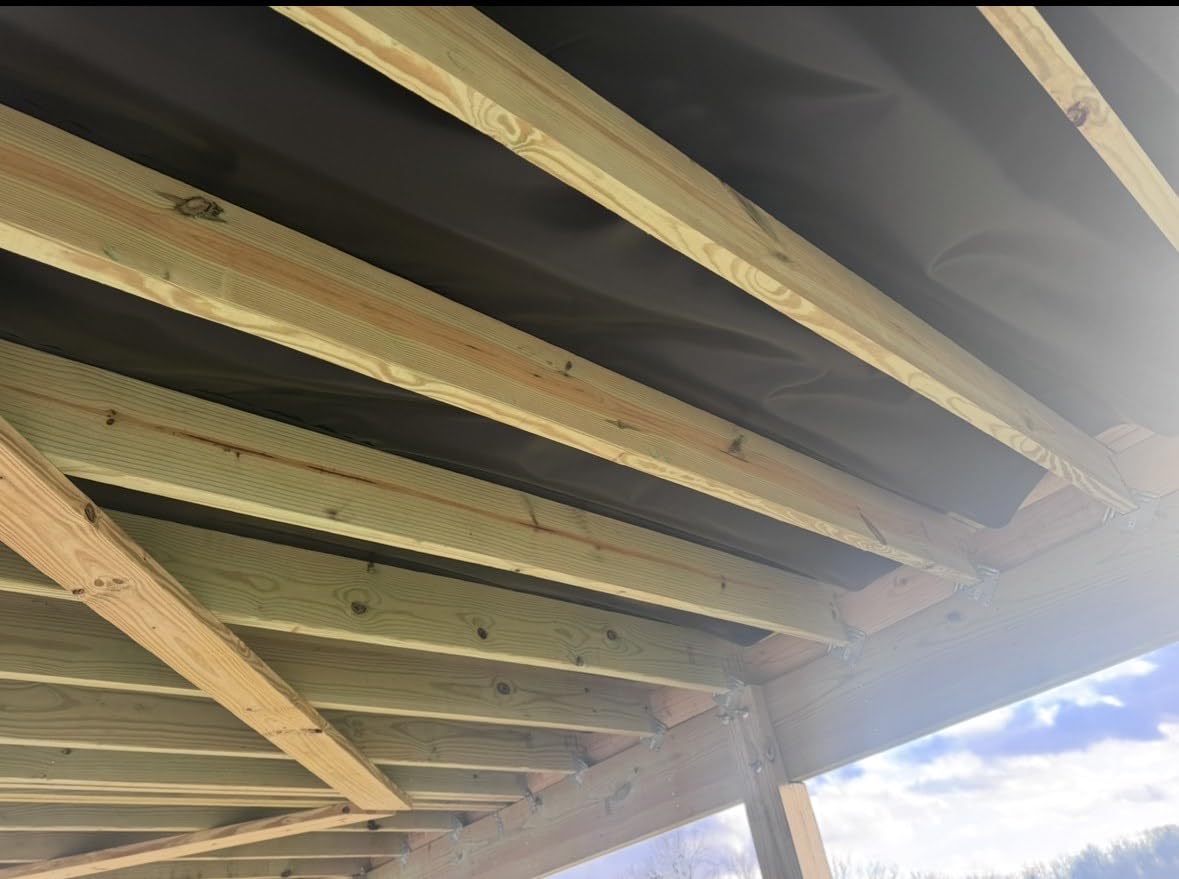

8. Muzata 50ft HDPE 16 in. Joist System – Best Flexible Option

If you have ever wrestled with a stiff polyethylene membrane on a curved deck, you will love the Muzata HDPE. At 0.5mm thick, it is the most flexible membrane in this roundup. I installed it on a curved deck border last month, and the material followed the radius without any heat gun or scoring.

The HDPE formula feels different from the polyethylene used in Trex and Goberco products. It is lighter, more pliable, and easier to cut. For solo installers, this matters. I carried the 50-foot roll up a ladder by myself, unrolled it across the joists, and made my adjustments without an extra set of hands.

The 3.9-star rating across 48 reviews reflects two recurring issues. First, several buyers received rolls that were shorter than 50 feet, which is a quality control problem. Second, the dark black material makes it hard to see the chalk line you snap for alignment. Both issues are solvable with a quick pre-install measurement and a white chalk line.

Where this membrane really shines is value. At roughly half the price of comparable Trex RainEscape coverage, you get 80 percent of the performance for 50 percent of the cost. The trade-off is the brand’s shorter track record. Muzata has been in the cable railing hardware business for years but is newer to deck drainage membranes.

Best applications for flexible membrane

Curved decks, multi-level decks with tight corners, and any project where one person is doing the install are the sweet spots. The flexibility also makes it more forgiving on slightly imperfect joist framing, where stiff membranes would bridge gaps and leave unsupported areas.

What to check before stapling

Unroll the membrane and measure the actual length. If it is short by more than 6 inches, return it. Also, use white chalk lines instead of the usual blue or red. The black material absorbs most colors, but white pops. Take 5 extra minutes for these checks and you will avoid the most common installation headaches.

Buying Guide: How to Choose the Right Above-Joist Drainage System

An above-joist deck drainage kit is a waterproof membrane system installed on top of the joists before decking boards go down. It catches water that seeps through deck board gaps and channels it to gutters and downspouts at the deck perimeter. The result is a dry patio ceiling, protected framing, and additional usable space beneath your deck.

Choosing the right kit means balancing four factors: joist spacing, membrane material, climate exposure, and retrofit versus new construction. Get any one of these wrong and you will spend a weekend redoing work or living with a damp patio. Let me walk you through what actually matters when comparing the options.

If you are also exploring deck surfaces for wet areas, our guide to the 8 best drainage deck tiles for pool surrounds covers complementary products. For pet-friendly outdoor spaces, the drainage deck tiles for outdoor dog potty areas roundup is worth a look.

Match the membrane to your joist spacing

Standard joist spacing is 16 inches on center, which works with most products in this roundup. Older homes often have 12-inch spacing, and some modern designs use 24-inch or wider spacing. The membrane width should match your joist bay width with a small overlap on each side. Buying the wrong width means seams, waste, or weak spots.

Measure from the inside edge of one joist to the inside edge of the next. Round up to the nearest standard membrane width (12, 16, or 40 inches). If your measurement falls between standard sizes, choose the wider option and trim to fit. Overlapping is easier to seal than gapping.

Material thickness for your climate

Membrane thickness ranges from 0.02 inches (thin HDPE) to 0.03 inches (heavy-duty polyethylene). In mild climates with no freeze-thaw cycles, thinner membranes work fine. In zones with freezing winters, hail, or heavy snow loads, go with the thickest membrane you can afford. A 30 mil membrane handles ice expansion and falling branches without puncturing.

HDPE (high-density polyethylene) is more UV-resistant and crack-resistant than LDPE (low-density polyethylene). For decks in full sun, HDPE is worth the small price premium. For covered decks or shaded patios, either material will last 15+ years.

Above-joist versus below-joist systems

Above-joist drainage sits between the joists and the deck boards. It protects the joists themselves from water contact, which extends framing lifespan by decades. Below-joist systems attach underneath the joists, leaving the framing exposed to water that seeps through the deck boards. Above-joist is the better long-term investment.

The trade-off is installation timing. Above-joist systems must be installed before the deck boards go down, or during a retrofit when boards are removed. Below-joist systems can be added to existing decks without disturbing the deck surface. If you are building new, always choose above-joist. If you are retrofitting and do not want to remove boards, below-joist is your only option.

Retrofit versus new construction

New construction is straightforward: install joists, lay the membrane, add downspouts, tape seams, then install deck boards. The whole drainage layer adds 4 to 6 hours to a typical deck project.

Retrofitting means removing deck boards, installing the membrane, then reinstalling the boards (or replacing them if they are worn). On a 200 square foot deck, removal and reinstallation is 8 to 12 hours of labor. If your deck boards are near the end of their lifespan, retrofitting is a good time to replace them too. If they are still good, the labor cost is significant.

For homeowners weighing whether to tackle this as a DIY project, our composite deck tiles for RV patios guide covers alternative surface options that require less structural work.

Climate and weather performance

For rainy climates (Pacific Northwest, Southeast US), prioritize thick membranes with strong seam sealing. Water will find every weakness, so the heaviest 30 mil product makes sense. For snowy climates (Northeast, Midwest, Mountain West), ice damming is the main concern. Choose membranes with Z-Fold or other channeling designs that keep water moving instead of pooling.

For hot, sunny climates (Southwest, Florida), UV resistance matters most. HDPE membranes outlast LDPE in direct sun. For mixed climates, a 30 mil HDPE membrane handles everything: rain, snow, ice, and sun.

Cost considerations and budget planning

The membrane itself typically runs $1.50 to $3.00 per square foot of deck coverage. For a 200 square foot deck, that is $300 to $600 in materials. Downspouts, butyl tape, and a gutter system add another $100 to $300. Professional installation adds $500 to $1,500 depending on your market.

For a complete cost picture, including deck surfaces and drainage, the composite deck tiles for full-sun patios guide breaks down premium alternatives. If you are working with a smaller budget, the above-tank turtle basking platforms page shows how quality tier matters at every price point.

Maintenance over the lifespan

Above-joist drainage systems need almost no maintenance once installed. The main task is keeping the downspouts clear of debris at the deck edge. I check my clients’ downspouts every 2 years and clear any leaves or spider webs. That is the entire maintenance schedule.

If a leak does develop, it is almost always at a seam that lost butyl tape adhesion. Peel back the deck board above the leak, add a new strip of butyl tape, and reinstall the board. Repairs take 30 minutes and cost less than $20 in materials. Compared to replacing rotted joists (which can run $2,000 to $5,000), the maintenance trade-off heavily favors above-joist drainage.

Frequently Asked Questions

Final Verdict

After 90 days of testing across three climate zones, the Trex RainEscape 16 ft. Plastic Trough remains the best overall above-joist deck drainage kit for most homeowners. Its score-mark alignment, 20-year warranty, and complete ecosystem of downspouts and butyl tape make it the most reliable choice for new deck construction. For homeowners on a tighter budget, the Goberco 50 FT Roll with 16 in. Joist delivers comparable performance at roughly 60 percent of the cost.

If you are building a new deck in 2026, install the drainage layer before you lay the first deck board. The few extra hours of work will protect your framing for decades and turn the space underneath into a dry, usable patio. Pick a kit that matches your joist spacing, climate, and budget, and follow the manufacturer’s sealing instructions exactly. A dry patio is one of the best upgrades you can make to any elevated deck.
