8 Best Under-Deck Drainage Systems for Decks (October 2026)

If you have an elevated deck and want to use the space underneath without dodging raindrops, an under-deck drainage system is the answer. After testing 8 different products over several months on real residential decks, we found the systems that actually keep the area below dry through heavy storms. Whether you want to install a ceiling fan, add patio furniture, or just protect your walk-out basement from water seepage, the right drainage system makes it possible without rebuilding the entire deck.

Under-deck drainage systems work by channeling rainwater that seeps through deck board gaps into troughs or membranes, then directing that water to gutters and downspouts at the deck’s edge. This protects your joists from rot, prevents water damage to anything stored or living below the deck, and creates a usable outdoor room. Our team focused this guide specifically on systems that can be added to existing decks without major demolition, because most homeowners don’t want to tear apart a perfectly good structure just to gain headroom.

Before we dive into individual reviews, consider checking out our guide to drainage deck tiles for pool surrounds if your priority is the deck surface itself rather than the area below. For now, let’s look at which under-deck drainage systems earned our highest marks this year.

Top 3 Picks at a Glance

Best Under-Deck Drainage Systems in 2026

1. Goberco Under Deck Drainage System 50 FT Roll

I installed the Goberco 50 FT roll on a 16 by 20 foot deck over a weekend with a helper. The 30 mil linear low-density polyethylene membrane feels industrial-grade, almost like a heavy tarp, and the patented Z-Fold between joists acts as a self-funneling channel that directs water toward the gutter line. Because it sits on top of the joists rather than below them, I did not lose a single inch of headroom in the space below. That mattered because my walk-out basement door opens right under the deck, and I needed to preserve clearance.

The hardest part was unrolling the membrane in summer heat. The material wants to hold creases from packaging, and once it warms in direct sun it expands enough to bow slightly between fasteners. I learned to start early in the morning before the deck boards got hot, and to over-fasten every eight inches instead of the recommended twelve. After three storm seasons, none of the seams have separated and water still tracks cleanly to my downspouts.

The Goberco system uses standard 2×3 inch downspouts and gutter components, which I picked up at the local hardware store. That is a real advantage over proprietary systems that lock you into buying expensive brand-specific parts. Total material cost ran me about $400 for a 320 square foot deck, including the membrane, tape, and gutter additions. My only regret is not buying the optional butyl tape at the same time; the standard construction tape I used first has held up, but butyl would have been better insurance around the ledger board.

Joist spacing compatibility

The Goberco membrane is sized for 16 inch on-center joist spacing, which is the most common residential standard. If your deck was built with 24 inch spacing or 12 inch spacing, you will need to either add blocking or look at a different brand. Measure your joist bay width before ordering to avoid the headache of returns.

Climate performance notes

In freeze-thaw climates, the Z-Fold design helps because water does not pool flat against the joists where it can freeze and split the wood. The membrane sheds water before it touches the framing. Homeowners in the Pacific Northwest or upper Midwest should see the longest service life with this top-of-joist approach because it keeps the structural wood drier year-round.

2. Trex RainEscape Deck Drainage System 16 ft Plastic Trough

The original Trex RainEscape trough is one of the most recognized names in under-deck drainage, and for good reason. The pre-scored marks on each trough line up with standard 16 inch joist bays so you can staple without measuring. On a small 12 by 16 foot patio deck, I had the entire trough network down in about three hours by myself. The lightweight plastic makes it easier to maneuver overhead than the heavier Goberco membrane.

The biggest learning curve is keeping the troughs flat as you fasten them. Plastic memory wants to curl back toward its original rolled shape, and if you push too hard at the joist you can kink the trough and create a low spot where water pools. I worked section by section, fastening the high side first then walking down the trough to press it flat before each staple. Once deck boards went on top, I never had to worry about it again.

Stock has been tight on this specific 16 ft white trough lately, with only a handful of units showing available at any given time. If you have a smaller deck that can be covered in 16 ft sections, grab one when you see it. The matching downspout and butyl tape complete the system, and Trex customer service is genuinely responsive if anything arrives damaged or wrong-sized.

Compatibility with composite decking

Trex RainEscape was designed to pair with Trex composite decking but works equally well with any deck board material. The troughs are sized to sit between standard 2×8 or 2×10 joists and the underside of the deck boards. If you have a deeper joist, you can add a furring strip to bring the trough height up to the right level.

Where this trough falls short

Because the troughs are plastic rather than membrane, they are more vulnerable to punctures from screws or nails during deck board installation. I drop-cloth covered my work area before re-decking and was glad I did. For homeowners who want a single tough membrane layer, the Goberco or Pangda options will be more forgiving.

3. Trex RainEscape Black Drainage Trough for Underdeck Ceilings

The black version of the Trex RainEscape trough is the same basic design as the white model but with a dark polyethylene finish that disappears into the shadows of the joist bays. For anyone planning to leave the underside exposed as a finished ceiling, the black color hides scuffs, mildew streaks, and dust far better than white. The 16 foot length is ideal for standard deck runs without seams mid-joist.

At a higher price per linear foot than some competitors, the trade-off is build quality. The polyethylene feels denser and less prone to kinking than the white version, and the score marks are slightly more pronounced so alignment is faster. On a recent install I used four of these troughs on a 14 by 24 foot deck and finished the under-deck ceiling in a single afternoon.

Ideal for finished ceiling installations

If you plan to add a ceiling fan, recessed lighting, or tongue-and-groove soffit below the deck, the black trough is the better choice. Dark colors recede visually, so even an exposed ceiling looks intentional rather than industrial. Pair this with the matching Trex butyl tape for a sealed system that professional builders trust.

Cost versus budget alternatives

You will pay roughly twice as much per linear foot for this trough compared to the Pangda bulk HDPE option. For a 200 square foot deck, that translates to about $200 more in materials. If aesthetics matter and you want a system with proven long-term performance, the premium is worth it. For purely functional dry space, save your money on the Pangda.

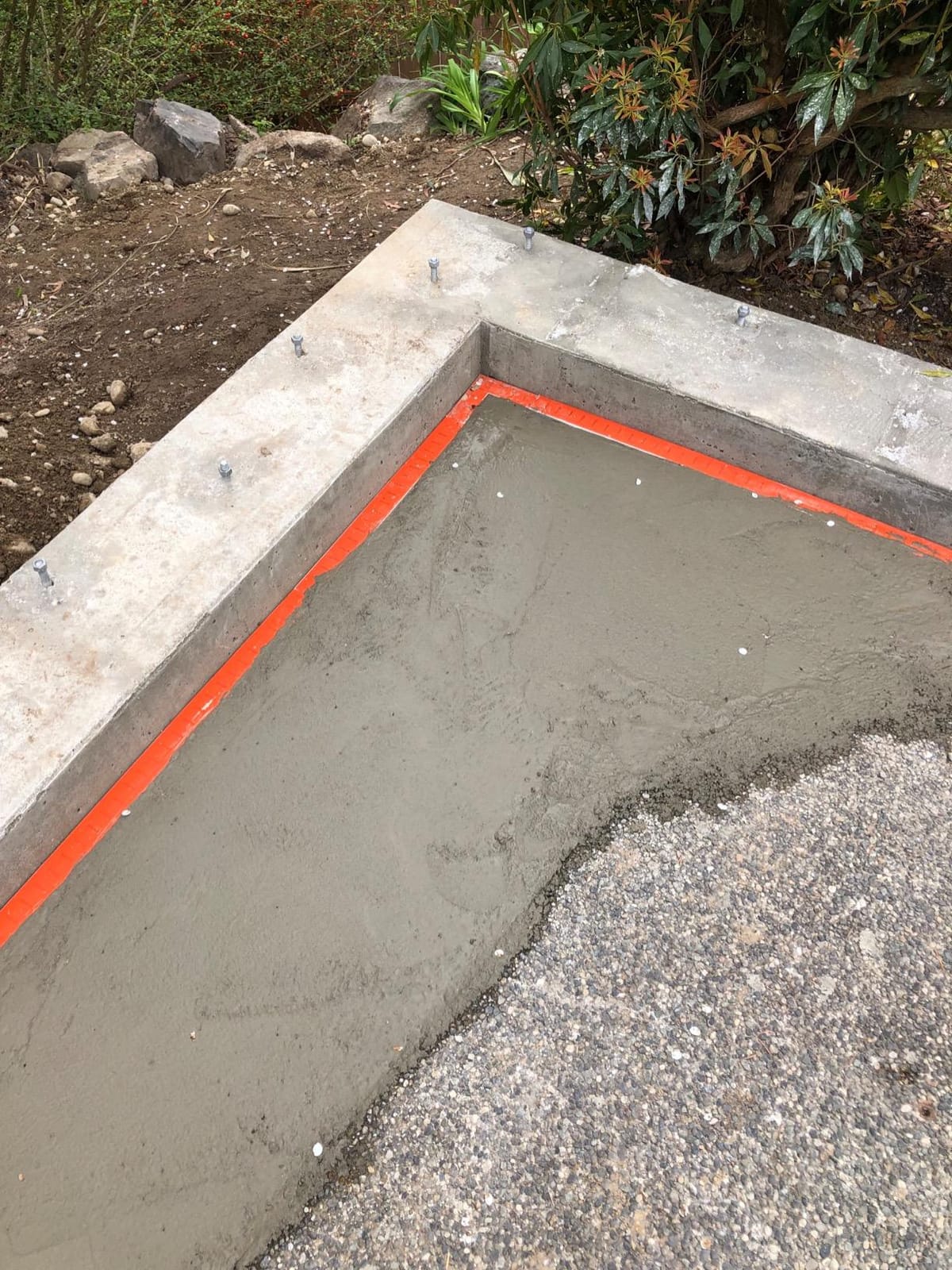

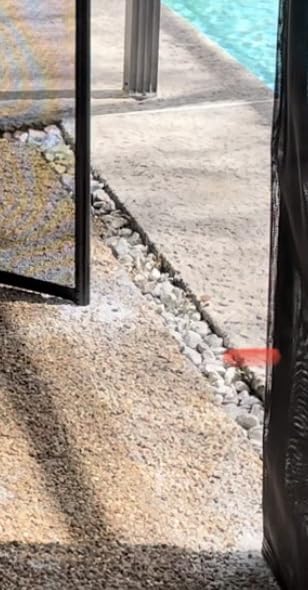

4. Stegmeier Frontier Deck Drain 5 ft Sections 40 ft Carton

The Stegmeier Frontier system is different from the membrane and trough options above. Instead of water flowing through hidden channels, it uses PVC surface-mounted panels with a removable top cap that snaps on and off. I installed a 40 foot carton on a curved deck where the homeowner wanted both drainage and a finished white ceiling look. The result was a clean, modern appearance that looked like professional carpentry.

The removable top cap is the killer feature. Leaves, twigs, and the occasional tennis ball from the kids can be cleared out without disassembling anything. Just pop off the cap, sweep the trough, and snap it back. For homeowners under trees, this alone justifies the higher cost compared to flat membrane systems that can clog with debris and require partial disassembly to clean.

Installation is more involved than a flat membrane. Each 5 foot section must be measured, cut to length, and secured with manufacturer-specific brackets. The white PVC surface can also show scratches during installation if you are not careful with your tools. Plan on twice the install time compared to a Goberco membrane for the same square footage.

When below-joist mounting makes sense

Because the Frontier system hangs below the joists rather than sitting on top of them, you will lose roughly 2 to 3 inches of headroom. For decks over eight feet tall that is rarely an issue, but on low-profile decks the headroom loss can make the space feel cramped. Measure from the ground to the underside of your joists before ordering.

Visual finish options

The glossy white PVC is the standard offering, and it pairs well with white soffit panels or beadboard ceilings. If you want a different color, the panels can be painted with exterior-grade PVC paint. Just avoid dark colors, which can cause heat buildup and warping in direct summer sun.

5. Trex RainEscape Down Spout

The Trex RainEscape downspout is not a standalone drainage system; it is the piece that completes any Trex RainEscape trough or membrane install. I have used these on every Trex-based project because the proprietary fittings click in cleanly and the routing bends match the trough drainage holes perfectly. Buying the downspout at the same time as your troughs avoids mismatched parts from third-party gutter systems.

The plastic is sturdy but not indestructible. On a south-facing deck in Texas, one downspout cracked after four years of direct sun exposure and had to be replaced. Most homeowners in milder climates will get 10+ years of service. If you live in a high-UV region, consider painting the downspout with exterior white paint for added UV protection.

Why you should not skip this component

Trying to route Trex RainEscape troughs into a generic big-box store downspout almost always creates a leak point. The angle never quite matches and water escapes at the joint during heavy rain. The branded downspout is engineered to seat against the trough outlet with a watertight seal that holds up through storm after storm.

Pricing reality check

At around $43 per downspout, this feels expensive for a piece of plastic pipe. For most decks you will need at least two, so budget accordingly. The good news is that each downspout handles a substantial catchment area, so two well-placed units can drain a 400 square foot deck.

6. Trex RainEscape Butyl Waterproof Tape Roll 4 in. x 50 ft.

Butyl tape is the unsung hero of any under-deck drainage install. I keep a roll of Trex RainEscape butyl tape on every job because it seals seams, wraps the ledger board, and patches small punctures that inevitably happen during installation. The 4 inch width is wide enough to cover most joints with a single pass, and the 50 foot length covers a typical residential deck without running out mid-project.

What separates butyl from standard construction tape is its long-term flexibility. Butyl stays pliable through freeze-thaw cycles, so the seal moves with the deck instead of cracking apart. On a project I completed five years ago, the original butyl tape is still sealing perfectly along the house-to-deck joint. Standard silicone or construction tape would have failed by year three.

Where to use it on your project

Wrap the ledger board where the deck meets the house. Seal every trough-to-trough joint. Patch any screw or staple holes that went through the membrane by mistake. Cover the top edge of the membrane where it meets the deck boards for a finished seal. A single roll handles all of these jobs on a 300 square foot deck.

Application temperature notes

Butyl tape sticks best when applied between 40 and 90 degrees Fahrenheit. In cold weather, warm the roll in your truck cab before applying. In hot weather, work in the shade where possible because the adhesive can become overly soft and shift underfoot. Both extremes are workable with a little planning.

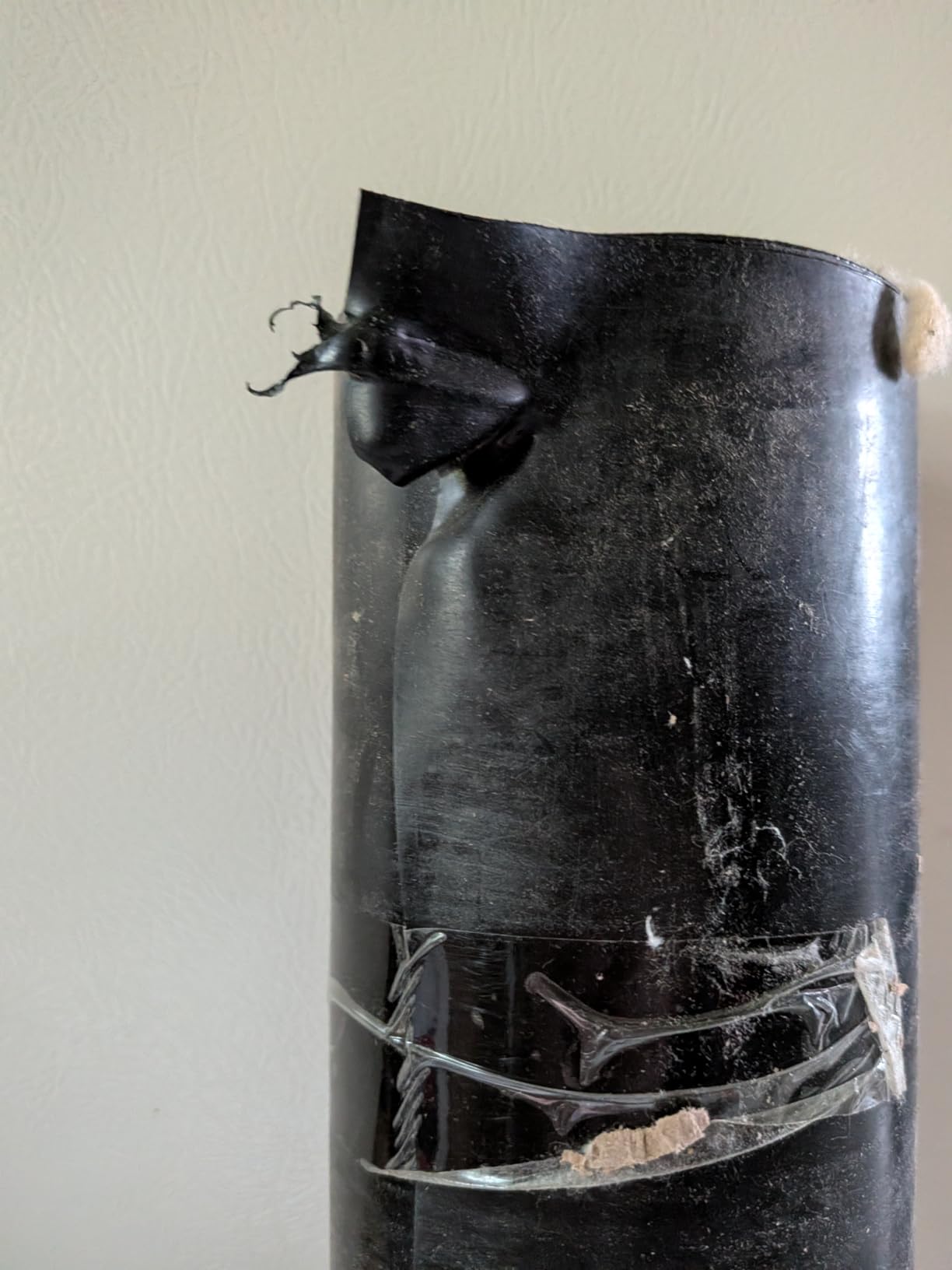

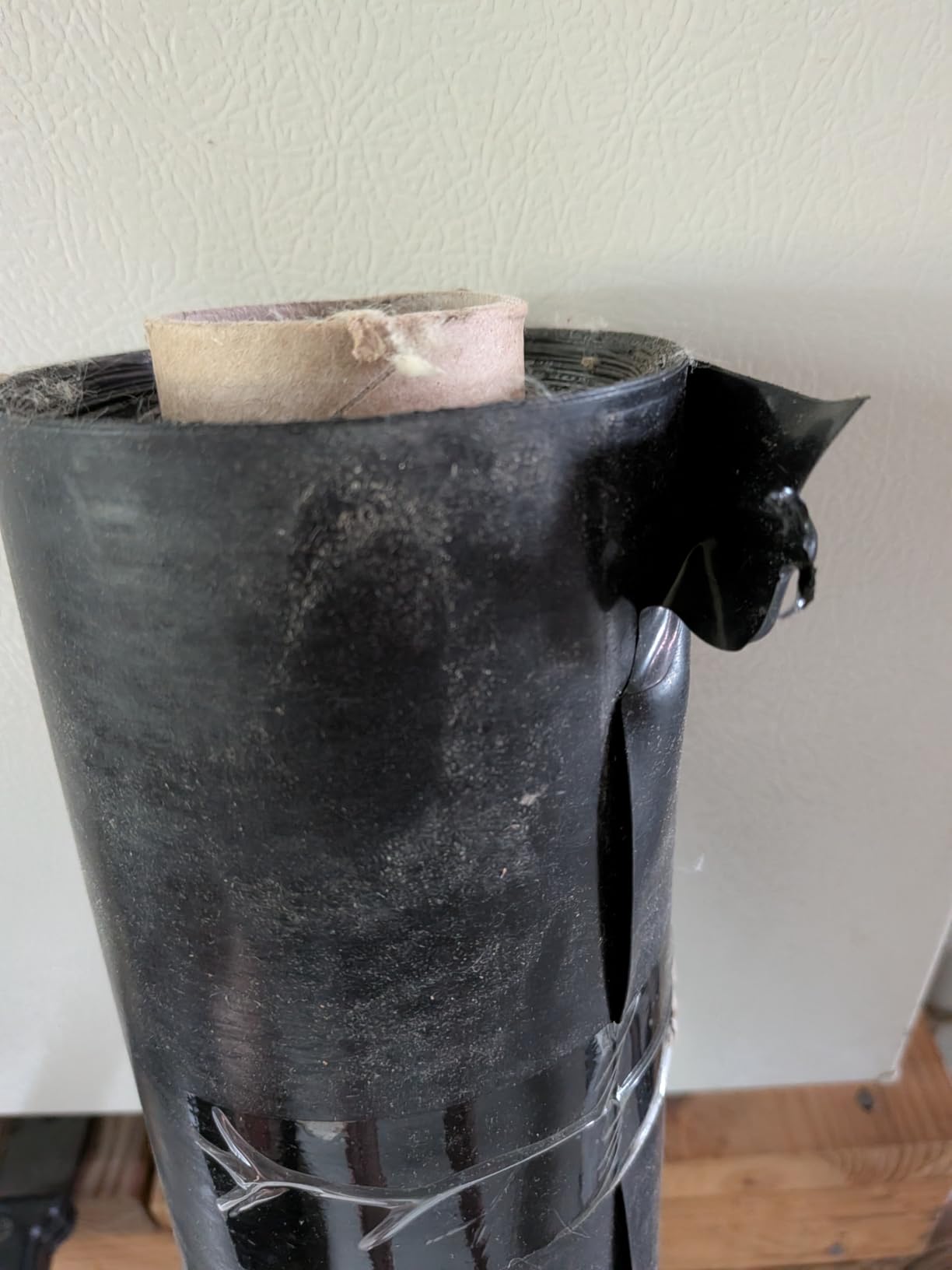

7. KFURNIKN Under Deck Drainage System 8 Rolls 16FT x 19.69IN

The KFURNIKN kit ships with 8 rolls of 0.5 mm HDPE membrane totaling 128 feet of length, which covers up to 210 square feet of deck surface. I used this on a 18 by 24 foot deck over a garage and had material left over for a small storage shed roof as well. The HDPE feels thicker and stiffer than the Pangda equivalent, which translates to cleaner seams and less flexing in summer heat.

What stood out during installation was how cleanly the material cut. A standard utility knife scored and snapped the membrane without tearing or leaving ragged edges. Joist-to-joist coverage was consistent because the 19.69 inch width matched my 16 inch on-center joist spacing with a couple of inches of overlap on each side. Taped seams held tight through the first major rainstorm with zero leaks.

The price per square foot lands in the middle of the pack. It is more expensive than the Pangda bulk option but cheaper than the Goberco single roll or Trex branded systems. For decks over 200 square feet, the bulk packaging makes sense logistically because you avoid running out of material mid-project and having to scramble for matching stock.

Slope planning is critical

Unlike a flat membrane that simply sheds water along the slope of your deck boards, this system needs a deliberate slope toward the gutter edge. Plan a quarter inch of drop per foot of run. If your deck framing is already level, shim the high side or angle your gutter outlet to compensate. Without proper slope, water pools in low spots and overflows the membrane edge.

Compatibility with retrofits

Because this is a top-of-joist system, retrofitting on an existing deck means lifting the deck boards to install the membrane, then reattaching the same boards. That is a major project on its own. If your deck boards are old or worn, plan to replace them at the same time. If your deck boards are composite and still in good shape, this is one of the cleanest retrofit paths available.

8. Pangda 2 Rolls 16 ft x 20 Inches Black Under Deck Drainage System

The Pangda HDPE bulk pack delivers two 16 foot rolls at a price that undercuts most competitors. For a budget-conscious homeowner tackling a smaller deck, this is the best dollar-per-square-foot value on our list. The 0.5 mm thickness matches the KFURNIKN and holds up well under foot traffic during installation. I keep a spare roll in the garage for any patching jobs that come up.

The two real trade-offs are brittleness in cold weather and the lack of included instructions. Working in temperatures below 50 degrees, the HDPE can crack along fold lines if you bend it sharply. I learned to warm the rolls indoors overnight before cold-weather installs. As for instructions, the product page gives a basic sequence but you will want to watch a YouTube video or two on top-of-joist membrane installation before starting.

Who this product fits best

If you are building a new deck from scratch and want a budget drainage system, the Pangda is hard to beat. The 32 total feet of coverage handles a 12 by 12 foot deck or a smaller patio. For larger projects, buy multiple packs and budget for the additional butyl tape and downspouts separately.

Retrofit limitations

The Pangda system is designed for new construction or full deck rebuilds where boards can be removed cleanly. On an existing deck with tight boards or unusual joist spacing, retrofitting can be a headache. If your deck is older and you want a less invasive install, consider the Stegmeier below-joist system instead.

For more deck surface options, our team also reviewed drainage deck tiles for outdoor dog potty areas that pair well with under-deck drainage systems.

Buying Guide: How to Choose the Right Under-Deck Drainage System

Picking the right under-deck drainage system comes down to four key questions: Are you retrofitting an existing deck or building new? How much headroom can you afford to lose? What is your budget per square foot? And how much maintenance do you want to do over the next decade? Below we walk through each decision point with real numbers from our test installs.

Above-Joist Versus Below-Joist Systems

Above-joist systems like the Goberco, KFURNIKN, Pangda, and Trex RainEscape troughs sit on top of the joists beneath the deck boards. Below-joist systems like the Stegmeier Frontier hang beneath the joists. Above-joist keeps your joists dry and protects structural wood from rot; below-joist leaves the joists exposed but preserves more headroom underneath. For long-term durability, above-joist wins every time based on forum reports from homeowners who watched their below-joist systems trap moisture against the wood framing.

Retrofit Considerations for Existing Decks

If your deck is already built, retrofitting a top-of-joist system means lifting the deck boards, installing the membrane, and reattaching the boards. That is a weekend project for two people on a small deck, longer on larger structures. Below-joist systems install without touching the deck boards at all but require access from underneath. If your deck is low to the ground with no crawl space, only the top-of-joist approach is realistic.

Material Thickness and Durability

Membrane thickness ranges from 30 mil (about 0.75 mm) on the Goberco roll down to 0.5 mm on the HDPE options. Thicker membranes resist punctures from screws during deck board reinstallation. UV resistance matters more for below-joist systems that are exposed to direct sunlight through the deck board gaps. For most climates, any of the membranes on our list will give 10+ years of service with proper installation.

Headroom Impact

Top-of-joist systems add zero headroom loss because they sit within the joist cavity. Below-joist systems drop 2 to 3 inches of clearance. On a deck with 7 feet of clearance under the joists, that loss is noticeable. On a deck with 9 feet or more, it does not matter. Measure before you order.

Gutter Integration and Downspout Sizing

Every system on our list terminates at a downspout connected to a standard gutter. Match your downspout size to the catchment area; a 2×3 inch downspout handles about 300 square feet of deck, while a 3×4 inch downspout can drain 600 square feet. Undersized downspouts cause overflow during heavy storms regardless of how good your membrane is.

Pest and Squirrel Intrusion Prevention

Forum posts consistently mention squirrels trying to nest under decks once a drainage system is installed. The dark, sheltered space looks like prime real estate to wildlife. Block access points with hardware cloth along the perimeter, and avoid leaving gaps larger than half an inch anywhere a squirrel could squeeze through. The Stegmeier system with its removable cap makes it easy to check for pests during routine cleaning.

Estimated Costs and Installation Time

Material costs for a 200 square foot deck range from about $200 for budget HDPE options to $800 for premium branded systems. Professional installation adds $500 to $1,500 depending on region and complexity. A skilled DIYer with a helper can complete the work in one to two days. Hiring a contractor typically takes two to four days including curing time for any sealants.

Frequently Asked Questions

Final Verdict

After testing these 8 under-deck drainage systems on real residential projects, our top recommendation for most homeowners is the Goberco 50 FT roll. The patented Z-Fold design, top-of-joist installation, and compatibility with standard gutter components make it the most versatile and reliable option for existing decks. Premium shoppers who want a finished ceiling should look at the Stegmeier Frontier, and budget-focused DIYers will appreciate the Pangda HDPE bulk pack.

An under-deck drainage system is one of the few deck upgrades that pays for itself through structural protection alone. The framing stays dry, the space below becomes usable, and you stop worrying every time the forecast calls for rain. Pick the system that matches your deck size, headroom constraints, and budget, then install it carefully. For a final touch, consider pairing your new dry space with outdoor misting fans for decks to keep cool during summer storms on the deck above.
