12 Best Waterproof Shade Sails (October 2026) Reviewed

Most shade sails fail at the same job: keeping rain off a patio. A waterproof shade sail only works when three things line up — a heavy fabric weight, a sealed seam construction, and a steep enough pitch that gravity carries water off instead of letting it sit in the middle. Buy a thin coated sail and hang it flat and you will have a heavy, sagging tarp that drains into one corner. That is the failure we kept hearing about while reviewing these twelve, and it is the reason this roundup is organised around fabric weight, coating type and anchor configuration rather than size alone.

We looked at twelve waterproof shade sails across rectangles, squares and triangles, from 160GSM polyurethane-coated polyester up to 220GSM coated PES, with UV blocking from 95% to 98% and stated water pressure ratings from 400 kPa to 600 kPa. What follows is what the specs actually mean in a real yard, not what the product photos imply. For general shade sizing help, start with our patio shade sail guide before you narrow to waterproof fabric.

Three questions decide almost everything: what shape and dimensions your anchor points can actually support, whether you are attaching to posts, a wall or a tree, and how much structural load your existing frame will take. A waterproof sail is a solid membrane, so it catches wind that mesh shade cloth simply passes through. If your posts were set for a breathable mesh sail, they are probably undersized for a coated one. If you are still working out the basics of coverage, our triangle shade sail comparison covers the shape question in depth.

Top 3 Picks for Best Waterproof Shade Sails

Quick Overview: Best Waterproof Shade Sails in 2026

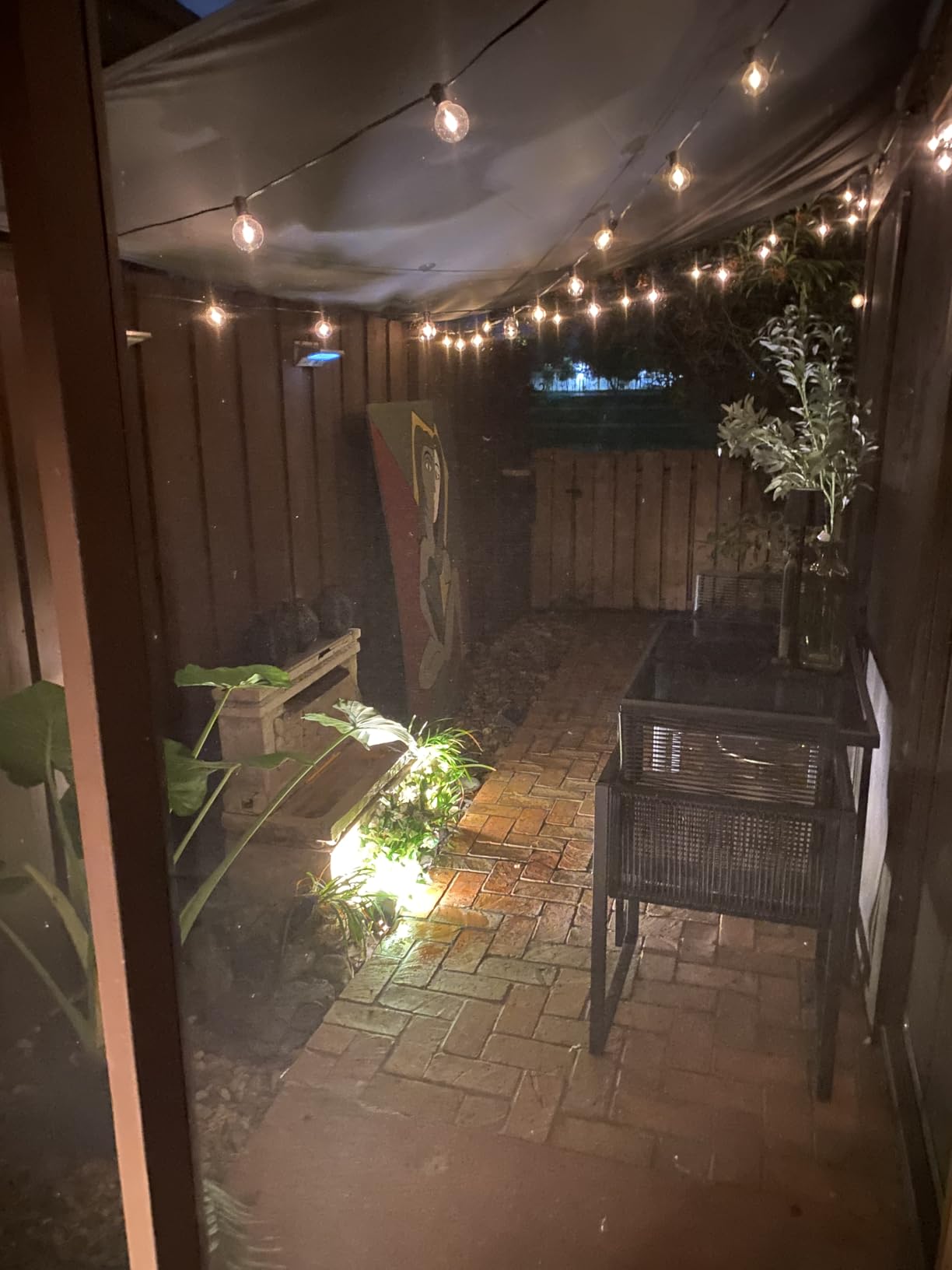

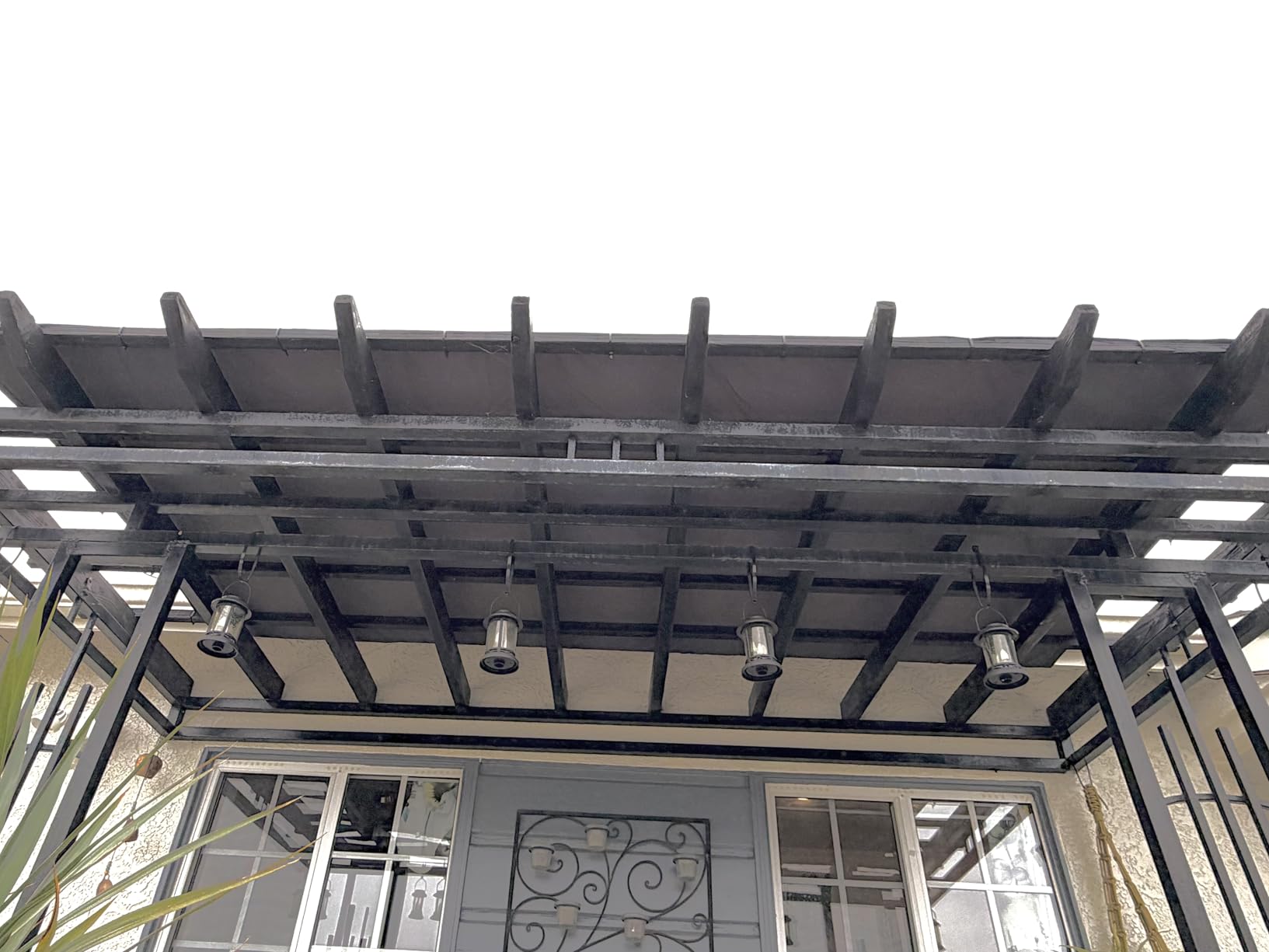

1. LOVE STORY 10 x 13 Waterproof Rectangle — Best Overall for Rain Shedding

This is the sail we would put over a dining table in a climate with regular summer storms. The fabric is 160GSM polyester with a polyurethane coating, which is the lightest of the coated constructions in this roundup, and the seams are joined with hot-melt adhesive rather than thread alone. That seam detail matters more than the fabric weight for rain performance, because a stitched seam on a coated fabric is the first place water finds a path.

The stated 400 kPa water pressure resistance is a real figure, not marketing filler, and 98% UV blocking puts it at the top of the range here. Reviewers consistently single out the UV performance, and the custom sizing option means a non-standard yard does not force you into a standard rectangle.

The one consistent complaint is installation angle. The manufacturer’s own guidance is a 30-degree pitch with maximum tension for water runoff, and buyers who ignored that ended up with a sagging centre. Two other details to plan around: no hardware is included, so add rope, D-rings or turnbuckles to your own list, and the stated size carries a plus or minus 2 inch tolerance between rings.

At 130 square feet and 2.31 kg, it is substantial enough to shade a table and a couple of chairs without needing a heavy frame, but light enough for two people to rig. If your posts are set in concrete, this is a straightforward fit.

Is it right for your patio or deck

It suits a covered dining area, an outdoor kitchen or a deck corner where you want shade plus light rain protection without building a permanent structure. We recommend it to anyone who wants the highest confidence rating in the group and has posts that can accept a proper turnbuckle tension.

If your space is a balcony with only weak railing posts, look at a smaller triangle instead. A 10 by 13 rectangle on four short posts puts real load into those anchors, and the extra coverage does not compensate for a weak frame.

Where buyers see problems

Under-tensioning is the recurring theme, and it produces a slow sag that concentrates weight in the middle. Buyers also report that hardware purchased separately is easy to undersize, so match the rope and ring rating to the sail rather than grabbing the cheapest pack.

Owners in storm-prone areas are candid that this is not a hurricane-season solution. One reviewer described it as poor in heavy rain and wind, which matches the spec sheet rather than contradicting it. Treat it as a rain-shedding sail, not a storm shelter.

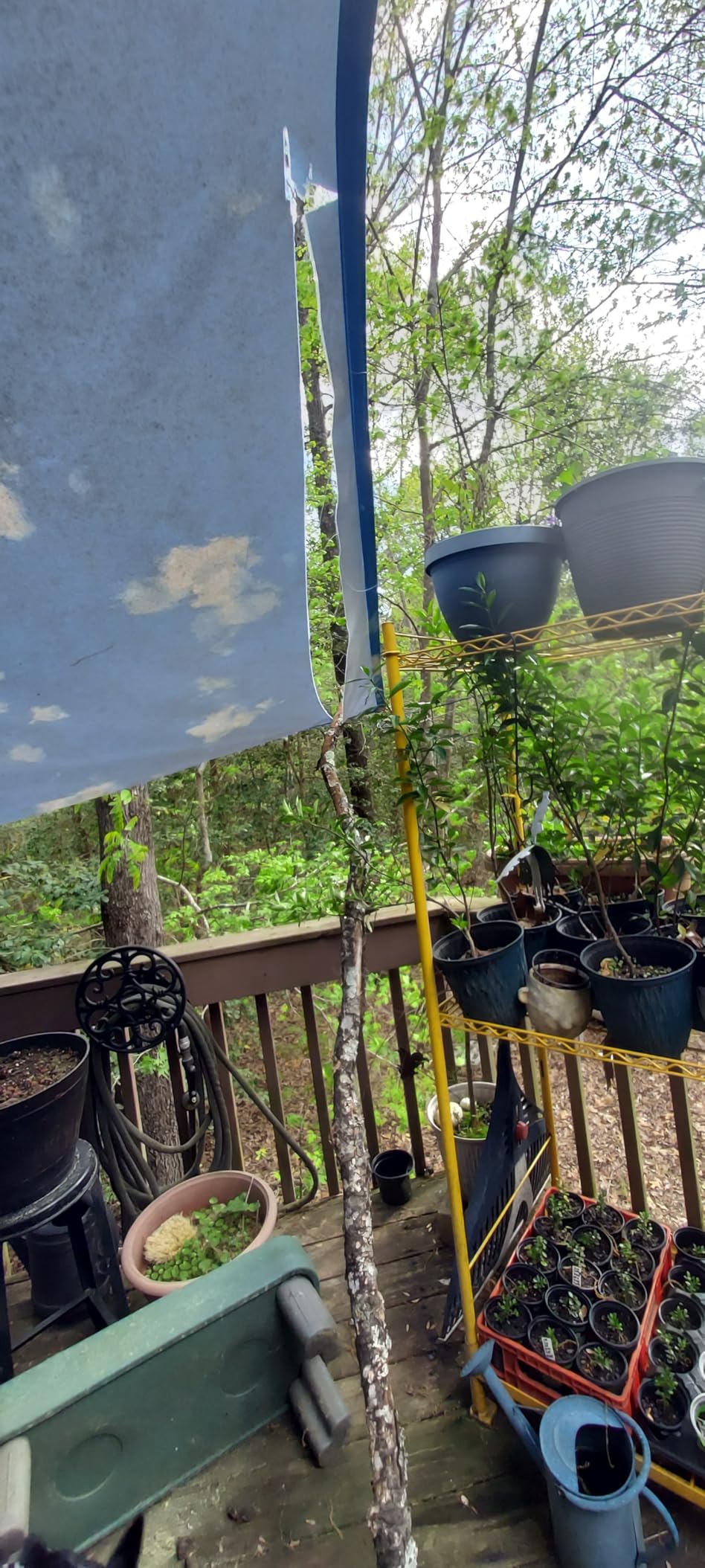

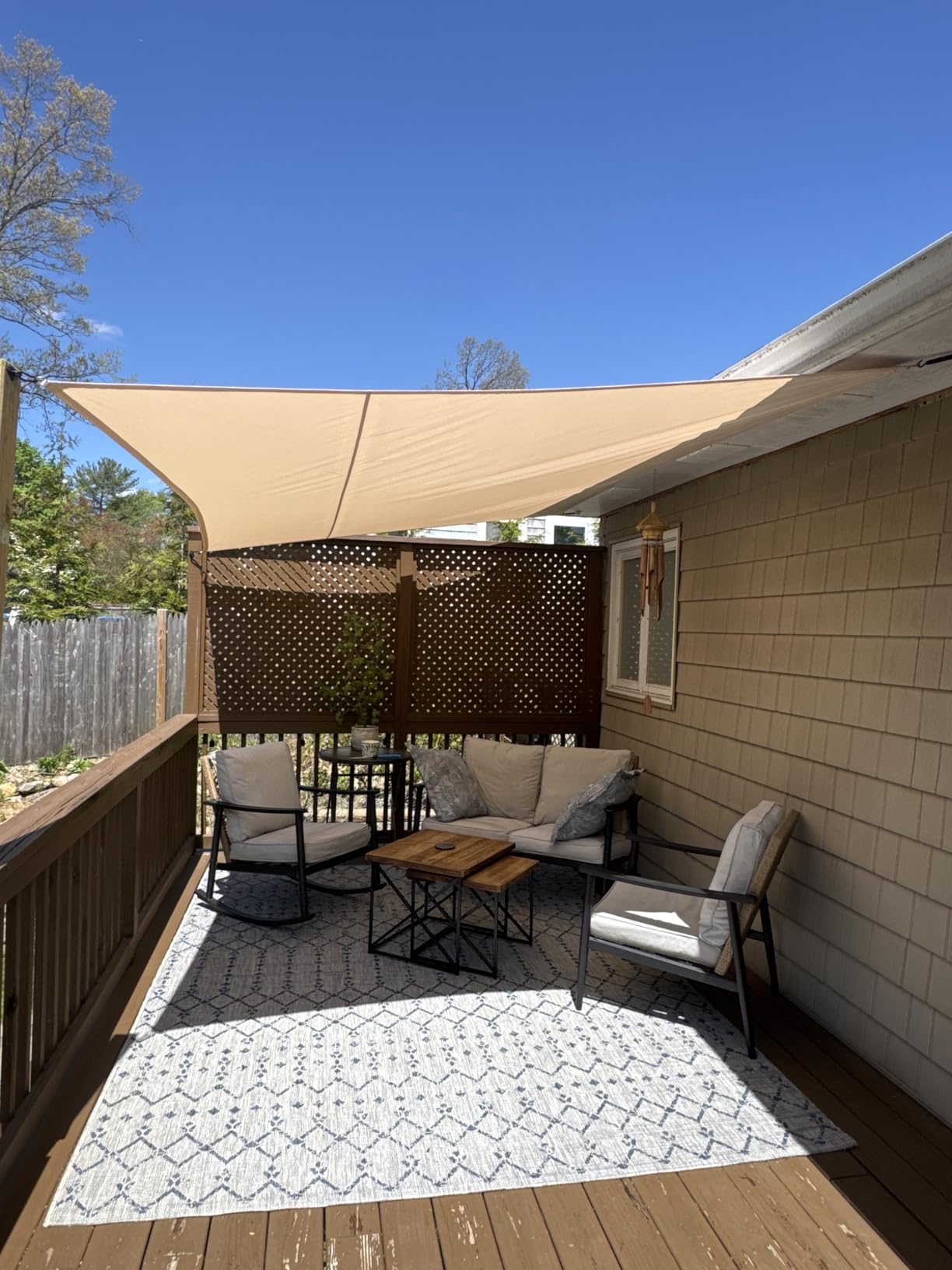

2. Patio Paradise 10 x 15 Rectangle — Best for Pergola Roofs

This is the most straightforward listing in the group. It says water resistant, not waterproof, and that word choice matters for anyone standing under it in a downpour. What it does well is sealing: additional waterproof strips at the fabric joints and double reinforced stitched seams are exactly the two areas that leak first on a coated sail.

At 180 by 120 inches it covers about 150 square feet, which makes it a sensible match for a pergola roof opening where you want shade without a contractor. The curved edge design increases tensile strength and helps hold shape, and the fabric is described as resisting fading and white creases after being folded.

The stretchiness is the detail to understand before you measure. Dimensions are given when the fabric is stretched taut, so a relaxed panel measures smaller, and a wet panel sags further. Buyers planning a fixed frame should measure the frame, not the sail, and leave a 1.5 to 2 foot gap between each D-ring and the fixing point.

Multiple sizes and colours are offered, and a 3-year limited warranty backs the fabric. The listing also insists on a tilt angle to reduce water accumulation, which is the same physics rule every coated sail on this page carries.

Is it right for your outdoor space

It works well above a pergola, a covered porch or a patio dining set where the frame is already rigid and the sail just needs to span an opening. Because the fabric is stretchy, it self-tensions a little once loaded, which is helpful on a non-square frame.

It is a weaker fit if rain protection is the main goal. Water resistant coating handles drizzle and passing showers; sustained rain will track along the low catenary edge and drip from the corners.

Where buyers see problems

Buyers most often report the difference between the advertised size and what arrives slack, which is a measurement misunderstanding rather than a defect. The water resistant versus waterproof distinction also draws occasional disappointment from people who read the title alone.

Hardware is not included, so budget separately for rings and rope. A 150 square foot panel on screw hooks rather than concrete-set posts is the combination we would avoid.

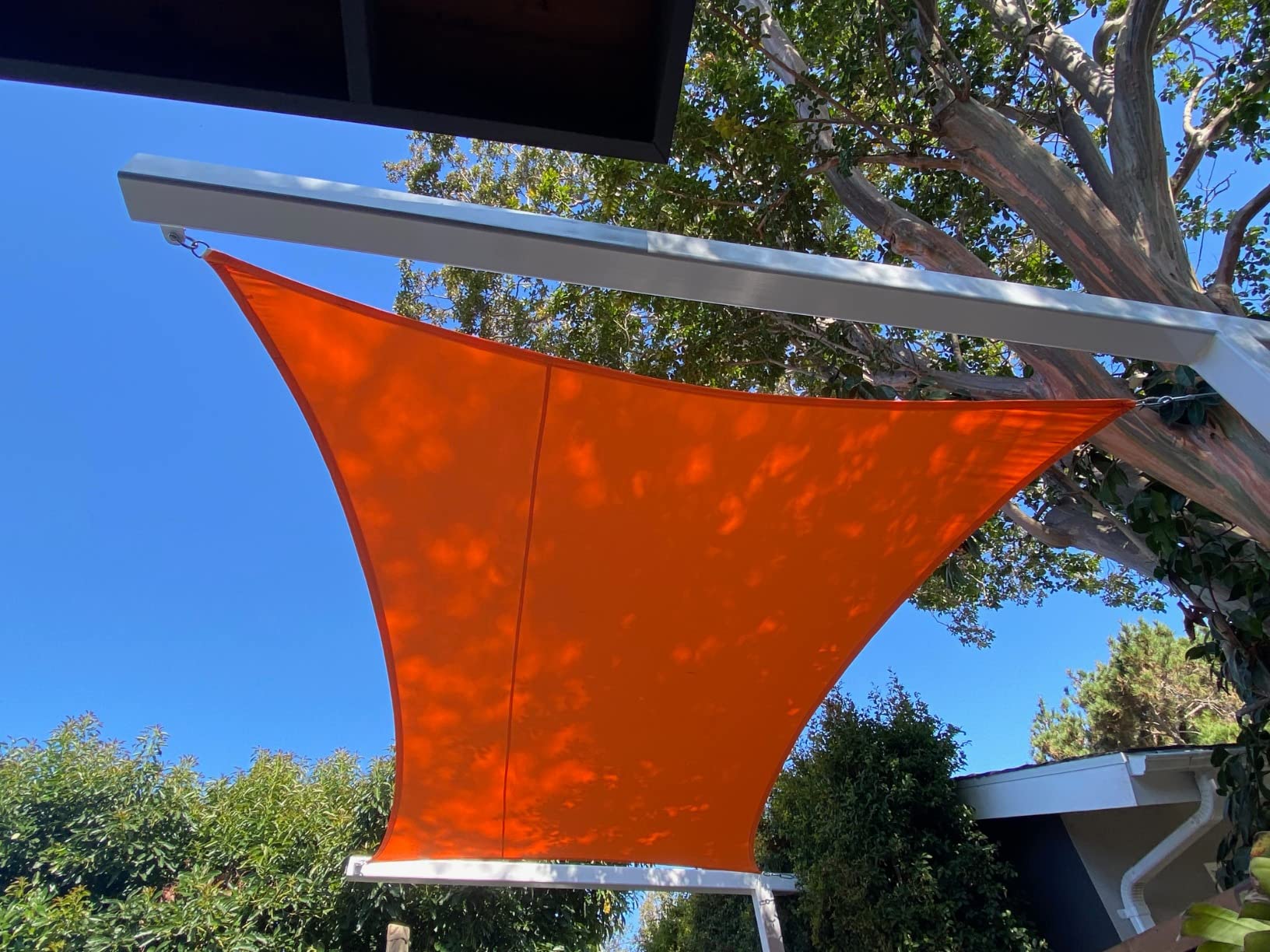

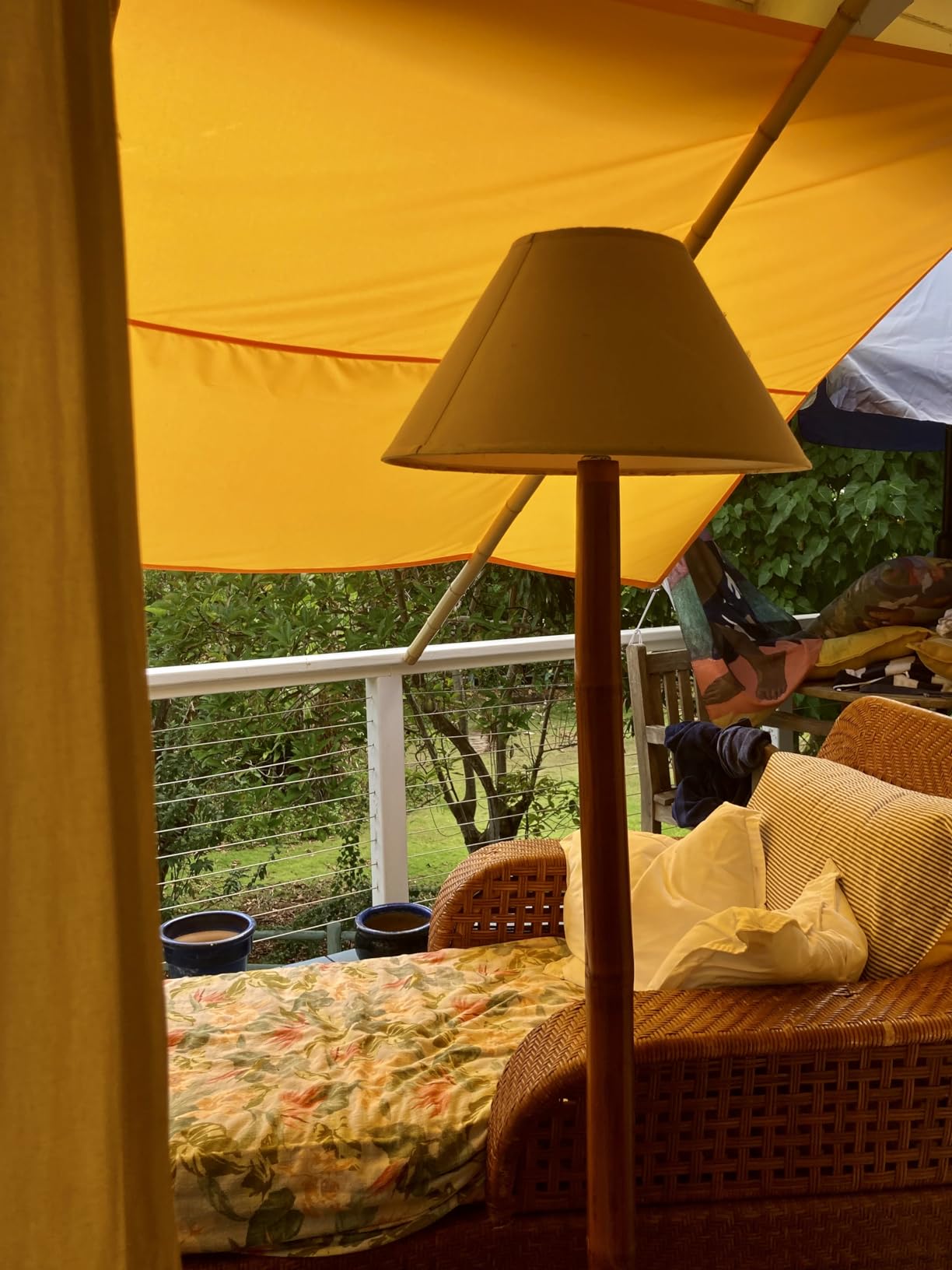

3. ColourTree 7 x 12 Waterproof Rectangle — Best Value

This is the fabric we would want on a sail that has to survive a full season of sun and summer rain. 220GSM polyester with a thick polyurethane coating is among the heaviest constructions here, and heavier coated fabric resists both UV degradation of the coating and the stretching that lets a sail bag in the middle. Curved edges keep the panel tensioned across its whole face rather than only at the corners.

The listing is specific about drainage: a 20 to 40 degree tilt prevents water pooling. That instruction is consistent across this brand’s whole range, which tells you the company expects owners to think about pitch rather than just hang a panel.

Two honest caveats. Some buyers note that the rectangle is pieced from seamed panels rather than cut from a single length of fabric, and that the centre measures about 5 foot 5 inches rather than the full 7 foot width. For a dining table that is fine; for a full-width carport it is not.

At 1.59 kg this is a light sail for its fabric weight, so it does not punish a mid-range post set. Custom sizing is available, and a 3-year performance support window backs the coating. Light colours such as beige are the recommended finish because they reflect rather than absorb solar heat.

Is it right for a standard backyard

It is our pick for a typical suburban backyard where the frame is wood posts in concrete and the goal is year-round shade with summer rain cover. 7 by 12 covers a rectangular table and chairs with a little overhang, and the light weight makes a two-person install realistic.

Choose a triangle from the same range instead if your anchor points are only three, or if you want to layer coverage across an irregular yard. Pair this rectangle with a second smaller sail rather than stretching one panel too far.

Where buyers see problems

The high-wind warning is explicit in the specs, and we would repeat it. A sealed 220GSM panel acts like a small sail in the literal sense, and a gust that a mesh cloth would pass through will load the anchors hard.

The narrower centre width and the seamed construction are the other two recurring points. Buyers who expected a single-piece panel should look at a triangle sail, where a single cut is easier to achieve.

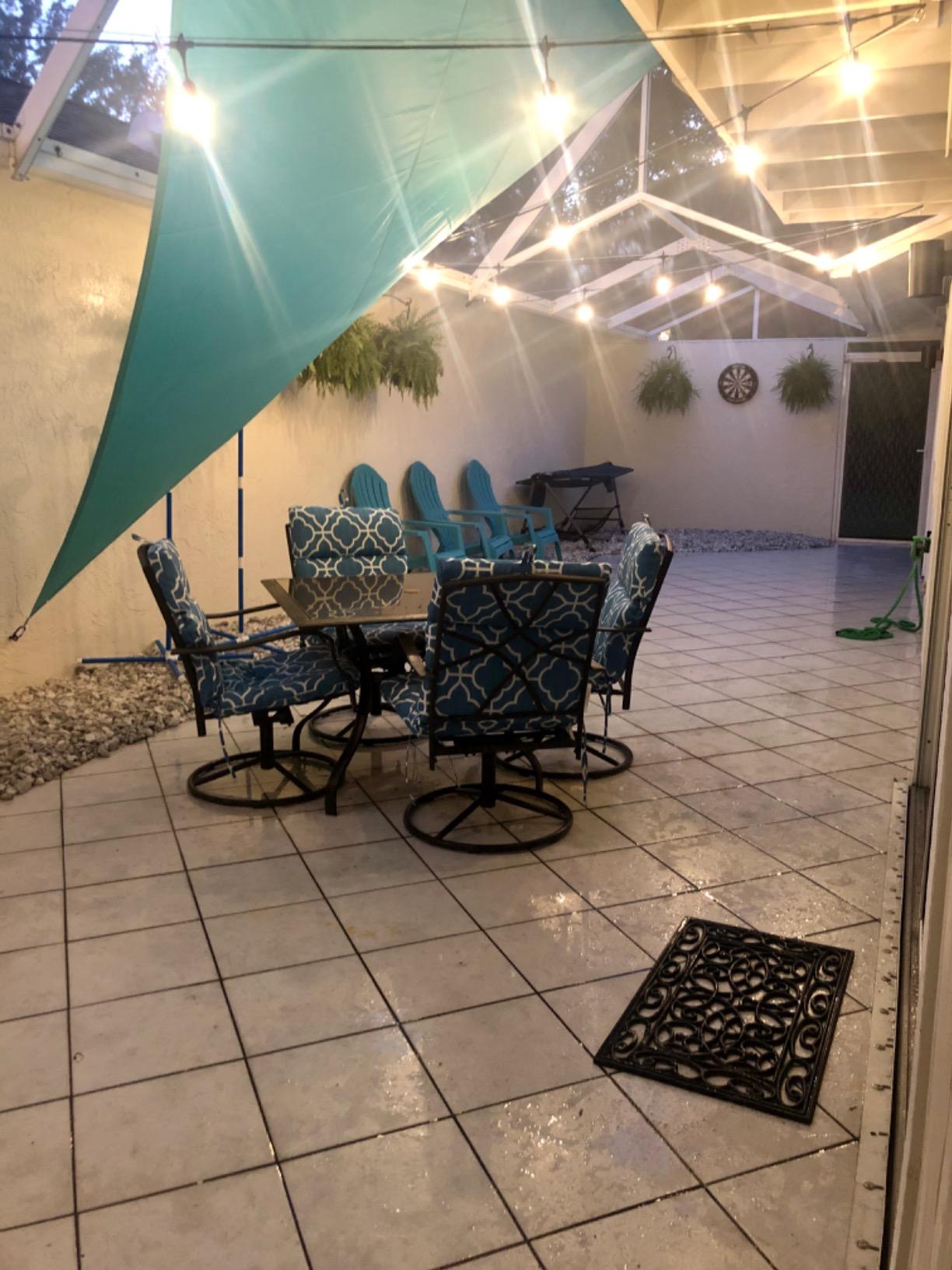

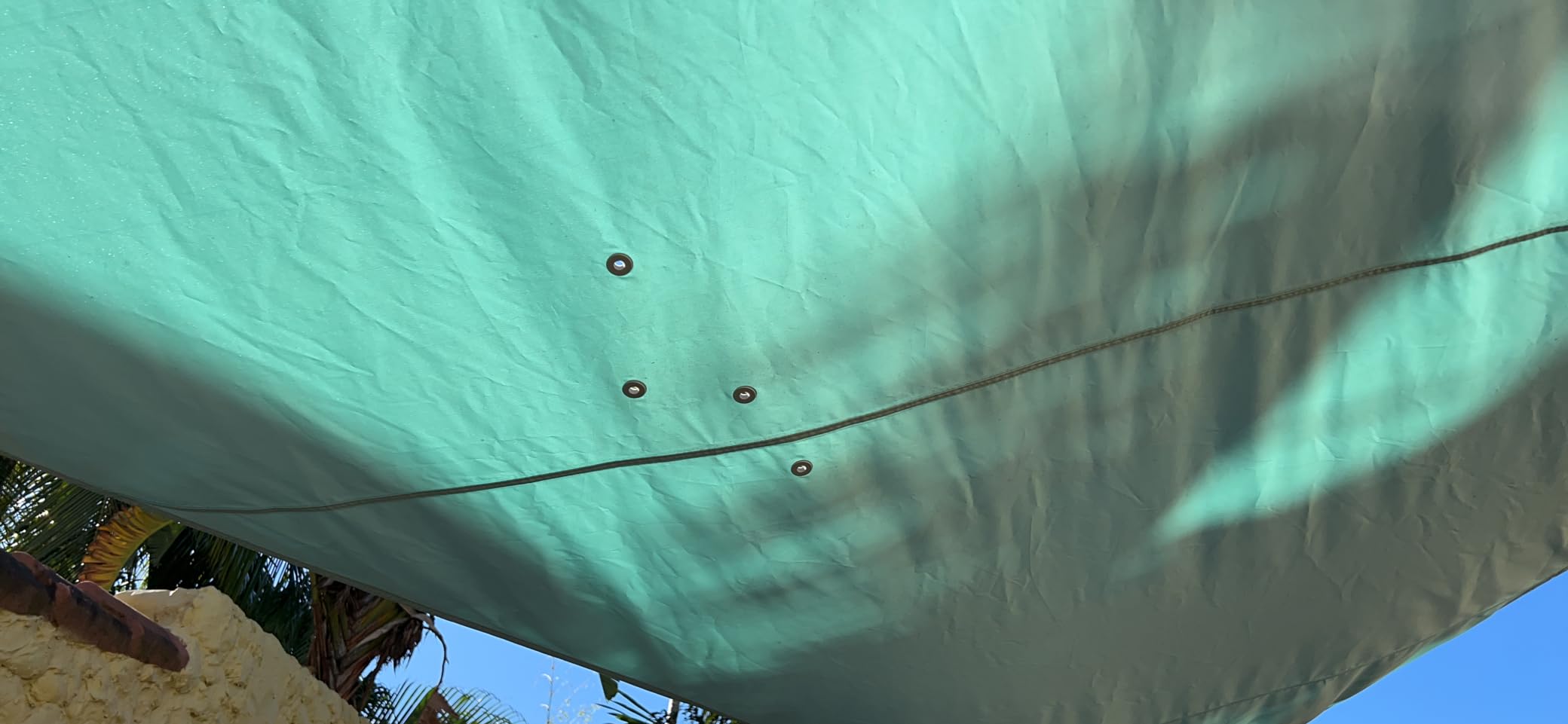

4. ColourTree 16 x 16 x 16 Waterproof Triangle — Best for Custom Sizes

A 16 foot triangle is one of the largest single panels in this roundup, and it is the shape most owners choose when they only have three good anchor points. With 220GSM PU-coated polyester and a UPF50 rating, this is one of the most serious UV specifications on the page: 95% of UV rays blocked across the fabric, not just at the edges.

Curved edges do the quiet work here. On a triangle, a straight edge would belly out between corners, so the curve keeps the surface under even tension and flat, which is also what lets water run to the low corner instead of sitting in a hammock.

The custom sizing option is what makes this interesting. Non-rectangular yards, an odd-shaped patio or a walkway that does not fit a standard panel can be covered without accepting a compromise size, and the same 20 to 40 degree tilt guidance applies as on the rectangles.

Buyers generally rate the coating and the colour hold-up positively, and the 3-year support window is one of the more generous commitments in this category. The fabric is described as premium grade with fade resistance built in, and the panel is crafted in American facilities.

Is it right for a large or awkward yard

It suits a three-sided space — between a house wall and two posts, or across an open yard corner — where a rectangle would need a fourth anchor nobody can provide. It also layers well, because triangles can be overlapped to build graduated shade over a seating area.

Plan the anchor geometry carefully. Every load in a three-point sail passes through each corner, so the hardware and posts should be rated higher than for a four-corner rectangle of the same area.

Where buyers see problems

The single most repeated caveat is wind, and the brand says so itself. Beyond that, buyers note the triangle shape may not suit a space that really needs a rectangle, such as a long table along a fence.

Light colours are recommended for longevity, and a darker triangle will run hotter. If the pitch is not set, water gathers at the centre regardless of fabric weight, which is a geometry problem rather than a product defect.

5. Artpuch 10 x 13 Waterproof Rectangle — Most Compact for Small Spaces

The 600 kPa static water pressure rating is the highest in this roundup, and that number comes from the spec sheet rather than a marketing roundup of somebody else’s numbers. Combined with 98% UV blocking, this is the most capable rain specification at the entry level of the group.

Fabric is 185GSM polyester with a PU waterproof coating and UV protection particles integrated into the weave. Splice seams are reinforced with additional waterproof coating, and all four corners get reinforced stitching, which are the two places a cheaper sail usually fails first.

Install it at a 20 to 40 degree angle and leave 1.5 to 2 feet of margin for hardware at each corner. Curved edges improve tension, and the tear-resistant fabric is described as handling light to moderate rain, which is an honest limit rather than a claim of storm protection.

At 4.6 pounds it is light enough to handle alone, and custom sizing is available for odd dimensions. The material is also described as eco-friendly, though buyers tend to focus more on the corner reinforcement than anything else.

Is it right for a first waterproof sail

This is where we would start. If you have never hung a coated sail before, the combination of the highest water pressure rating, reinforced corners and a light 4.6 pound weight makes installation mistakes more forgiving. A patio set or a balcony corner is plenty big enough to learn on.

It suits renters and temporary setups too, since a lighter panel is easier to take down between seasons. Just make sure whatever you attach to can take the wind load of a solid membrane.

Where buyers see problems

The coated side has to face upward. Flipped the wrong way, the fabric looks similar but performs poorly, and that is the most common setup error reported for coated sails of this type.

Splice lines are visible on the surface. That is normal for a coated and spliced panel rather than a defect, but buyers who expected a seamless surface are disappointed. Hardware is not included, so add it to the same order.

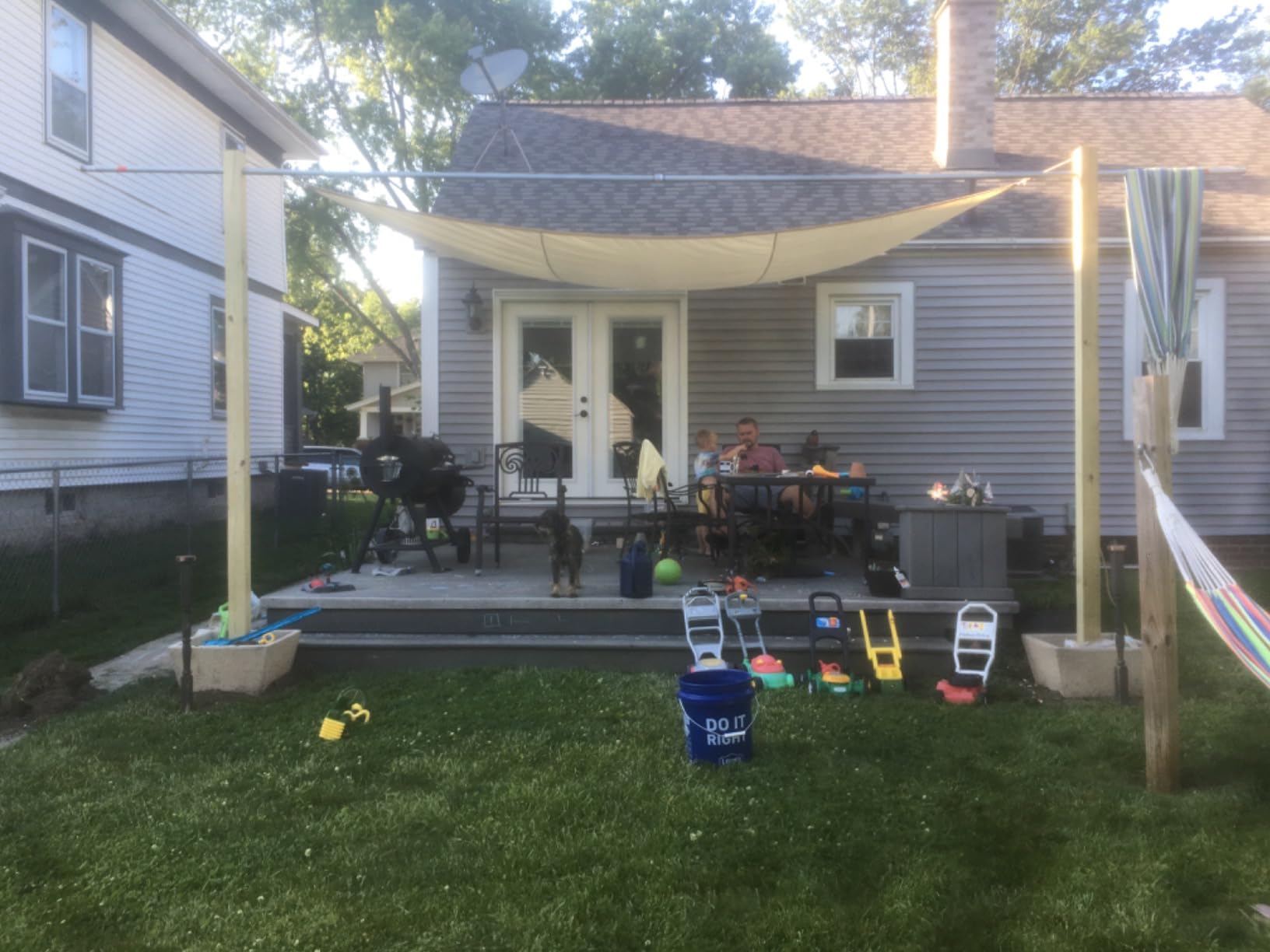

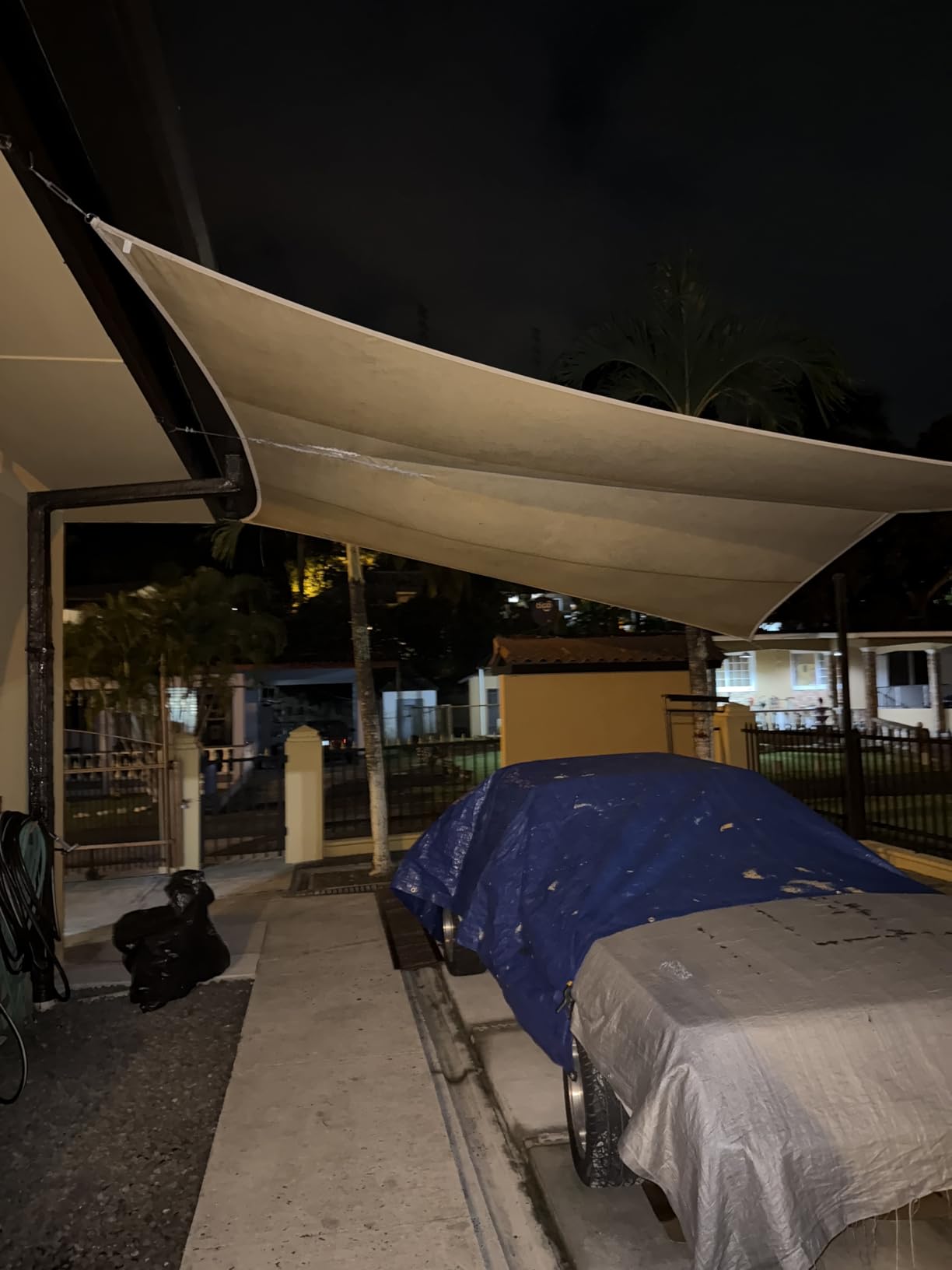

6. Amgo 14 x 14 Waterproof Square — Best for Large Patios

A 14 by 14 square is the right shape when the anchor points are four square corners rather than a wall-and-post arrangement. This panel covers about 196 square feet of gross area and blocks 98% of UV rays through 220GSM polyester with a thick PU coating.

Concave borders are the detail worth understanding. The inward curve on each side lets the fabric pull taut between corners instead of sagging in a curve, which keeps water moving toward the low edge and reduces the flapping that loosens stitching over time.

Owners report the centre coverage being roughly 6 feet wide even though the full panel measures 168 inches corner to corner. That is normal for any tensioned square and matters if you are shading a long table rather than a square patio set.

Fade is the other honest caveat, with buyers in intense southern sun reporting colour change over time. The manufacturer’s guidance is to use light colours, and beige is the option that ages best. At 3.33 kg this is a panel you will want a second person to help you lift, so plan the install around that.

Is it right for a big square patio

It fits an open square courtyard, a poolside deck with four clear corners, or a dining area you want covered on all sides rather than against a wall. Custom sizing means a square that does not match a standard dimension can still be ordered.

Because the square needs four well-separated anchor points, it is less forgiving than a triangle in a tight yard. Measure your available run between posts before committing, and keep the posts in concrete.

Where buyers see problems

The most common report is pooling when one side is not lowered during rain. Water needs a downhill path, and a flat four-corner mount gives it none. Buyers who followed the 20 to 40 degree angle guidance reported much better results.

High wind is explicitly excluded by the brand, and colour fading in strong sun is the second complaint. Both are documented in the reviews rather than hidden, which is a point in the listing’s favour.

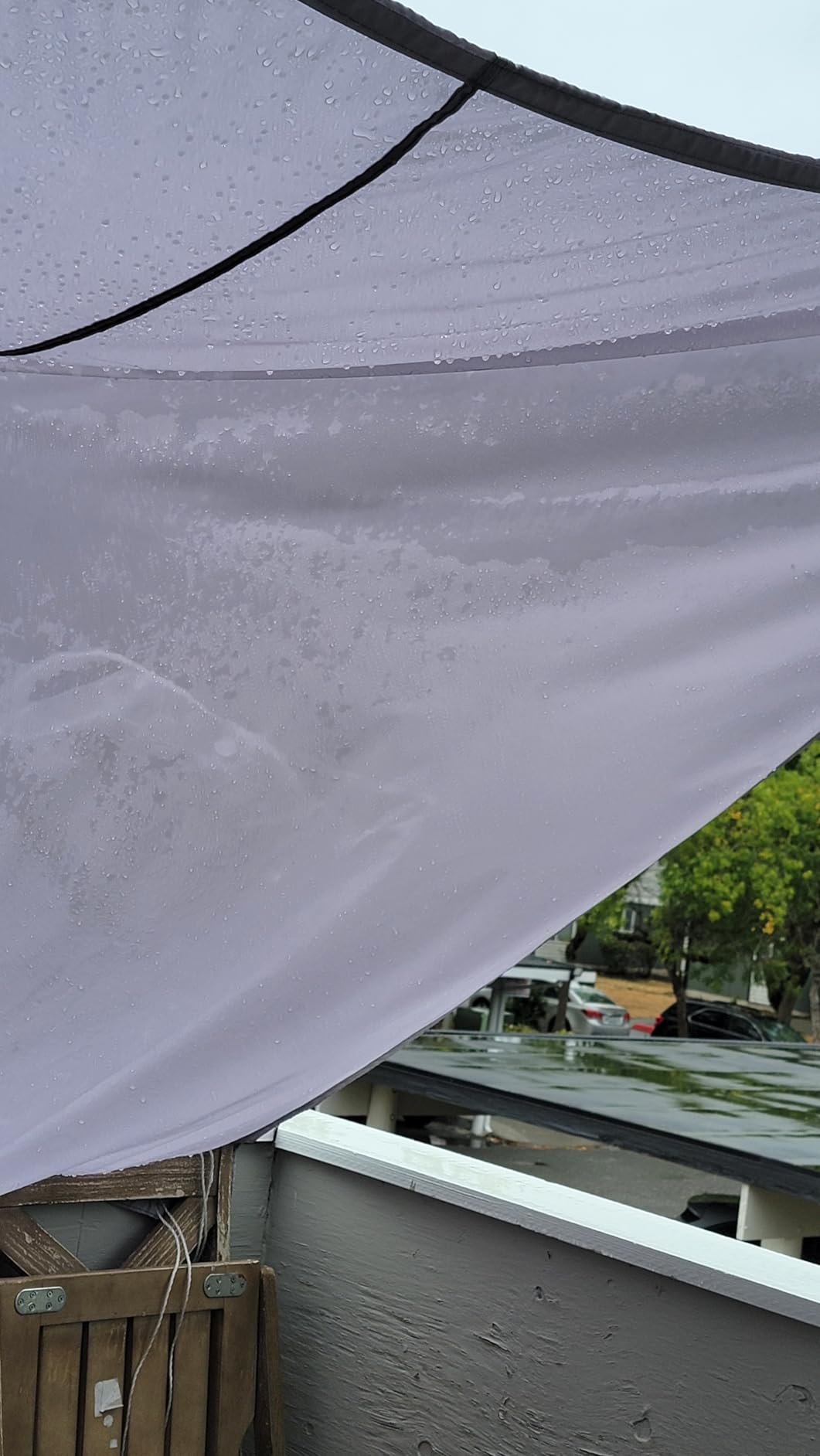

7. Vexoria 12 x 16 Waterproof Rectangle — Best for Breathable Rain Shedding

This is one of only two panels in the roundup built on coated HDPE rather than coated polyester, and that single difference changes the character of the whole sail. HDPE is a woven high-density polyethylene, so the fabric stays breathable and passes breezes through while the coating sheds rain. In a hot patio, that matters more than the raw waterproof rating.

Install at 25 to 40 degrees and measure D-ring to D-ring, allowing 1.5 to 2 feet for hardware. Installation ropes are included in the box, which removes the most common piece of the shopping list, though the mounting hardware itself is separate.

Reviews on this one are genuinely split, and we would rather say so than smooth it over. Owners in rainy climates report excellent performance when the angle and tension are right. Others report the fabric stretching under standing water and, in a few cases, tearing in wind.

At 12 by 16 feet gross, this is one of the larger rectangles in the roundup, and the custom sizing option covers a non-standard span. Measure D-ring to D-ring rather than edge to edge, since the fabric relaxes when wet.

Is it right for a warm, breezy patio

It suits a covered seating area in a hot climate where you want shade and rain cover but still want air moving underneath. A sealed polyester panel will hold heat in a way a breathable HDPE weave will not, and buyers in the Pacific Northwest were among the most positive about real-world rain performance.

Choose it over a polyester panel if your main frustration with existing shade is still heat. Choose a polyester sail instead if your main frustration is pooling, because a coated weave is the more predictable surface for heavy water.

Where buyers see problems

Stretching is the recurring issue. HDPE relaxes when it stays wet for long periods, and a stretched panel loses the curve that keeps water moving. Retensioning it each spring is part of owning this type of sail.

Reports of tearing in wind also appear, and the splice lines are visible. The 4.0 rating across 155 reviews reflects a genuinely mixed experience, so we would treat this as a lighter-duty option than the 220GSM panels.

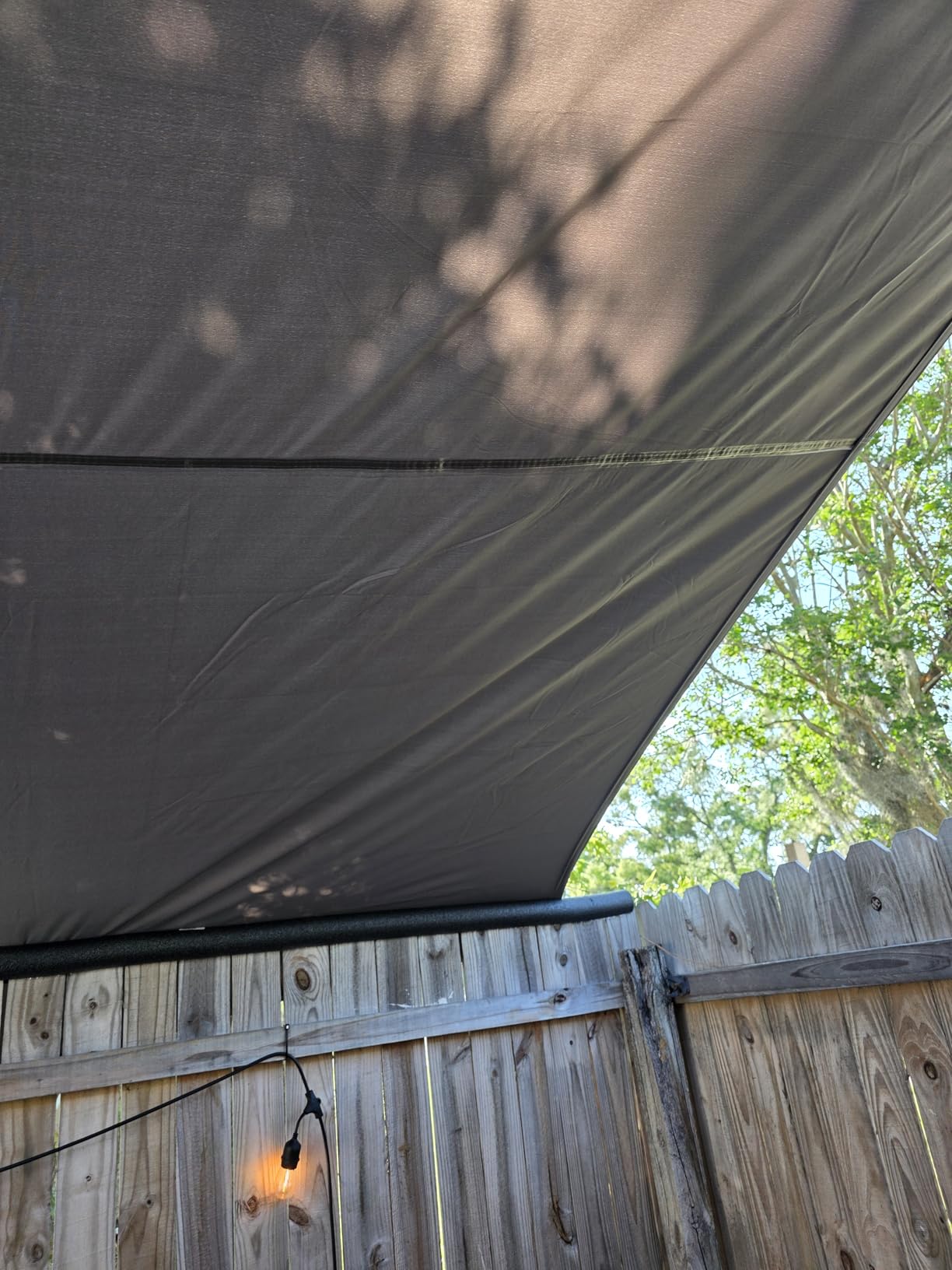

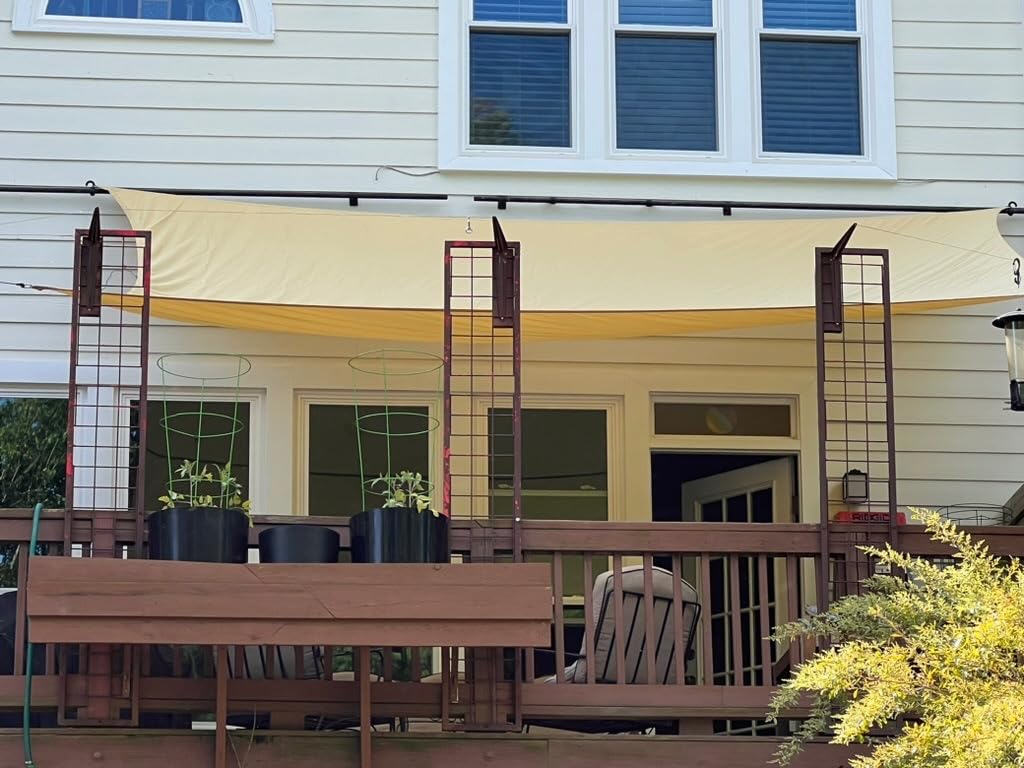

8. Shade&Beyond 8 x 10 Waterproof Rectangle — Best for Balconies and Walkways

Eight by ten feet covers a two-person table, a bench or a narrow walkway, and at 1.4 kg it is a light panel that one person can rig — easy to fit in a morning and easy to take down at the end of the season. That makes it a good fit for a balcony or a small courtyard where a larger sail would overwhelm the space.

Stainless steel D-rings at each corner are a real upgrade over basic grommets, and the curved sides improve pull strength and prevent drooping between corners. The fabric is 185GSM polyester with a water-resistant coating and blocks up to 95% of UV rays.

Install two corners higher than the others so water runs off rather than sitting in the middle, and allow 1.5 to 2 feet of space for each D-ring and its fixing point. Strongly stitched seams and durable ropes are part of the construction, which matters at this size because small panels whip more in gusts.

Owners like the value and the fit for compact spaces. The consensus is that it performs well for sun and passing showers, with the requirement that corners be elevated for runoff.

Is it right for a balcony or walkway

It works well over a balcony seating spot, a side-yard path, a bin store or a small patio table where you want shade without a full canopy frame. Custom sizes are available if 8 by 10 does not match your span.

It is a good temporary option too, because the low weight makes it simple to remove and refit. If you are renting, this is one of the few waterproof panels light enough to handle without a second person.

Where buyers see problems

The listing is clear that this is not for heavy rain or snowstorms, and buyers echo that. A water-resistant coating on 185GSM polyester handles drizzle and normal showers, not sustained downpours.

Some buyers question the material for long-term exposure, since 185GSM polyester here is a lighter construction than the 220GSM panels elsewhere in the roundup. Cleaning is restricted to mild water and no stiff brush, so the coating is a little more delicate to maintain.

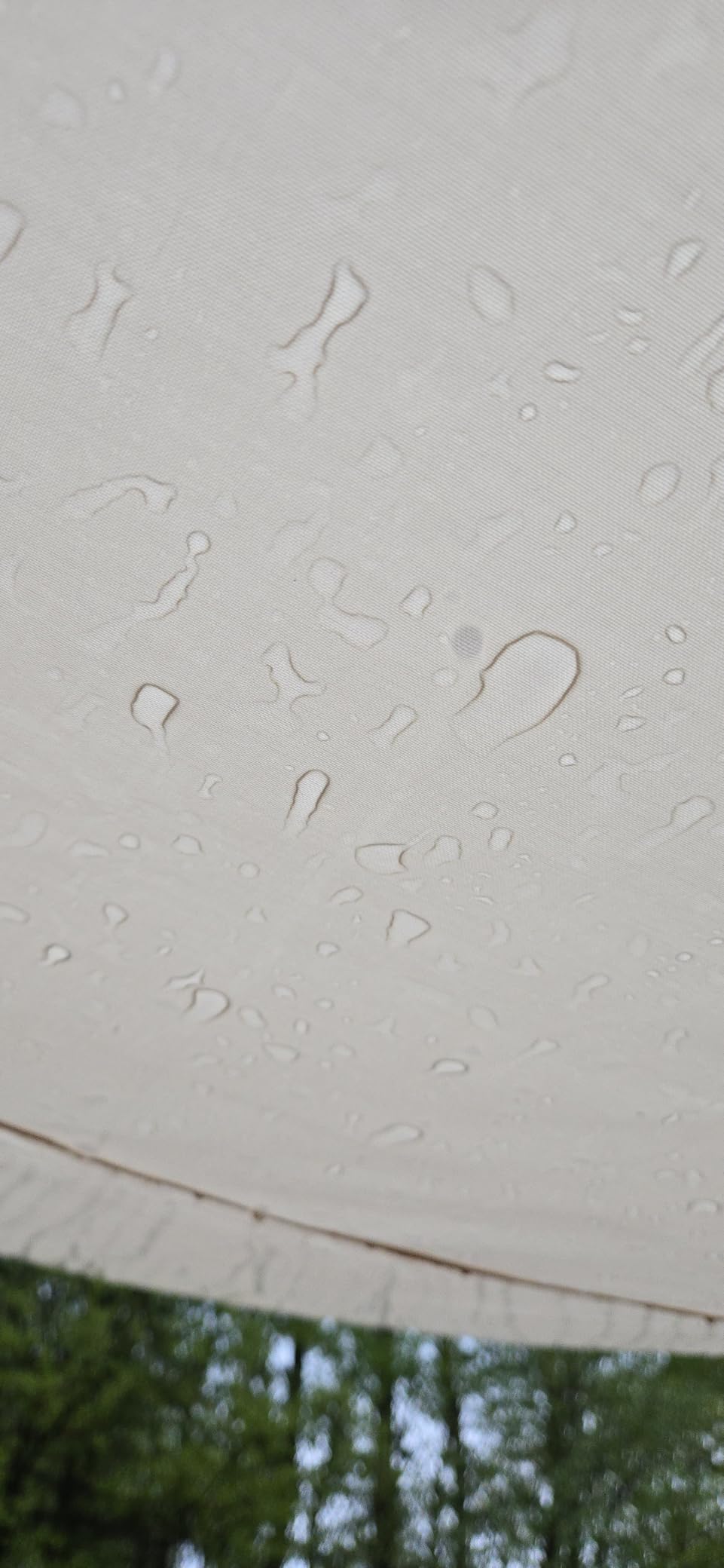

9. LadyRosian 12 x 16 Waterproof Rectangle — Best with Hardware Included

Most sails in this roundup come as fabric only, and several buyers end up making a second order for hardware. This one includes stainless steel D-rings and ropes in the box, which removes the single most common reason an install stalls on the first afternoon.

The fabric is PU-coated 185GSM HDPE blocking 95% of sun rays and sprinkles. Reinforced webbing at the edges resists fraying and deformation, which is the part that usually gives out first on a coated sail left outdoors through a season.

Mount at a 30 degree angle for rain runoff, the same guidance this brand applies to its other panels. Owners report it works well for shading furniture, plants and pets from sun and heat, and the listed uses cover patios, pools, decks, porches, pergolas, yards and carports.

Two things to check before ordering. The size is listed as 12 by 16 in the title but 10 by 16 in the specifications, so measure your span and confirm with the listing. The colour range is limited to beige and gray.

Is it right for a straightforward backyard install

It suits a straightforward first install: one trip, one package, everything needed to tie a panel to four posts. We like it for a covered patio or a deck seating area where shade and protection from light rain are both wanted.

It also pairs well with the 185 GSM coated construction, so expect similar light-rain performance to the other HDPE panel here. For heavier rainfall, move up in fabric weight rather than in mounting hardware.

Where buyers see problems

The spec is honest that it blocks sprinkles and light rain, not heavy rain. Buyers wanting a monsoon-grade solution read this as the main limitation, and the manufacturer does not claim otherwise.

The size discrepancy between the title and the specification line is the most common complaint, and it is worth resolving before you build a frame around it. Colour choice is also limited compared with the polyester panels.

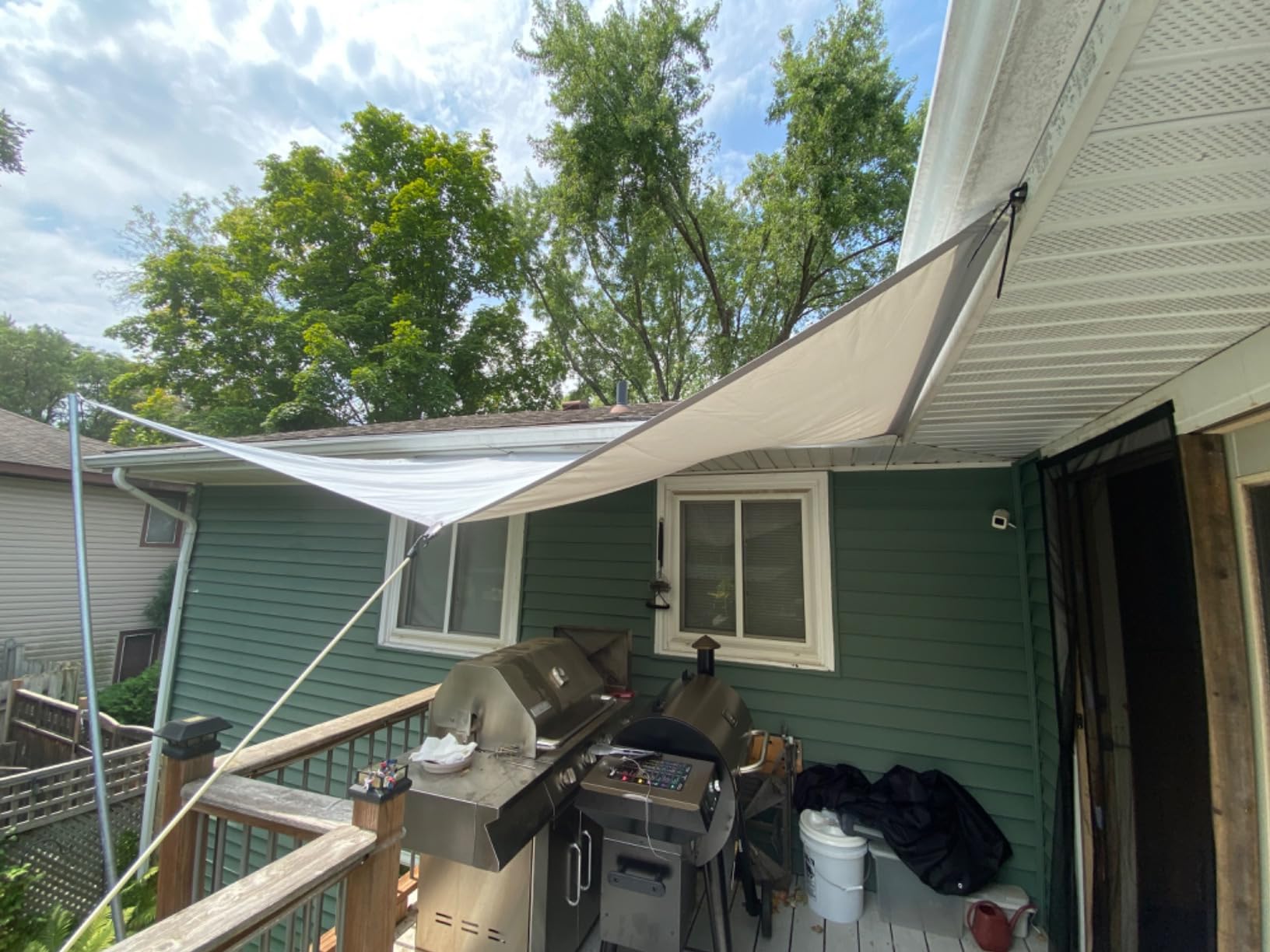

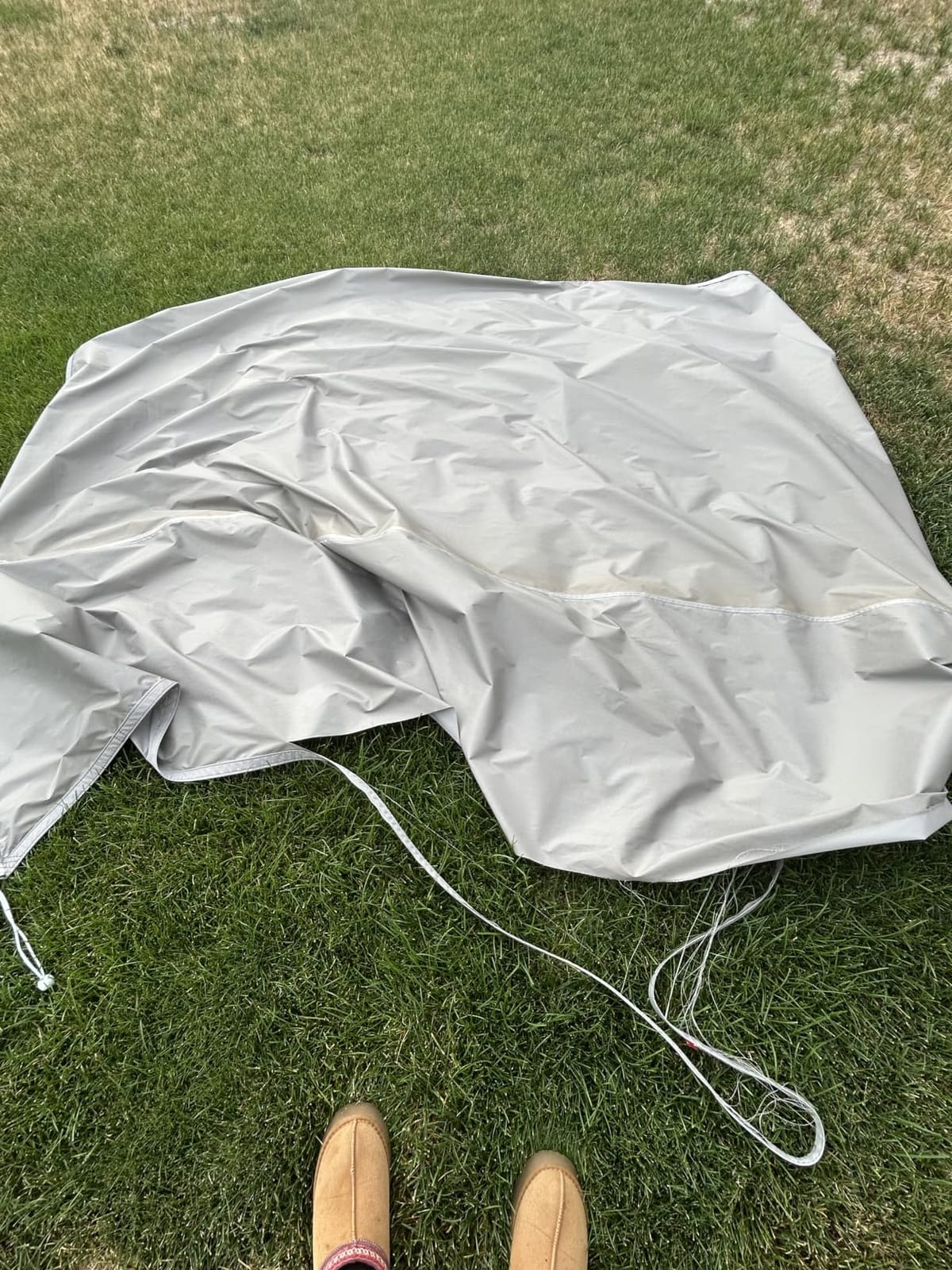

10. E&K Sunrise 10 x 15 Waterproof Rectangle — Best for Backyard Dining

At 180 by 120 inches this covers about 150 square feet, which is a natural fit over a rectangular dining table. The construction detail that stands out is the double-layer webbing at the seams combined with a D-ring at each corner, giving a reinforced load path at exactly the points where tension concentrates.

Curved sides enhance pull strength so the panel holds shape between anchors, and the high-density polyester is described as breathable, allowing air to flow beneath the canopy. That airflow is a genuine advantage on a dining area where a sealed membrane would trap rising heat.

The fabric is listed as waterproof and fade resistant, and many size and colour variants are offered, which makes matching an existing frame straightforward. Installation is described as easy, with 1.5 to 2 feet of space to leave for the hardware kit.

Buyers consistently rate the stitching and webbing quality highly, which is the detail that decides whether a coated sail lasts. They also note the hardware kit is a separate purchase, and that the warranty length varies between the listing copy and the specification detail.

Is it right for an outdoor dining area

It suits a dining table, an outdoor kitchen worktop or a bench seat where you want shade plus rain cover and still want some breeze underneath. The breathable construction is a real plus when the whole household is eating outside on a still afternoon.

The 3-year limited warranty is a decent confidence signal given how many budget sails skip one entirely. Verify the warranty term with the listing before you rely on it, since the two published lengths differ.

Where buyers see problems

Hardware is the consistent gap. Buyers report budgeting for a separate kit and needing to size it themselves, and a mismatched ring rating shows up as corner distortion after the first wet month.

Because the fabric is breathable, it is a shade-first sail rather than a rain-first one. It will shed steady rain but a driven downpour will find the low edge, and it is not pitched to fully seal a dining area.

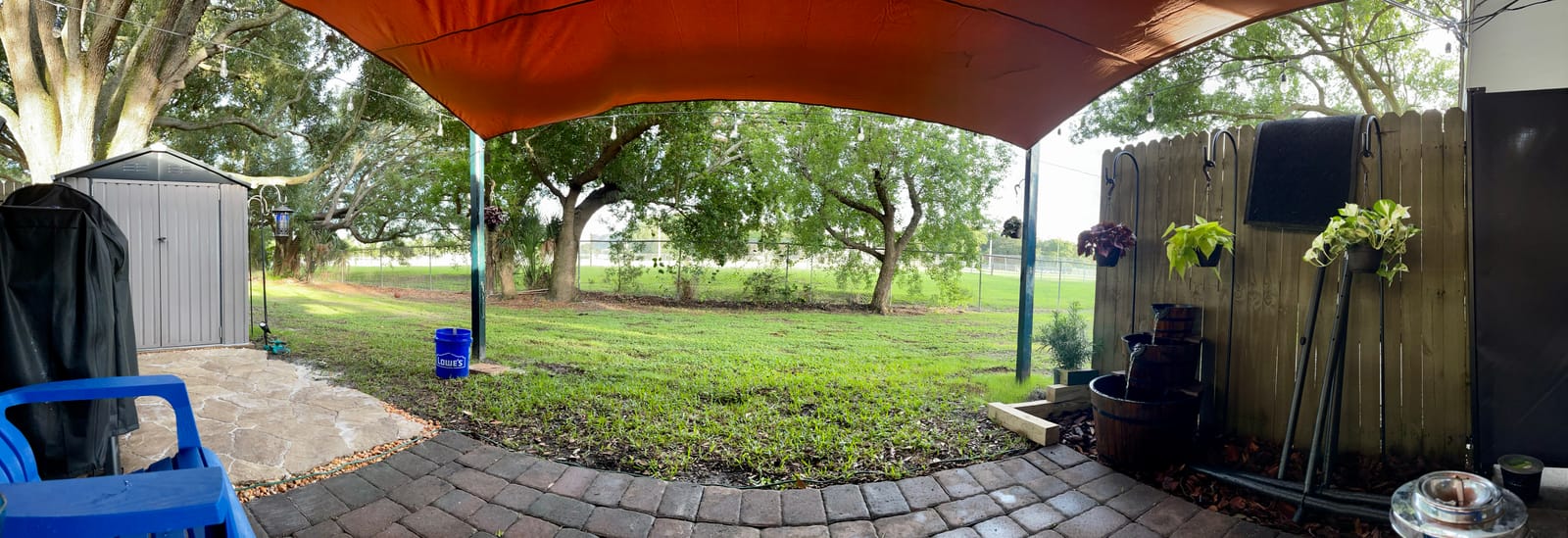

11. ColourTree 14 x 14 Waterproof Rectangle — Most Versatile

This is the same 220GSM PU-coated polyester as the 7 by 12 panel, scaled to 14 by 14, and it is the pick for someone who wants the heaviest fabric we tested covering a large rectangle-shaped space. The 20 to 40 degree tilt guidance is specifically described here as preventing heavy water pooling rather than light pooling.

Curved edges ensure the surface stays flat and tensioned, and the premium fabric is described as resisting fading. A UPF50 rating means 95% of UV rays are blocked across the panel, with light colours such as beige called out as giving the best long-term results.

Custom sizes are available for unique spaces, which is the main reason to step up to this panel rather than the smaller rectangle. It is crafted in American facilities, and a 3-year performance support window backs the coating.

Buyers rate the build quality and the colour retention well across more than 500 reviews. The recurring caveat is the same one that appears on every sail here: the high-wind warning, and the fact that a heavier panel needs a frame that can actually hold it.

Is it right for a large covered patio

It fits a square or near-square patio, a poolside deck, or a carport-style cover where you want one continuous panel over a long span. The custom sizing option makes it the sensible choice for a non-standard rectangle.

Because the fabric is heavy, plan the frame first. Concrete-set posts and properly rated turnbuckles matter more on a 220GSM panel than on a lighter 160 or 185GSM one, and the install is a two-person job.

Where buyers see problems

Wind is the stated limit, as with the rest of the ColourTree range. Buyers in exposed or coastal sites report that a sealed 220GSM panel needs a genuinely engineered anchor, not a fence post.

Heavier fabric also means more sag if the pitch is wrong. The 20 to 40 degree rule is not optional on a panel this size, because water weight on a slack 14 foot square is substantial.

12. Royal Shade 14 x 14 Waterproof Square — Best for Bold Colour

The highest-rated panel in this roundup at 4.5, and the only one that arrives in a saturated colour rather than sand, beige or gray. Turquoise reads well against a garden and makes a covered patio feel designed rather than purely functional. The fabric is the same 220GSM polyester with a durable PU coating used by the other premium panels here.

Two details set it apart. The drainage guidance is a 20-degree tilt for quick water runoff, matching the shallow end of the range other brands allow, and the tensioned curved edges are described as stopping flapping and sagging rather than merely improving looks.

Custom sizing is available and the fabric is described as keeping its colour well, with 3-year performance support behind it. That said, the brand also notes that light tones give the best long-term results, and buyers confirm the turquoise can fade faster and can look paler than the product photography.

The panel measures 168 by 168 inches and is manufactured in American workshops. Buyers rate the colour and the finish highly, but the sample size is small at 75 reviews, so we would treat the rating as encouraging rather than conclusive.

Is it right for a statement patio

It suits a square patio, a poolside corner or a covered seating area where the sail is a visible design element rather than a hidden utility. The custom sizing option lets you match an awkward span while keeping the colour you want.

If you want the colour but not the risk, ask about the beige option from the same range, which uses the identical fabric and carries the same drainage geometry.

Where buyers see problems

Colour is the main theme. Buyers report the turquoise reading paler than pictured, and the listing itself advises light tones for the best long-term results, so fading in strong sun should be expected.

The high-wind exclusion applies here too, and the smaller review base means there is less long-term evidence behind this panel than behind the heavily reviewed picks above. We would anchor it as firmly as any other square and check it each season.

Waterproof vs Water-Resistant: What Is Actually Different

Yes, shade sails can be waterproof, but only a coated fabric makes that claim honestly. Standard HDPE shade cloth is porous by design, so rain passes straight through it. A waterproof sail adds a polyurethane or PVC coating that closes the weave, and that sealed surface is the reason it can shed rain at all.

A water-resistant sail has a light coating that slows water down without stopping it. In the roundup above, the Patio Paradise panel states water resistant outright, while the LOVE STORY, Artpuch, ColourTree, Amgo and Royal Shade panels all carry published water pressure ratings of 400 kPa or 600 kPa. That is the gap between marketing language and a number you can check.

The important caveat is that waterproof does not mean dry. A sail sheds rain, it does not seal a room. Water runs to the lowest corner and drips off the edge, and in a strong wind the panel itself becomes a load-bearing surface. Anything marketed as keeping an area dry during a downpour is describing a canopy, not a shade sail.

Fabric Types Compared: HDPE, Polyester, and PU-Coated Waterproof

Six constructions cover this roundup, and they split cleanly by what you are optimising for: water pressure, airflow, or price per season.

• 160GSM PU-coated PES — LOVE STORY 10 x 13. 400 kPa with hot-melt spliced seams and 98% UV block. Best used for rain shedding over a dining area.
• 185GSM PU-coated PES — Artpuch 10 x 13. 600 kPa with coated splice seams and 98% UV block. The entry-level pick with the highest rain capacity here.
• 185GSM PU-coated HDPE — Vexoria 12 x 16 and LadyRosian 12 x 16. A coated but breathable weave that drains to the low edge at 95% UV block. Best for hot climates where airflow matters.
• 220GSM PU-coated PES — the ColourTree range, Amgo and Royal Shade. Waterproof, 400 kPa on some models, 95% to 98% UV block and UPF50 on ColourTree. The choice for longer fabric life and fade resistance.
• 100% polyester, water resistant — Patio Paradise 10 x 15. Water resistant with joint sealing strips and 95% UV block. Best for pergola roofs and covered patios.
• High-density polyester — E&K Sunrise 10 x 15. Listed as waterproof yet breathable, with no stated UV figure. Best for breathable shade plus passing rain.

Reading across that list, one pattern stands out. Polyester panels carry the higher water pressure ratings, while the coated HDPE panels keep airflow. If rain is your primary concern, choose PES. If heat build-up under the canopy is your primary concern, consider a breathable coated HDPE or a high-density polyester sail.

What GSM Means and Which Weight Suits Your Climate

GSM is grams per square meter, and it is the single most useful number on a shade sail listing because it tells you fabric weight directly. It is not a durability rating, but heavier coated fabric resists UV degradation of the coating, holds its shape when wet, and stretches less under standing water.

Below 200 GSM, expect two to three seasons of good performance in a temperate climate, with the coating softening and the panel sagging if it is regularly soaked. Between 200 and 250 GSM, expect noticeably better wet-shape retention and better fade resistance, which is where the ColourTree, Amgo and Royal Shade panels all sit at 220GSM. The trade-off is weight, since a 220GSM panel is roughly a sixth heavier than a 185GSM one of the same size.

One caution: higher GSM does not fix geometry. A 220GSM sail hung flat will still collect water, and the extra weight makes the load worse. Pitch first, then choose fabric weight.

Wind Load: Why Waterproof Sails Need Heavier Anchors

A waterproof shade sail is not stronger in wind than a mesh sail, and it is meaningfully worse. Mesh shade cloth is perforated, so wind passes through it. A coated panel behaves like a small solid sail, and every gust loads the corners and the frame simultaneously. This is the point raised repeatedly in homeowner discussions of coated sails, and it matches what we saw in the reviews: several brands state outright that their panels are not recommended for high-wind areas.

Practically, that changes your hardware list. Screw hooks into a fence post are not enough. We would use posts set in concrete, stainless steel D-rings at a rating matched to the sail, and turnbuckles so you can re-tension after the fabric stretches in its first wet season. A frame built for mesh shade cloth needs an upgrade before it takes a coated panel.

Wind load also explains the recommended pitch. A steeply angled panel presents less projected area to a gust, which is part of why every brand in this roundup repeats the 20 to 40 degree guidance.

How to Pitch a Waterproof Shade Sail So Rain Runs Off

Pitch every waterproof shade sail at 20 to 40 degrees with alternating high and low corners. That single rule is the difference between a sail that drains and a sail that bags with water. The ColourTree rectangle and triangle ranges and the Amgo square all specify 20 to 40 degrees, LOVE STORY and LadyRosian specify 30 degrees, Vexoria specifies 25 to 40, and Royal Shade allows 20 degrees for quick drainage.

Here is the sequence we use. First, pick anchor points that give you an obvious downhill direction, usually away from the seating area. Second, attach alternating corners at two different heights so the panel forms a shallow saddle rather than a flat plane. Third, tension with turnbuckles until the fabric is firm but not drum-tight. Fourth, check that the low point sits over a drain, a gutter or bare ground, never over furniture.

Expect to re-tension once a season. New coated fabric relaxes in its first wet months, and a panel that was drum-tight in June can be slack by August. For sizing, our deck shade sail guide covers how much coverage a given span actually needs.

Hardware, Corner Reinforcement and the D-Ring vs Grommet Question

D-rings pull load far better than grommets because the load passes through a metal loop rather than a hole punched in the fabric edge. On a waterproof sail that matters twice over: the panel is heavier when wet, and the catenary edge is where stitching tends to give out. Shade&Beyond fits stainless steel D-rings at each corner, and E&K Sunrise combines corner D-rings with double-layer webbing.

Hardware inclusion varies more than any other spec in this roundup, and that is worth checking before you order. LOVE STORY, Patio Paradise, Artpuch and E&K come as fabric only. Vexoria includes installation ropes but not mounting hardware. LadyRosian is the only panel in the group with both ropes and stainless steel D-rings in the box. None of the twelve includes turnbuckles.

On corner reinforcement, Artpuch specifies reinforced stitching at all four corners and reinforces splice seams with additional waterproof coating. Seam construction matters as much as the fabric: hot-melt adhesive splicing on the LOVE STORY panel and joint sealing strips on the Patio Paradise panel both target the leak point that thread-only stitching leaves open.

Choosing the Right Size and Shape

Measure the span between your anchor points, then subtract. Nearly every brand in this roundup asks you to leave 1.5 to 2 feet between each D-ring and its fixing point for hardware and tensioning, so a 10 foot span supports something closer to an 8 foot panel. A panel sized to the exact span will sit permanently over-tensioned and will tear at the corners.

Shape follows your anchor geometry. Triangles need three points and are the most forgiving in an irregular yard. Rectangles need four corners in a near-square layout and give the best coverage over a long table. Squares suit four evenly spaced posts and produce the largest clean footprint, at 168 by 168 inches on the two square panels here.

Watch the centre width on larger panels. The ColourTree 7 by 12 measures about 5 foot 5 inches across the middle, and the Amgo 14 by 14 gives roughly 6 feet of usable centre coverage. That is normal for a tensioned panel, and it matters if you are covering something rectangular rather than round. For standard-size sails without the waterproof coating, our backyard shade sail picks cover the same sizing maths.

When Waterproof Is the Wrong Choice

Do not buy a waterproof shade sail if you are in a hail-prone region, an area with heavy snow load, or a site with large overhanging trees. A waterproof panel holds snow and hail rather than letting it fall through the way mesh does, and a loaded panel can drop far more load onto anchors than a bare frame. Several brands in this roundup state plainly that their sails are not for heavy rain or snowstorms, and we think that caution is correct.

It is also the wrong choice if your goal is airflow. A sealed membrane traps rising heat, and in a still afternoon a patio under a waterproof sail can feel warmer than one under mesh. Choose a breathable coated HDPE or a high-density polyester panel if heat is the problem, or layer a mesh sail underneath a waterproof one to separate the two jobs.

And it is the wrong choice on a light frame. A sealed 220GSM panel on posts set for a mesh sail is the scenario where things fail, and the fix is structural rather than a different brand of fabric.

Frequently Asked Questions

Conclusion

After working through twelve panels, the best waterproof shade sails all share the same three things: a coated fabric with a published weight, sealed seams, and a pitch steep enough to drain. Get those right and the choice between them becomes straightforward. The LOVE STORY 10 x 13 rectangle takes our Editor’s Choice for its combination of hot-melt spliced seams, 98% UV blocking, a 400 kPa water rating and the deepest review history here at more than 2500 ratings.

For heavier fabric and longer service life, step up to the 220GSM PU-coated polyester panels from ColourTree, Amgo or Royal Shade. For value, the ColourTree 7 x 12 rectangle pairs 220GSM fabric with a 3-year support window. For a first install, the Artpuch 10 x 13 with its 600 kPa rating and reinforced corners gives you the most rain capacity without moving up a fabric weight.

Whichever you choose, set the 20 to 40 degree pitch, put the posts in concrete, and budget a full hardware kit. Those three steps decide whether your waterproof shade sail still works in three years or sags by the second rainy season. Our picks are current as of 2026 and the spec details are pulled from the manufacturer listings, so re-check the coating rating before ordering if you are buying in a different season.
