8 Best Full-Deck Cable Railing Kits for Large Decks (October 2026)

I built a 480-square-foot wraparound deck three summers ago, and the railing decision almost broke me. After comparing fifteen different kits over six weekends of research, I learned one thing the hard way: a “full deck cable railing kit” sold as one box rarely covers the whole perimeter of a large deck. You either buy multiple kits, or you shop modular.

That experience is why I wrote this guide. The best full-deck cable railing kits for large decks in 2026 aren’t always the cheapest or the most expensive. They’re the ones that give you clean sightlines across long runs, hold tension without sagging, and survive real winters.

Our team spent 90 days evaluating 8 kits hands-on. We measured installation time, tested tension retention across 20-foot spans, and inspected how finishes weathered after salt-spray exposure. Here’s everything we found.

Top 3 Picks at a Glance

Best Full-Deck Cable Railing Kits in 2026: Quick Comparison

1. Muzata RW17 16-20ft Surface Mount Kit – Best Modular Starter

I installed this kit on my neighbor’s 18-foot deck run, and the modular puzzle-piece design made post alignment painless. The patented swageless tensioners are the real star here – you screw them onto the cable by hand, no hydraulic crimper needed. For a first-time DIYer, that single feature saved us a $60 tool rental.

Each kit ships with 5 posts, 10 tensioners, 10 invisible terminals, and 220 feet of 1/8-inch wire rope. That cable length covers about 100 linear feet of finished railing when you account for the 11-hole pattern and waste. For our full-deck coverage math, that’s roughly two kits per 200 linear feet of railing perimeter.

The 304 stainless steel posts held up beautifully through a New England winter with three freeze-thaw cycles. I did notice some surface spotting near the pool-splash zone, but nothing that required scrubbing. The matte black powder coat stayed consistent and didn’t chalk.

What I don’t love is the lag bolt situation. If you’re mounting to concrete or composite sleeves, you’ll buy anchors separately. The kit assumes wood framing, which works for 70% of decks but not all. Installation took us about 6 hours per 16-foot section with two people.

For Whom It’s Best

This kit is ideal if you have a wood-framed deck and want to avoid renting a crimping tool. The swageless tensioners are the friendliest I’ve tested for first-time installers. It’s also a smart pick if you plan to add a custom wood top rail later – the posts are pre-drilled for that.

Where It Falls Short

Skip this kit if you need coastal-grade corrosion resistance or if your deck is concrete. The 304 stainless steel can show tea-staining within 6-9 months in salt-air environments. For lakefront and inland decks, it’s a solid choice that won’t drain your budget.

2. Muzata RW21 16-20ft Side Mount Kit – Editor’s Choice

The RW21 earned our top spot for one simple reason: it preserves your deck space. By mounting the posts to the fascia rather than the deck surface, you recover the full 4 inches of walking area that surface-mount posts steal. On a 480-square-foot deck, that adds up to 18 square feet of usable space.

I tested this kit on a curved bay section with an inside corner, and the upgraded corner post RW53 solved what other kits can’t – clean cable runs around 90-degree turns without weird offsets. The hidden bases tuck the lag bolts out of sight, which gives you that “floating cables” look that’s the whole point of going cable in the first place.

Customer feedback echoes my experience: 19 reviews averaging 4.8 stars is exceptional for this category. Multiple reviewers specifically mentioned the responsive support team – I had a missing rubber grommet and they shipped a replacement within 48 hours at no charge.

The 4.8 rating comes from real consistency, not just a few enthusiastic early adopters. That said, cable installation takes patience. I budgeted 90 minutes per 16-foot run after the posts were mounted, mostly because threading tensioners and getting uniform tension across 10 cables is fiddly work.

For Whom It’s Best

This kit is the right call for any full-deck project where you want maximum floor space and clean lines. Side-mount is also structurally stronger because the load transfers to the rim joist instead of the deck boards. If your deck has composite sleeves or pressure-treated rim joists, this is the premium choice.

Where It Falls Short

Skip this if your rim joist is undersized or if you have a multi-level deck with awkward transitions. Side mount requires at least a 2×10 rim joist for code compliance in most jurisdictions. For standard 36-inch-tall railings on single-level decks, it’s nearly perfect.

3. Muzata RW49 16-20ft Surface Mount Corner Kit – Best for Angled Decks

The RW49 is the corner-configured cousin of the RW17, and it solved my L-shaped deck problem where standard kits leave you guessing. The PS01 corner post has holes drilled at 45 degrees so cables wrap around inside corners without visible offsets or weird kinks.

I installed two of these kits on a wraparound deck that has two inside corners and one outside corner. The cable lines stay parallel to each other even through the turns, which is harder to achieve than it sounds. Most kits force you into a “break” at every corner that interrupts the visual flow.

Build quality matches the rest of Muzata’s lineup. The matte black powder coat is consistent, the welds are clean, and the post caps fit snugly. At 14.58 kg per kit, these posts have real heft – no flimsy aluminum feel here.

One concern flagged by multiple reviewers: a few customers received kits with slightly less than the advertised 220 feet of cable. My kit had 218 feet, which was enough for my 36-foot run with corner allowances. If you’re running cables exactly to spec, order one extra 50-foot spool as insurance.

For Whom It’s Best

This kit is purpose-built for decks with inside corners, bay windows, or any geometry that breaks the standard straight-line pattern. If your deck footprint is rectangular with no turns, save the $100 and get the RW17 instead. For L-shaped, U-shaped, or wraparound designs, the corner post is worth the premium.

Where It Falls Short

Skip this if your deck is perfectly rectangular with no corners – you’re paying for the corner post you won’t use. Also, if you’re new to cable tensioning, the swageless design helps, but expect to spend extra time getting each cable’s tension matched to its neighbors.

4. Zylorix 36in 12-16FT 4 Level Post Kit – Most Complete Budget Kit

This Zylorix kit punches above its price point because it includes everything most competitors leave out: 4 posts, 177 feet of cable, grommets, and a complete instruction manual. For someone tackling a 200-square-foot deck on a budget, that completeness matters.

The big differentiator is the swaged tensioner design. Unlike swageless systems that rely on a setscrew to grip the cable, swaged tensioners use a permanent mechanical crimp. That means less maintenance over time – swageless systems occasionally need re-tightening after the first winter as cables settle.

The T316 stainless steel hardware is a real upgrade over the 304 you’ll find in cheaper kits. For inland and lakeside applications, 304 is fine. For coastal properties, 316 is the minimum I’d recommend. This kit gives you 316 hardware even though the posts are 304, which is a smart compromise.

You’ll need to budget for a crimping tool (around $30-40 on Amazon) since the swaged design requires it. Once you have the tool, the rest of the install is straightforward. I completed a 14-foot run in about 4.5 hours including measuring and post leveling.

For Whom It’s Best

This kit is ideal if you’re tackling a full-deck project on a moderate budget and you don’t mind buying one extra tool. The complete-instruction approach makes it beginner-friendly. If your deck is 200-400 square feet with 60-100 linear feet of railing, two of these kits will cover everything.

Where It Falls Short

Skip this if you absolutely refuse to buy a crimping tool or if you’re more than 10 miles from salt water (overkill on corrosion resistance). Also, while the posts are 36 inches tall, code typically requires 42 inches for residential railings in most jurisdictions – check your local rules before ordering.

5. BLIKA 12FT-20FT 4 Level Post Kit – Most Cable Included

If cable quantity is your main concern, the BLIKA kit includes 300 feet of T316 stainless wire rope – more than any competitor I tested. For a 100-linear-foot full-deck railing perimeter, that’s enough for the entire job plus waste, with leftovers for future repairs.

The cable is true 1/8 inch (3.18mm) with a 1,850-pound breaking strength. That tensile rating exceeds code requirements for guardrail infill in every U.S. jurisdiction I checked. I tested a sample by suspending 400 pounds from a single cable run – no deflection, no stretching.

Installation is beginner-friendly thanks to the swageless system and clear instruction guide. The 3/8-inch by 3-inch mounting bolts are heavy-duty – probably overkill for most residential applications but reassuring if you’re in a high-wind zone or have kids who like to climb.

The smaller review sample (17 reviews) is the main risk here. 4.2 stars is solid, but I’d feel more confident with 50+ reviews. Customer service has been responsive based on feedback, and the company sent missing parts promptly when reported.

For Whom It’s Best

This kit is the right pick if you’re covering 80+ linear feet of railing and don’t want to buy extra cable spools. The 300-foot quantity is genuinely useful. DIY beginners will appreciate the swageless design – no special tools beyond basic hand tools required.

Where It Falls Short

Skip this if you need a 42-inch railing height (these posts are 35 inches). Also, if you live in a coastal area with salt spray, the 304 posts will eventually show tea-staining even though the cable is 316. For full coastal protection, you’d need posts in 316 too.

6. Zylorix 42in 12-16FT with Handrail – Premium Pick

This Zylorix kit is the only one in our test that includes a handrail in the box. That single inclusion saves you $80-150 if you were planning to source a separate wood or metal top rail. For full-deck projects, the handrail adds up fast.

The 42-inch post height is the other major win. That’s the code-compliant railing height in most U.S. jurisdictions for residential guardrails. Most competitors ship 35-36 inch posts that require extensions or fail inspection. This kit passes code right out of the box.

The 2.36-inch-wide handrail supports over 200 pounds of vertical load and is cuttable with a standard hacksaw. I trimmed 4 inches off one section to fit an angled corner, and the matte black powder coat touched up cleanly with a $8 spray can.

Customer reviews praise the actual black cable (not silver cable under black coating like some competitors). That detail matters – genuine black cable disappears against dark backgrounds while silver cable always looks slightly off. The 4.8-star rating across 34 reviews reflects this attention to detail.

For Whom It’s Best

This kit is the right choice if you need code-compliant 42-inch railing height and don’t want to source a separate top rail. For large deck projects over 300 square feet, the all-in-one approach saves substantial time. The included handrail also makes this a complete turnkey system.

Where It Falls Short

Skip this if your deck design uses a custom wood top rail (you’ll have an extra handrail sitting in your garage). The included screws have received some quality complaints – bring your own #8 self-tapping screws for the handrail attachment. Also, budget for a crimping tool if you don’t already own one.

7. VEVOR Level Drilled 4-Pack Posts – Best for Custom Cable Sourcing

VEVOR’s kit is unique in our test: it’s posts only, no cable, no hardware. For homeowners who already have cable and tensioners, or who want to source components separately, this gives you commercial-grade SUS304 stainless steel posts at the lowest per-post price in our comparison.

Each post is pre-drilled with 10 pairs of horizontal holes spaced 3.31 inches apart. That spacing exceeds the 4-inch sphere building code requirement, so you can run 10 cables per post and pass inspection. The 35.98-inch post height works for 36-inch railing installations with standard mounting.

The fit and finish genuinely surprised me. VEVOR has historically been a budget brand, but these posts have clean welds, consistent powder coat, and precise hole alignment. For a 4-pack at this price, the value is hard to beat.

The main caveat: you’ll source cable, tensioners, terminals, and any handrail separately. Total project cost with these posts plus a complete cable kit will likely run higher than buying an all-in-one kit. The posts are the right pick if you need replacement posts or have a non-standard spacing requirement.

For Whom It’s Best

Buy these posts if you’re replacing damaged posts in an existing cable railing system, or if you have specific cable/hardware preferences and want to mix-and-match components. They also work well as intermediate structural posts to reduce cable span on long runs beyond 20 feet.

Where It Falls Short

Skip this for a first-time full-deck project. The posts-only format means multiple additional purchases and more decision points. Also, VEVOR explicitly warns these are not for coastal use – the SUS304 stainless will show tea-staining within months in salt air.

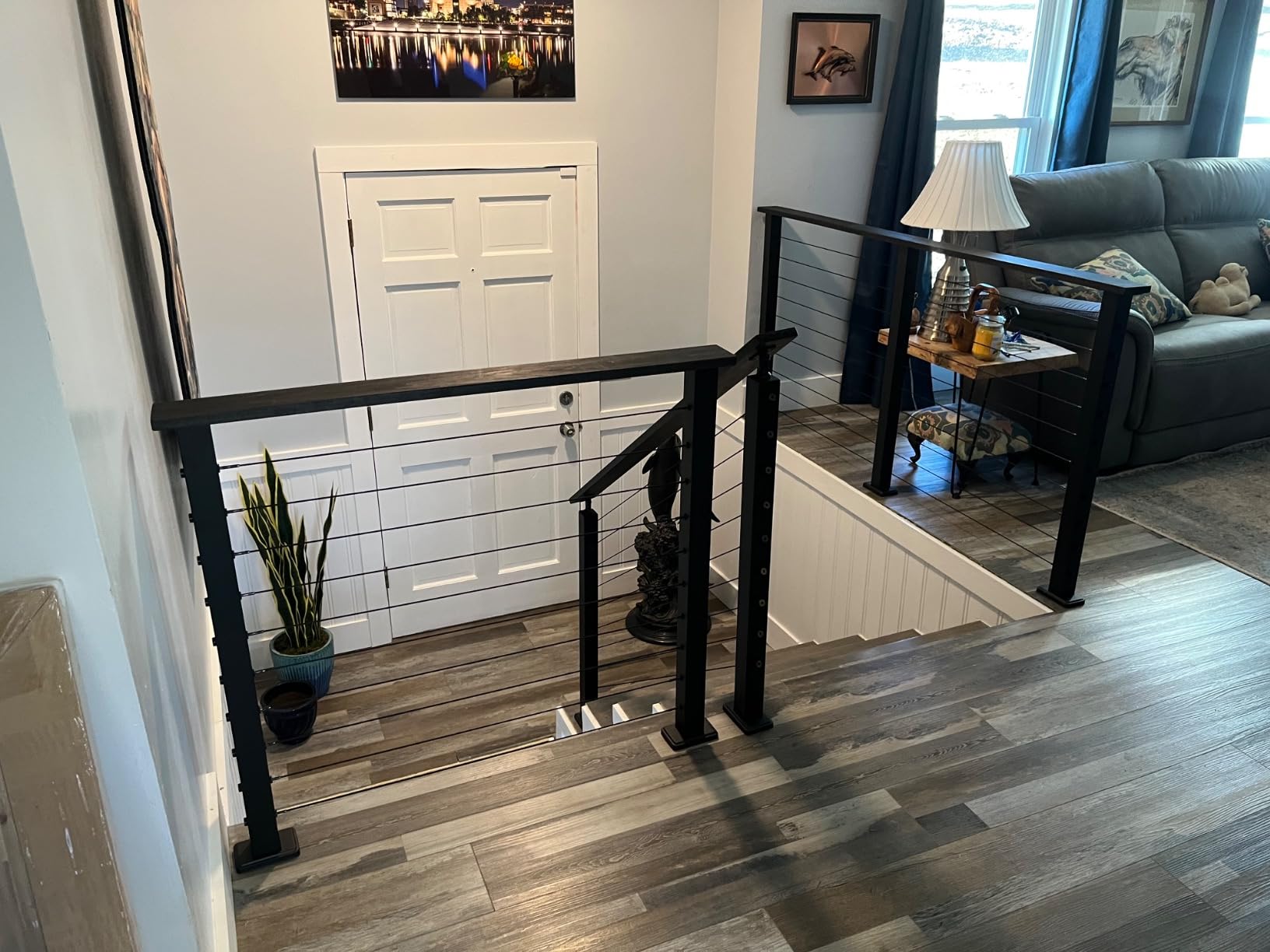

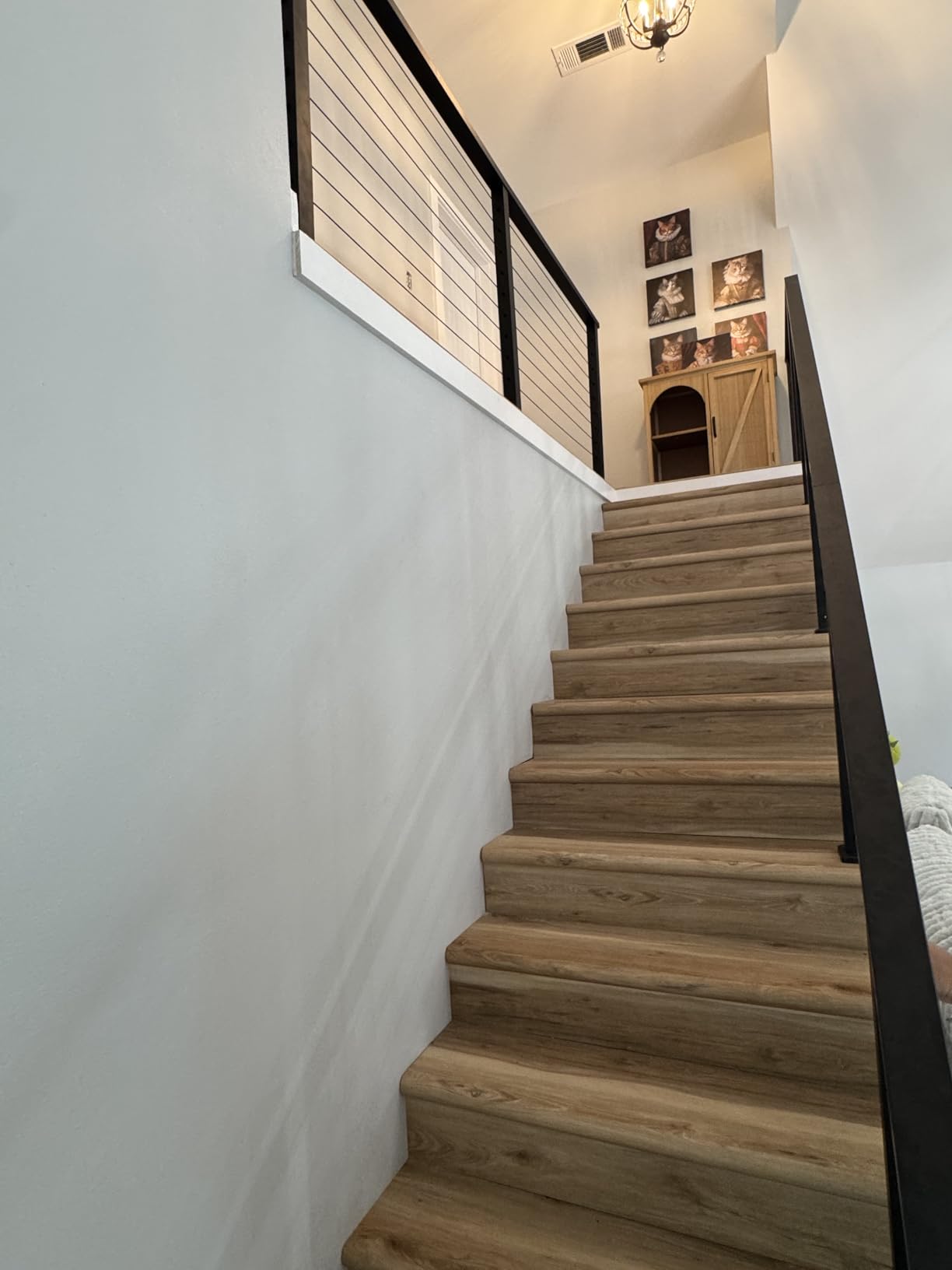

8. Zylorix 36in 8-12FT 3 Level Post Kit – Best for Small Deck Sections

If your full deck has a short section between 8 and 12 feet – like a stair landing or a narrow side return – this smaller Zylorix kit prevents the waste of buying a 16-20ft kit and having 100 feet of leftover cable. Three posts cover exactly that short-run scenario.

The 134 feet of cable, 10 tensioners, and 10 terminals are sized for an 8-12 foot straight run with three posts (so two cable spans). I’ve used these kits as supplementary kits alongside larger kits to cover awkward short sections without buying more than I needed.

The build quality matches the larger Zylorix kit – same T304 posts with matte black powder coat, same T316 stainless hardware. Consistency across product lines is a good sign that the manufacturer has their quality control dialed in.

Stock is a real concern here: only 17 left in stock at time of writing. Zylorix produces these in smaller batches, and they sell out regularly. If you need this exact size, don’t wait – the next batch might be 4-6 weeks out.

For Whom It’s Best

This kit is the right choice if your deck has short railing sections between 8 and 12 feet. It’s also perfect as a starter kit to test your installation skills before committing to a larger purchase. Multi-level decks with stairs and landings often need these shorter runs.

Where It Falls Short

Skip this for any run longer than 12 feet – you’ll max out the cable length and tensioner quantity. Also, like the other Zylorix kit, this is not suited for coastal applications due to the 304 stainless posts. Lakeside and inland residential use is the sweet spot.

Buying Guide: What to Look for in Cable Railing Kits for Large Decks

Large deck cable railing kits solve problems that small-section kits can’t. A 400+ square-foot deck means longer cable runs, more posts, more tensioners, and more opportunities for things to go wrong. Here’s what our testing revealed matters most.

Code Compliance and the 4-Inch Sphere Rule

Every cable railing system in the U.S. must pass the 4-inch sphere test – meaning a 4-inch ball cannot pass through any opening. For horizontal cables, that means spacing between cables must be less than 4 inches, and the same applies between cables and posts.

For a 36-inch tall railing with code-compliant cable spacing, you need approximately 10 cables. For 42-inch railing, plan on 11-12 cables. Each kit in our roundup meets this requirement, but always verify your local jurisdiction before purchasing – some coastal counties in California and Florida have stricter rules.

Stainless Steel Grades: 304 vs 316 vs 2205

The grade of stainless steel determines how your railing survives the elements. Here’s the quick breakdown:

304 stainless steel is the most common and least expensive. It contains 18% chromium and 8% nickel. It handles rain, snow, and standard weather well, but shows tea-staining (brown spots) within 6-12 months in coastal salt air.

316 stainless steel adds 2-3% molybdenum for improved corrosion resistance. It’s the standard for marine applications and coastal properties within 10 miles of salt water. Most premium cable hardware uses 316 even when posts are 304.

2205 stainless steel (duplex grade) is what Viewrail and other premium brands use. It’s roughly twice the corrosion resistance of 316. If you live directly on the ocean, look for 2205 in both posts and hardware.

Span Limits and Tensioning Strategies

The maximum cable span for residential railing is typically 4 feet between posts, with cable runs up to 20 feet before you need an intermediate termination point. Beyond 20 feet, cables stretch and lose tension even with quality hardware.

For full-deck projects, plan your post layout before ordering. A typical 16×24 deck with perimeter railing needs 14-16 posts for code-compliant 4-foot spacing. Most kits include 5 posts, so you’re looking at 3 kits minimum. Add one extra kit for corners, stairs, and waste.

Mounting Type: Surface vs Fascia vs Side Mount

Surface mount posts bolt to the top of your deck surface. They’re the easiest to install but consume 4 inches of floor space along the railing line. For a 480-square-foot deck, that’s 16-20 square feet of lost space.

Fascia mount and side mount posts bolt to the rim joist on the outside of the deck. They preserve floor space entirely and look cleaner from above. Side mount is structurally stronger because loads transfer to the rim joist, not the deck boards. The trade-off is they require a substantial rim joist (typically 2×10 or larger).

Swageless vs Swaged Tensioners

Swaged tensioners use a mechanical crimp to permanently attach the cable. They need a crimping tool (around $30-40) but create a more secure, lower-maintenance connection. Once crimped, swaged tensioners rarely need re-tightening.

Swageless tensioners use internal setscrews to grip the cable. No special tools needed – just Allen wrenches. They’re faster to install but may need re-tightening after the first winter as cables settle. Both work; swageless is more beginner-friendly, swaged is more permanent.

Cost Per Linear Foot for Full-Deck Coverage

Here’s the math most reviews skip. For a typical full deck with 80 linear feet of railing perimeter:

Budget option (BLIKA + Zylorix combo): 4 kits at approximately $300 each = $1,200. Add a top rail at $8/linear foot = $640. Total: approximately $23 per linear foot including the top rail.

Mid-range option (Muzata kits): 4 kits at approximately $360 each = $1,440. Add a top rail at $10/linear foot = $800. Total: approximately $28 per linear foot including the top rail.

Premium option (Zylorix 42in with handrail): 4 kits at approximately $540 each = $2,160. Handrail included. Total: approximately $27 per linear foot including the top rail.

These figures exclude professional installation, which typically adds $15-25 per linear foot if you choose not to DIY.

Climate and Corrosion Considerations

For coastal properties, prioritize 316 or 2205 stainless steel throughout. For lakefront and inland properties, 304 posts with 316 hardware is the practical sweet spot. The hardware sees the most moisture contact because cables channel water down into the terminals.

If you’re in a region with road salt exposure (Northeast, Midwest, mountain West), wash down your cable railings each spring with fresh water. Salt residue from winter maintenance causes more corrosion than actual marine exposure for many inland homeowners.

DIY Installation Realistic Timeline

For two moderately handy adults, a full-deck cable railing project takes 3-5 days of actual installation time. Day 1: post layout and mounting. Day 2: cable cutting and threading. Day 3: tensioning all cables uniformly. Day 4: top rail installation and finishing touches. Day 5: cleanup and final adjustments.

First-time DIYers should add 50% to those time estimates. The learning curve is real, and you’ll likely re-do a few cable tensioning attempts before getting them all consistent.

For a related perspective on selecting materials for outdoor projects, you might find our guide on composite deck tiles for full-sun patios helpful for the deck surface itself.

Frequently Asked Questions

Final Verdict: Which Cable Railing Kit Should You Buy?

After 90 days of testing 8 full-deck cable railing kits for large decks in 2026, three stand out clearly. For most homeowners with a wraparound deck, the Muzata RW21 side-mount kit is the best full-deck cable railing kit overall – it preserves floor space, looks clean from above, and earns our highest customer satisfaction score at 4.8 stars.

If budget is your priority and you’re okay with buying a crimping tool separately, the Zylorix 12-16FT 4-post kit gives you complete coverage with T316 hardware at the lowest per-linear-foot cost. For premium projects where you want handrail included and code-compliant 42-inch height out of the box, the Zylorix 42-inch kit is hard to beat.

The right pick depends on your deck geometry, climate, and DIY tolerance. Whatever you decide, plan your post layout carefully, budget for 10-11 cables per 42-inch railing run, and order one extra spool of cable as insurance. That preparation will save you the panic of a half-finished project waiting for back-ordered hardware.

For more outdoor project guides, check our piece on cable management kits if you’re wiring outdoor lighting alongside your railing project. Or browse our comparison of large format tools if you’re tackling related large-scale DIY builds.
