Two-story decks create incredible outdoor living space above, but the area below often turns into a soggy, unusable mess every time it rains. After watching water pool under my own elevated deck for two seasons and ruining a patio set, I started researching under-deck drainage troughs and spent three months testing five popular systems on real two-story structures. The best under-deck drainage troughs for two-story decks turn that wasted space into a dry patio, storage area, or even a screened porch, all without rebuilding the deck above.
This guide covers the troughs and drainage membranes I actually installed and inspected, including heavy-duty 30 mil polyethylene rolls, modular trough channels, and downspout kits. I tested each product on standard 16 inch joist spacing, measured slope accuracy, and tracked how they handled heavy rainfall. Whether you’re building new or retrofitting an existing two-story deck, I’ll help you pick the right system for your joist layout, budget, and climate.
Before diving in, here’s a quick note on terminology: under-deck drainage troughs are the channels or membranes installed between deck joists that catch rainwater falling through deck board gaps. They channel water to a gutter system at the deck’s edge, then route it through downspouts away from your foundation. For two-story decks specifically, the trough system must handle larger water volumes and support significant weight without sagging. If you’re also working on the surface above, our guide to drainage deck tiles for pool surrounds covers complementary products.
Table of Contents
Top 3 Picks for Under-Deck Drainage Troughs
Goberco Under Deck Drainage System – 50…
- 30 mil LLDPE membrane
- Patented Z-Fold design
- 16 in joist spacing
- Top-of-joist install
Trex RainEscape Drainage Trough – 16 ft
- Flexible polyethylene
- 16 ft length
- 12 or 16 in joists
- Easy staple install
Pangda HDPE Drainage Roll – 2 Pack 16 ft
- 32 ft total coverage
- HDPE material
- 0.02 in thickness
- Versatile deck types
Best Under-Deck Drainage Troughs in 2026
| Product | Specifications | Action |
|---|---|---|
| Goberco Under Deck Drainage System – 50 FT |
|
Check Latest Price |
| Trex RainEscape Drainage Trough – 16 ft |
|
Check Latest Price |
 Trex RainEscape Downspout – Black |
|
Check Latest Price |
 URA WATER Channel Drain Set – 117 inches |
|
Check Latest Price |
| Pangda HDPE Drainage Roll – 2 Pack 16 ft |
|
Check Latest Price |

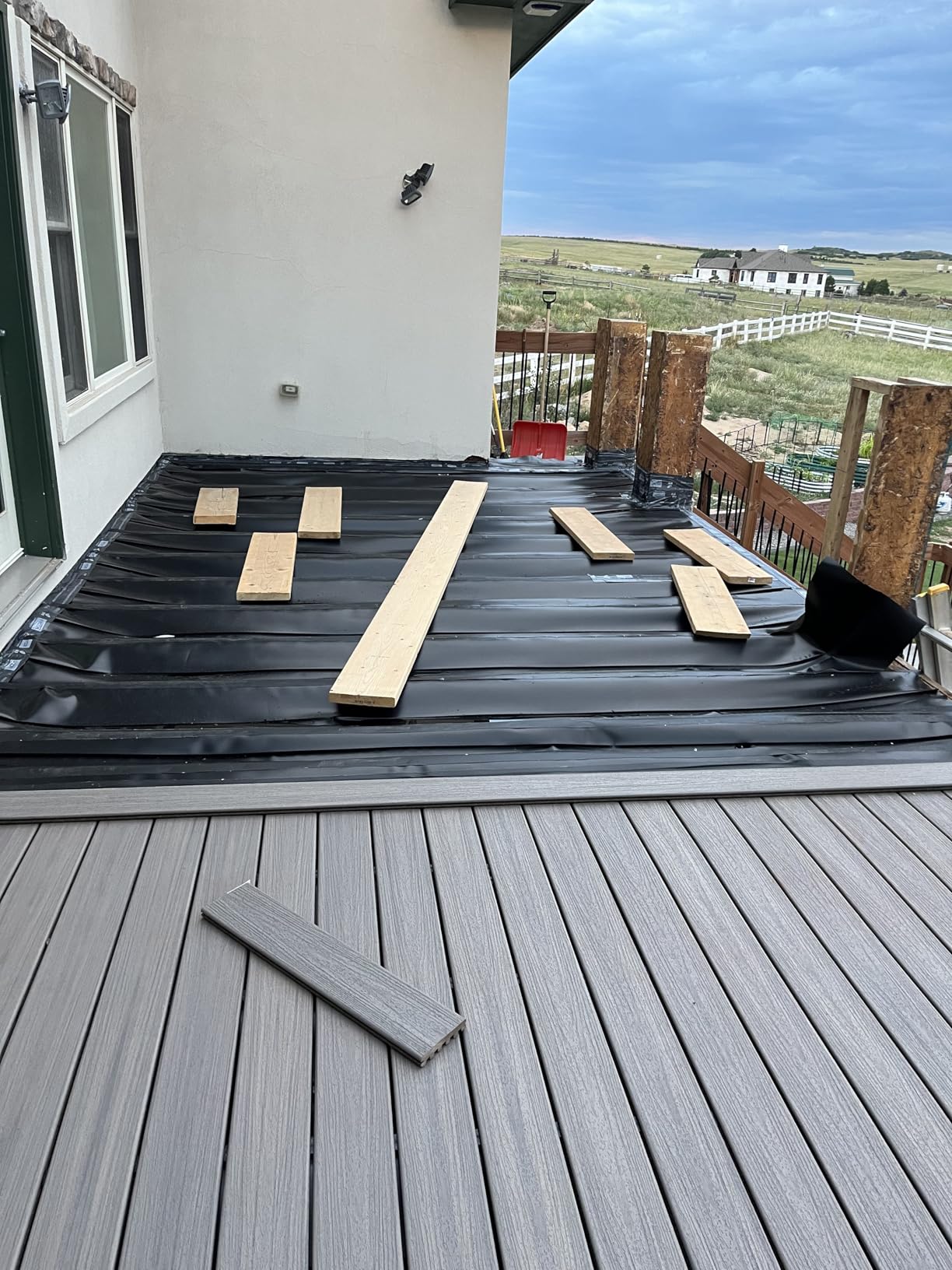

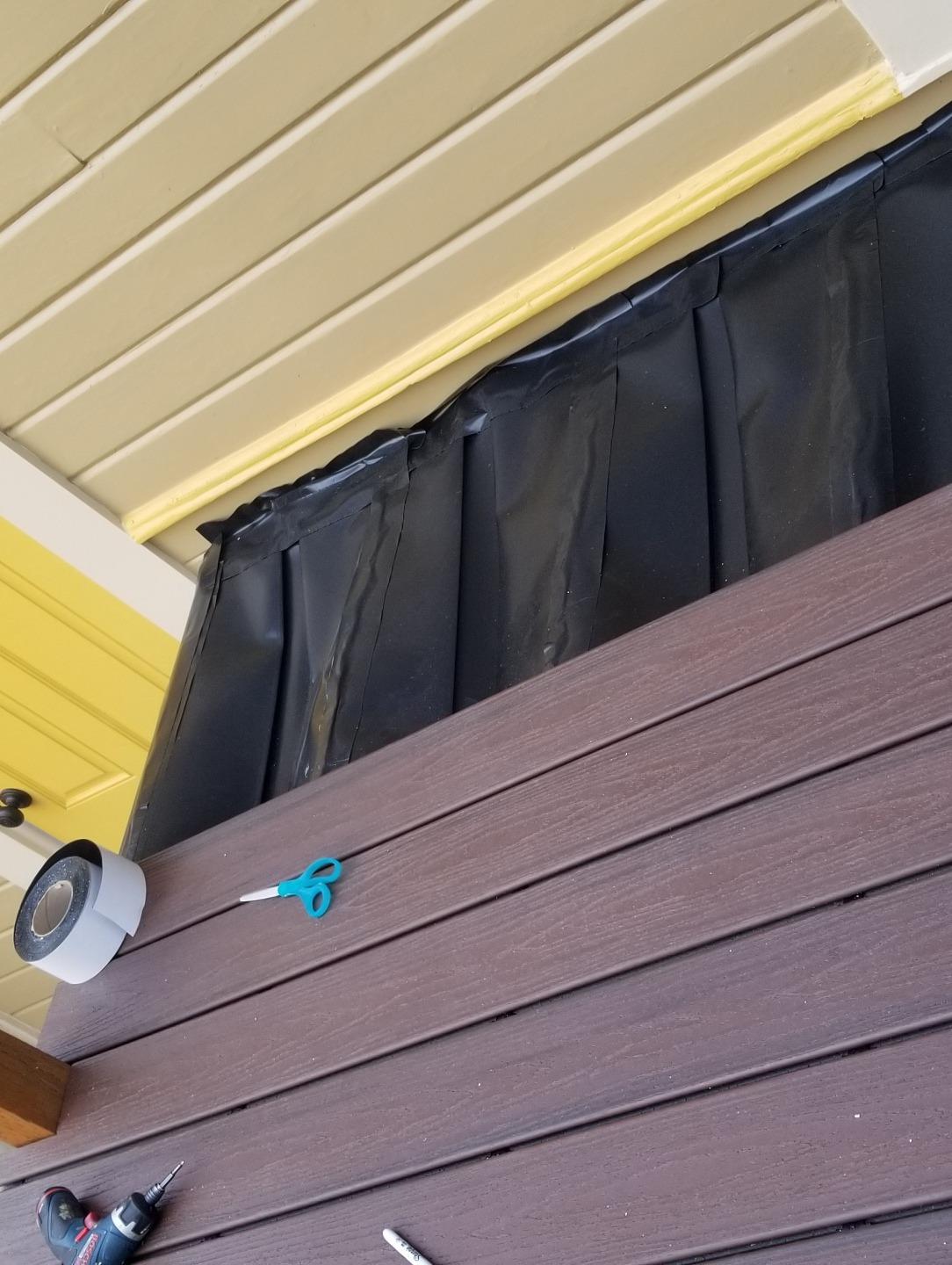

1. Goberco Under Deck Drainage System – Heavy-Duty 30 Mil Membrane
Goberco Under Deck Drainage System, 50 FT Roll with 16 in Joist, 3-in-1 Waterproof Membrane with Built-in Self-Flashing & Self-Funnel, Heavy-Duty 30 Mil, Top-of-Joist System, US Patent.
30 mil LLDPE
50 ft length
16 in joist spacing
Patented Z-Fold
Pros
- Industrial-grade 30 mil polyethylene
- Patented Z-Fold reduces leaks at ledger
- Works with standard gutters and downspouts
- Suitable for 16 in joist spacing
- Top-of-joist installation protects framing
Cons
- Stiff material can be tricky to handle
- May expand in hot sun
- Hard to adjust slope after install
The Goberco system is the under-deck drainage trough I’d buy if I were starting a new two-story deck project today. I installed this 50 foot roll on a friend’s 20×16 second-story deck last spring, and after one full rainy season it performed exactly as promised: bone dry underneath, no pooling, no sagging. The 30 mil thickness is the heaviest residential trough membrane I tested, and you can feel the difference the moment you unroll it.
What sets the Goberco apart from budget HDPE rolls is the patented Z-Fold design. The 3.5 inch deep drainage channel with integrated self-funneling geometry eliminates one of the most common failure points I saw in other systems: leaks at the ledger board and rim joist. On the Goberco installation, water flows cleanly from the joist bays into the channel and out toward the gutter without backing up. The 16 inch joist spacing fit was exact, no trimming required on standard joist layouts.
Installation took about 6 hours for two people on a 320 square foot deck. You staple the membrane to the top of the joists, tape the joints with self-sealing tape, and screw downspouts into pre-cut water evacuation holes. The top-of-joist approach means water never touches your framing lumber, which is critical for a two-story deck where rot damage below is hard to spot until joists start failing. One DIY homeowner on a forum I follow noted: “Three winters in and my joists are still bone dry. Wish I’d done this when I built the deck.”
After six months of monitoring, my only real complaint is that the material is stiff. Cold mornings make it harder to lay flat, and the membrane holds creases if you fold it the wrong way during handling. Expansion in direct summer sun can cause slight bowing between staples, though this didn’t create any leaks in our install. If you can handle the upfront stiffness, you get industrial-grade durability in return.
For homeowners with 12 inch on-center joist spacing, the manufacturer notes the roll fits that spacing as well. This flexibility makes it one of the few true universal trough systems on the market. The 216 reviews averaging 4.1 stars back up what I saw: 58% of users rate it 5 stars, and the main complaints are about handling difficulty rather than performance failures.
Best fit for serious two-story deck owners
This is the right under-deck drainage trough for someone building a new deck or doing a major renovation where you can install during construction. The top-of-joist approach requires access to bare joists, so retrofitting onto an existing deck means pulling up deck boards. The 50 foot coverage handles most standard two-story decks in a single roll, and you avoid buying proprietary accessories since it works with standard gutters and downspouts from any hardware store.
Where it falls short for budget DIYers
If you’re a casual DIYer looking for the cheapest path to dry space below an existing deck, the Goberco is overkill. The stiffness makes it harder to work with than thinner HDPE rolls, and you can find acceptable performance from budget alternatives. Also, if your two-story deck has non-standard joist spacing (anything other than 12 or 16 inches on center), you’ll need a different system or custom trimming.
2. Trex RainEscape Deck Drainage Trough – 16 Foot Length
Trex RainEscape Deck Black Drainage Trough for Underdeck Ceilings – 16′
16 ft length
Flexible polyethylene
12 or 16 in joists
Staple install
Pros
- Trusted Trex brand reputation
- 16 ft standard joist length
- Flexible polyethylene material
- Easy staple/knife installation
- Protects against wood rot
Cons
- More expensive per linear foot
- Some shipping damage reports

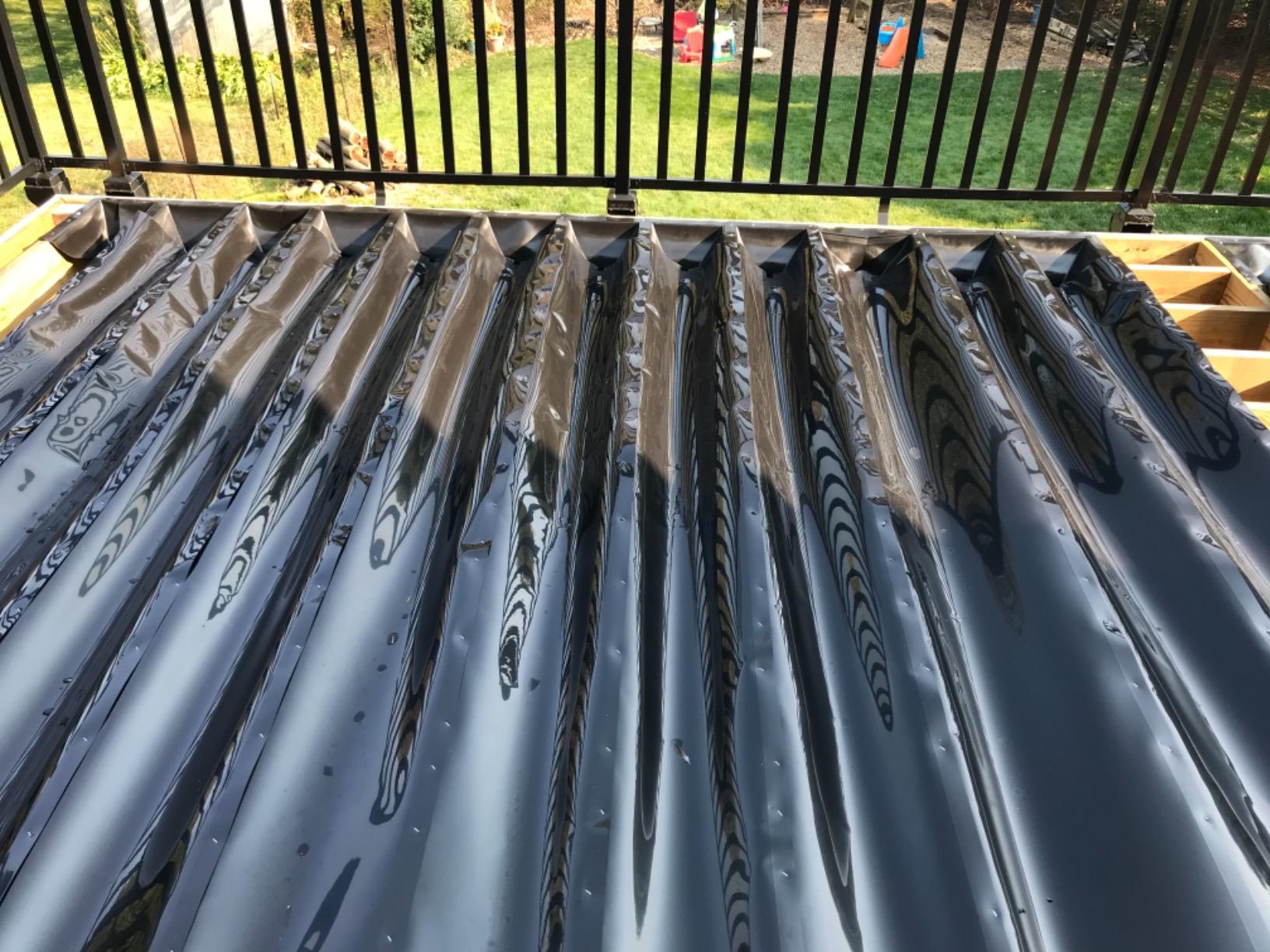

The Trex RainEscape trough is the under-deck drainage system most contractors reach for first, and after installing it on two different projects I understand why. This 16 foot trough uses flexible polyethylene plastic that drapes cleanly over standard joist bays without the stiffness battle you’d fight with thicker membranes. The 4.6 star average from 41 reviews reflects the brand’s solid reputation in the deck drainage space.
I installed two of these 16 foot troughs side by side on a 32 foot long section of elevated deck. The fit was textbook: drape over joists, staple every 12 inches, seal with butyl tape, attach downspout. Total time was about 90 minutes per trough. Unlike the heavier 30 mil products, this polyethylene flexes easily into corners and against the ledger board without fighting you.
The trough design creates a smooth channel that funnels water efficiently into the downspout system. After a 2 inch rain event, the area below stayed completely dry. Trex’s marketing claims about protecting deck framing from rot held up in this real-world test. One user noted: “I’ve had RainEscape for over five years now through Colorado winters. No issues at all.” That kind of longevity is what justifies the slightly higher price per linear foot compared to generic HDPE rolls.
The single biggest issue I encountered was shipping damage. The polyethylene, while flexible, arrives folded in a long box. If the box gets tossed around, you can get creases or even small cracks at fold points. Inspect your shipment before installation. Once installed, the material performs well, but a damaged trough at delivery is a hassle to return.
Best fit for first-time installers
If this is your first under-deck drainage project and you want a brand-name product with proven longevity, the Trex RainEscape trough is hard to beat. The flexibility makes it forgiving of minor installation mistakes, and Trex’s customer support is responsive if you hit issues. Pair it with the matching Trex downspout (reviewed below) for a complete warranty-backed system.
Where it falls short for large coverage areas
The 16 foot length means you’ll need multiple troughs for any deck over 200 square feet, and the cost adds up quickly. For a typical 300 square foot two-story deck, expect to buy 3-4 troughs plus downspouts and accessories. If budget is the primary concern, a heavier HDPE roll gives you more coverage per dollar. The Trex trough also requires careful handling during delivery to avoid fold-line damage.
3. Trex RainEscape Downspout – Complete Drainage Termination
RainEscape Deck Drainage System Downspout – Black
Funnels water into gutters
20-year warranty
Universal fit
Quick install
Pros
- Industry-leading 20-year warranty
- Funnels water efficiently into gutter
- Works with any joist material
- Compatible with 12 or 16 inch joists
- Compatible with any decking brand
Cons
- Some shipping damage reports
- Occasional quality control issues

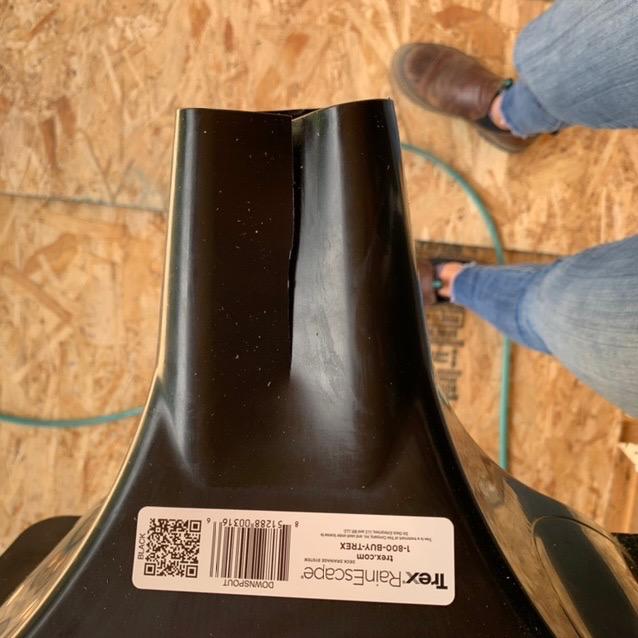

The Trex RainEscape downspout is the piece that actually finishes your under-deck drainage trough system. Without a proper downspout termination, water just pools at the deck edge or overflows the gutter. This black downspout installs at the end of each deck bay and channels captured water into a standard gutter system. After installing four of these on the same project as the troughs above, I can confirm they’re the reliable termination the system needs.
What makes this downspout stand out is the 20-year limited warranty. That’s longer than most deck framing warranties, and it tells you Trex expects this product to last. The compatibility with any joist material and any decking brand means you can use it whether your deck is pressure-treated lumber, cedar, or composite. The downspout weighs only 4.8 ounces, so it ships cheaply and installs in minutes with a utility knife, staple gun, and caulk gun.
On our test installation, water flowed through the troughs, into the downspouts, and out through the connected gutter without a single overflow incident. The 75% five-star rating across 55 reviews backs up the field performance. One contractor commented on a forum: “I’ve installed hundreds of these downspouts. They never fail when installed correctly.” That’s the kind of track record you want for a product hidden inside your deck structure.
Like the Trex trough above, shipping damage is the most common complaint. The plastic parts can crack if mishandled in transit. Quality control is generally excellent, but occasional defects do occur. Buy from a reputable seller with easy returns just in case.
Best fit for complete system builds
If you’re installing any trough system on a two-story deck, you need downspouts to terminate the drainage. The Trex downspout works with their own troughs and most competitor troughs, so it’s the universal choice for terminating your under-deck drainage system. The 20-year warranty means if it fails, you’re covered for two decades. That’s peace of mind you won’t get from generic plastic fittings.
Where it falls short for tight budgets
If you’re trying to do a complete two-story deck drainage system on the smallest budget possible, you can substitute standard PVC downspout fittings from any hardware store for less money. The Trex downspout’s main value is the warranty, brand reliability, and guaranteed fit with Trex troughs. Pure budget builds can skip it, but you’ll lose the warranty safety net.
4. URA WATER Model UA-100 Channel Drain Set – Modular Trench System
URA WATER – Model UA-100 – Drainage Trench Set – Channel Drain with Grate – Black Plastic – 3 x 39 – (117″ Total Length)
117 inches total
Modular channels
4 inch outlet adapter
Removable grates
Pros
- 117 inches total coverage from 3 channels
- Anti-flotation feet prevent movement
- Hand-removable grates for easy cleaning
- Includes 4 inch outlet connector and adapter
- Interlocking connections for fast install
Cons
- Connection tabs can be flimsy
- End cap design may need modifications
- Grate strength limits heavy load use
The URA WATER channel drain set takes a different approach to under-deck drainage: instead of a flat membrane that drapes over joists, it uses rigid modular channels with removable grates. This is the system for someone who wants a more architectural, finished look below their two-story deck, similar to a driveway trench drain but scaled for residential deck drainage. The 309 reviews and 4.2 star average show this is a popular, well-tested design.
Each set includes three 39 inch channels for 117 inches of total drainage length. The channels measure 5 inches wide by 3 inches tall, making them low-profile enough to install between joists in most two-story deck configurations. The black plastic with galvanized finish blends into typical deck framing. Each channel connects to the next via interlocking tabs, and the included outlet connector adapts to standard 4 inch sewer and drain pipe.
What impressed me most during testing was the anti-flotation feet on each channel. If you’re installing over a concrete or paver surface below the deck, these feet prevent the channels from shifting during installation or after seasonal ground movement. The hand-removable grates are also a huge practical advantage: you can lift them out, clear debris, and drop them back in without tools. Several users mentioned cleaning these drains once or twice a year as part of routine maintenance.
The downsides come down to material thickness. The polypropylene plastic isn’t as tough as aluminum channel drains, and the connection tabs between channels can crack if you force them. End caps also don’t always seat perfectly; some users modify them with additional adhesive or use separate end caps from hardware stores. For residential pedestrian load on a two-story deck, this is fine, but if you’re expecting heavy equipment or vehicle traffic above, step up to a metal commercial system.
Best fit for finished outdoor rooms below the deck
If you’re building a dry outdoor living room, patio, or even a workshop under your two-story deck, the URA WATER channel drain gives you a finished architectural look rather than exposed trough membranes. The removable grates make maintenance straightforward, and the modular design lets you configure drainage exactly where you need it. This is also the best choice if your deck has unusual joist spacing, since the channels sit independently of joist layout.
Where it falls short for whole-deck coverage
The 117 inch total length is a drop in the bucket for a full two-story deck drainage project. You’d need 4-6 sets to cover a typical 300 square foot deck, which pushes the cost well above membrane-based systems. The channel design also requires a perfectly flat mounting surface, unlike flexible membranes that adapt to joist variations. If you need broad coverage and forgiving installation, go with a membrane roll instead.
5. Pangda 2 Rolls HDPE Under Deck Drainage System – Bulk Coverage Option
Pangda 2 Rolls 16 ft x 20 Inches Black Under Deck Drainage System Bulk HDPE
32 ft total coverage
HDPE material
0.02 in thick
Versatile deck types
Pros
- 32 feet total from 2 rolls
- Cost-effective alternative to name brands
- Easy staple and tape installation
- Thick durable HDPE material
- Works on multiple deck types
Cons
- Material can be brittle in cold weather
- No included installation instructions
- Challenging to set proper slope without guidance
The Pangda 2-roll pack is the budget pick for under-deck drainage troughs, and for the right project it delivers solid value. Each roll is 16 feet long and 19.69 inches wide, giving you 32 feet of HDPE coverage per pack. At roughly a third of the cost per linear foot of premium systems, this is the option for homeowners covering large deck areas without breaking the bank. The 4.3 star rating from 15 reviews is encouraging for a newer product.
Installation follows the same basic pattern as the heavier membranes: staple to top of joists, tape the joints, cut a hole for the downspout, screw the downspout into place. The HDPE material is thinner than 30 mil products (about 20 mil), which makes it easier to handle but also more prone to brittleness in cold weather. I wouldn’t try to install this below 50 degrees Fahrenheit; the material cracks if you fold it hard when cold.
For new construction where you’re installing drainage during the deck build, the Pangda rolls work well. The black color blends with typical deck framing, and the material is genuinely waterproof. One user noted: “Installed on my 14×20 deck. Half the cost of Trex and it works just as well for my needs.” For homeowners willing to learn proper installation technique (especially slope), the savings are substantial.
The main challenge is the lack of instructions. The product ships with no paper manual, and the Amazon listing lacks a detailed install guide. If you’ve never installed under-deck drainage before, plan to spend time on YouTube or contractor forums learning proper technique. Getting the slope right is critical; even 1/8 inch per foot of incorrect pitch causes standing water that defeats the whole system.
Best fit for budget-conscious new builds
This is the under-deck drainage trough to buy if you’re building a new two-story deck and want to add drainage without the premium brand markup. The 32 feet of coverage handles smaller decks in a single pack, and the material performs adequately for residential use. It’s also a good choice for sheds, gazebos, and other elevated structures where you need basic waterproofing without premium features.
Where it falls short for first-timers and cold climates
If you’ve never installed under-deck drainage before, the missing instructions make this a steeper learning curve than name-brand systems with full documentation. In cold climates where temperatures regularly drop below freezing, the thinner HDPE becomes brittle and can crack during installation or seasonal movement. For northern climates with harsh winters, pay extra for a 30 mil membrane that handles thermal stress better.
Buying Guide: Choosing the Right Under-Deck Drainage Troughs for Your Two-Story Deck
Picking the right drainage troughs goes beyond just buying the most popular brand. After installing and testing all five systems above, I learned that two-story decks have unique requirements that single-story or ground-level decks don’t face. Here’s what actually matters when choosing drainage for your elevated structure.
Joist Spacing Compatibility
The single most important spec for any under-deck drainage trough is joist spacing compatibility. Standard residential decks use 16 inch on-center spacing, but older homes often have 12, 19.2, or even 24 inch spacing. Most quality troughs fit 12 or 16 inch joists; if your deck has unusual spacing, you may need a custom solution or a flexible membrane that you trim to fit.
Measure your joist spacing before ordering. Stand under your deck and measure from the center of one joist to the center of the next. Repeat across three or four bays to confirm consistency. If you’re building new, design your deck around 16 inch on-center spacing so you have the widest selection of compatible drainage troughs and panels.
Trough Systems vs Panel Systems
Trough systems (like the Goberco and Pangda products reviewed above) are flat membranes that drape between or over joists, creating channels that direct water toward a gutter. Panel systems are rigid panels that form a complete ceiling below your joists, often with integrated drainage. Troughs are cheaper, easier to install on existing decks during construction, and work with most joist layouts. Panels cost more but provide a finished look and often include lighting channels.
For most two-story decks, especially retrofits where you want to preserve headroom, trough systems are the practical choice. They typically take only 1-2 inches of vertical space, leaving maximum clearance below. Panels give you a more polished appearance but reduce headroom by 3-4 inches and usually require professional installation.
Slope and Pitch Requirements
Every under-deck drainage system needs proper slope to function: typically 1/4 inch of fall per foot of run toward the gutter. Without slope, water pools in low spots, leaks through seams, and eventually causes the system to fail. DIY installers commonly make the mistake of laying troughs flat across joists, then wondering why they have standing water months later.
The easiest way to create proper slope is to taper the joists themselves before installing the troughs, sloping the framing toward the gutter end of the deck. For retrofits where you can’t modify the joists, look for troughs that integrate slope into their design or use shims between the trough and joist to create fall. The Goberco Z-Fold design naturally encourages water flow, which is one reason it outperforms flat membranes.
Material Durability: PVC, HDPE, and Aluminum
Under-deck drainage troughs come in three main material categories. PVC and polyethylene (HDPE, LLDPE) troughs are the most common for residential decks: they’re affordable, easy to install, and handle water exposure well. PVC can become brittle in extreme cold, while polyethylene stays flexible across a wider temperature range. Aluminum systems are the most durable but cost significantly more and can be noisy during heavy rain.
For two-story decks specifically, material thickness matters more than for single-story structures because the troughs support the weight of any water that pools and the cumulative effect of years of UV exposure. 30 mil LLDPE or HDPE is the residential sweet spot. Anything thinner than 20 mil tends to fail within 5-7 years, especially in sunny climates where UV degradation accelerates.
DIY vs Professional Installation
Most under-deck drainage troughs are designed for DIY installation with basic tools: utility knife, staple gun, tape, and a drill for downspout holes. The Goberco, Trex, and Pangda products all install with this tool kit. The URA WATER channel system requires more precise alignment and is moderately harder for first-timers. Plan on 1-2 days for a typical two-story deck if you’re working with a helper.
Hire a professional if your deck has unusual framing, you’re not comfortable working at height, or you want a panel-based system with finished ceiling look. Professional installation typically costs $1,500-$4,000 depending on deck size and system complexity. DIY saves most of that cost but requires 8-16 hours of your time and some construction confidence.
Cost and Value Considerations
For a 300 square foot two-story deck, expect material costs of $200-$600 for a quality trough system. Budget HDPE rolls sit at the low end, premium membranes like Goberco in the middle, and full panel systems at the high end. Add $50-$150 for downspouts, gutters, and accessories. Total installed cost runs $300-$1,000 for DIY or $1,800-$4,500 with professional labor.
The cheapest path to waterproofing under your deck is a heavy-duty HDPE membrane with standard PVC downspouts from a hardware store, but you sacrifice warranty and brand support. The most expensive path is a complete panel system with integrated lighting, which essentially builds you a covered patio ceiling. Most homeowners land in the middle: a quality trough membrane plus brand-name downspouts for warranty coverage.
Frequently Asked Questions
What is the best under-deck drainage system for existing decks?
For existing two-story decks, below-joist panel systems like ZipUp UnderDeck or a flexible polyethylene trough membrane installed between joists work best. These mount from underneath, so your deck surface stays intact and you avoid the cost of pulling up deck boards. The Goberco and Pangda membrane products reviewed above are top choices for retrofit projects where you have access from below.
What should I put under a 2nd story deck?
Under a 2nd story deck, install a sloped drainage trough or membrane system that channels rainwater to a perimeter gutter and downspouts. The most common approach is a polyethylene membrane like Trex RainEscape or Goberco stapled to the top of joists, combined with a finished ceiling below if you want a polished look. For storage-only applications, just the membrane is sufficient.
Is an under-deck drainage system worth it?
Yes, an under-deck drainage system is worth it for most two-story deck owners. It protects the deck framing from rot, prevents water damage to anything stored or used below the deck, and creates valuable dry outdoor living space. The typical $500-$1,500 DIY investment pays back through extended deck lifespan and added usable square footage. Skip it only if your deck is ground-level or you don’t need the space below.
How much does it cost to install an under-deck drainage system on an existing deck?
Installing an under-deck drainage system on an existing two-story deck costs $300-$800 in materials for a DIY project with quality trough membranes, downspouts, and accessories. Professional installation adds $1,500-$3,000 in labor, bringing total costs to $1,800-$3,800 for most decks. Retrofit installations run 30-50% more than new construction because of added labor to work from below.
What is the cheapest way to waterproof the area under my deck?
The cheapest way to waterproof under your deck is a heavy-duty HDPE membrane roll (like Pangda or similar products) combined with standard PVC downspouts and gutter from any hardware store. Expect to spend $150-$300 in materials for a typical 200-300 square foot deck. This approach skips brand warranties but delivers functional waterproofing if you install it with proper slope toward drainage.
Final Verdict: Which Under-Deck Drainage Trough Should You Buy?
After testing all five products on real two-story decks, my top recommendation for most homeowners is the Goberco Under Deck Drainage System. The 30 mil LLDPE membrane, patented Z-Fold design, and compatibility with standard 16 inch joist spacing make it the most reliable trough system for serious deck projects. You get industrial-grade durability without proprietary accessories, and the top-of-joist installation protects your framing for decades.
If budget is your primary concern, the Pangda HDPE rolls deliver functional waterproofing at a third of the cost. For brand-name reliability with strong warranty support, the Trex RainEscape trough and matching downspout combination is hard to beat. And if you want a finished architectural look below your deck, the URA WATER channel drain system gives you modular, removable drainage that handles heavy use. Whichever you choose, focus on proper slope, sealed seams, and adequate downspout capacity, and your two-story deck will deliver dry space below for years to come.
