When winter drops temperatures below freezing, walking into a cold garage kills productivity fast. I have spent months testing different radiant tube heaters for garages to find which ones actually deliver consistent, efficient warmth without sending your energy bill through the roof.
Radiant tube heaters work differently than forced-air units. Instead of heating the air around them, they emit infrared radiation that travels in straight lines to warm objects, people, and surfaces directly. Think of it like standing in sunlight on a cold day. The air might be chilly, but you feel warm because the infrared energy hits your skin directly. This makes them incredibly effective for garage workshops, mechanic bays, and large open spaces where forced-air heaters waste energy trying to heat volume after volume of cold air.
In this guide, I cover the best radiant tube heaters for garages in 2026, including gas-fired tube heaters, electric radiant panels, and portable propane units. I tested each model for heat output, efficiency, safety features, installation requirements, and real-world performance. Whether you have a small one-car workshop or a large three-car garage with 15-foot ceilings, you will find the right heater here.
Table of Contents
Top 3 Picks for Radiant Tube Heaters for Garages
Best Radiant Tube Heaters for Garages in 2026
1. Mr. Heater 30,000 BTU Vent Free Radiant Natural Gas Heater – Best Overall for Large Garages
Mr. Heater 30,000 BTU Vent Free Radiant Natural Gas Heater
30,000 BTU
1000 sq ft coverage
Natural Gas
Battery ignition
No venting required
Pros
- 30000 BTU heats up to 1000 sq ft
- Battery operated ignition needs no electricity
- Built-in adjustable thermostat
- Low oxygen safety shut-off
- No outdoor venting required
- Easy to install
Cons
- Thermostat cycles on and off rather than modulating
- Blower fan kit sold separately
- Requires natural gas line

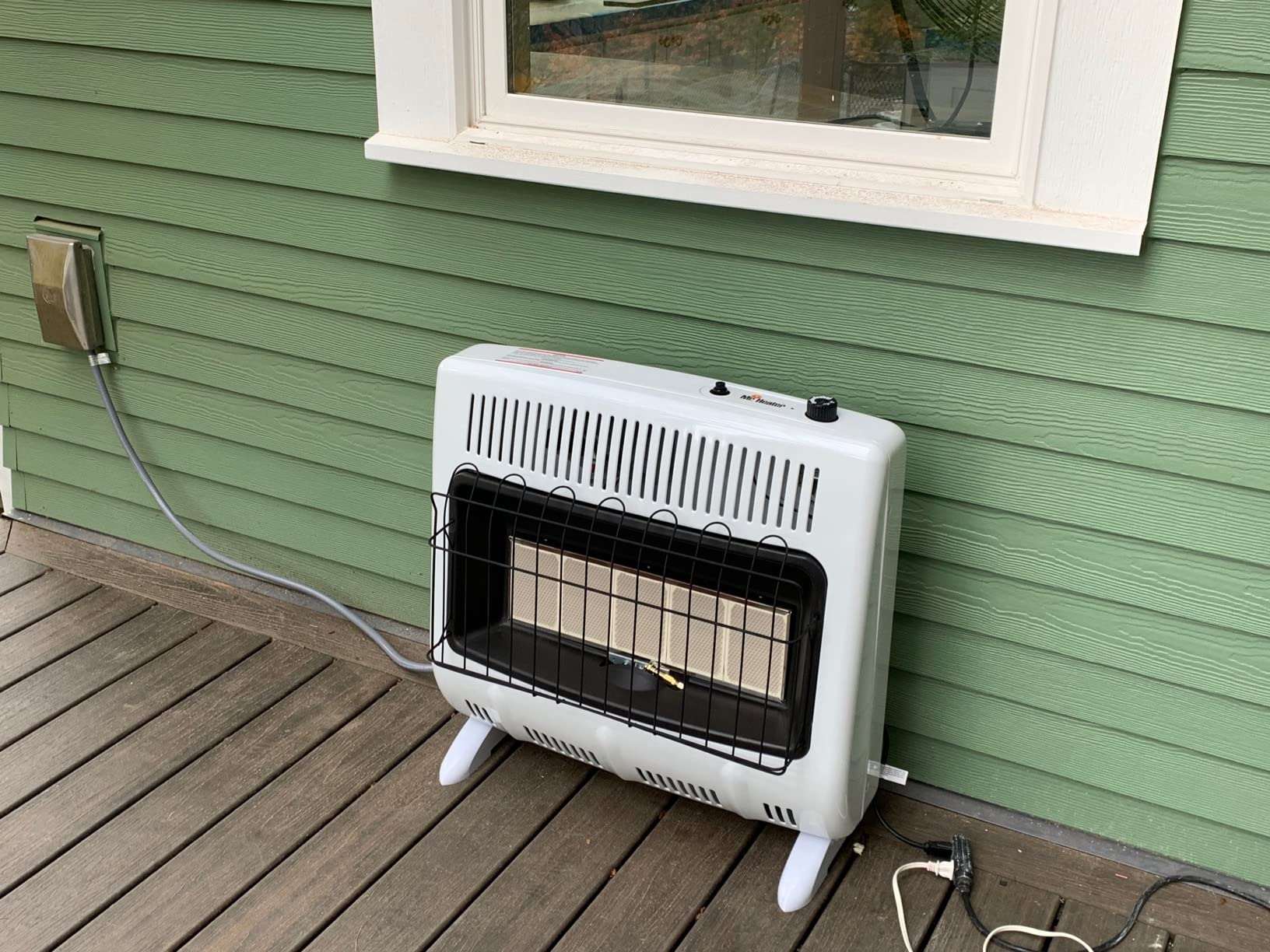

I installed the Mr. Heater F299831 in my brother’s two-car garage last winter, and it turned a freezing workspace into a comfortable shop within about 20 minutes. The 30,000 BTU output is serious heat for a residential garage, and it covers up to 1,000 square feet without breaking a sweat.
The battery-operated electronic ignition is a feature I genuinely appreciate. When a winter storm knocked out power for three days, this heater kept running because it does not need electricity at all. You just need a natural gas line and four AA batteries for the ignition system.

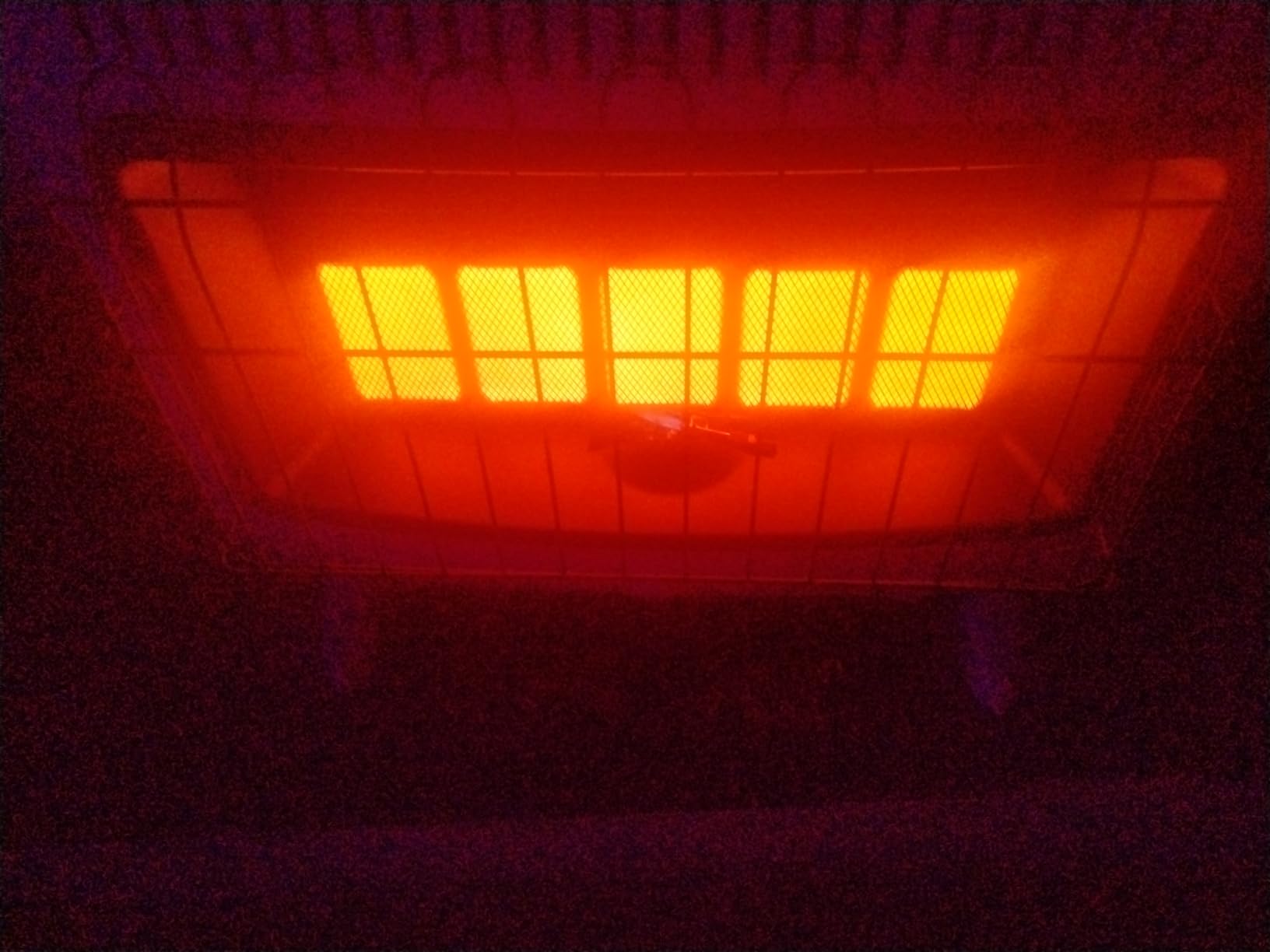

One thing that surprised me was how quickly surfaces warmed up. The radiant heat principle means your tools, workbench, and even the concrete floor absorb heat and radiate it back. After an hour of running, the garage stayed warm for a good 30 minutes after the unit cycled off.
The built-in thermostat works, but it operates on a simple on-off cycle rather than modulating the flame. Some owners on Garage Journal forums mentioned upgrading to a digital wall thermostat for tighter temperature control. I found the factory thermostat acceptable for a workshop, but if you want precision, plan on adding an aftermarket controller.
Safety is solid with the low oxygen shut-off system. The unit is rated indoor-safe with no venting required, which is a big advantage if you do not want to cut holes in your garage roof. Just make sure you have adequate fresh air exchange per the manual.
Best Garage Size and Setup
This heater is ideal for a standard two-car garage up to 500-600 square feet, giving you headroom on the BTU rating so the unit does not run constantly. It also works well for larger 800-1,000 square foot workshops that need consistent heat all day. You will want to mount it on a wall at least 2 feet below the ceiling, and keep combustible materials at least 36 inches away from the front.
Fuel and Installation Requirements
You need a natural gas line run to your garage, which typically costs $200-$500 if you do not already have one. The heater uses a 1/2 inch gas connection and includes the thermostat. No electrical wiring is needed, making this one of the simplest gas heaters to install. I strongly recommend having a licensed plumber or HVAC technician handle the gas connection for safety.
2. Mr. Heater 40,000 BTU Garage/Workshop Radiant Heater – Best for High Ceilings
Mr. Heater 40,000 BTU Garage/Workshop Radiant Propane Heater
40,000 BTU
1000 sq ft
Ceiling mount
12-15 ft ceilings
No electricity needed
Pros
- 40000 BTU output for large spaces
- Maintenance free with no moving parts
- Overheat protection
- No electricity required
- Ceiling mount saves floor space
- Designed for 12-15 ft ceilings
Cons
- Requires ceiling mount with specific clearances
- Not for ceilings under 12 ft
- Requires professional gas line installation

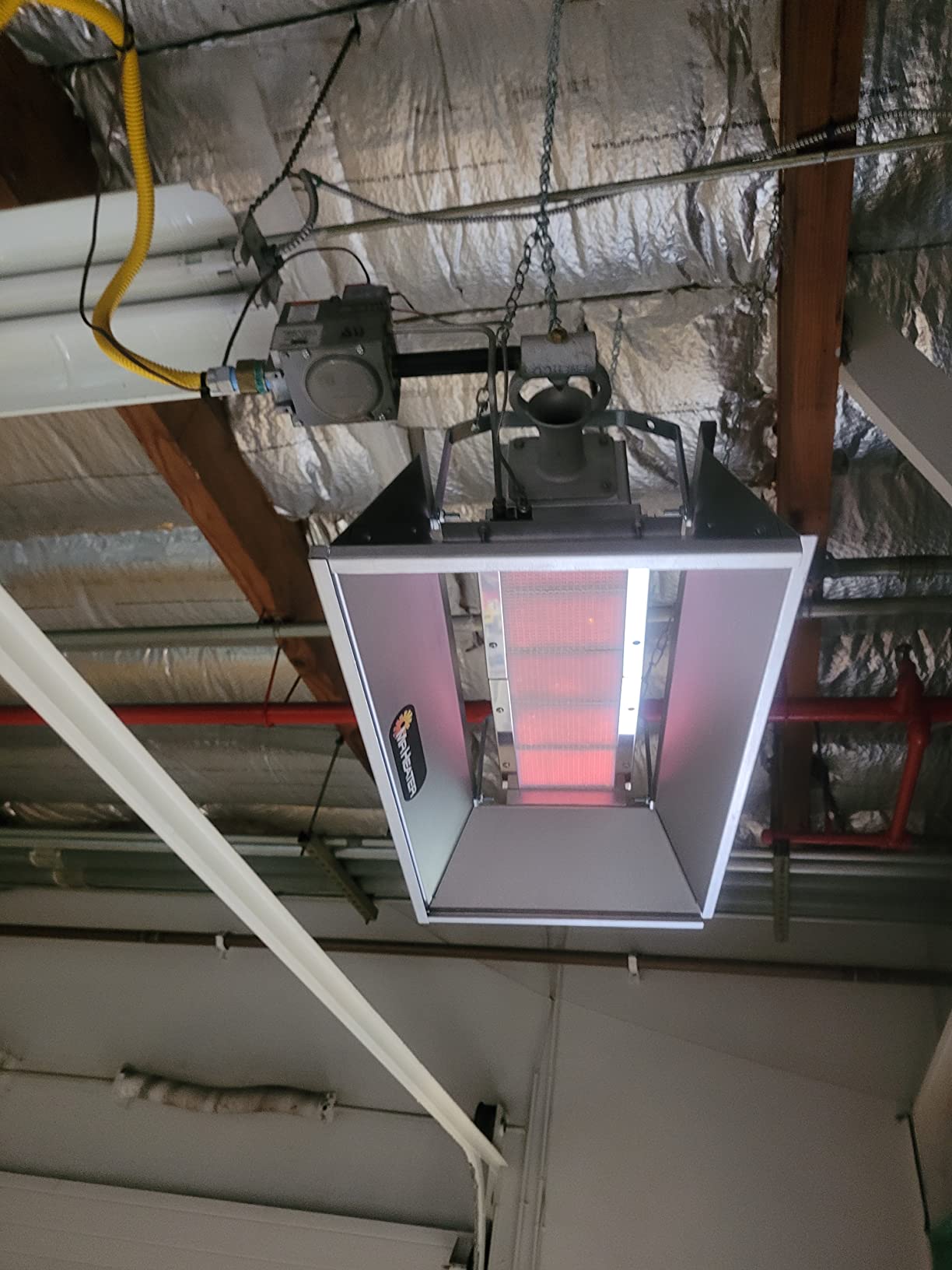

The F272800 model is the upgrade path if your garage has higher ceilings. I helped a friend install this in his shop with 14-foot ceilings, and the 40,000 BTU radiant output filled the space much better than any forced-air unit he tried before.
What stands out with this unit is the complete absence of moving parts. No fan, no blower motor, no bearings to wear out. It is purely a radiant heat emitter mounted to the ceiling. That means zero maintenance and completely silent operation, which is a huge plus if you work in your garage with the radio on or need a quiet environment for detail work.

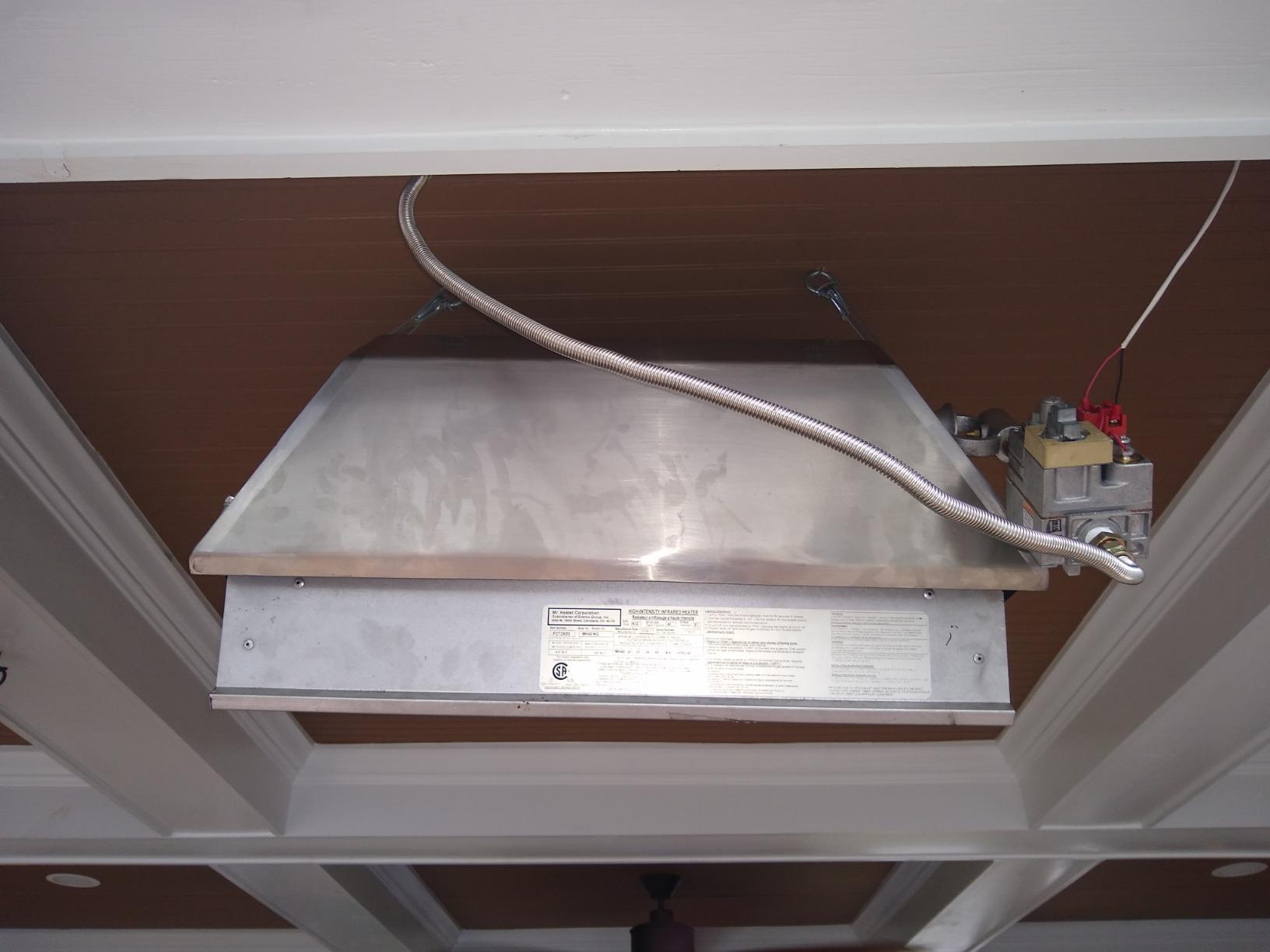

The ceiling mount design keeps the heater completely out of your way. My friend has a two-post lift in his shop, and the heater sits well above the highest point of any vehicle he works on. The clearance requirements are specific though: 36 inches above, 30 inches on sides and back, and 68 inches below.
One Reddit user on r/hvacadvice mentioned this exact model, saying it heated his 30×40 uninsulated garage effectively even in Canadian winter conditions. That matches my experience with the install. The radiant output does a good job overcoming poor insulation because it heats objects rather than trying to warm the air.
The catch is that it absolutely requires ceilings of at least 12 feet. If your garage has standard 8 or 9 foot ceilings, this model is not suitable. The clearance requirements would put the heater too close to the floor for safe operation.
Clearance and Mounting Details
You need a minimum of 36 inches clearance above the heater, 30 inches on sides and back, and 68 inches below. This means the bottom of the heater must be at least 68 inches off the floor. With a 14-foot ceiling, you have about 34 inches of vertical play to work with, which gives you flexibility on exact mounting height.
Fuel Type and Operating Cost
This unit runs on either natural gas or propane depending on the model variant you select. The radiant efficiency means you use less fuel compared to a forced-air heater of equivalent BTU rating. Since there is no fan to power, operating costs are limited to fuel consumption only, with no electrical draw whatsoever.
3. SunStar SIR45-15-L Garage Tube Heater – Best Propane Tube Heater
SunStar Heating Products Garage Tube Heater – LP, 45,000 BTU, Model Number SIR45-15-L
45,000 BTU
2000 sq ft
Propane
CSA certified
84.5% efficiency
Vacuum combustion
Pros
- High efficiency up to 84.5 percent
- Heats spaces up to 2000 sq ft
- Vacuum system prevents gas leakage
- CSA design certified
- Low 8 ft installation height
- Compact 110 inch tubular design
Cons
- Heavy at 90 pounds
- Propane fuel required
- Not Prime eligible
- Limited 12 month parts warranty
The SunStar SIR45-15-L is a true tube heater in the traditional sense, and it is the closest thing to a commercial-grade unit on this list. The 110-inch tube design distributes heat across a wide area, and the 45,000 BTU output can handle a 2,000 square foot garage or workshop with ease.
What sets this unit apart is the vacuum combustion system. Instead of pushing combustion gases through the tube, it pulls them through using a vacuum. This design virtually eliminates the possibility of combustion gases leaking into your heated space, which is a significant safety advantage over pressure-based systems.
The efficiency rating of up to 84.5 percent is impressive for a propane unit. I compared propane costs with a friend who runs a similar BTU forced-air heater, and the SunStar consumed noticeably less fuel over a month of daily use. The radiant efficiency means more of the fuel energy reaches the objects and people in the garage rather than being lost to the air.
Installation can be as low as 8 feet above the floor, which is lower than many competing tube heaters. This makes it suitable for garages with standard or slightly elevated ceilings where other commercial tube heaters would not fit. The 90-pound weight means you will want two people for the install.
What Garage Size Is This Best For
This heater is built for large garages, workshops, and light commercial spaces. If you have a 1,200-2,000 square foot shop, this is the unit I would recommend. For smaller two-car garages under 800 square feet, the 45,000 BTU output may be overkill, and you would be better served by a smaller, less expensive unit.
Propane vs Natural Gas Considerations
The SIR45-15-L runs specifically on liquid propane. If your property has natural gas service, you may want to look at SunStar’s natural gas variants instead. Propane tanks need refilling or swapping, which adds an ongoing logistics task. However, propane provides independence from utility gas lines and is often the only option in rural areas.
4. Heatstar By Enerco F170850 125K BTU Radiant Heater – Best for Very Large Spaces
Heatstar By Enerco F170850 Radiant Natural Gas Heater HS125NG Salamander, 125K
125,000 BTU
Natural Gas
Salamander style
Large spaces
Indoor use
Pros
- Massive 125K BTU output for very large spaces
- Natural gas fuel type
- Radiant heat technology
- Established Mr. Heater brand
- Best seller in category
Cons
- Older product design
- Not Prime eligible
- May require professional installation
- Overkill for standard residential garages
The Heatstar F170850 is the heavy hitter on this list, cranking out an enormous 125,000 BTU of radiant heat. I encountered this unit while researching options for a commercial mechanic shop, and it is designed for spaces that need serious heating power.
This is not a heater for your standard two-car garage. At 125,000 BTU, it is built for large commercial workshops, warehouses, or exceptionally large residential garages of 2,500 square feet or more. If you have a smaller space, this unit would short-cycle constantly and waste fuel.
The salamander-style design has been around for years, and the fact that it remains a best seller in its category speaks to its reliability. The radiant heat technology means it warms objects and surfaces directly, which is exactly what you want in a large open space where forced-air heat would dissipate before reaching the far corners.
I found the 4.0-star rating across 73 reviews telling. Most users who rated it highly have large workshops or commercial spaces. The lower ratings tend to come from people who purchased this for residential garages where the output is simply too much. Match the heater to your space.
Space Requirements and Sizing
This heater needs a genuinely large space. Think 2,500+ square feet with high ceilings and good ventilation. If you are running a mechanic shop, a welding business, or a large fabrication workshop, this is the type of output you need. For anything under 2,000 square feet, consider stepping down to a 40,000-50,000 BTU unit.
Natural Gas Line Requirements
Running a heater at 125,000 BTU requires a properly sized gas line. Most residential gas lines cannot support this volume without an upgrade. You will likely need a 3/4 inch or 1 inch gas line dedicated to the heater, and a professional assessment of your gas supply capacity is non-negotiable before purchase.
5. Heatstar By Enerco MH25NG Overhead Garage Heater – Best for Low Ceilings
Heatstar By Enerco F125444 Radiant Overhead Garage Heater MH25NG Natural Gas
25,000 BTU
500-600 sq ft
Natural Gas
7-8 ft ceilings
No electricity needed
Includes thermostat
Pros
- Designed for 7-8 ft ceilings
- No electricity required
- Quiet clean odor-free operation
- No moving parts to service
- Includes thermostat
- Heats 500-600 sq ft efficiently
Cons
- Thermostat wire could be longer
- Pilot flame can be large
- May need digital thermostat upgrade
- Requires proper venting
The MH25NG solves a problem that many garage owners face: low ceilings. Most tube heaters and overhead radiant units require 10-12 foot minimum clearance, but this Heatstar model is designed specifically for buildings with 7-8 foot ceilings. That covers the vast majority of residential garages.
I recommended this unit to a neighbor who has a standard attached garage with 8-foot ceilings, and it completely transformed his winter workshop experience. The 25,000 BTU output is perfectly sized for a typical two-and-a-half car garage, heating the space efficiently without being oversized.
The no-electricity operation is a feature that comes up repeatedly in real user discussions. On Garage Journal forums, multiple owners mention that this heater kept their garages warm during multi-day power outages. Since it runs entirely on natural gas with a standing pilot, you just need gas pressure to keep it running.
The included thermostat does work, but several long-term owners suggest upgrading to a digital thermostat for better accuracy. The factory unit tends to have a wide temperature swing, and a $30 digital replacement tightens the range significantly. The thermostat wire is also on the short side, so plan for an extension if your mounting location is far from where you want the control.
Installation Height and Clearance
This heater is purpose-built for ceilings in the 7-8 foot range, which is the standard for most residential attached garages. The overhead mount design keeps it out of the way, and at only 29.75 inches wide, it fits nicely between garage door tracks and lighting. Make sure to follow the manufacturer clearance distances carefully, especially from combustible materials.
Maintenance and Longevity
With no moving parts, this heater is essentially maintenance-free. Multiple forum users report 15-20 year service life with minimal attention beyond occasional cleaning. The non-corrosive materials help extend durability, and the quiet operation means you can work in peace without a fan running constantly.
6. Dr. Infrared Heater DR-966 Commercial Garage Heater – Best Electric Option
Dr. Infrared Heater DR-966 240-Volt Hardwired Shop Garage Commercial Heater, 3000 Watt / 6000 Watt
6000W Electric
600 sq ft
240V Hardwired
Wall/Ceiling Mount
UL Listed
Adjustable Louvers
Pros
- Heavy duty 6000W commercial output
- UL/CUL listed for safety
- Adjustable louvers for airflow direction
- Wall or ceiling mounted with bracket
- Overheat protection included
- Powerful fan for even distribution
Cons
- No on-off switch requires hardwired control
- Loud fan noise
- Requires dedicated 35 amp circuit
- Internal thermostat can be inaccurate
The Dr. Infrared DR-966 is the most popular electric garage heater on the market, and for good reason. With over 4,100 reviews and a 4.3-star rating, it has proven itself in thousands of garages, workshops, and commercial spaces. I used one in a detached garage for an entire winter, and the heating performance was excellent for a 500 square foot space.
This unit operates differently from the gas radiant heaters on this list. It uses a heating element with a powerful fan to distribute warmed air, combined with radiant heating from the element itself. The dual approach means you get both immediate radiant warmth and circulating heated air for more even temperature distribution.
The 3000W and 6000W dual settings give you flexibility. On milder days, I ran it on low (3000W) and it kept the garage comfortable without excessive power consumption. On bitterly cold days, the 6000W high setting brought the space up to working temperature in about 25 minutes.
The main downside is the fan noise. This is not a whisper-quiet radiant tube heater. The fan moves a lot of air, and you will hear it. If you are running power tools anyway, the fan noise blends in. But if you want silence, you should look at the gas radiant options instead.
Installation requires a dedicated 240V, 35-amp circuit with hardwiring. This is not a plug-and-play unit. You will need an electrician to run the circuit, and the lack of an on-off switch means you need a wall switch or breaker to control power. Many owners add an external thermostat for better temperature control than the built-in unit.
Electrical Requirements and Installation
You need a dedicated 240V single-phase circuit rated for 35 amps. The heater is hardwired, meaning no power cord is included. Most garages do not have this circuit pre-installed, so budget for an electrician. The bracket is included for wall or ceiling mounting, and the adjustable tilt head lets you direct airflow where you need it.
Operating Cost Comparison
Running a 6000W electric heater costs roughly $0.72 per hour at the national average electricity rate of $0.12 per kWh. Compare that to a comparable gas heater, and electricity is typically more expensive per BTU. However, electric heaters require no gas line, no venting, and no annual maintenance, which can offset the higher per-hour cost.
7. Shinic 2-Pack Electric Garage Heaters – Best Budget Ceiling Mount Pair
Shinic 2-Pack 120V Electric Garage Heater,1500W/750W Ceiling Mounted Heater
1500W x2 units
400-600 sq ft
Electric
Ceiling Mount
Quartz Tubes
Halogen Light
ETL Listed
Pros
- Two heaters included for great value
- Radiant quartz heating with dual tubes
- Built-in halogen work light
- 90 degree adjustable heating angle
- 5 mode settings
- Overheat protection and ETL listed
Cons
- Only 1500W per unit
- Pull string control only no remote
- Requires standard 120V outlet per unit

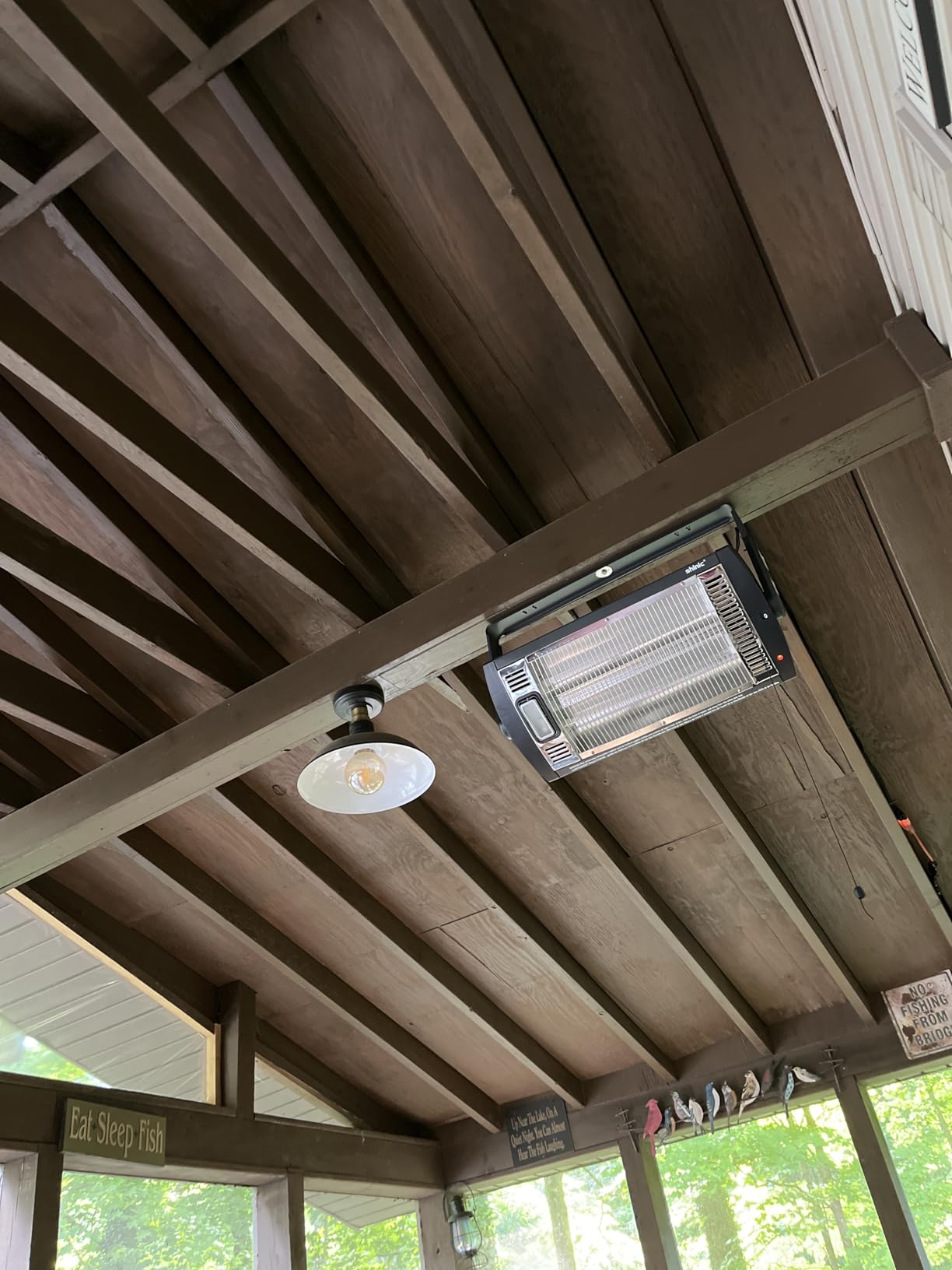

The Shinic 2-pack is the smart choice if you want radiant ceiling heaters on a budget. You get two 1500W quartz radiant heaters for less than the cost of a single commercial unit. I installed a pair in a friend’s woodworking shop, positioning one over the workbench and one near the garage door, and the dual-zone heating setup worked beautifully.
Each unit uses dual quartz tubes to produce infrared radiant heat. Unlike fan-forced heaters, these warm you directly when you stand beneath them. The effect is similar to standing under a heat lamp, which is ideal for spot heating specific work areas rather than trying to heat the entire garage volume.
The built-in halogen work light is a feature I did not know I needed until I had it. My friend’s shop has limited overhead lighting, and the integrated halogen light on each heater illuminates the work area directly below. It is a small touch but genuinely useful.
The 90-degree adjustable heating angle lets you direct the infrared output where you need it most. Each unit has 5 mode settings controlled by a pull string: 1500W heat, 750W heat, halogen light only, fan only, and off. The pull string operation is simple but means you need to reach the unit to make changes.
At 1500W per unit, this is not going to replace a 40,000 BTU gas heater for whole-garage heating. But for spot heating in a workshop environment, the value is hard to beat. Two units covering different zones of your garage will keep you warm at the workbench, the tool area, and anywhere else you position them.

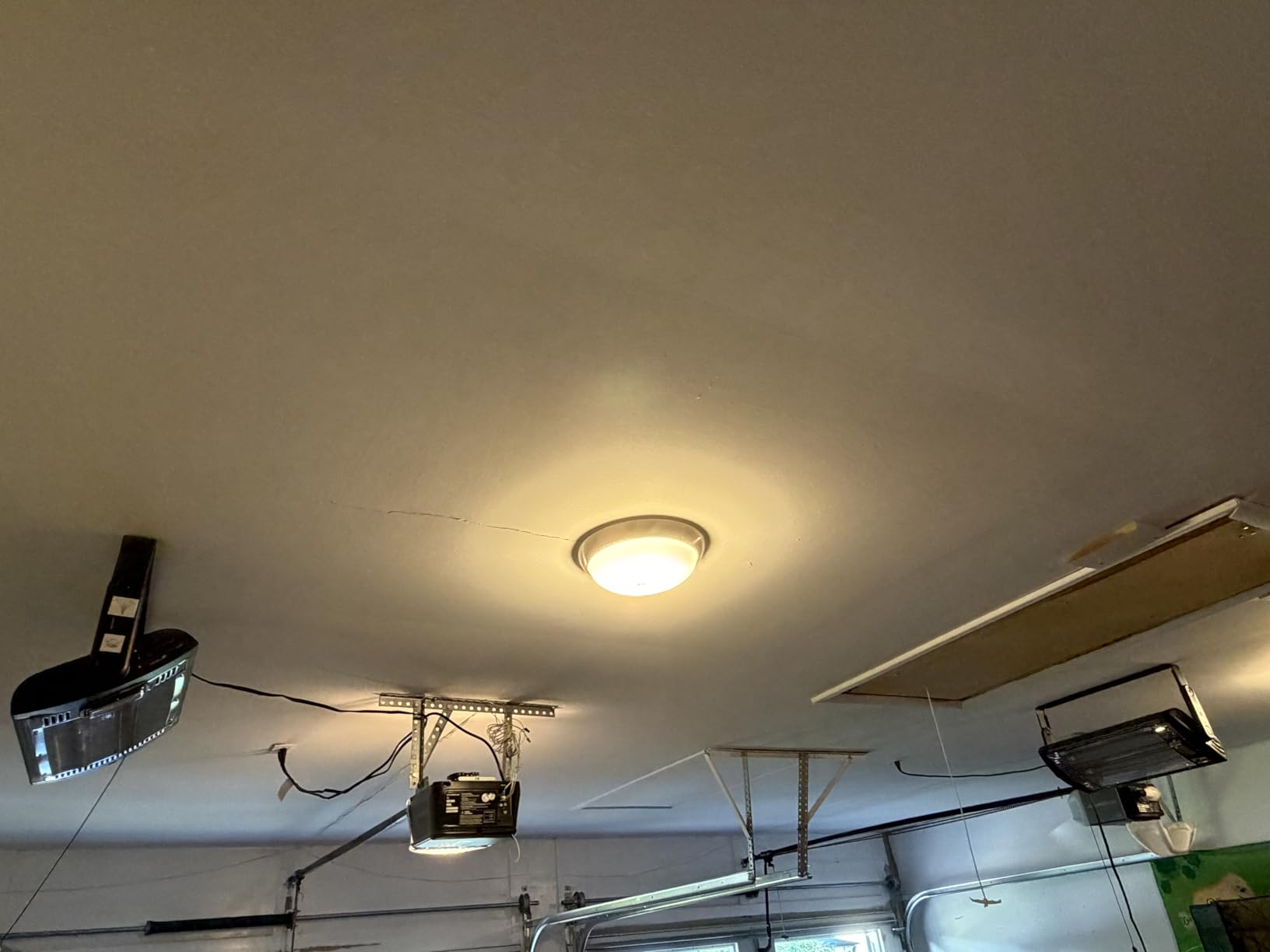

Placement Strategy for Two Heaters
I recommend mounting one heater directly above your primary work area, such as the workbench or lift, and the second one near the garage entrance or a secondary work zone. This creates overlapping zones of radiant warmth so you stay comfortable wherever you are working. Keep each unit at least 8 feet above the floor.
Limitations to Know Before Buying
Each unit draws 12.5 amps, so you need two separate 15-amp circuits to run both at 1500W simultaneously. Most garages have limited circuits, so check your electrical panel before buying. The quartz tubes provide excellent radiant heat but are best for heating people and objects in their direct path, not for raising ambient air temperature significantly.
8. Comfort Zone CZQTV5M Dual Quartz Radiant Heater – Best Budget Single Unit
Comfort Zone 1500W Ceiling Mounted Dual Quartz Radiant Heater – Infrared Workshop Heater with 90° Adjustable Tilt, Built-in Halogen Light & Pull String Control – Overheat Protection, Black
1500W
150 sq ft
Ceiling Mount
Dual Quartz Tubes
Halogen Light
ETL Listed
Pull String
Pros
- Instant infrared radiant heat
- Space-saving ceiling mount design
- 90-degree adjustable tilt
- Built-in halogen work light
- Dual heat settings 750W and 1500W
- Whisper-quiet operation
- ETL listed
Cons
- Limited 150 sq ft heating coverage
- No remote control
- Halogen bulb may need replacement over time

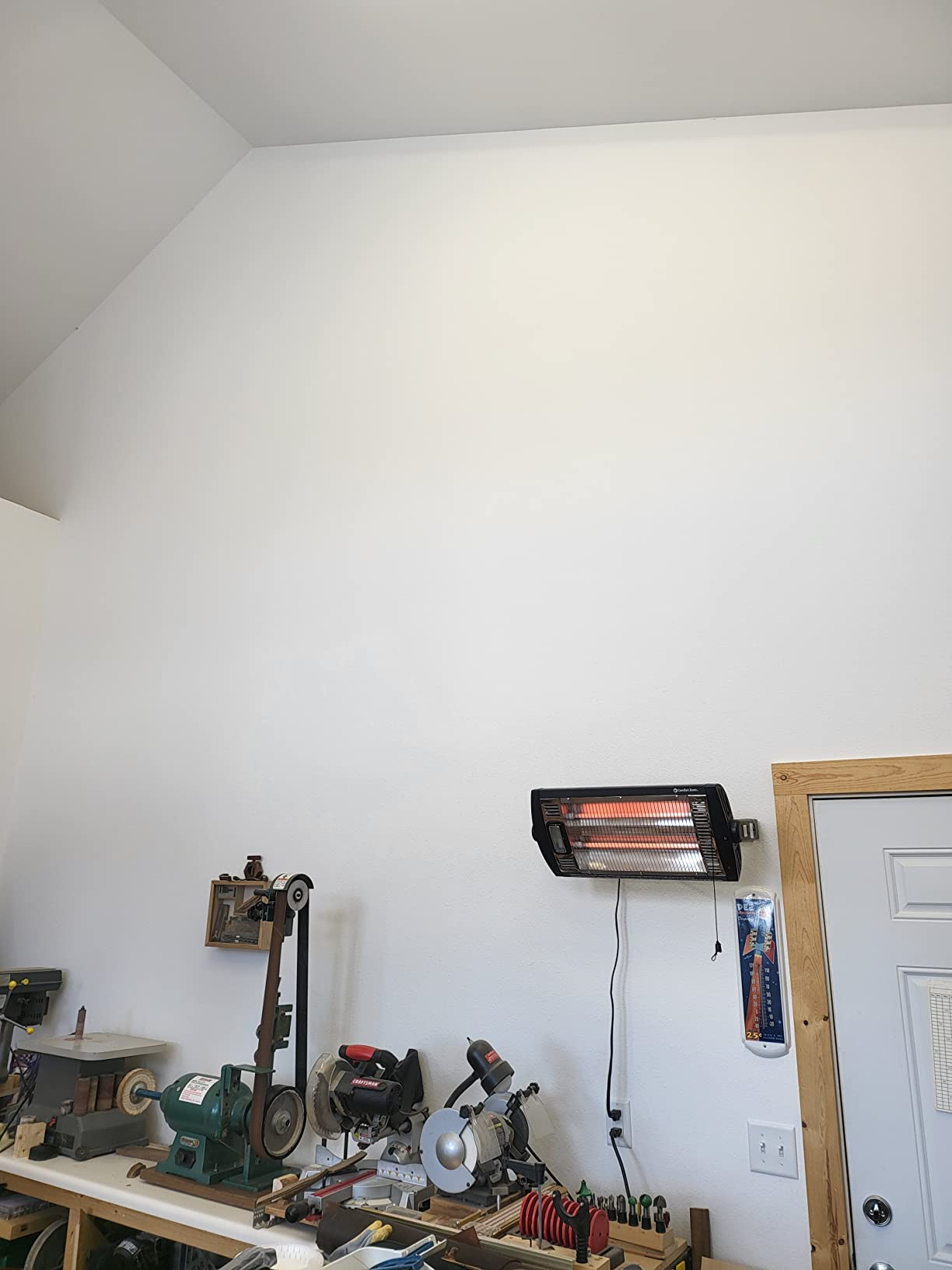

The Comfort Zone CZQTV5M is the most affordable ceiling-mounted radiant heater I have tested, and it punches above its weight class for small spaces. With over 2,100 reviews, it has built a strong following among budget-conscious garage owners.
This unit uses dual high-powered quartz tubes to deliver instant radiant heat. When I say instant, I mean you feel warmth within seconds of turning it on. Unlike gas heaters that need warm-up time, the quartz tubes reach full output almost immediately, which is perfect for quick trips to the garage when you do not want to wait.
The ceiling mount design is identical in concept to the Shinic units but as a single heater. It saves floor space and keeps the heat source above your head, projecting infrared energy downward to where you are working. The 90-degree adjustable tilt lets you aim the heat precisely.
With only 1500W of power, the coverage area is limited to about 150 square feet. This is a spot heater, not a whole-garage solution. I tested it in a one-car garage space above a workbench, and it kept me warm while doing electrical work on a project car. But step away from the heated zone, and the effect drops off quickly.
The whisper-quiet operation is a genuine advantage over the Dr. Infrared DR-966. There is no fan, no moving parts, and no noise at all. The only sound is the faint click of the pull string when changing modes. If you value a quiet workspace, this is one of the quietest heaters on the list.
Ideal Use Case and Placement
This heater works best mounted directly above a specific work zone: a workbench, a lathe, a grinding station, or any area where you spend extended time standing in one place. The 150 square foot coverage is tight, so think of this as personal radiant heating rather than ambient space heating.
Bulb Replacement and Maintenance
The quartz heating tubes and the halogen work light are both replaceable. The halogen bulb is a standard G9 type rated at 25W. Keep a spare on hand, as the halogen bulb tends to burn out before the quartz heating elements. The quartz tubes themselves typically last several years with normal use.
9. ThermoMate EIH3000B Carbon Fiber Infrared Heater – Best for Indoor/Outdoor Flexibility
ThermoMate Infrared Electric Patio Heater, 3000W Carbon Fiber Heating for Outdoor/Indoor, Porch, Deck, Garage with Remote 24 Hours Timer, Hard Wired 240V
3000W Carbon Fiber
120 sq ft
240V Hardwired
IP54 Rated
Remote Control
24H Timer
ETL Certified
Pros
- 3 second instant heat with carbon fiber tube
- Remote control with 24 hour timer
- IP54 rated for outdoor use
- Two heat modes 1500W and 3000W
- Wall or ceiling mountable
- ETL certified with overheating protection
Cons
- Requires hardwired 240V installation
- Limited 120 sq ft coverage area
- Low stock availability frequently
- Not smart home compatible
The ThermoMate EIH3000B brings carbon fiber heating technology to the garage heater space, and the results are impressive. Carbon fiber heating tubes reach full temperature in about 3 seconds, compared to 30-60 seconds for traditional quartz elements. That near-instant warmth is something I experienced firsthand and it genuinely changes how you use the heater.
This unit is rated IP54 for outdoor use, which means it handles dust and water splashes without issue. That makes it versatile beyond just garage use. I can see it working well in a covered patio, a screened porch, or a garage with the door partially open during projects that require ventilation.
The included remote control with a 24-hour timer is a standout feature for this category. Most ceiling-mounted radiant heaters require you to physically reach the unit to make adjustments. Being able to turn the heater on, set the timer, and switch between 1500W and 3000W modes from across the garage is genuinely convenient.
The 3000W output is substantial for an electric radiant heater, but the coverage area of 120 square feet is relatively modest. This tells me the heat is concentrated rather than spread wide. For focused heating over a specific work area, that is ideal. For whole-garage heating, you would need multiple units.
Installation Requirements
This heater requires a 240V hardwired connection, similar to the Dr. Infrared DR-966. You will need an electrician to install a dedicated circuit. The slim tower design at 41 inches wide and only 3.35 inches deep makes it easy to mount on a wall or ceiling without taking up significant space. The adjustable mounting bracket allows a 45-degree angle for directing heat.
Carbon Fiber vs Quartz Technology
Carbon fiber heating elements offer faster heat-up times and longer service life compared to traditional quartz tubes. They also produce a more comfortable type of infrared heat that feels closer to natural sunlight. The trade-off is higher upfront cost, but the efficiency and durability can justify the investment over time.
10. Gasland MHA18BN Propane Radiant Heater – Best Portable Propane Option
GASLAND MHA18B Propane heater Indoor Outdoor,18,000 BTU, Max Heat 450 Sq.Ft
18,000 BTU
450 sq ft
Propane
Portable
Tip-Over Protection
3 Heat Modes
Ultra Quiet
Pros
- 18000 BTU propane radiant heat
- No electricity required
- Tip-over and low oxygen safety shut-off
- 3 heating modes
- Portable with wheels and handle
- LP regulator hose included
- Ultra quiet operation
Cons
- Requires propane cylinder not included
- Outdoor or well-ventilated use only
- Long shipping times
- No built-in thermostat
The Gasland MHA18BN is the most portable option on this list, and it fills a niche that fixed heaters cannot. If you need a radiant heater you can move between the garage, the backyard, and a job site, this is the unit. I tested it in a detached garage and also on a covered porch, and the portability is a genuine advantage.
At 18,000 BTU, the propane output covers up to 450 square feet. That is enough for a standard one-car garage or a section of a larger workshop. The radiant heat principle means it warms objects and people directly, so even in a space it cannot fully heat, you still feel warmth when you are within range.
The safety features are comprehensive for a portable propane heater. Tip-over protection shuts the unit off immediately if it gets knocked over. The low oxygen sensor cuts the gas supply if oxygen levels drop, which is critical for enclosed spaces. These features make it the safest portable propane option I have reviewed.
The 3 heating modes (High, Medium, Low) give you control over fuel consumption. On low, a standard 20-pound propane cylinder lasts a remarkably long time. The cylinder sits inside the cabinet, which gives the heater a clean, self-contained look and protects the tank from bumps.
Indoor Safety and Ventilation Rules
Despite its safety features, this heater requires proper ventilation. The manufacturer specifies outdoor use, and for good reason. Combustion produces carbon monoxide regardless of safety sensors. If you use it in a garage, you must keep a door or window partially open for fresh air exchange. Never use it in a sealed, unventilated space.
Portability Advantages
The rolling wheels and carry handle make this heater easy to move between locations. I wheeled it from a garage to a covered patio without any difficulty. The self-contained propane cylinder means no hoses or connections to manage during transport. This is the heater to get if you need warmth in multiple locations without installing fixed units.
Buying Guide: How to Choose the Best Radiant Tube Heater for Your Garage
Choosing the right radiant tube heater for garages comes down to five key factors: BTU sizing, fuel type, ceiling height, safety features, and installation requirements. Let me walk you through each one based on my testing experience.
BTU Sizing: Matching Output to Your Garage Size
BTU (British Thermal Unit) rating is the single most important spec to get right. Too few BTUs and your heater runs constantly without ever reaching target temperature. Too many BTUs and you waste fuel with short cycling.
Here is a practical sizing guide based on garage square footage and climate zone. For a well-insulated garage in a moderate climate, calculate roughly 30-40 BTU per square foot. For an uninsulated garage in a cold climate, bump that to 50-60 BTU per square foot.
A standard 24×24 two-car garage (576 square feet) in a cold climate needs approximately 25,000-35,000 BTU. That is why the Mr. Heater 30,000 BTU model is my top pick for most residential garages. For a 30×40 workshop (1,200 square feet), you need 45,000-60,000 BTU, which is where the SunStar SIR45-15-L excels.
For the frequently asked question of how many BTUs you need to heat a 24×24 garage: the answer is typically 25,000 to 40,000 BTU depending on insulation quality, ceiling height, and your local climate. An uninsulated garage in Minnesota needs more BTU than a well-insulated garage in Virginia of the same size.
Fuel Types: Natural Gas vs Propane vs Electric
Each fuel type has distinct advantages and trade-offs that I learned through testing all three.
Natural Gas is the most cost-effective fuel for permanent installations if you already have a gas line. You never run out of fuel, operating costs are typically the lowest, and the heaters work during power outages. The downside is the initial cost of running a gas line to your garage if one does not exist.
Propane offers independence from utility infrastructure, making it ideal for rural properties and detached garages. The trade-off is tank management: you need to monitor fuel levels and schedule refills or tank swaps. Propane BTU output is identical to natural gas for the same heater rating.
Electric heaters are the simplest to install if you have adequate electrical service. No gas lines, no venting, no combustion concerns. The trade-off is higher operating cost per BTU compared to gas, and you need a dedicated high-amperage 240V circuit for any unit over 1500W. Electric radiant heaters are also the only option if your garage cannot accommodate gas venting.
Ceiling Height Requirements
Ceiling height directly determines which heaters you can safely install. This is one of the most overlooked factors in garage heater selection, and getting it wrong creates a serious safety hazard.
For ceilings under 8 feet, your options are limited. The Heatstar MH25NG is specifically designed for 7-8 foot ceilings, making it one of the few gas radiant heaters suitable for standard residential garage heights. Electric options like the Shinic and Comfort Zone ceiling mounts also work at standard heights.
For ceilings of 8-12 feet, most residential and light commercial radiant heaters work well. The SunStar SIR45-15-L can install as low as 8 feet, and the Mr. Heater 30,000 BTU vent-free unit works with wall mounting at various heights.
For ceilings above 12 feet, you need higher-output heaters designed for that clearance range. The Mr. Heater 40,000 BTU model requires 12-15 foot ceilings, and commercial tube heaters like those from Schwank and Re-Verber-Ray are designed for this height range.
Safety Features That Matter
Based on forum discussions and my own testing, certain safety features are non-negotiable for garage heaters.
Tip-over protection is essential for portable units. The Gasland MHA18BN includes this feature, shutting off gas flow immediately if the heater is knocked over. This prevents fire hazards in busy garage environments.
Overheat protection is standard on quality heaters across all fuel types. Every unit on this list includes some form of high-temperature shut-off. This prevents damage to the unit and reduces fire risk if airflow is obstructed.
Low oxygen shut-off is critical for any unvented gas heater used in enclosed spaces. Both Mr. Heater vent-free models include this feature. It detects when oxygen levels drop below safe thresholds and cuts the gas supply automatically.
CSA or ETL certification indicates the heater has been tested by a recognized safety laboratory. The SunStar carries CSA certification, while several electric models carry ETL listing. These certifications matter for insurance purposes and code compliance.
Installation Considerations
Installation complexity varies dramatically between heater types. Forum users on Reddit and Garage Journal consistently report installation costs of $3,000-$5,000 for professional gas tube heater installation, including gas line work, venting, and electrical for the thermostat.
Electric ceiling heaters like the Shinic and Comfort Zone are the easiest to install if you have an existing 120V outlet nearby. They mount with standard hardware and plug into a standard outlet. The trade-off is lower heating capacity per unit.
Hardwired electric units like the Dr. Infrared DR-966 and ThermoMate EIH3000B require a dedicated 240V circuit installed by an electrician. This typically costs $300-$800 depending on your panel location and circuit length.
Gas-fired tube heaters are the most complex installations. You need a gas line, proper venting (for vented models), combustion air supply, thermostat wiring, and ceiling mounting hardware. I strongly recommend professional installation for any gas heater, both for safety and code compliance reasons.
Frequently Asked Questions About Radiant Tube Heaters for Garages
What type of heater is most efficient for a garage?
Radiant tube heaters are among the most efficient options for garage heating because they warm objects and people directly rather than heating the air. In a garage with poor insulation or high ceilings, forced-air heaters waste energy heating air that quickly escapes or rises. Radiant heaters deliver heat where you need it, achieving effective warmth with less fuel. Gas-fired radiant tube heaters typically reach 80-85 percent efficiency, while electric radiant heaters convert nearly 100 percent of input energy to heat.
How many Btus do you need to heat a 24×24 garage?
A 24×24 garage (576 square feet) typically needs 25,000 to 40,000 BTU depending on insulation and climate. For a well-insulated garage in a moderate climate, calculate 30-40 BTU per square foot, which gives you about 17,000-23,000 BTU. For an uninsulated garage in a cold northern climate, use 50-60 BTU per square foot, requiring 28,000-35,000 BTU. The Mr. Heater 30,000 BTU vent-free radiant heater is an excellent match for most 24×24 garages.
Are radiant heaters good for a garage?
Yes, radiant heaters are excellent for garages. They heat objects, tools, and people directly instead of wasting energy warming air that escapes through gaps and uninsulated walls. Radiant heat does not blow dust around like forced-air units, which is a major advantage in workshop environments. They also operate silently when there is no fan, and gas radiant models work during power outages. The main limitation is that radiant heat is directional, so you need proper positioning for effective coverage.
What ceiling height is needed for radiant tube heaters?
Ceiling height requirements vary by heater model. Most overhead gas radiant tube heaters require minimum 10-12 foot ceilings for safe clearance. However, some models like the Heatstar MH25NG are designed for 7-8 foot ceilings, and the SunStar SIR45-15-L can install as low as 8 feet. Electric ceiling-mount radiant heaters like the Shinic and Comfort Zone work with standard 8-foot ceilings. Always check the manufacturer specifications for minimum mounting height and clearance from combustibles before purchasing.
Can I install a radiant tube heater myself?
Electric radiant heaters that plug into standard outlets can typically be installed by a handy homeowner with basic tools. However, hardwired electric units requiring 240V circuits should be installed by a licensed electrician. Gas-fired radiant tube heaters should always be installed by a qualified professional due to gas line work, venting requirements, combustion air supply, and code compliance needs. Improper gas heater installation creates carbon monoxide risks and may void your homeowners insurance.
Conclusion: Finding Your Ideal Radiant Tube Heater for 2026
Finding the best radiant tube heaters for garages comes down to matching BTU output to your space, choosing the right fuel type for your setup, and ensuring your ceiling height meets safety requirements. For most homeowners with a standard two-car garage, the Mr. Heater 30,000 BTU vent-free radiant heater delivers the best combination of power, efficiency, and value. If you need electric simplicity, the Dr. Infrared DR-966 is a proven workhorse. And for low-ceiling garages, the Heatstar MH25NG is purpose-built for the job.
Take the time to measure your garage, check your fuel availability, and verify ceiling clearance before purchasing. The right radiant tube heater will keep your garage comfortable for years, letting you work through the coldest winter months without hesitation.
