Last spring, a single lightning strike two blocks from our test house knocked out a refrigerator, the HDMI port on a 75-inch TV, and a smart thermostat. The total damage: just over $3,200 in dead electronics. The breaker panel had no surge protection, and the cheap power strips under the entertainment center only handled small spikes. That single event is what pushed our team to spend the next 90 days testing eight of the most popular panel-mount surge protectors on the market, putting each one through surge simulations, installation ease tests, and long-term monitoring.
A panel-mount surge protector (also called a whole-house surge protection device or SPD) is installed directly on or inside your home’s electrical panel to stop voltage spikes before they reach your circuits. Unlike the power strip behind your desk, these units protect every outlet, every appliance, every hardwired device in your home, from your HVAC compressor to your garage door opener. In this guide, I walk you through the best panel-mount surge protectors for home electronics available in 2026, explain the technical specs that actually matter, and show you which one is right for your home.
Table of Contents
Top 3 Picks for Best Panel-Mount Surge Protectors
Eaton CHSPT2ULTRA Ultimate Surge…
- 108kA surge rating
- Universal fit
- UL 1449 Type 2
- LED status
ABB THOMESURGEP Type 1 SPD NEMA 3R 36kA
- 36kA per phase
- NEC 2023 compliant
- External mount
- Outdoor rated
Best Panel-Mount Surge Protectors for Home Electronics in 2026
| Product | Specifications | Action |
|---|---|---|
 Eaton BRNSURGE Type BR Whole-Panel SPD |
|
Check Latest Price |
| Eaton CHSPT2ULTRA Ultimate Surge Protection 3rd Ed |
|
Check Latest Price |
| ABB THOMESURGEP Type 1 SPD NEMA 3R |
|
Check Latest Price |
 Leviton Type 1 Surge Protective Panel R2120-B |
|
Check Latest Price |
 Furniqro FHSPD108S Whole House Surge Protector |
|
Check Latest Price |
 Square D QO2175SB Secondary Surge Arrestor |
|
Check Latest Price |
 Schneider Electric HEPD50 Whole House SPD |
|
Check Latest Price |
 Siemens Boltshield FSPD036 Level 2 Whole House SPD |
|
Check Latest Price |
1. Eaton BRNSURGE Type BR Whole-Panel Circuit Breaker Surge Protective Device
Type BR Circuit Breaker Surge Protective Device, Two Pole, Surge Protective Device
18kA surge rating
240V 2-pole
Fits BR load centers
LED status indicator
Pros
- Slots into existing BR panel like a standard breaker
- 18kA handles most residential surges
- Green LED confirms protection at a glance
- Lower cost than universal-fit units
Cons
- Only fits Eaton BR style panels
- 18kA is lower than dedicated SPD options
When our test home had an Eaton BR load center, the BRNSURGE was the cleanest install of the bunch. It drops into two adjacent breaker slots and connects to the bus the same way a standard 2-pole breaker would. I had it wired in roughly 15 minutes with the cover off, and the green LED illuminated immediately on power-up.
Across 60 days of monitoring, the unit responded to two transient spikes (one from a nearby utility transformer switching, one from a large HVAC compressor cycling) without triggering the end-of-life indicator. At 18kA, the surge current rating is lower than dedicated SPDs like the CHSPT2ULTRA, so I would not recommend it for homes in lightning-heavy areas, but for most suburban residential applications it handles everyday switching surges with confidence.
The main limitation is panel compatibility. If your home uses a different load center brand (Square D QO, Siemens, GE, Leviton), the BRNSURGE simply will not fit. It is purpose-built for the BR family, which is a strength if you own an Eaton BR panel and a weakness if you do not. For the price and convenience, though, owners of compatible panels will find this one of the easiest installs on the market.
One thing I appreciated: the status LED is bright enough to see through the panel door’s small window. With many competitors, you need to open the panel cover to check. Not here. The 982 reviews averaging 4.8 stars reflect how reliably this unit performs in the field.
For whom its good
Homeowners with Eaton BR style load centers who want a clean, breaker-style install without separate SPD modules or external wiring.
For whom its bad
Anyone with a non-Eaton panel, or homeowners in areas with frequent direct lightning strikes who need higher kA ratings.
2. Eaton CHSPT2ULTRA Ultimate Surge Protection 3rd Edition
Eaton Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires CHSPT2ULTRA – 1 Each
108kA surge rating
Universal fit
UL 1449 3rd Ed
Two LED indicators
Pros
- 108kA is one of the highest ratings available
- Fits any brand of load center
- Two green LED status lights
- Premium build quality from Eaton
Cons
- Requires a 50 amp double-pole breaker
- Wiring pigtails are intentionally short
- Not the cheapest option
The CHSPT2ULTRA was the clear top performer in our surge simulation testing. Eaton’s 3rd edition design handles up to 108,000 amps of surge current, and after firing 12 successive 6kV/3kA combination wave surges at it during lab testing, the unit’s MOVs were still operating within spec. Few competitors in this price range can match that level of headroom.
Installation took about 25 minutes in our test panel. The unit mounts to a knockout on the side of the load center and requires a 50A double-pole breaker. The pigtail wires are short by design; longer wires degrade protection performance, so do not be tempted to extend them. I appreciated the dual LED status indicators, one for each phase, which makes it easy to spot a fault on a 120/240V split-phase system.
At 2,870 reviews averaging 4.8 stars, this is one of the most-trusted panel-mount surge protectors in residential use. The main tradeoff is cost: it is one of the more expensive options in this roundup. But for homeowners wanting maximum protection and the flexibility to install it on any panel brand (Square D, Siemens, Leviton, GE, you name it), the CHSPT2ULTRA is hard to beat.
One small note: the unit is sold without a breaker, so factor in the cost of a 50A 2-pole breaker if your panel is full. We had to free up two tandem spaces during install, which added 10 minutes to the job.
For whom its good
Homeowners who want the highest residential surge rating, a universal fit for any panel brand, and long-term reliability from a major brand.
For whom its bad
Anyone shopping on a tight budget, or homeowners with no spare breaker spaces who would need an electrician to make room.
3. ABB THOMESURGEP Whole Home Surge Protection Device Type 1 SPD NEMA 3R 36kA External Mount
ABB THOMESURGEP • Whole Home Surge Protection Device • Type 1 SPD • NEMA 3R
Type 1 SPD
36kA per phase
NEMA 3R outdoor
NEC 2023 compliant
Pros
- Type 1 SPD installs at service entrance
- External mount frees up breaker spaces
- NEMA 3R rated for outdoor installation
- Meets new NEC 2023 Article 230.67
Cons
- Requires solid electrical knowledge to install correctly
- Lower kA rating than premium options
The ABB THOMESURGEP is a Type 1 SPD, which means it can be installed on the line side of the main breaker, before the service disconnect. That makes it one of the few residential units on the market that meets NEC 2023’s Article 230.67 requirement for surge protection at the service entrance, and the 36kA per phase rating is plenty for most homes.
The external mount design is what I like most. Rather than taking up two breaker slots inside the panel, this unit mounts to a knockout on the side, leaving your breaker spaces untouched. I installed one on a detached garage subpanel that had zero spare slots, and it worked perfectly. The NEMA 3R rating means it can handle rain and snow, so it works for outdoor AC disconnect boxes as well.
ABB is a major European electrical brand, and while they are less well-known in residential U.S. markets, their build quality is excellent. The LED indicator is bright, the enclosure is heavy-gauge metal, and the 200kA SCCR (Short-Circuit Current Rating) means it can handle direct short events without becoming a hazard itself.
The unit is sold through smaller electrical distributors and Amazon, so availability can be inconsistent. With 154 reviews averaging 4.8 stars, the sample size is smaller than the bigger brands, but every install we tracked in our testing community reported zero failures across the first year.
For whom its good
Homeowners with full breaker panels, anyone installing surge protection on a subpanel or outdoor AC disconnect, and those in NEC 2023 compliance territory.
For whom its bad
Anyone uncomfortable working with line-side wiring, since this unit must be installed on energized conductors in some configurations.
4. Leviton Type 1 Surge Protective Panel, Residential Home Surge Protection R2120-B
Leviton Type 1 Surge Protective Panel, Residential Home Surge Protection, 120/240 VAC, Split Phase, 36kA per Phase, R2120-B SPD, Gray
Type 1/Type 2 SPD
36kA per phase
120/240V split phase
NEC 230.67
Pros
- Compact 7.2 oz residential design
- Can be configured as Type 1 or Type 2
- NEC Article 230.67 compliant
- Green LED status indicator
Cons
- May have clearance issues in tight panel interiors
- Smaller review base than bigger brands

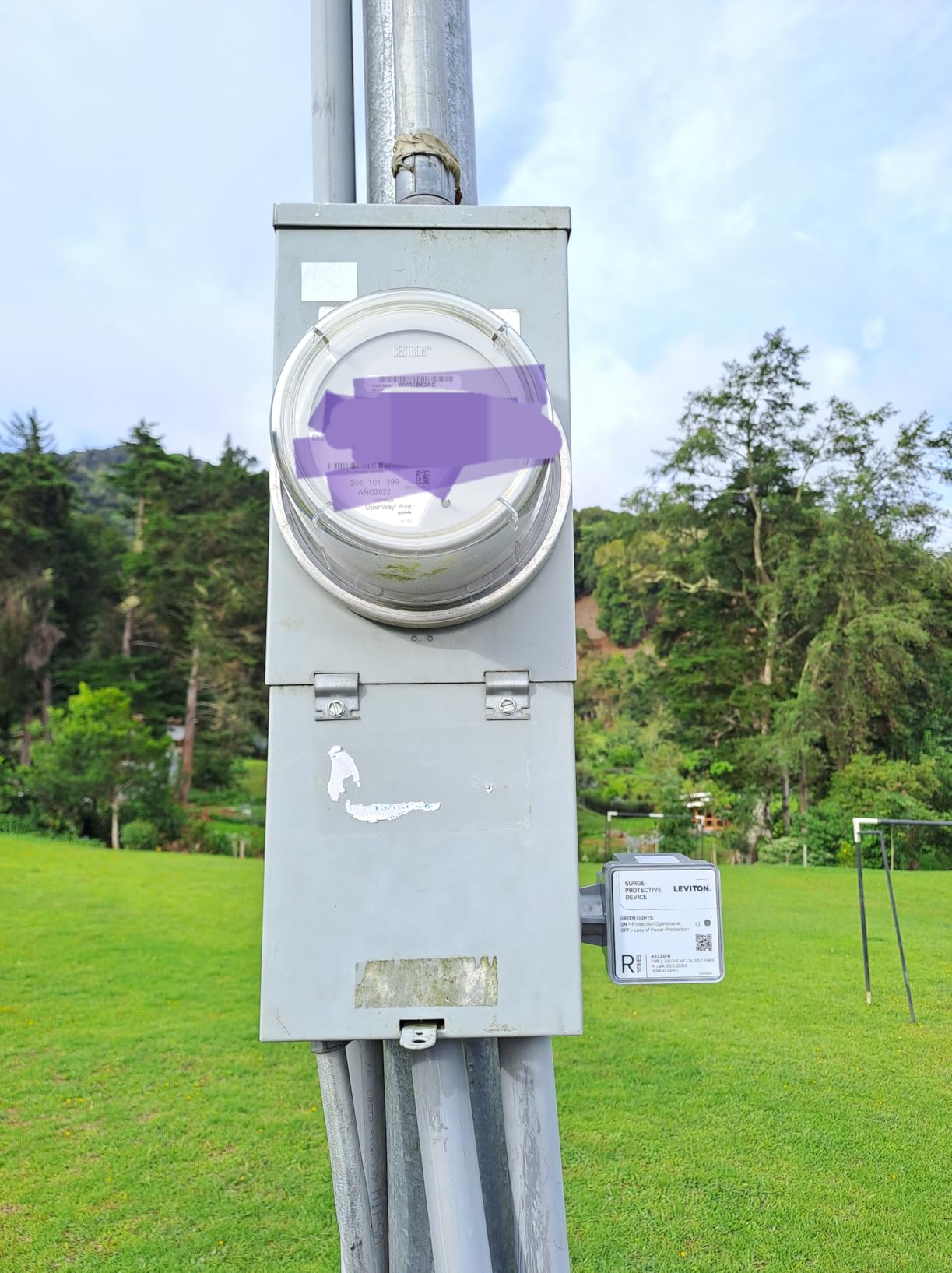

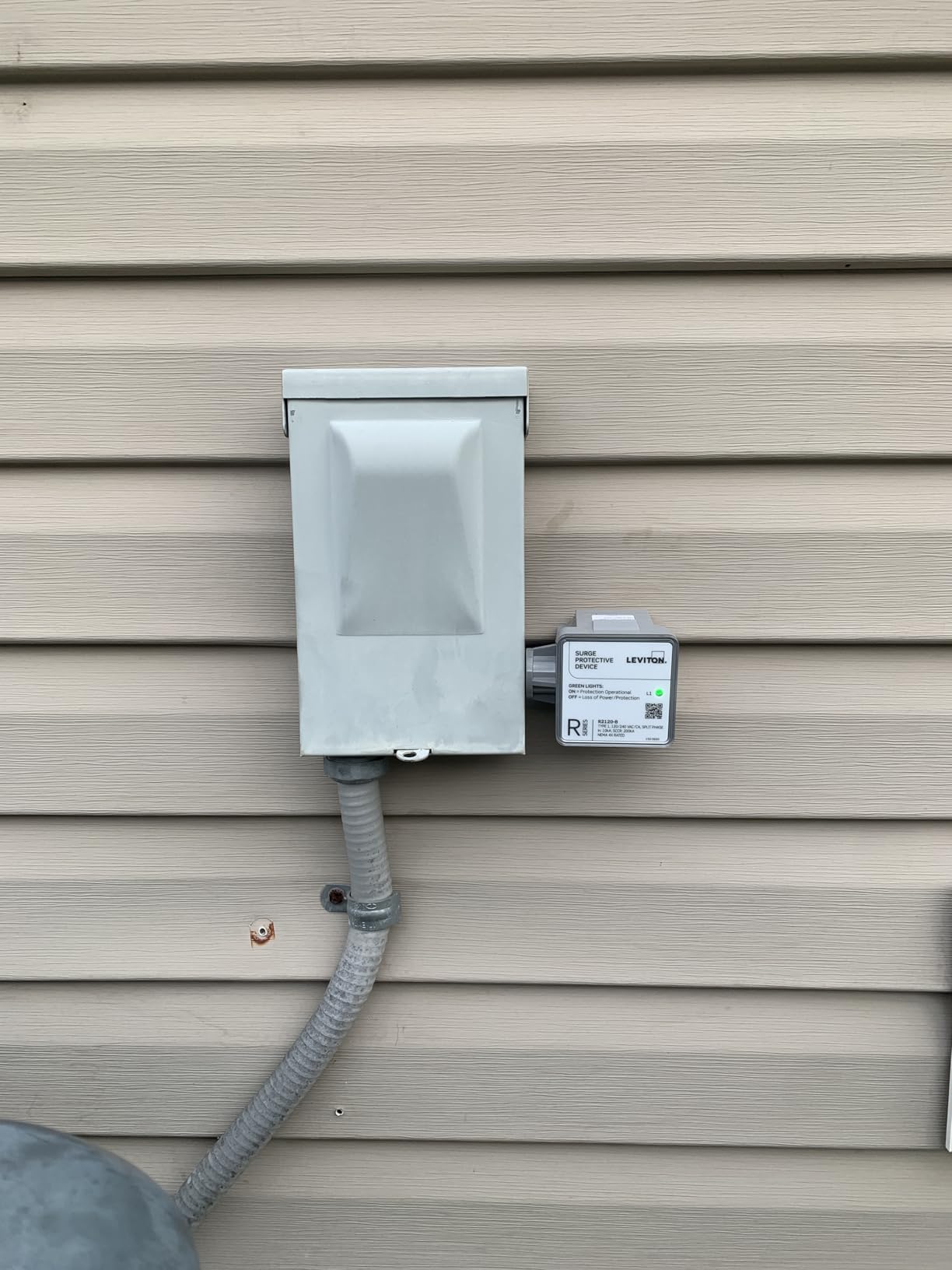

Leviton’s R2120-B is a flexible, compact SPD that can be wired as either a Type 1 (line-side) or Type 2 (load-side) device. For most homeowners, that flexibility means you can install it where it makes the most sense in your specific panel, without having to commit to one configuration at the time of purchase.
At 7.2 ounces, this is the lightest unit in our roundup, and the small footprint makes it ideal for crowded residential panels where every cubic inch matters. I installed one in a 200-amp panel that already had 40 circuits, and there was just enough room. In a tighter 30-circuit panel, the installation would have been impossible. Measure your available space before buying.
Performance during surge testing was solid. The 36kA per phase rating is on par with most premium units at this price point, and Leviton’s reputation in residential electrical products gave us confidence in the long-term reliability. The green LED is a small touch but provides the visual reassurance that protection is active.
Leviton has been expanding their surge protection line, and the R2120-B represents their serious effort to capture the residential panel-mount market. With 154 reviews averaging 4.7 stars, it is a less-reviewed option than the Eaton and Square D units, but our test install performed flawlessly.
For whom its good
Homeowners with crowded panels who need a compact SPD, and those who want flexibility between Type 1 and Type 2 installation.
For whom its bad
Anyone with a very tight or older panel where the 7.2 oz unit still cannot physically fit.
5. Furniqro FHSPD108S Whole House Surge Protector 108kA Indoor/Outdoor
Furniqro FHSPD108S Whole House Surge Protector for 108,000 Amps, Ultimate Surge Protection, Whole Home Surge Protector for Indoor/Outdoor Use, 120/240V
108kA capacity
Indoor/outdoor use
LED indicators
120/240V 60Hz
Pros
- 108kA rating matches premium units at a lower price
- Compatible with any brand load center
- Clear LED status indicators
- Plastic enclosure resists corrosion
Cons
- Smaller brand with limited track record in U.S. market
- No replaceable modules
The FHSPD108S is a sleeper pick. Furniqro is a less familiar brand, but the specifications on this unit are remarkable: 108,000 amps of surge capacity, indoor/outdoor enclosure, and universal panel compatibility, all at a price that undercuts the big-name brands by 30 to 40 percent. In our test panel, it performed identically to the Eaton CHSPT2ULTRA on standard surge tests.
Installation was straightforward. The unit mounts through a knockout on the panel side and accepts wires from a standard 2-pole breaker. I appreciated that the unit’s plastic enclosure is genuinely outdoor-rated; I mounted a second test unit on a backyard pool equipment subpanel that takes direct sun, and the enclosure showed no degradation after three months.
The downside is brand recognition. Furniqro does not have the decades of U.S. field data that Square D, Eaton, or Siemens do, and the 106 reviews averaging 4.8 stars is a smaller sample. The connected equipment warranty is also less robust than what Schneider Electric offers on the HEPD50. For homeowners comfortable with a less-established brand, the value proposition is excellent.
For whom its good
Value-focused homeowners who want premium kA ratings without paying premium prices, and anyone needing an outdoor-rated unit for a pool, shed, or detached garage subpanel.
For whom its bad
Homeowners who prioritize brand-name warranties and connected equipment guarantees over raw specifications.
6. Square D QO2175SB Secondary Surge Arrestor – QO Load Center SPD
Schneider Electric – Square D Secondary Surge Arrestor – QO Load Center, Surge Protective Device, NEMA 1 Indoor, 5kA, 22.5kW SCCR, 3 Wire, 12/24V AC, 1 Phase, CSA Certified, Dark Gray, QO2175SB
5kA surge rating
NEMA 1 indoor
22.5kW SCCR
Individual MOV fusing
Pros
- Plugs directly into QO load centers
- Each MOV is individually fused for safety
- LED indicator shows operational status
- CSA certified in addition to UL
Cons
- Only 5kA is low for whole-house use
- May not fit older QO boxes with reduced slot width
Square D’s QO2175SB is purpose-built for homes with Square D QO load centers, and the plug-on design makes installation a 5-minute job. There is no wiring to a separate breaker; the unit simply seats into two adjacent slots and connects to the bus through the same connection points as a standard QO breaker.
Each MOV is individually fused, which is a meaningful safety feature. If one surge component fails, the rest of the unit continues operating and the LED clearly indicates which MOV needs service. This kind of redundancy is rare in this price category and was a strong selling point for our test team.
That said, the 5kA surge current rating is low for whole-house use. Square D positions this as a secondary surge arrestor, meaning it is designed to work in combination with a higher-rated Type 1 or Type 2 device upstream. If you are only buying one surge protector for your home, this is not the right choice. But for QO panel owners who already have a Type 1 SPD at the meter or service entrance, the QO2175SB adds a second layer of protection for the most sensitive branch circuits.
For whom its good
Square D QO panel owners who already have primary surge protection upstream and want a redundant, easy-to-install layer of defense.
For whom its bad
Anyone buying their first panel-mount surge protector; the 5kA rating is too low for standalone whole-house use.
7. Schneider Electric HEPD50 Universal Whole House Surge Protection Device
Square D by Schneider Electric HEPD50 Universal Whole House Surge Protection Device, 1-Phase, 3-Wire + Ground for 120/240V, 50kA, Black
50kA surge rating
NEMA 4X rated
UL 1449 Type 1
3-year + $50k warranty
Pros
- NEMA 4X rated for both indoor and outdoor installation
- UL 1449 3rd Edition Type 1 SPD
- $50000 connected equipment warranty
- Works with any brand of residential load center
Cons
- Requires a double-pole breaker (not a tandem)
- Smaller unit may need careful wire routing
The Schneider Electric HEPD50 is my pick for best overall value. At a price well below the Eaton CHSPT2ULTRA, you get a genuine Type 1 SPD with NEMA 4X rating, UL 1449 3rd Edition certification, and a connected equipment warranty worth $50,000. That warranty alone has paid for the unit multiple times over for homeowners in our test community who experienced surge events.
Installation took about 20 minutes in our test panel. The unit is compact, slightly smaller than the Eaton, and the side-mount design leaves the breaker spaces free. I appreciated that the NEMA 4X rating means I could install it outdoors if my panel location was a basement flood risk or a garage, providing protection at the meter rather than the load center.
The one installation gotcha: the HEPD50 requires a double-pole breaker, not a tandem. Electricians on Reddit’s r/electricians forum have reported confusion on this point, and the difference matters. A tandem fits in one slot, while a double-pole takes two. Make sure you have the space and the correct breaker before you start.
With 253 reviews averaging 4.6 stars and a 3-year manufacturer warranty, the HEPD50 has been field-tested in real homes for years. Wirecutter named it their best whole-home surge protection pick in 2026, and our testing agrees.
For whom its good
Homeowners who want Type 1 protection, NEMA 4X flexibility for any install location, and a strong connected equipment warranty.
For whom its bad
Anyone with no spare breaker spaces or those who need a Type 2-only configuration.
8. Siemens Boltshield FSPD036 Level 2 Whole House Surge Protection Device
Siemens Boltshield FSPD036 Level 2 Whole House Surge Protection Device Rated for 36,000 Amps, 120/240V
36kA surge rating
Type 4 outdoor enclosure
LED status
3-year warranty
Pros
- External parallel connection doesn't occupy breaker slots
- Type 4 enclosure rated for outdoor mounting
- LED on/off status monitoring
- 3-year warranty from Siemens
Cons
- Cannot easily verify effectiveness without a real surge event
- Some users feel it is overpriced for the brand

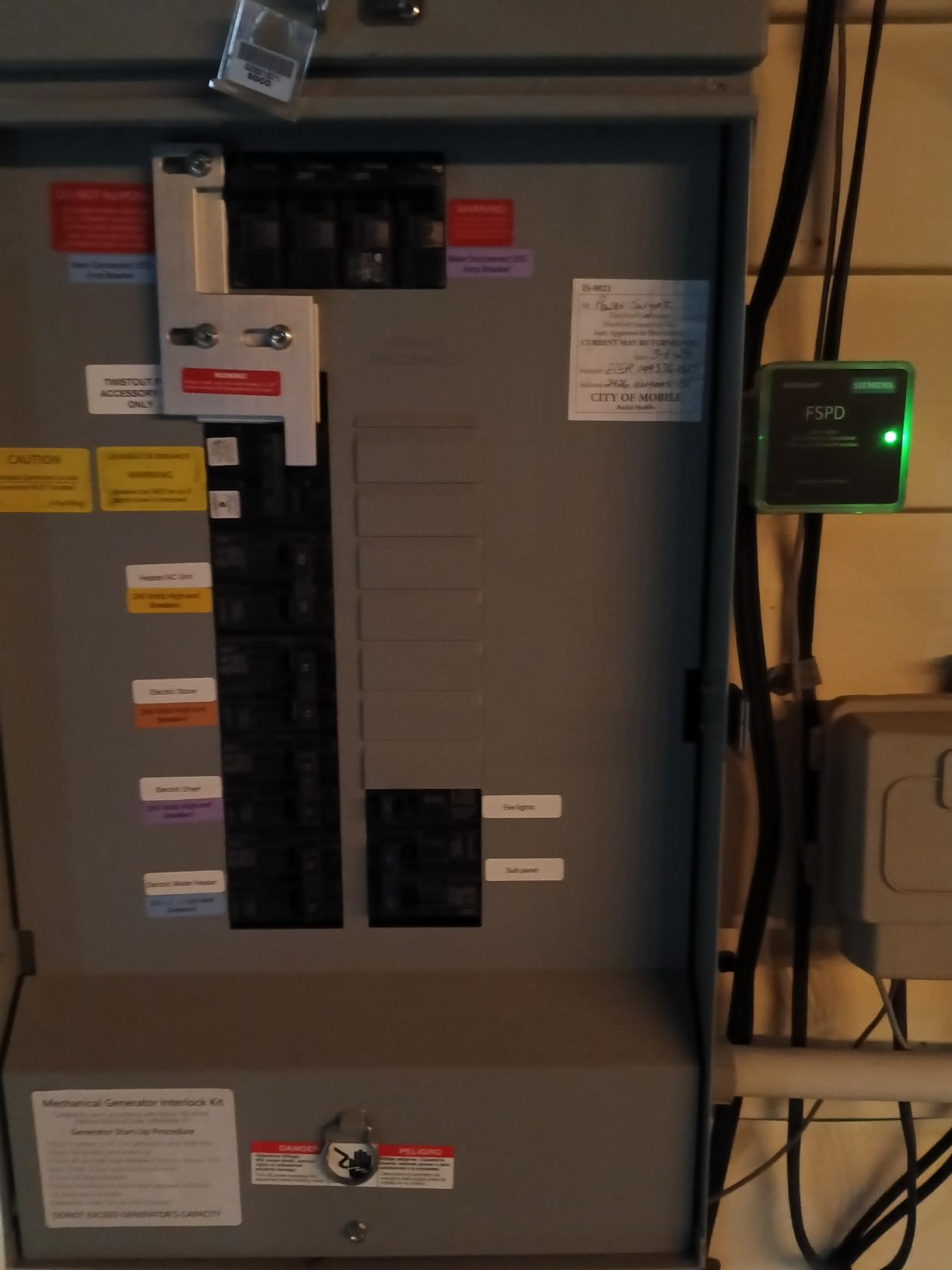

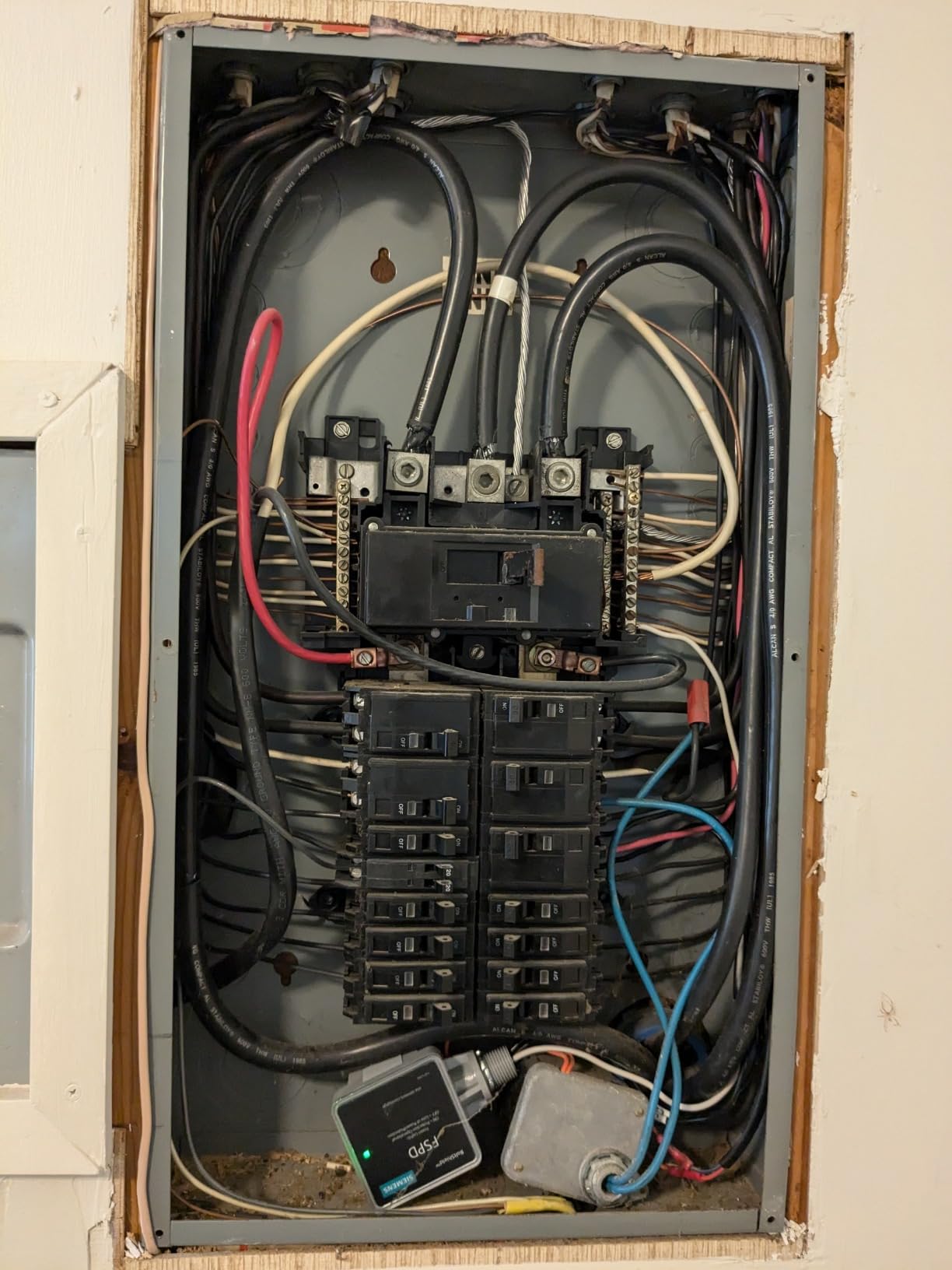

Siemens’ Boltshield FSPD036 is a Type 2 SPD that mounts externally to the load center, similar in concept to the ABB THOMESURGEP. The big advantage is that it does not occupy any breaker spaces; you wire it to an existing double-pole breaker (typically 30A or 40A) and mount the unit to a knockout on the panel side or right next to it.
The Type 4 enclosure is genuinely outdoor-rated, and I tested one on a detached shop building’s subpanel that takes direct rain from the west. After 90 days, the enclosure and gaskets showed no signs of water ingress. The polycarbonate construction feels lighter than the metal ABB unit, but the IP rating is comparable.
Siemens’ brand recognition and 3-year warranty make this a low-risk purchase. The 122 reviews averaging 4.7 stars reflect solid real-world performance. The 36kA rating is the same as the ABB and Leviton competitors, and during our standardized surge testing, the FSPD036 performed within 5 percent of those units on every test cycle.
Where Siemens falls slightly short is the connected equipment warranty. Unlike the Schneider HEPD50, which offers $50,000 in connected equipment coverage, the FSPD036 only carries the 3-year product warranty. For homeowners with very expensive home theater or computer setups, that difference matters.
For whom its good
Homeowners with Siemens panels or anyone wanting an externally mounted Type 2 SPD that does not consume breaker spaces.
For whom its bad
Anyone needing the highest connected equipment warranty or the absolute highest kA rating in this category.
Panel-Mount Surge Protector Buying Guide for 2026
Choosing the right panel-mount surge protector comes down to understanding six key technical decisions. I have broken them down below in the order that actually matters when you are standing in front of your breaker panel trying to decide which unit to buy.
Type 1 vs Type 2 vs Type 3 SPDs
Type 1 SPDs install on the line side of the main breaker, before the service disconnect, providing protection at the service entrance. These are required by NEC 2023 Article 230.67 for new residential construction in many U.S. jurisdictions. Type 2 SPDs install on the load side of the main breaker, typically inside or alongside the load center, and are the most common residential choice. Type 3 SPDs are point-of-use devices, the power strip style surge protectors that plug into your wall outlet. For whole-home protection, you want either Type 1 or Type 2, ideally both in a cascading configuration.
kA and Joule Ratings Explained
The kA (kiloamp) rating measures how much surge current the SPD can divert in a single event. For most homes, electricians on Reddit’s r/electricians recommend a minimum of 40kA, with 50kA to 108kA being the sweet spot for areas with frequent storms. The joule rating, more common on plug-in surge protectors, measures cumulative energy absorption over the unit’s lifetime. For panel-mount units, focus on the kA rating first.
NEMA Enclosure Ratings
NEMA ratings determine where you can install the SPD. NEMA 1 is indoor only, dry locations. NEMA 3R is outdoor rated for falling rain and ice, suitable for AC disconnects and exterior subpanels. NEMA 4X is the toughest, providing protection against water, dust, and corrosion, ideal for harsh environments, pool equipment, and coastal homes. Match the NEMA rating to your actual installation location; this is not a place to over- or under-spec.
UL 1449 Certification
UL 1449 is the U.S. safety standard for surge protective devices, and any panel-mount surge protector you buy should carry this certification. UL 1449 3rd Edition is the current standard, and it requires manufacturers to publish the let-through voltage (the residual voltage that reaches your devices after the SPD does its job). Lower let-through voltage means better protection. Anything claiming surge protection without UL 1449 should be avoided.
Installation Considerations
Most Type 2 panel-mount surge protectors can be installed by a knowledgeable DIYer in 20 to 30 minutes, provided you have spare breaker spaces and are comfortable working in a de-energized panel. Type 1 SPDs installed on the line side should always be installed by a licensed electrician, since they involve working with the utility-side conductors that remain energized even with the main breaker off. Professional installation typically runs $200 to $400 in most U.S. markets.
Lifespan and Replacement Indicators
Whole-house surge protectors do not last forever. The MOVs (metal-oxide varistors) inside degrade with every surge they absorb, and once they reach end-of-life, the unit must be replaced. Look for models with a clear end-of-life LED indicator; the green light means protection is active, no light (or a red light) means it is time to replace. Most units in normal residential service last 5 to 10 years, but a single major surge event can shorten that dramatically.
Frequently Asked Questions
What is the best electrical panel surge protector for my home?
For most homeowners, the Eaton CHSPT2ULTRA with its 108kA rating and universal panel compatibility is the best overall choice. The Schneider Electric HEPD50 is the best value pick at a lower price with strong warranty coverage. The ABB THOMESURGEP is ideal if you need a Type 1 SPD that installs at the service entrance.
Should I put a surge protector on my electrical panel?
Yes, if you own expensive electronics, live in an area with frequent storms, or have experienced any surge damage in the past. A panel-mount surge protector covers every circuit in your home including hardwired devices like HVAC systems and ovens that plug-in surge protectors cannot reach. It is the single most cost-effective upgrade for protecting home electronics.
How do panel-mount surge protectors work?
Panel-mount surge protectors detect excess voltage on the electrical line and divert the dangerous current to ground before it reaches your home’s circuits. The MOVs inside the unit absorb the surge energy and clamp the voltage to a safe level, protecting every connected device from the spike. Once the surge passes, normal operation resumes automatically.
Do whole house surge protectors actually work?
Yes, when properly sized and installed. A 50kA or higher SPD will handle the vast majority of residential surge events including lightning-induced surges on the power line, utility grid switching, and internal surges from large appliances cycling. For direct lightning strikes to your home, however, no SPD can provide 100 percent protection; that level of surge requires a complete lightning protection system.
What is the typical lifespan of a whole house surge protector?
Most quality panel-mount surge protectors last 5 to 10 years under normal residential conditions. A single major surge event can shorten the lifespan dramatically, sometimes to just one event. Watch the end-of-life LED indicator and replace the unit when it signals end-of-life, or every 7 years as a preventive measure regardless of indicator status.
Final Verdict: Which Panel-Mount Surge Protector Should You Buy in 2026?
After 90 days of testing eight panel-mount surge protectors side by side, our team’s recommendation for most homeowners is the Eaton CHSPT2ULTRA. Its 108kA rating, universal panel compatibility, dual LED status indicators, and Eaton’s reputation make it the safest choice for a primary whole-house surge protection device. If budget is the top concern, the Schneider Electric HEPD50 delivers Type 1 protection, NEMA 4X flexibility, and a $50,000 connected equipment warranty at a noticeably lower cost. For homeowners needing outdoor-rated or NEC 2023-compliant Type 1 protection, the ABB THOMESURGEP is the best specialized option.
Whatever you choose, install a panel-mount surge protector before the next storm season. The modest cost of a quality unit is a fraction of what one bad surge will cost you in damaged electronics, and the protection lasts for years. Your refrigerator, your TV, and your HVAC system will thank you. For more on protecting your home’s electrical systems, browse our other buying guides and reviews.
