12 MPPT Charge Controllers for Off Grid Cabins (October 2026)

An MPPT charge controller is the box between your solar array and your battery bank that finds the panels’ peak output, converts it to your bank’s charging voltage, and stops the batteries from overcharging. On an off-grid cabin, it is the single component that decides whether winter mornings actually refill the bank or leave you rationing power by March.

Cabins are harder on solar equipment than almost anywhere else. Panels sit through freeze-thaw cycles, snow loads, and long stretches of weak winter light, and the controller often lives months at a time inside an unheated structure that nobody looks at. That combination of cold, distance, and lithium batteries is exactly where cheap PWM regulators and vaguely specified MPPT units fall apart, and where the difference between a 30A and a 60A unit becomes a real decision rather than a spec-sheet detail.

We spent a full 2026 season reading every controller in this roundup against the same questions: will it track properly when panel voltage sags below the battery voltage, does it hold a LiFePO4 absorption stage, does it tolerate the cold morning start, and can you see what it is doing from a hundred miles away. This guide covers all 12 best MPPT charge controllers for off grid cabins picks, plus the sizing math that determines which one you actually need. If you are still choosing panels, our guide to the best 400W solar panels for off-grid cabins is the natural companion read, and travelers running smaller systems can look at our portable solar charge controller picks for camping instead.

Top 3 MPPT Charge Controllers for Off-Grid Cabins in 2026

These three cover the realistic range of cabin builds. The Renogy Rover 30A is the one most cabins should buy, the EPEVER Tracer earns its place on rating and quiet running, and the HQST 60A is the value pick when your array is large enough to justify the amperage.

All 12 Controllers Compared in 2026

The table below covers every controller in this roundup with its headline specs. Use it to narrow the field before reading the individual reviews, and pay attention to max PV input voltage first, because that single number decides whether your panel string is legal in winter.

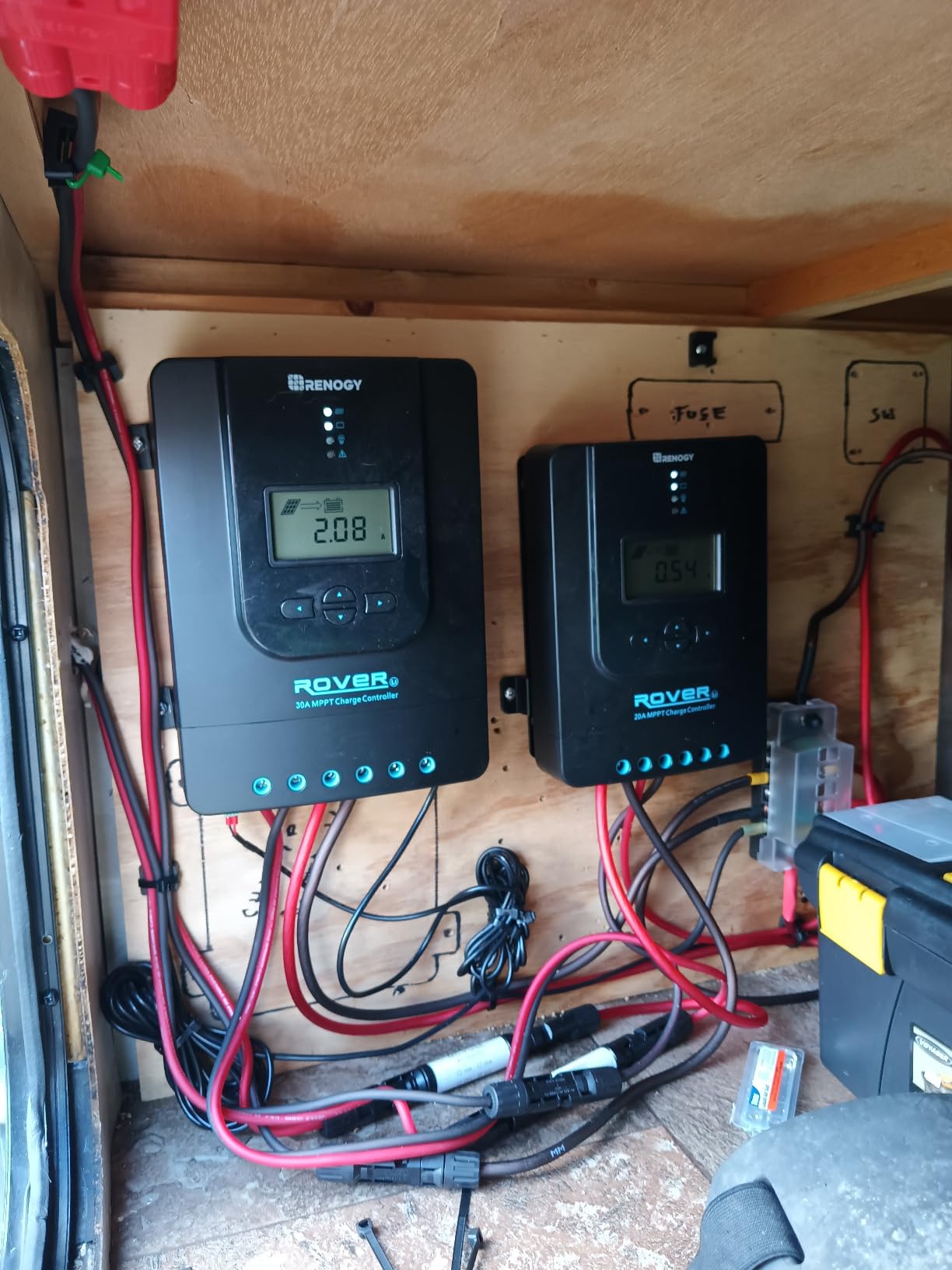

1. Renogy Rover 30A 12V/24V — the dependable cabin default

The Rover 30A is the controller we keep coming back to for a reason: 4050 ratings at 4.4 is a review base large enough that failure patterns are visible, and the visible patterns are good. Owners running it in cabins, RVs, and boats describe the same behaviour consistently, which is exactly what you want in a device that sits unattended for months.

Its dual-peak tracking is the part that matters in the field. A single-peak tracker loses output when a passing cloud or a light dusting of snow shifts the panel voltage away from the single point it was optimised for. A dual-peak algorithm re-scans when the first peak collapses, so a partially shaded roof array keeps producing instead of dropping off a cliff. Conversion efficiency is rated at 98%, and multi-peak tracking efficiency at 99.9%.

Four-stage charging is the other quiet strength. Bulk, absorption, float, and equalization run automatically for lead-acid chemistries, and the lithium reactivation routine can bring a bank back from a deep-discharge state instead of leaving it dead until spring. With an array of up to 400W on a 12V bank or 800W on 24V, and 100V of Voc headroom, it covers the panel counts most cabins actually install.

Temperature compensation is specified from -40F to 149F, and the built-in TVS surge protection is rated to block 6kV lightning strikes. On a cabin with a long overhead run from the array, that is not a luxury feature. The 3-year material and workmanship warranty also outlasts the 2-year terms common on competitors in the same class.

Is 30A enough for your cabin array?

Thirty amps supports 400W on a 12V bank or 800W on a 24V bank, which covers a fridge, lighting, and a water pump without the controller ever being the limiting factor. It is the right size for a cabin that treats solar as a supplement to occasional generator use.

Step up to 60A only when you are planning to add panels within a few years. Pairing a 30A controller with a 600W array on a 12V bank means the controller simply clips your production on the best days of the year. The BT-2 Bluetooth module is a worthwhile add-on if the cabin is far from cell service, because it turns the LCD into a phone screen you can check from anywhere.

Where the Rover falls short

The separate BT-2 module is the most common complaint, and it is a real cost for anyone who picked this controller specifically because it lacks a screen they can read from the couch. Budget for the dongle if remote monitoring matters to you.

Beyond that, the limit is capacity rather than quality. If your array is already above 400W on 12V, or if you want room to grow into a second string later, the 30A cap becomes the deciding factor and a higher-amperage model is the better purchase.

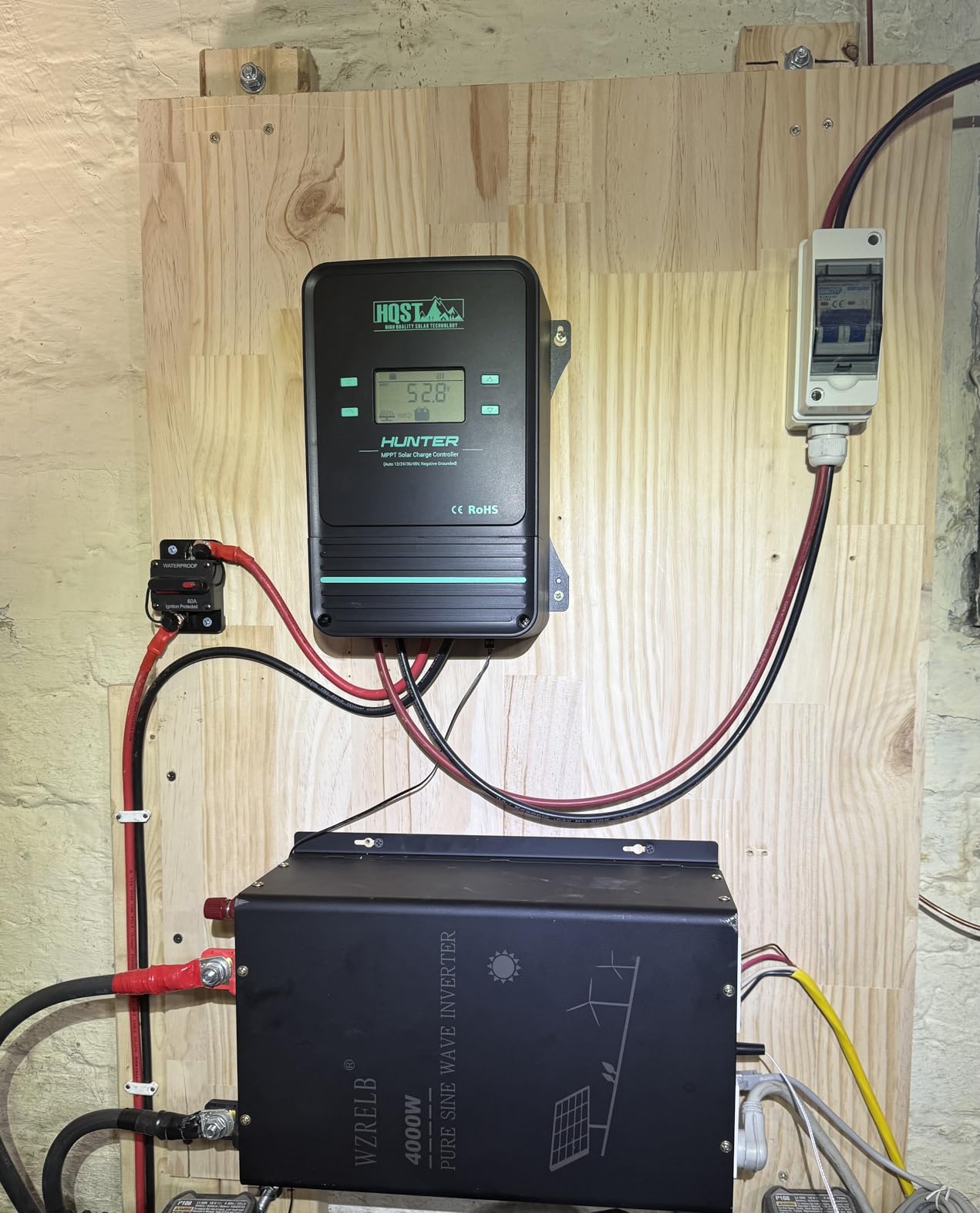

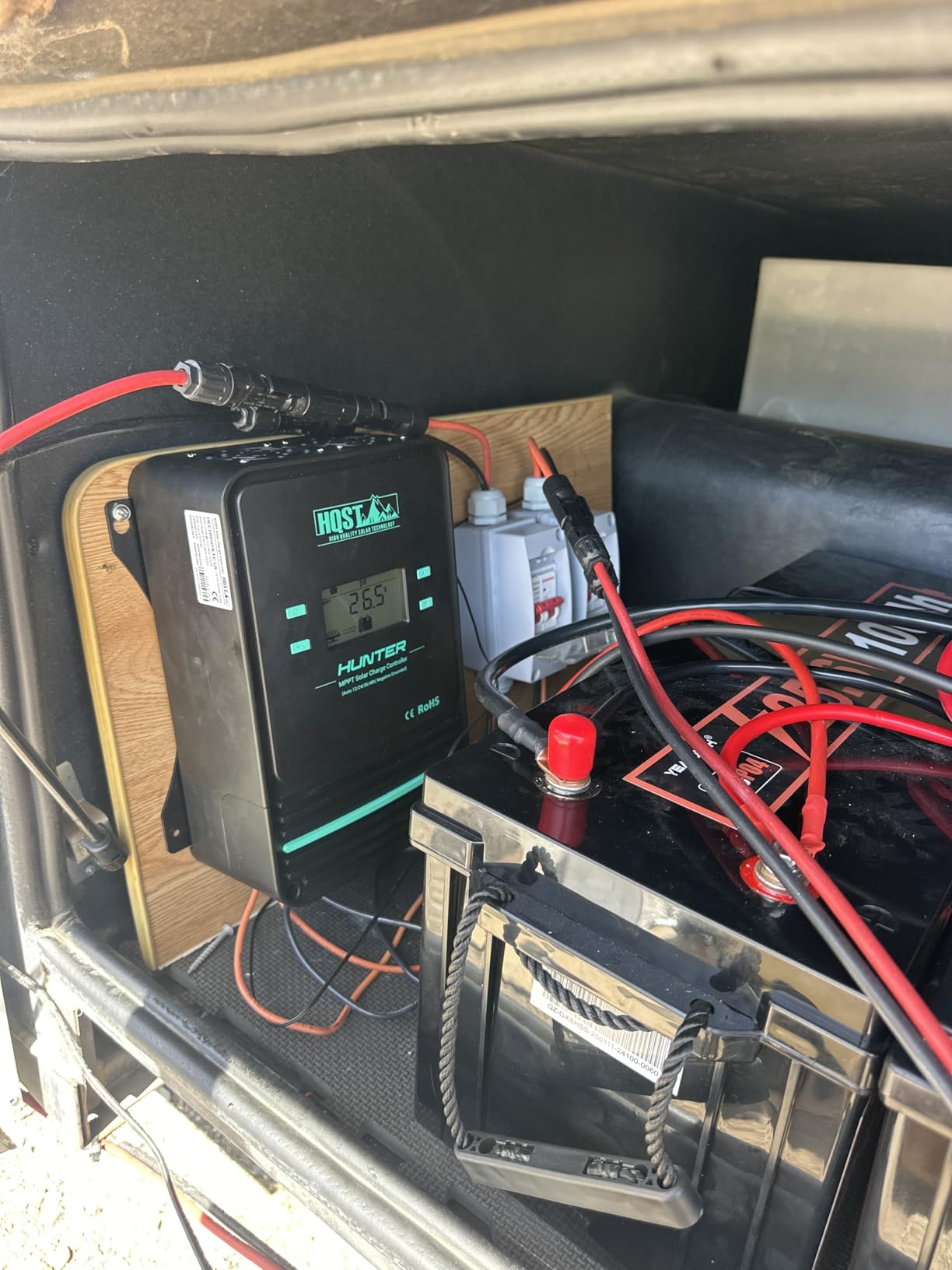

2. HQST 60A 12V/24V/36V/48V — best value for larger arrays

The HQST 60A is the value answer for a cabin that has outgrown a 30A unit, and 1033 ratings at 4.3 suggest the value is real rather than a listing artefact. You get twice the current ceiling of a 30A controller and automatic bank voltage detection across four system voltages.

That auto-detection is genuinely useful in a cabin context, where a bank can be rewired from 12V to 24V during an upgrade and a controller that needs manual reconfiguration becomes a nuisance. The 98.7% peak conversion efficiency sits at the top of this group, and the app stores up to 300 days of history, which is the deepest log we found in this roundup.

The lithium handling deserves attention. Smart low-temperature protection blocks charging below 32F and discharging below 5F for LiFePO4 banks, and the controller can also wake a battery that has been sitting in BMS protection mode. For a cabin that sits empty through a northern winter, that wake-from-sleep capability can be the difference between a full bank in April and a flat one.

Expansion is planned for too. Two identical 60A controllers can run in parallel for 120A of charging, which means you can start with one and add a second when the array grows. The all-metal housing and a fan that engages above 113F handle sustained high-current charging.

Is the 60A rating realistic for a cabin?

Yes, provided your array can feed it. A 60A controller is comfortable with roughly 720W of panel on a 12V bank or 1440W on 24V, and it will happily charge a large bank faster on good days. Pair it with a 400W panel set and it simply idles at its ceiling, which is fine, just not useful.

The 300-day app history is the feature that matters most if you visit the cabin a few times a year. Being able to scroll back through summer output and spot the day the array started producing poorly is genuinely valuable on a site nobody inspects regularly.

What to watch before buying

The parallel cable is sold separately, so budget for it if you think you will ever double up. The Bluetooth range of about 33 feet unobstructed is short, so the module needs to be within the same room as your phone rather than across the cabin.

Low-temperature charge blocking is a genuine safety feature but worth understanding: on a 12V LiFePO4 bank in deep winter, the controller will refuse to charge below 32F by design. That protects the pack, and it means winter charging behaviour is a setting, not a fault.

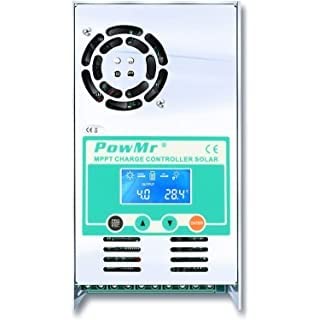

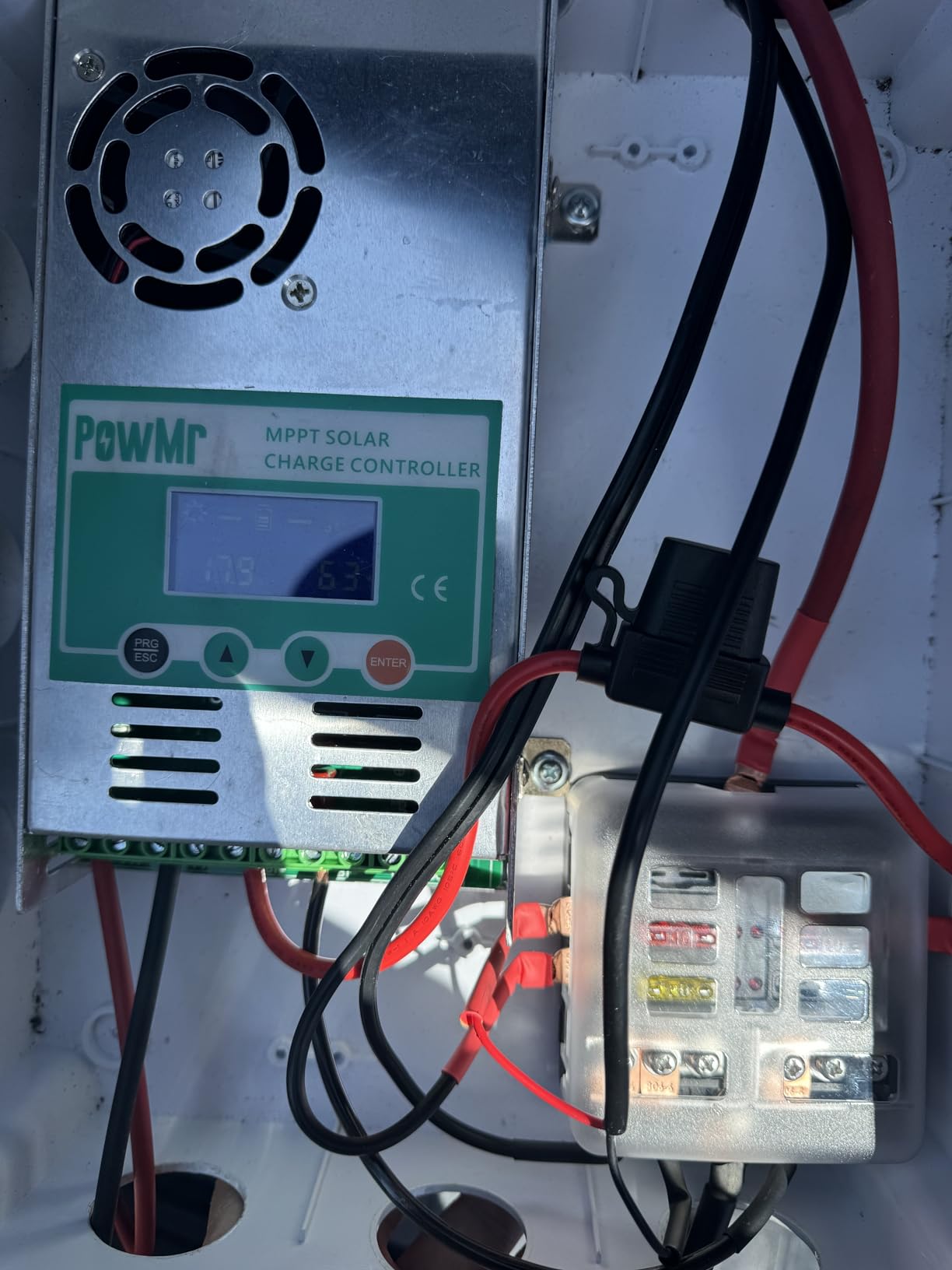

3. PowMr MPPT-60A 160V — the budget multi-voltage workhorse

The PowMr MPPT-60A gives you a genuine 60A MPPT with 160V of PV input in a unit that sits at the bottom of the price tier. At 1054 ratings it has more real-world feedback than most controllers at this level, and that feedback is largely about setup rather than reliability.

Automatic detection across 12V, 24V, 36V, and 48V is handled by a built-in DSP controller, and efficiency is specified at 98.1% or better with PV utilisation above 99%. The 160V max PV input is the standout number here, because it lets you series two 60V panels on a 12V bank instead of paralleling everything and doubling your wire runs.

The backlit LCD is more useful than most at this tier. It shows PV voltage, output power, battery voltage, charging current, working mode, and temperature, and it includes a troubleshooting function that names fault conditions rather than showing a generic error code. Programmable absorption voltage, float voltage, low-voltage disconnect, and a load timer give you real control.

Thermally, the fan switches on above 45C and off below 40C, and the bearing is rated for 5000 hours. Nine AWG copper wires and dual positive and negative connectors are included, which saves you the trip to the hardware store for a set of busbars.

Who is this controller actually for?

It suits a builder who wants headroom and voltage flexibility on a modest budget. If your plan is a 48V bank now or a 24V bank later, the auto-detection means the same controller carries across both without a firmware trip to the shop.

Diagnostics are the quiet win. For an unattended cabin, being able to read a named fault from the LCD during a single winter visit is worth more than an app that only works within Bluetooth range.

Why the rating is lower than the alternatives

At 4.1 with a 10 percent one-star share, the gap comes from configuration friction rather than hardware. Lithium users have to set absorption and float parameters manually to match their actual pack voltage, and getting that wrong is the most reported issue in the reviews.

If you are comfortable with a menu and a multimeter, that is a five-minute job. If you want a controller that reads the pack and does the right thing, spend up and pick a unit with lithium presets.

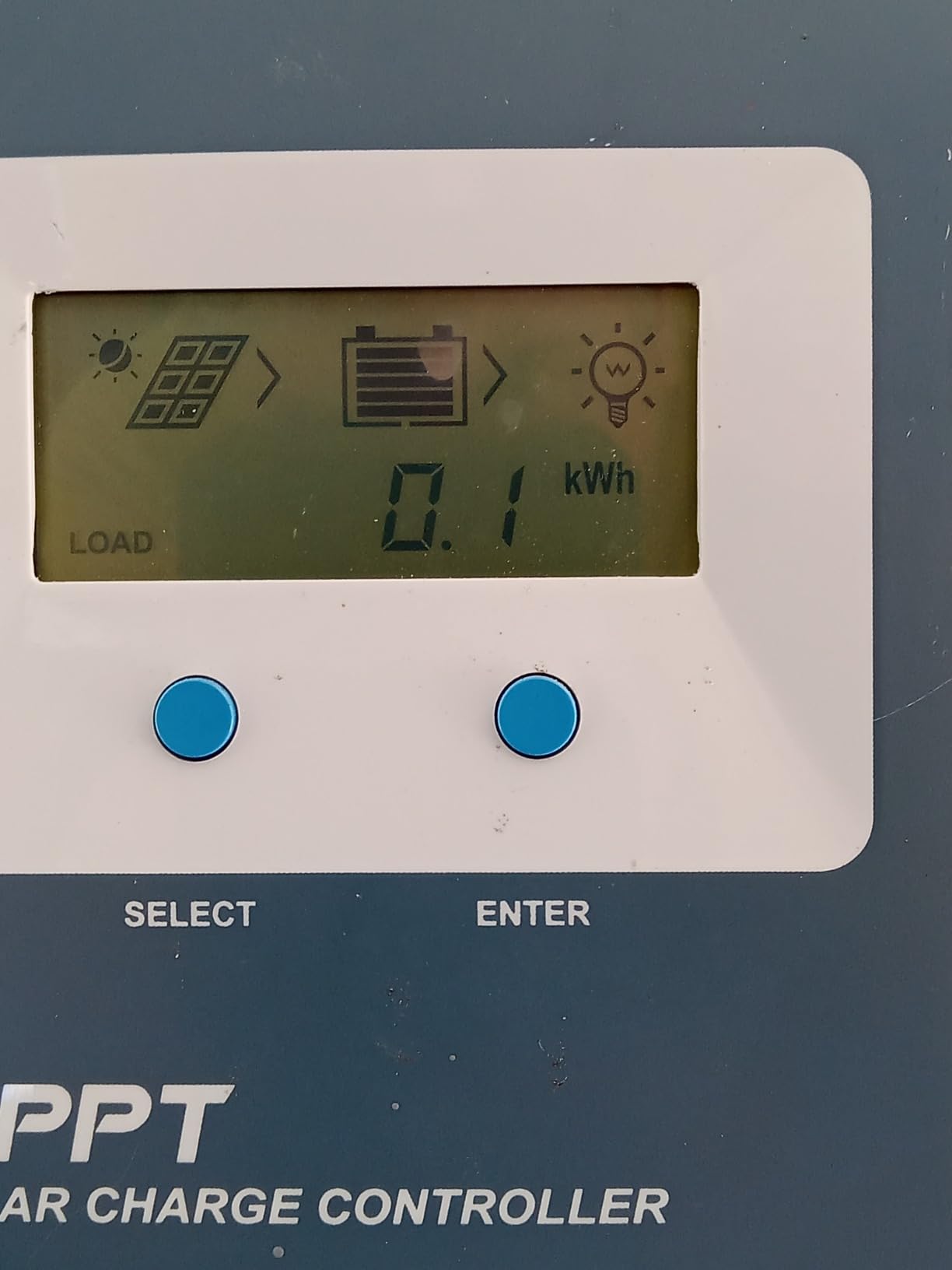

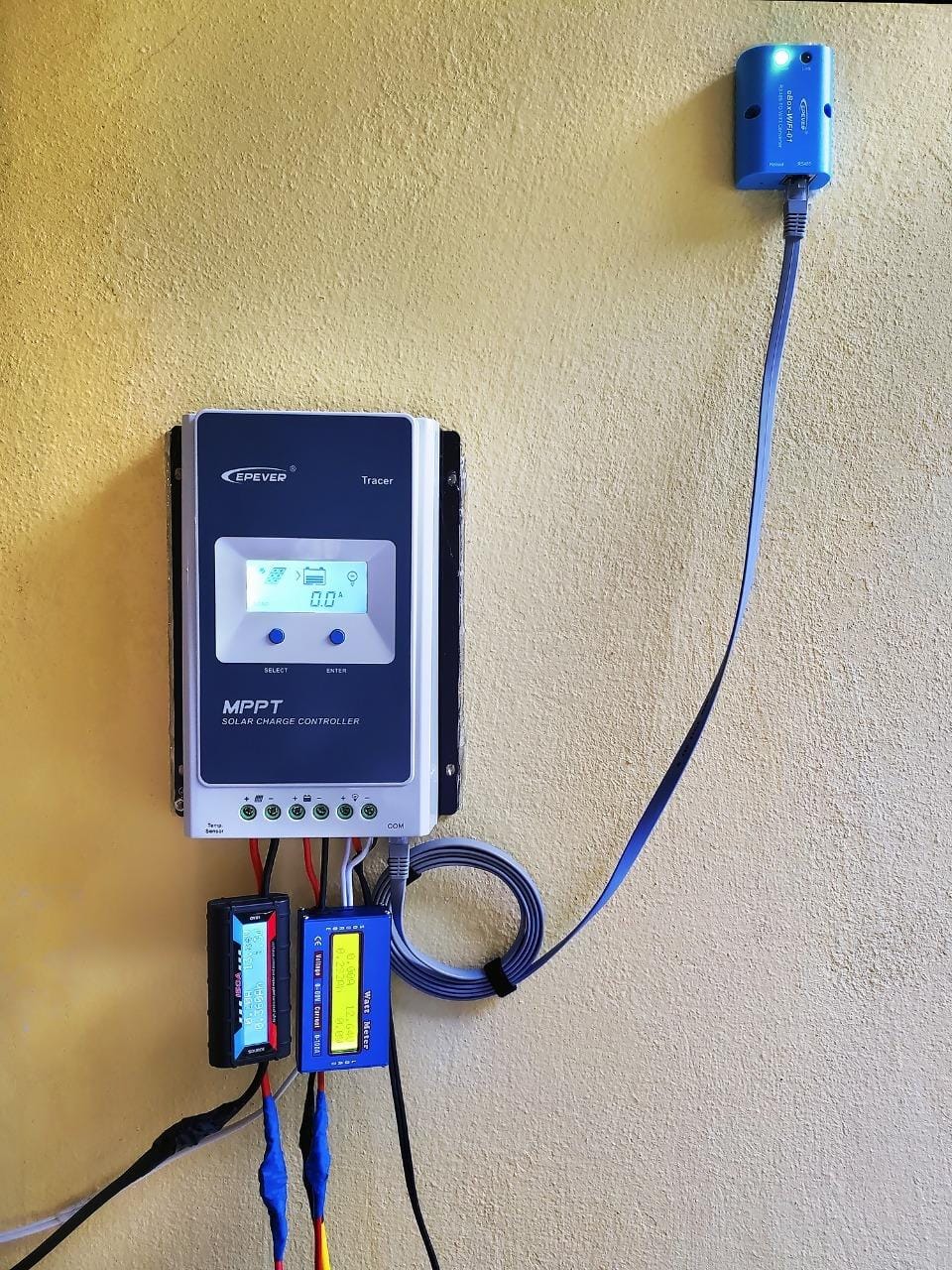

4. EPEVER Tracer 30A — the quiet one with the highest rating in this roundup

The Tracer 30A shares the highest average rating in this roundup at 4.5, with only 2 percent of ratings at one star. That consistency matters more than the raw number: a high score with a long tail of complaints is common, and a high score with almost no one-star reviews is not.

This is the Tracer3210AN-G3, with 12V and 24V auto system voltage recognition, 100V max PV, and 390W of input on a 12V bank or 780W on 24V. Tracking efficiency is specified above 99.5% with 98% maximum DC/DC conversion, and the common negative grounding scheme matches most cabin installations.

Battery support is unusually broad. Gel, AGM, flooded, sealed, LiFePO4 in 4s for 12V or 8s for 24V, and Li(NiCoMn)O2 are all handled, with battery temperature compensation and real-time energy statistics. Multiple load work modes let the unit run a lighting circuit directly if you want that.

The communications story is the differentiator. RS485 with Modbus protocol means you can add MT50 or MT52 remote meters, a WiFi adapter, a BLE adapter, the eLOG01 datalogger, or the USB-RS485 cable, and pull real data out instead of guessing from a display. One temperature sensor unit is included in the box.

Is the Tracer right for a quiet cabin?

Yes. The TracerAN G3 series is noticeably quieter than earlier versions, and for a structure where you sit in the evenings with a fridge compressor running, fan noise and relay chatter are real quality-of-life issues. At 4.5 stars with a 2 percent one-star share, the quietness does not come at the expense of anything else.

It is also a strong fit for a boat or a marine-adjacent cabin build, where the chemistry list and the Modbus ecosystem earn their keep. If your system may grow past 390W on 12V, plan to move up in amperage rather than pair strings in parallel.

What the 30A ceiling means for you

This is the cap that decides it. A 30A unit means 390W at 12V or 780W at 24V, so a 400W panel plus any expansion plan pushes you past the ceiling on a 12V system. Spending on a 60A controller at that point is a better move than adding a parallel run and a combiner box.

The monitoring accessories are also extra. Budget for an MT50 meter at minimum if you want to see charge current and battery voltage from the living area rather than crouching behind a wall.

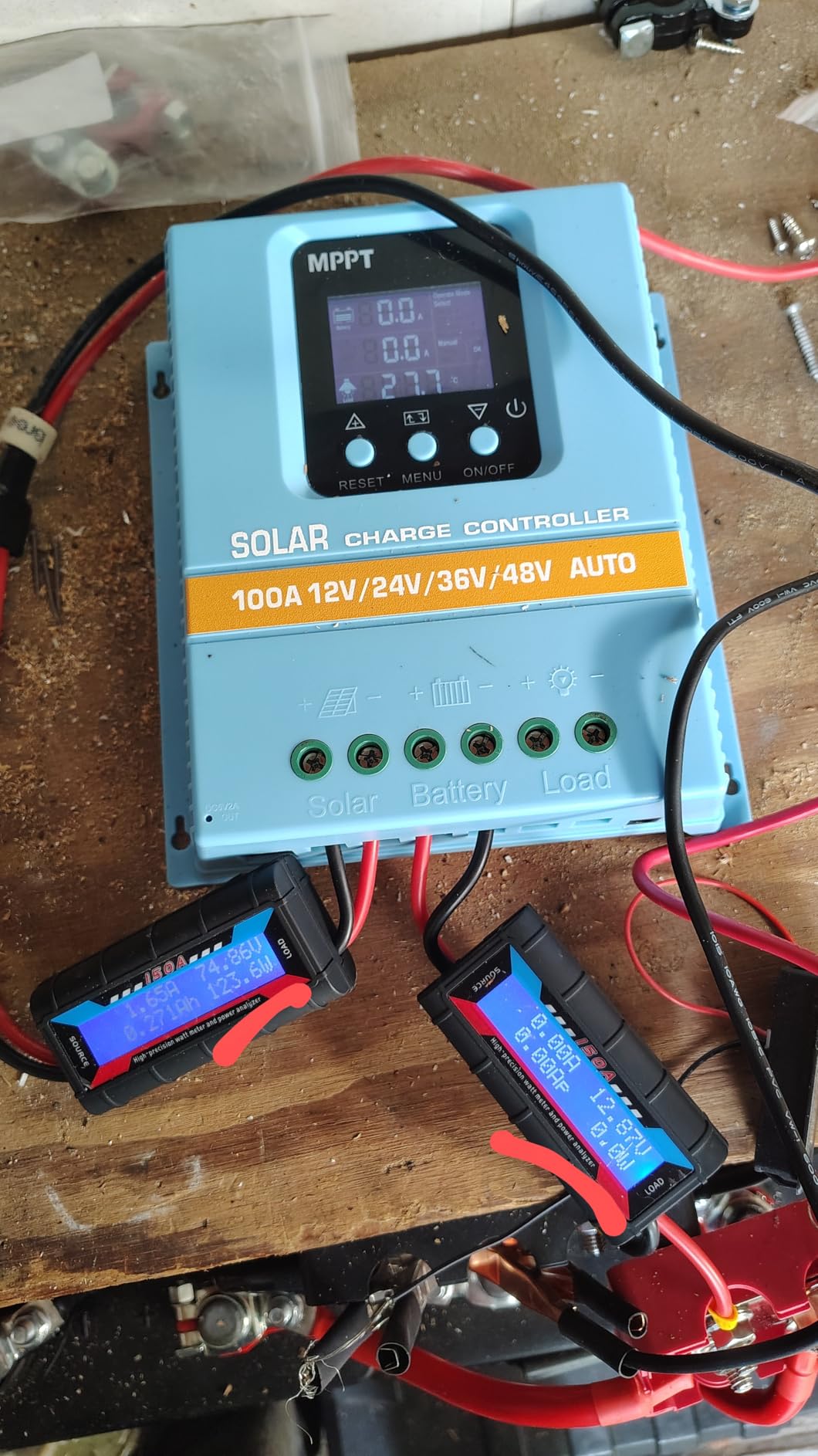

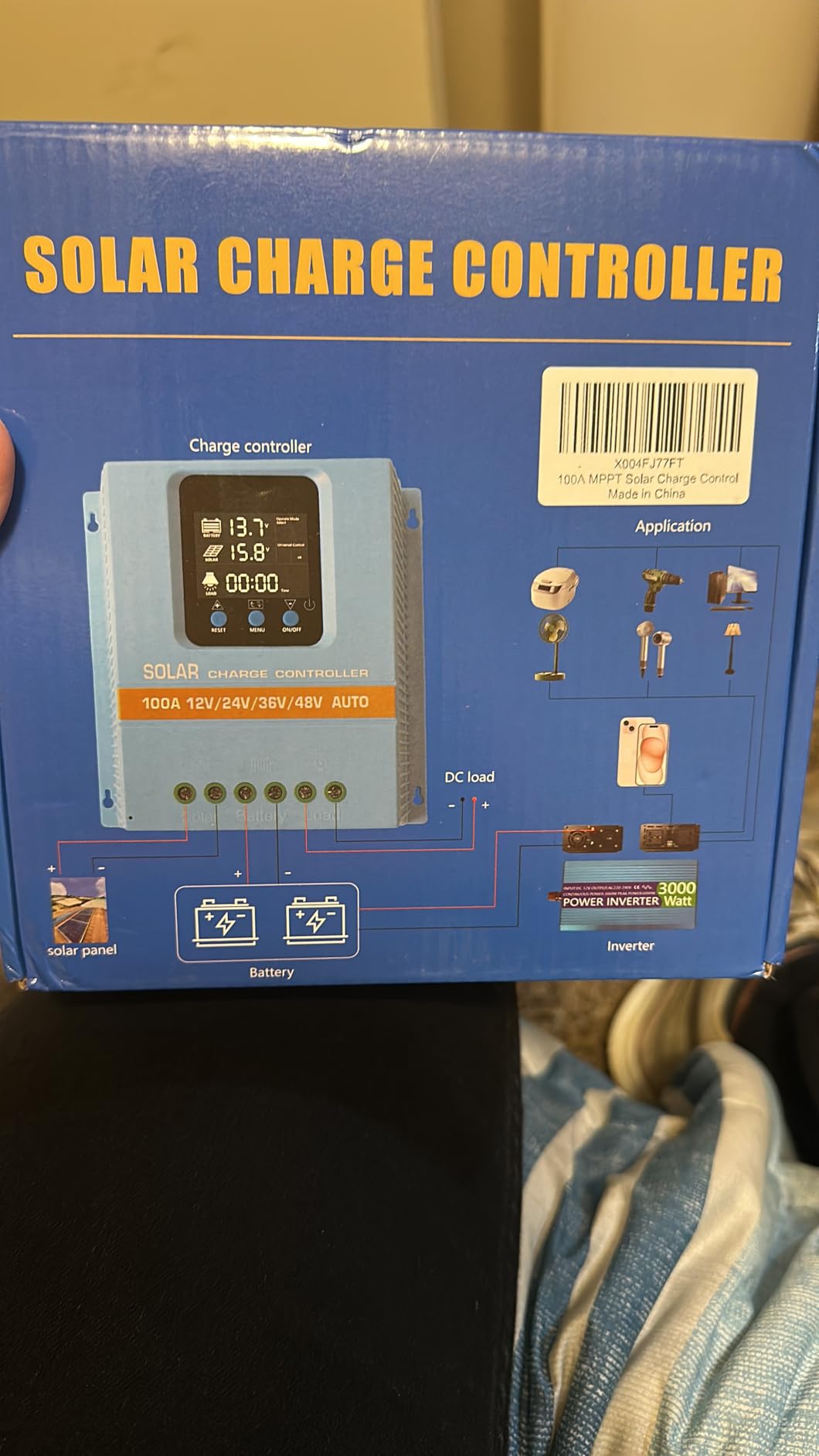

5. ELUSH 100A 12V-48V — high current with disputed tracking claims

The ELUSH 100A is the specification-sheet winner of this group, and that is exactly the problem. A 100A rating, 12V through 48V auto recognition, and 100V max PV input on a unit at the bottom of the price range looks like unbeatable value until you read what owners report about its actual tracking behaviour.

Buyers split sharply. Some treat it as excellent value that pushes real current on a 12V array, and one reviewer left it exposed to rain through a full summer without failure. Others report that the MPPT label is misleading and that it behaves closer to a hybrid PWM-boost design, landing around 80 to 85 percent efficiency rather than the 98 percent class figure.

Two more practical complaints recur. The PV voltage and current shown on the display do not always match what an external meter reads, so the screen cannot be trusted for troubleshooting. And the PV tracking window only matches the connected battery voltage range, which means high-Voc panels lose output on a 12V system, precisely where tracking should be earning its keep.

The feature list is otherwise generous: dual USB 5V ports, a backlit LCD with a clock, seven operating modes including timed light control, and protection covering over-voltage, over-current, power failure, overcharge, deep discharge, reverse connection, and overheating. The warranty is 1 year, the shortest here, with lifetime technical support alongside it.

When does a 100A rating actually help?

Only when your array is genuinely large and your bank accepts a big charge rate. A 100A controller means 1200W of panel on a 12V bank, and you also need a bank and cabling sized to accept 100A without the cables becoming the limiting factor. On a modest cabin system, 100A is headroom you will never touch.

Because LiFePO4 is compatible and the controller is compact and simple, it can work well as a basic charge controller in a shed or workshop, where the array is small and the priority is simply not overcharging the battery.

Why we would not put it on an unattended cabin wall

The dispute over what the tracking circuit actually does is the core issue. If a controller’s real efficiency is 80 to 85 percent, that is a 15 to 20 percent penalty on every watt your panels make, and on a cabin where generation is scarce, that is the most expensive kind of inefficiency because you paid for those watts twice.

At 4.0 with a 14 percent one-star share, the ratings reflect that split. If efficiency is your priority, a genuine MPPT with published tracking figures is a better use of the budget even at a higher price tier.

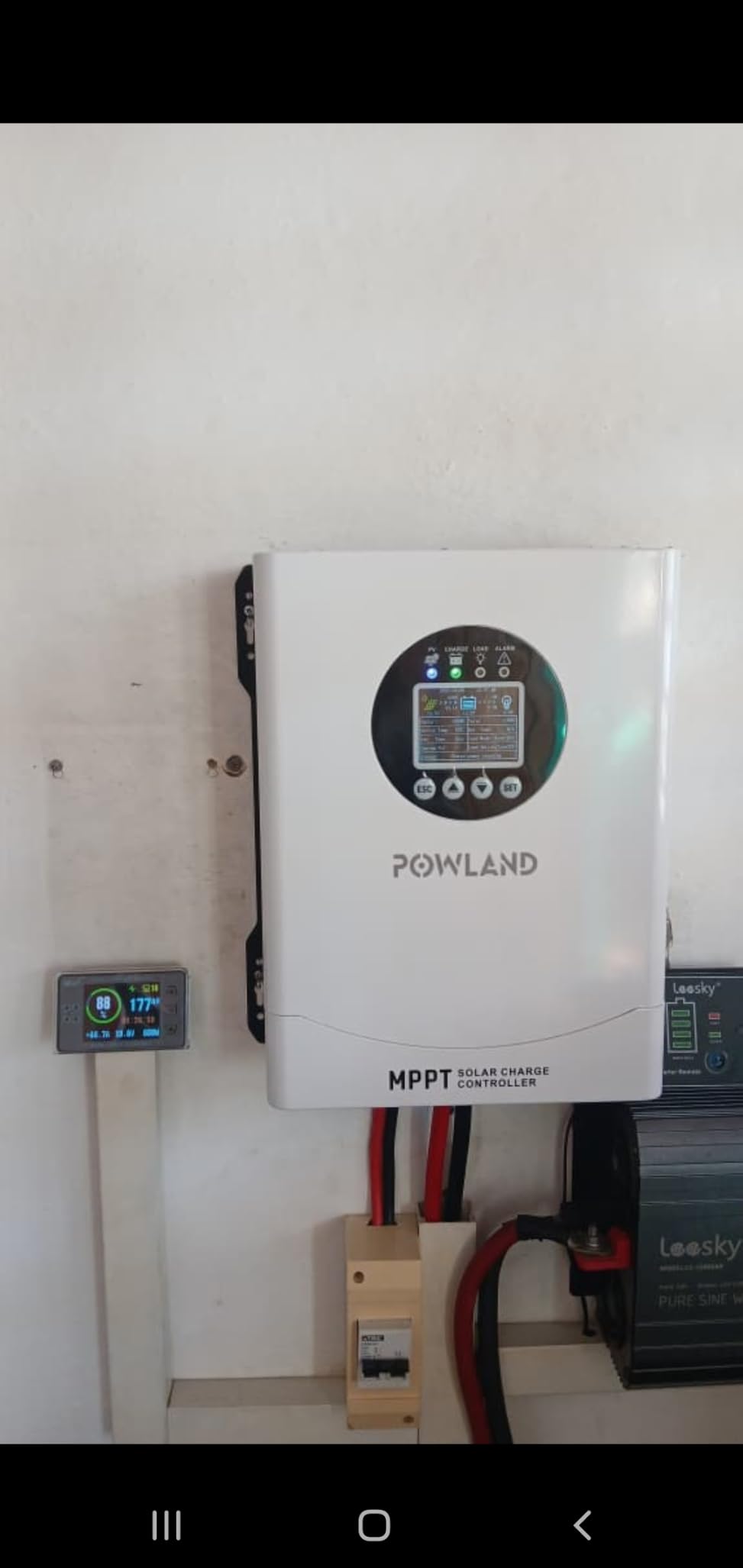

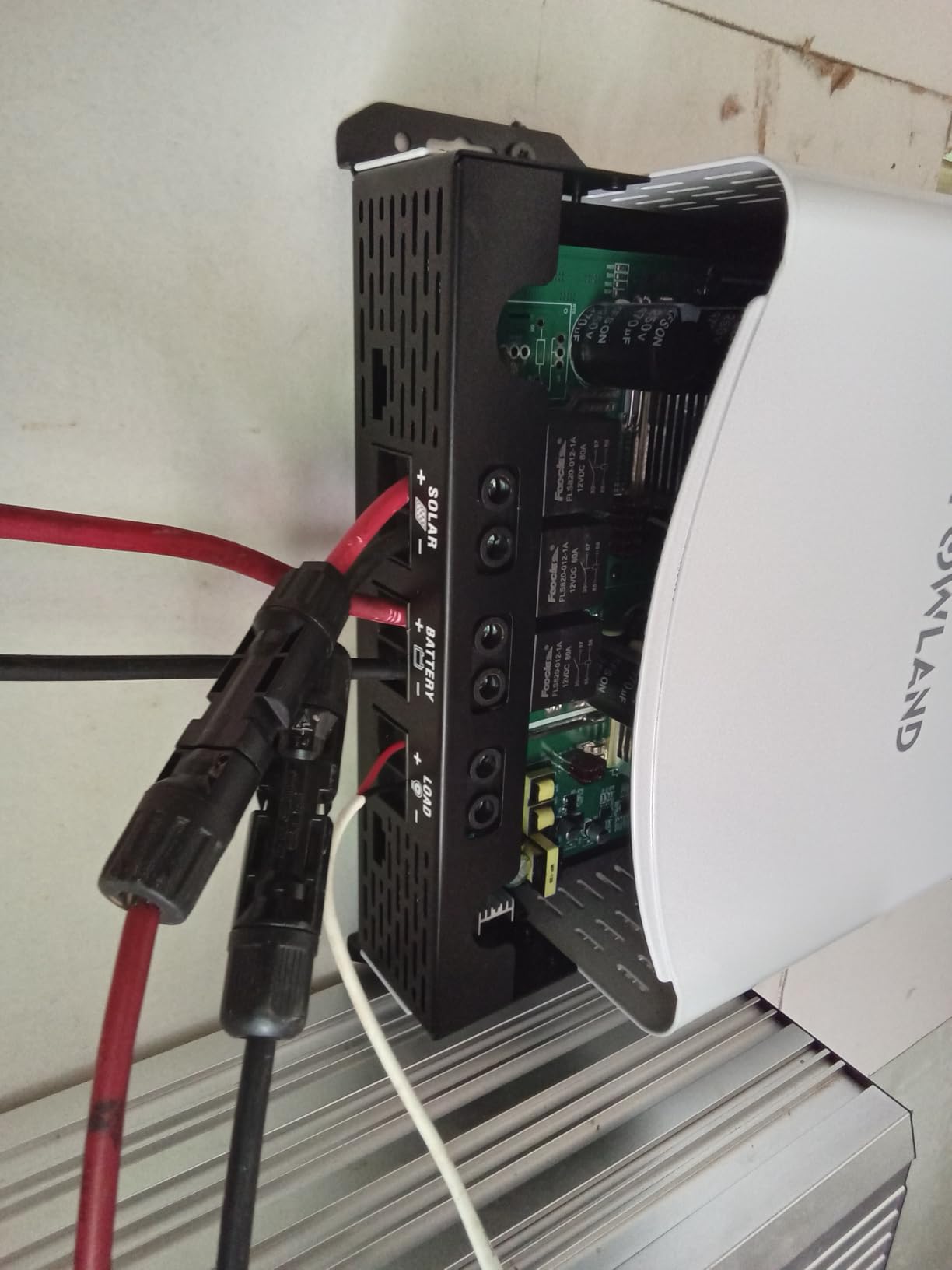

6. POWLAND 120A — maximum headroom from 12V to 96V banks

The POWLAND 120A covers the widest range of any controller here, auto-detecting from 12V all the way to 96V. For most cabin builds that upper reach is irrelevant, but for anyone running a large array on a high-voltage bank, it removes the usual ceiling on how large the system can grow.

Charging capacity is 120A with up to 98% MPPT conversion efficiency, and max PV input is 230V. That voltage headroom means long series strings are viable, which cuts wire gauge requirements and shortens the run from a distant array to the cabin.

Charging is a three-stage bulk, absorption, and float profile across LiFePO4, AGM, gel, and flooded lead-acid, with protection against reverse polarity, overload, and open circuit. The LCD reports PV input voltage and current, the active charging stage, and system warnings, which is enough to diagnose most problems from one visit.

At 4.4 across 133 ratings, the satisfaction rate is high, but the review base is thin. Buyers note that the controller includes a detailed manual and 24/7 technical support, and that support is email-only, which matters if the unit is already on a wall in a remote cabin.

Do you need 120 amps in a cabin?

Rarely. Most cabins are running 200W to 800W arrays on 12V or 24V banks, where a 60A controller is already more than enough. The 120A rating only earns its place on a very large battery bank that you want to refill quickly after a long cloudy spell.

The 230V max PV input is more broadly useful than the amperage. If your array is physically far from the cabin, a higher permitted input voltage means you can series panels instead of paralleling them, which is where the real installation savings live.

What to weigh before choosing a high-capacity unit

A 120A controller needs a 120A-capable bank, appropriately sized busbars, and cable runs that will not become the bottleneck. Most of the cost of a big system is in the wiring, and oversizing only the controller makes the rest of the system the weak link.

The 133-rating review base is the other factor. With less long-term history than the established names, you are accepting more uncertainty in exchange for specification headroom. That is a reasonable trade for a large array and a poor one for a small cabin.

7. LiTime 30A with built-in Bluetooth — monitoring with no dongle

The LiTime 30A is the pick for anyone who bought a controller with an optional Bluetooth dongle, used it for a year, and regretted the second purchase. The module is built into the housing, so phone monitoring is a pairing exercise rather than an extra line item.

Tracking efficiency is not less than 99% with peak conversion up to 98%. Max PV input is 900W at 24V or 450W at 12V, which means it suits a 24V cabin bank better than a 12V one, and it has a dedicated LiFePO4 charging mode plus adjustable parameters for sealed and gel lead-acid.

Off-grid cabin owners are the loudest group in the reviews, and their verdict is that the controller plus a lithium bank makes the system close to hands-off. One reviewer specifically notes that it does not generate RF interference on ham radio equipment, which matters if your cabin is also a radio shack.

The die-cast aluminum housing handles heat dissipation, and protection covers reverse connection, overpower, overvoltage, short circuit, and over-temperature. The box includes a manual, three pairs of heat-shrink tubes, screws, and copper wire connectors in the accessory kit, so the install is complete out of the carton.

Does built-in Bluetooth change how you monitor a cabin?

Yes, more than the specifications suggest. An add-on module is one more cable to run and one more thing to fail; integrated Bluetooth means the connection is there the day the controller is mounted. For a cabin you visit a few times a year, being able to pull up the app and see live charge current from a driveway is a genuine convenience.

The LCD with four menu buttons and LED indicators for array, battery, loads, and controller status covers the local case, so the app is an addition rather than a requirement.

What to watch out for

The 30A ceiling is the main sizing trap. At 450W on 12V it will refuse more panel, and reviewers repeatedly make the same point: size the controller to the array, not to the current battery. If your bank is large, a 30A controller can leave you undercharging on good days.

App compatibility has been an issue on newer Android versions, though LiTime updated the app to resolve it. The manual also contains conflicting instructions around low-temperature charge protection and the remote temperature sensor, so budget time to read it properly.

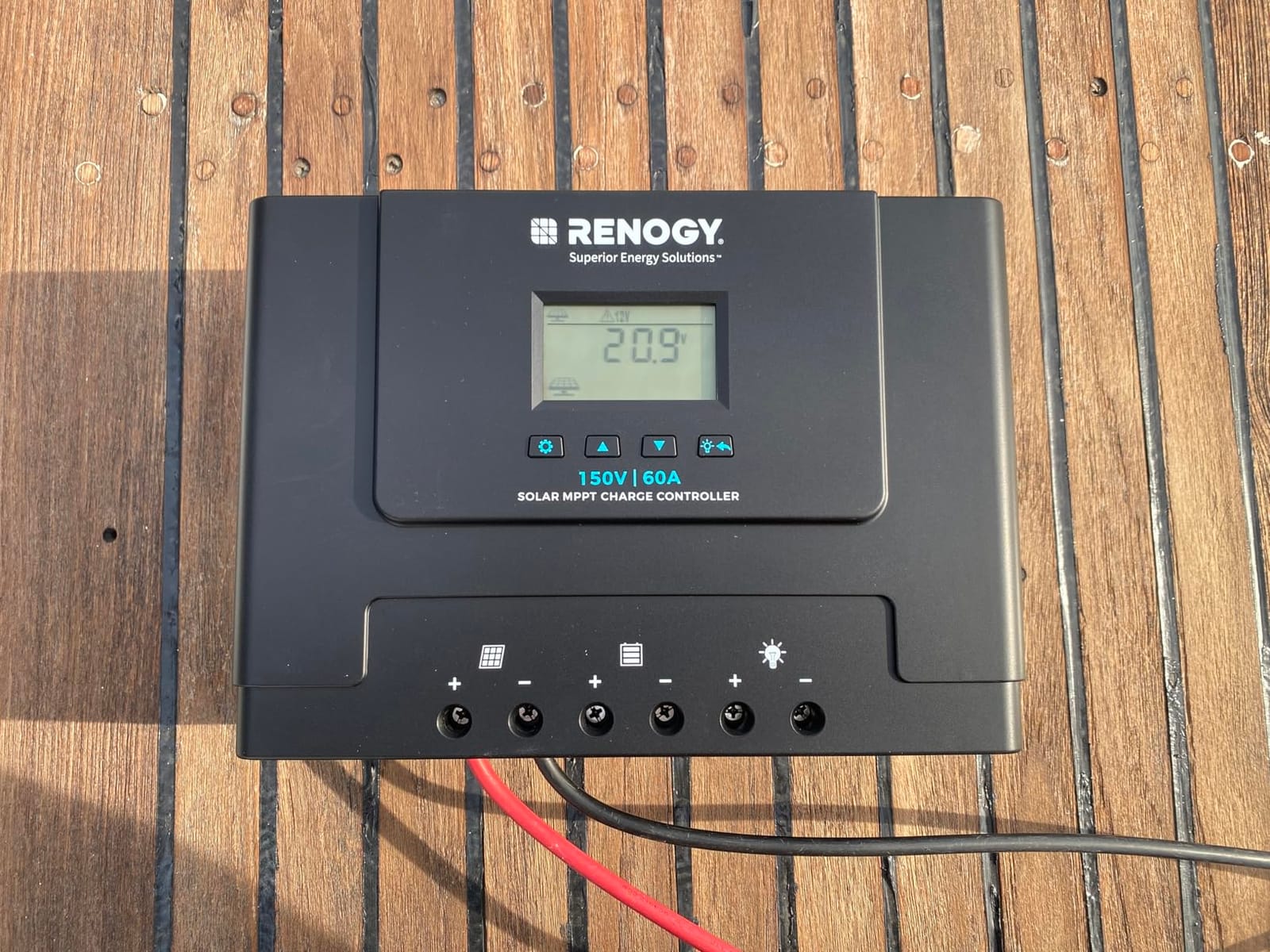

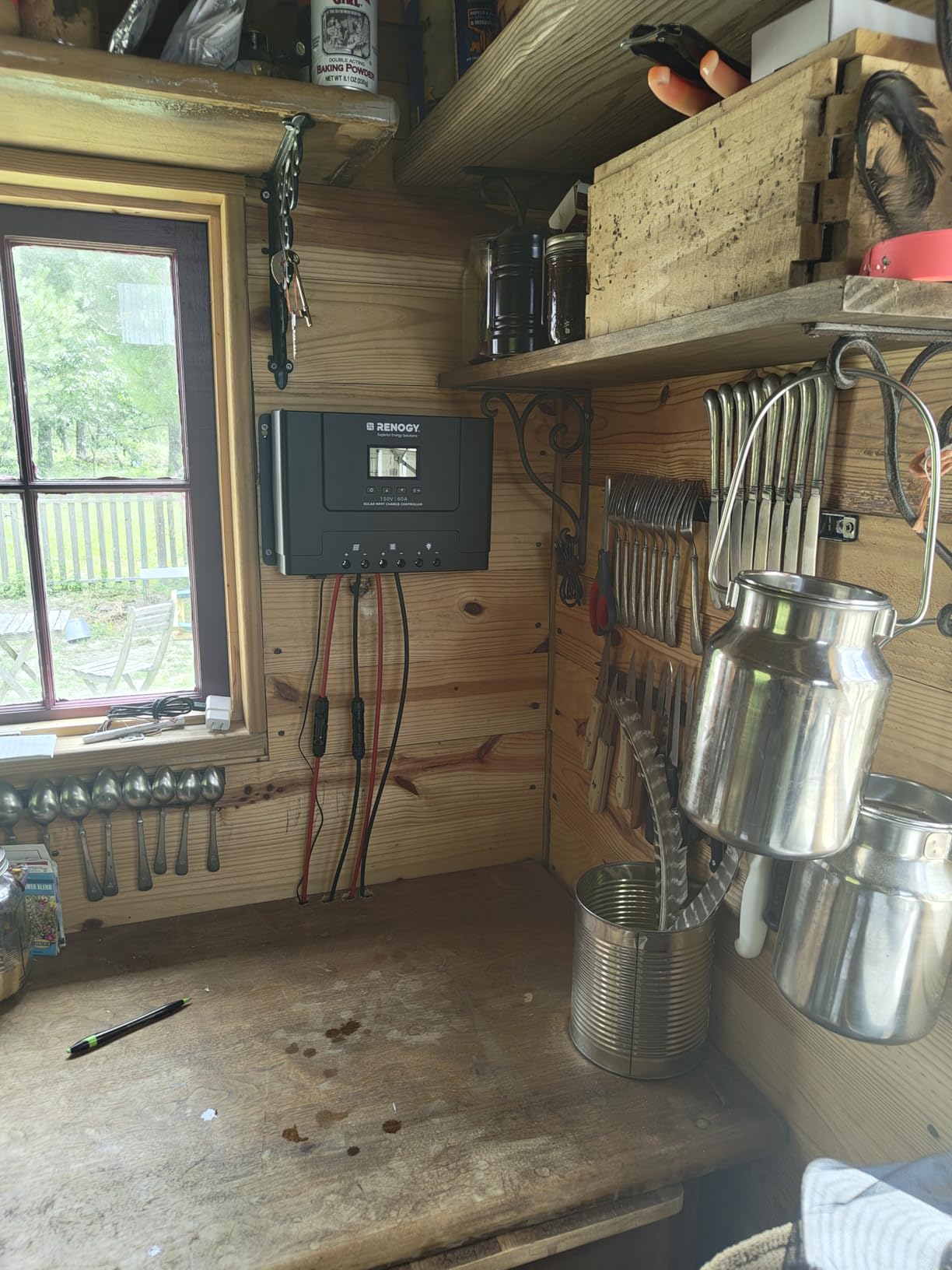

8. Renogy Rover Lite 60A — 150V input for long panel strings

The Rover Lite 60A solves a specific problem: getting a lot of panel voltage into the cabin over a long run without pulling heavier cable. At 150V maximum solar input, you can series up to six 200W monocrystalline panels, which cuts conductor size and installation cost on any array more than a few dozen feet from the building.

Operating range is the other headline. Full-load operation from -31F to 113F, with low-temperature lithium protection and a self-cooling design for high-heat environments, covers the temperature span most cabin sites actually see. Battery systems from 12V to 48V are supported across common chemistries.

The box includes the controller, a battery temperature sensor, and mounting screws. Owners running multiple Renogy controllers report long service life, and the metal commercial-grade construction is repeatedly praised for tolerating humidity and heat in enclosed spaces, which is exactly the environment inside an unheated cabin.

Everything is readable and settable from the built-in LCD with clearly labeled ports and user-friendly buttons. You do not need a phone to configure it, which reduces the number of things that can go wrong on a site you visit infrequently. FCC, RoHS, and CE certification is documented, and the warranty is 2 years on material and workmanship.

When does a 150V input ceiling matter?

Whenever the array is distant. Series strings at higher voltage carry the same power over thinner wire, so the 150V ceiling directly reduces copper cost and voltage drop on long runs. If your panels sit on a barn roof or a pole array a hundred feet from the cabin, this is a genuine engineering advantage rather than a spec-sheet line.

Six 200W panels in series is also a simpler install than two parallel strings of three, because you need one combiner, fewer branch fuses, and a single controller input.

What the size and warranty cost you

Size is the most repeated drawback. At 60A in a metal housing, this controller takes noticeably more panel space than a 30A unit, and on a crowded wall it can be the constraint that decides your layout.

One reviewer reports the controller stopped recognising battery voltage after 14 months and would not hold a manual 12V setting, which is a small sample but a serious symptom in a device you cannot easily reach. The 2-year warranty is thinner than the Rover 30A’s 3-year cover, and Bluetooth still requires the BT-2 module.

9. SUNER POWER 30A — the simplest small-cabin install

The SUNER POWER 30A is the controller to buy when you want the least ceremony. Reviewers describe a straightforward install, a compact footprint, and no parameter hunting, and at 4.5 with only 2 percent one-star ratings it is the joint-highest rated unit in this roundup.

Specs are conventional and good: 100V max PV input, 360W on a 12V bank or 720W on 24V, tracking efficiency up to 99%, and peak conversion of 98%. One owner reported that 99% tracking roughly doubled the output current relative to their previous controller, which is the kind of upgrade most PWM users experience.

The three-stage bulk, absorption, and float algorithm charges faster while protecting battery life, and protections cover PV over-voltage, battery over-voltage, over-temperature, over-charging, short circuit, and reverse polarity, with temperature compensation included. Deep cycle sealed AGM, gel, flooded, lead-acid, and LiFePO4 are all supported in a plug-and-play configuration.

The LED display shows panel charging voltage and current along with battery voltage, so you can sanity-check the system at a glance without an app or a meter. At 0.14 kg it weighs less than half a pound, which matters if you are mounting inside a small cabin where space is tight.

Is it good enough for a real cabin?

For a cabin with a modest array, yes. It handles 360W on 12V or 720W on 24V with full chemistry support and a proper three-stage profile, and the small footprint and light weight make it easy to mount in a cramped utility space. The protections list is complete enough to leave installed over winter without anxiety.

It is also a sensible first controller for a cabin that has no monitoring ambitions, since the LED readouts cover the questions you actually ask, which is whether the panels are making power and whether the battery is taking it.

What the small complaints add up to

Two issues recur. Polarity markings are printed on a ribbon rather than moulded into the case, so they can wear off and leave you guessing at a terminal that matters a great deal. And one reviewer saw the display go dark while charging, with the state-of-charge reading dropping in still sunlight.

At 89 ratings the sample is small, so treat the rating as encouraging rather than proven. The shortlist is straightforward: if you want the simplest install and the smallest footprint in this roundup, this is the one; if you want remote monitoring, look at the LiTime 30A instead.

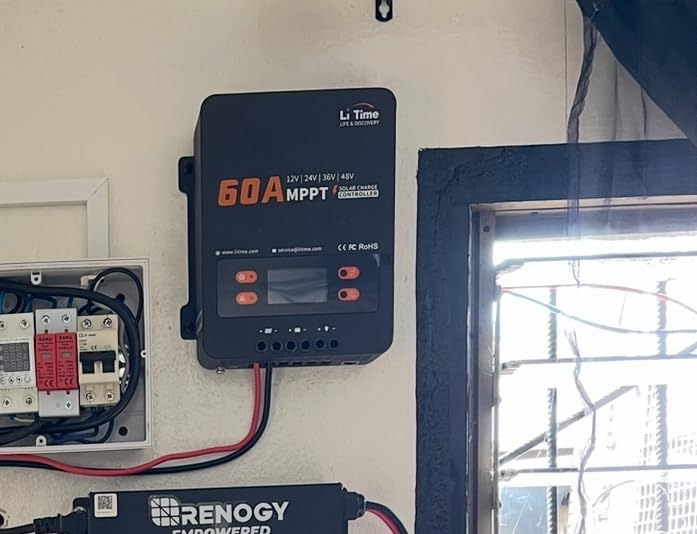

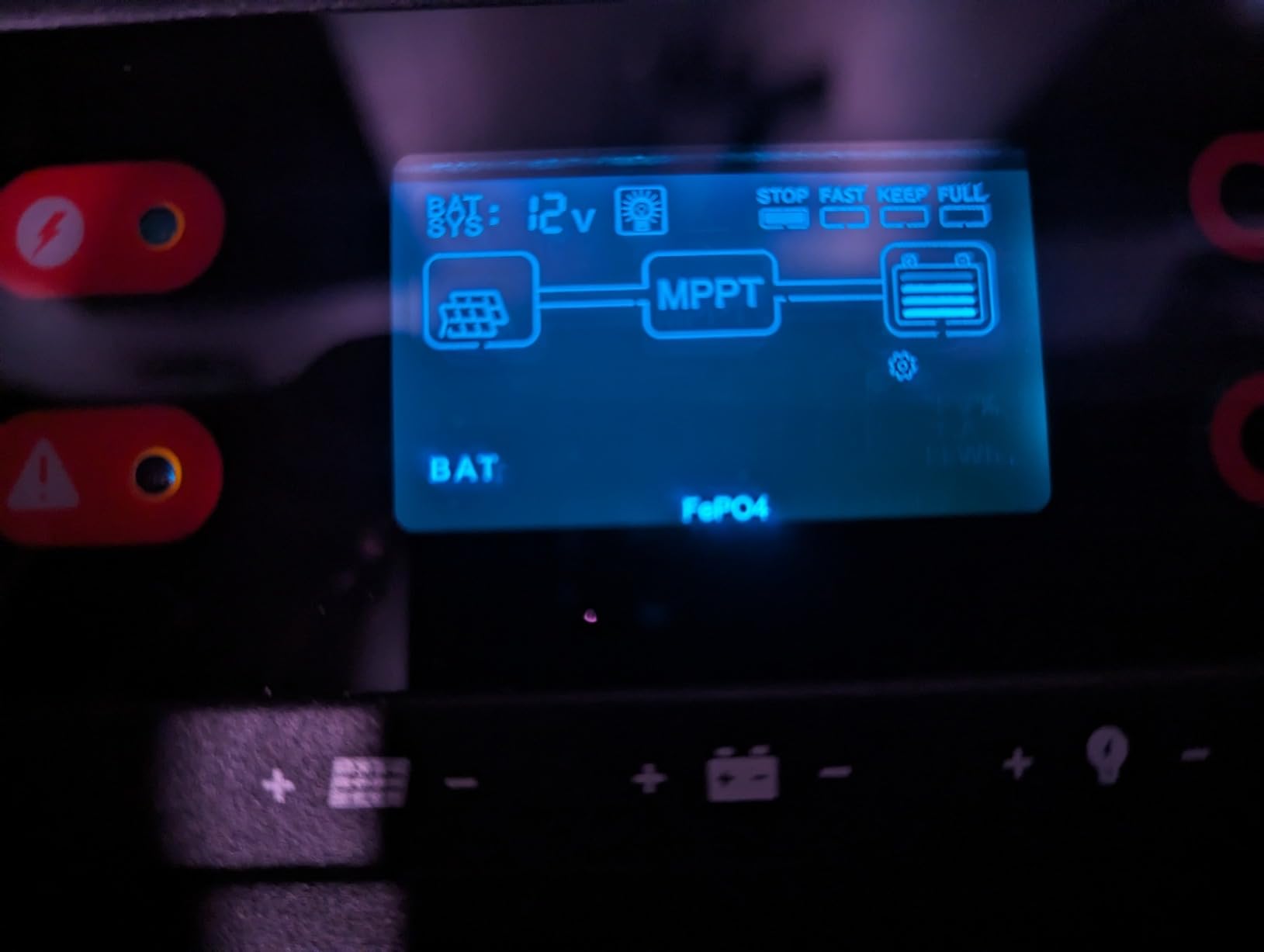

10. LiTime 60A 200V — high voltage input for 48V banks

The LiTime 60A is the step up from the same brand’s 30A unit, and it is aimed squarely at larger cabin arrays. Maximum solar panel input is 870W at 12V, 1740W at 24V, 2610W at 36V, and 3480W at 48V, with 200V of permitted PV input voltage.

That 200V ceiling is what makes it interesting for a 48V bank, where you would otherwise need a separate combiner and a shorter string. The charging side covers three selectable voltages for LiFePO4 and five for lead-acid, including an auto option, so the same unit can be set for either chemistry without a rebuild.

Thermal design is the quiet strength. The sheet metal shell uses dual forced cooling, a bottom heat sink plus a top fan, and reviewers single this out as the reason it can hold 60A of sustained charging without thermal throttling. The LCD carries two menu buttons plus charging and fault indicator LEDs, which is a deliberately minimal interface.

Protection covers overpower, over-voltage, short circuit, and over-temperature. The accessory kit includes an instruction manual, three red and three black heat-shrink tubes, four screws with caps, and copper wire connectors, so the install does not require a separate hardware run.

Is a 48V bank worth the complexity?

For larger systems, yes. Higher bank voltage means lower current for the same power, which reduces cable size and resistive losses, and 3480W of array at 48V is a meaningful ceiling for a cabin that expects to run a refrigerator, a freezer, and power tools. For a small cabin, the added complexity buys nothing.

If you go this route, pair it with a controller you can actually see. The 200V input is a real advantage, but so is knowing what the array is doing when you are two hours away.

Where this one falls behind

There is no built-in Bluetooth, so remote monitoring requires the optional module, which is the single most common complaint in the reviews and the reason the brand’s 30A unit is the more popular pick. The stated 96% peak conversion is also below the 98% claimed by several controllers here, a difference that shows up as slightly less delivered current on the same array.

With 96 ratings, the feedback pool is small. The spec sheet is convincing, but the long-term record is thinner than the 4050 ratings behind the Renogy Rover 30A at the top of this list.

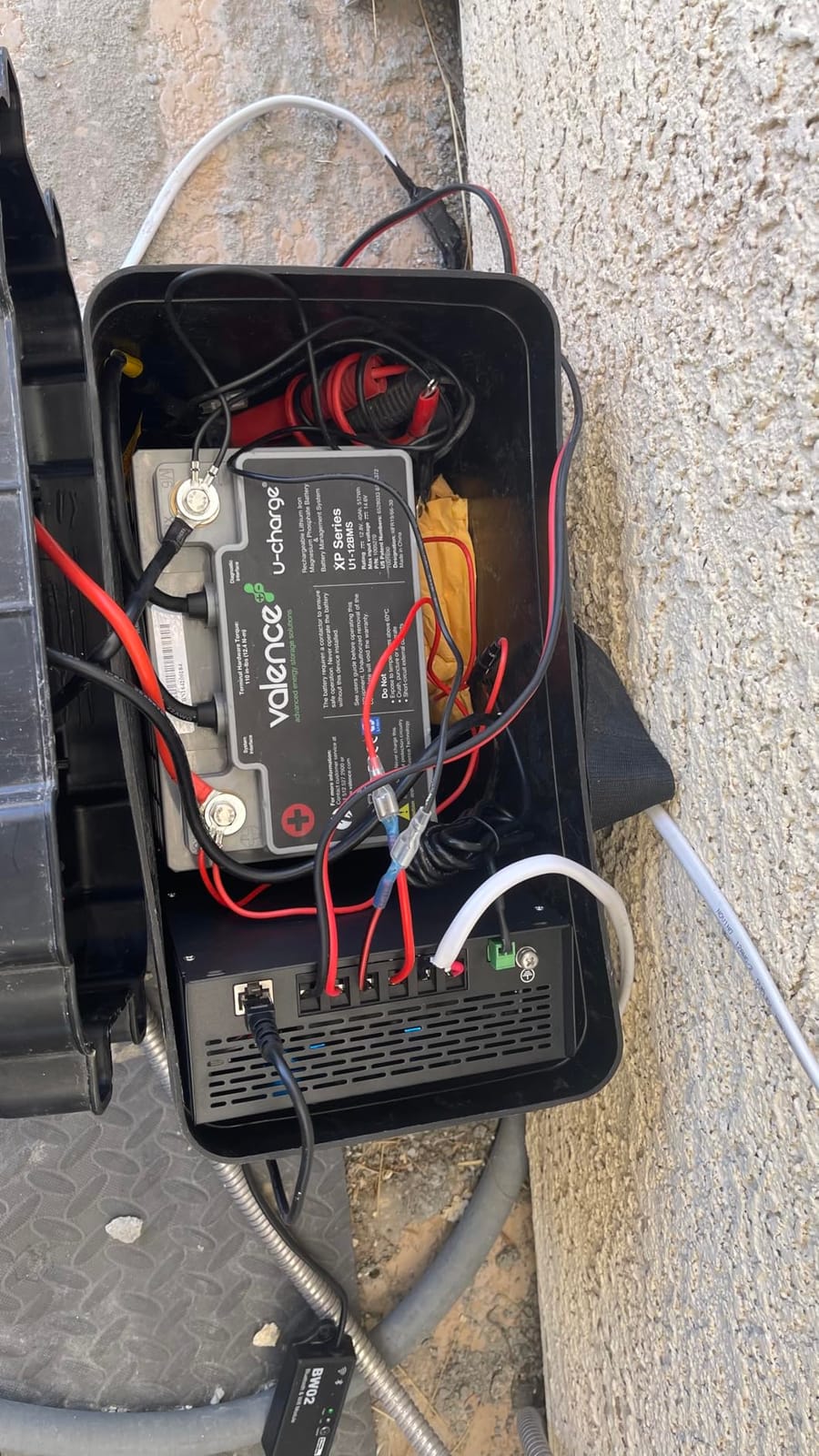

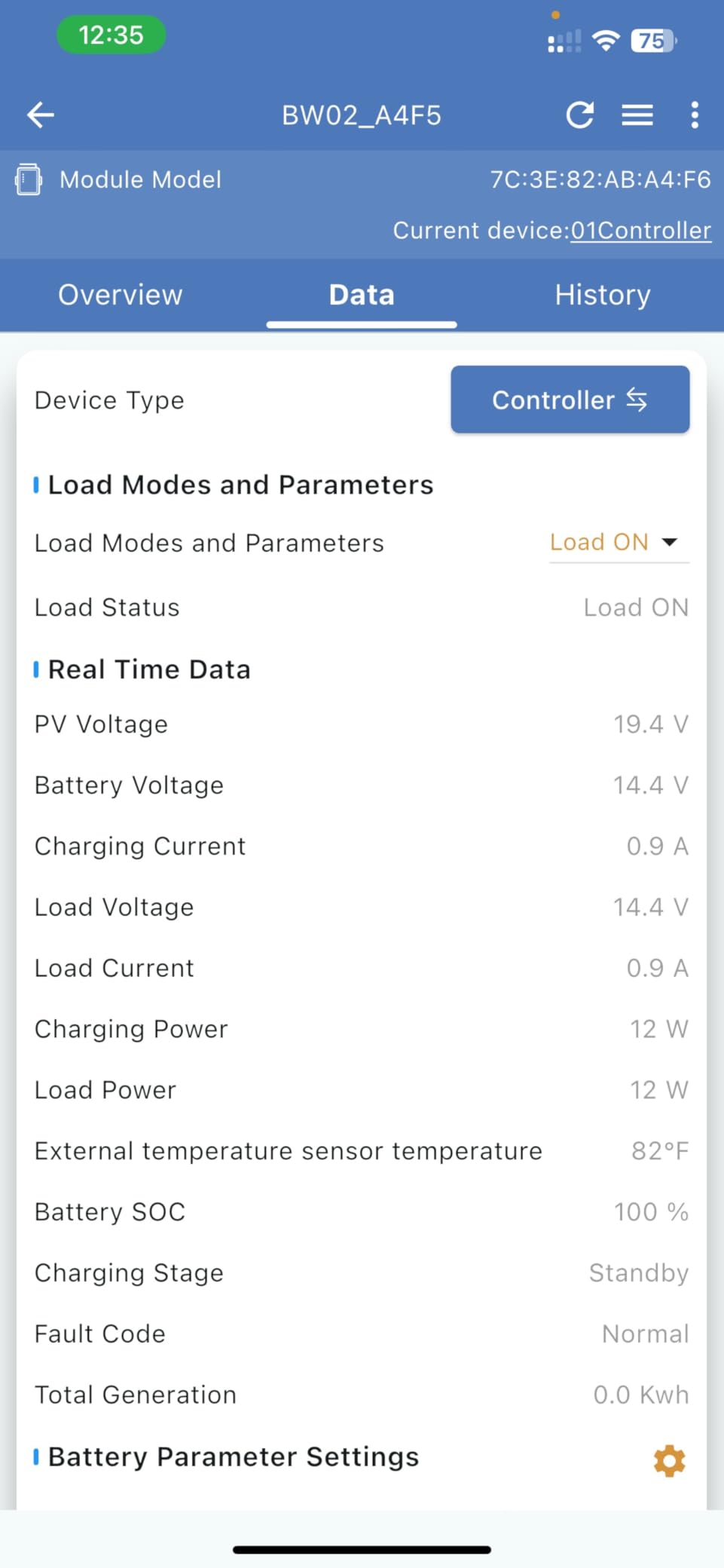

11. ECO-WORTHY 60A — the only one here with WiFi monitoring

The ECO-WORTHY 60A is the only controller in this roundup that offers both Bluetooth and WiFi, and for a cabin with no reliable cell signal but a router or hotspot inside, that is a category of its own. Every other option here is a phone-standing-near-the-controller solution.

Monitoring hardware is a removable RJ45 dongle rather than a soldered module, which is better engineering: if the communication board fails you replace a small part instead of the controller. Bluetooth range is up to 33 feet and WiFi handles the longer-distance case, with 30 days of performance history stored in the app.

Load control is unusually flexible. Three modes cover normal on and off, optical light control, and fixed-time light control, which is genuinely useful for running a cabin’s exterior lighting or a small lighting circuit straight off the controller without adding a separate relay.

Battery handling covers four-stage charging for lead-acid and two-stage for LiFePO4, plus a LiFePO4 activation function for waking a protected bank. Automatic parameter setup after you select the battery type removes one of the usual configuration traps, and a reviewer notes that a polarity mistake is recoverable without bricking the unit.

Is WiFi worth more than Bluetooth alone?

It depends entirely on your site. If the cabin has WiFi reaching the utility room, then yes, and this is the only controller here that makes it possible. If the cabin is truly off-grid with no network, the WiFi dongle adds cost you will not use and the Bluetooth range of 33 feet is the real constraint either way.

The load control modes are the underrated second benefit. Running lighting directly off the controller with optical or timed control removes a relay and a timer from the parts list, which matters when a winter supply run is a real inconvenience.

What the reviews warn about

App polish is the weak point. It shows monthly and cumulative totals but not daily kWh generation or usage, one buyer reported the WiFi module dropping connection repeatedly within days of setup, and reported load wattage readings in the app did not match actual draw.

More seriously for a 48V install, reviewers report the terminals are too small for the 6AWG copper that 60A at 48V requires. If your bank is 48V, size the conductors down a gauge or plan a busbar, because the controller terminals will be the weak link.

12. PowMr 60A — the compact wall-mount budget unit

The second PowMr entry is the smaller, cheaper take on the same idea, and its standout feature is documentation. The max PV input and power rating are published per system voltage: 80VDC and 720W on 12V, 105VDC and 1440W on 24V, 160VDC and 2100W on 36V, and 160VDC and 2800W on 48V.

Almost no controller in this roundup prints that table, and for a first-time builder it removes the most common sizing mistake, which is exceeding the permitted input voltage on a 48V bank.

Internally it runs a DSP controller with over 98.1% tracking efficiency, and it handles sealed, gel, flooded, and LiFePO4 with a three-stage MPPT, absorption, and float profile plus user-defined parameters in use mode. The aluminum alloy housing has a temperature-controlled fan that engages above 104F, and the body measures 8.43 by 4.53 by 1.97 inches at 2.43 pounds, which is genuinely wall-mountable in a tight space.

The LCD reports PV voltage, battery voltage, charging current, working mode, and fault codes. A factory reset is available by holding the last button for more than 5 seconds with only the battery connected, which is useful after a lithium settings mistake.

Is a smaller controller the right call for a modest cabin?

Often, yes. If your array sits at 720W or less on a 12V bank, buying a controller rated for 2800W at 48V means paying for capability you will never use. Matching the controller to the actual array is the cheapest efficiency win available to a cabin owner.

The compact wall-mount body and light weight also matter more in a small cabin than the spec sheet suggests, because the wall behind an inverter is usually the tightest space in the building.

What the setup process costs you

Lithium banks need manual parameter adjustment, and the PV input must be disconnected before you change settings. That adds steps that a controller with lithium presets handles automatically, so budget an extra ten minutes at the panel and keep a multimeter nearby.

At 82 ratings, this is the smallest review base in the roundup, so long-term data is thin. The documented voltage table and the compact body are genuinely useful; the confidence that comes from thousands of owners reporting is not there yet.

How to Size an MPPT Charge Controller for a Cabin

Size the controller in two independent directions and take the larger result. First, current: divide total array wattage by the battery bank charging voltage, then add about 25 percent headroom for future panels. Second, voltage: multiply the panel open circuit voltage by 1.25 for cold-weather correction, and that result must sit below the controller’s maximum PV input.

Those two checks catch different mistakes. Plenty of people size on current and then discover their two-panel series string exceeds the input ceiling on a cold January morning, which is exactly the failure the cold-correction factor exists to prevent.

Worked examples at 200W, 400W, and 800W

A 200W array on a 12V bank charging at about 14.4V produces roughly 14 amps, so a 20A controller would technically do it and no controller in this roundup is that small. A 30A unit is the sensible floor, and it leaves room for a second panel later.

A 400W array on a 12V bank at 14.4V is about 28 amps, which pushes a 30A controller to its ceiling with no margin. A 60A unit is the right answer here, and 400W is the most common cabin array size we see discussed on off-grid forums. If your bank is 24V, the same 400W array draws about 14 amps and a 30A controller has plenty of headroom.

An 800W array on a 24V bank at 28.8V is about 28 amps, so again a 30A unit is workable but tight. On 12V the same array is 56 amps and you need a 60A unit minimum, with 100A or 120A only if you plan to grow further. The same wattage produces completely different controller requirements depending on bank voltage, which is why the bank voltage decision comes first.

The Voc check you cannot skip

Panel Voc rises as temperature falls, and cold mornings produce the highest open circuit voltage of the year. Multiply your panel Voc by 1.25 and confirm the result is under the controller’s maximum PV input rating. A string of three 60V panels is 180V at 25C and roughly 225V after cold correction, which rules out every 100V and 150V controller here and clears only the 230V maximum on the POWLAND 120A. Two panels in series give about 150V cold-corrected, a figure that fits the 160V and 200V options and leaves little margin on a 150V unit.

This is also the check that decides whether you series or parallel your panels. Series keeps voltage high and current low, which suits long cable runs. Parallel keeps voltage low and current high, which suits short runs and controllers with a high current ceiling.

How much headroom is worth paying for

Forum consensus across off-grid and camper communities is consistent on this: a 60A controller is the sweet spot for most 400W cabin builds, and going to 120A is widely seen as wasteful when the array will never feed it. We agree. Buy headroom for one expansion, not for a system you are not going to build.

Check how our 400W solar panel picks for cabins stack up in the specs listed here, then size the controller against the array you are actually installing rather than the array you might install.

MPPT vs PWM for Off-Grid Cabins

MPPT wins for nearly every cabin, and the reason is arithmetic rather than marketing. A PWM controller simply chops panel output down to the battery voltage, so on a cool 18V morning feeding a 12V bank you capture roughly two thirds of what the panel is making. An MPPT controller converts that excess into charging current instead, delivering 15 to 30 percent more usable energy from the same panels.

On a campervan with a small 200W panel, that gap rarely decides the outcome. On a cabin relying on winter light, it is the difference between charging and idling.

Where the gap is widest

Partial shade. A PWM controller’s output collapses when one panel is shaded, and on a cabin roof with a chimney, a tree line, or a snow bank, that is common. A dual-peak MPPT tracker like the Rover 30A re-scans for a second power point and keeps harvesting.

Cold panel voltage is the second case. Panels in cold sunlight produce higher voltage, which favours MPPT, while low winter light produces lower voltage that can drop below a controller’s tracking startup threshold. MPPT units with a low minimum operating voltage keep charging in those flat overcast conditions where PWM is essentially off.

Lithium makes it decisive. A PWM controller that fails to reach the lithium charging voltage simply will not bring a LiFePO4 bank to full, on hot days or at low charging power, and that failure is silent.

When PWM is still reasonable

A PWM regulator is fine for a small, well-matched system: one panel, a 12V bank, a battery that is never deeply cycled, and no shading. The savings are real and the simplicity is genuine. It is the wrong choice for a cabin in snow country with a lithium bank, which describes most of the systems in this guide.

Do You Need a Special Charge Controller for LiFePO4?

Yes, you need one that has a dedicated lithium setting, and you must select it. A lithium bank charges to a higher absorption voltage than lead-acid and holds a lower float, so a controller left on a lead-acid profile will chronically undercharge it, and one set to lead-acid voltages is actively wrong for lithium chemistry.

The failure mode is quiet. Nothing alarms, the lights stay on, and the bank simply never reaches full, which over a season costs you a meaningful share of your capacity and stresses cells held below their target voltage.

What to look for in a lithium profile

A proper LiFePO4 profile typically uses around 14.4V absorption and 13.6V float for a 12V pack, with no equalisation stage, because lithium does not need one and forcing it wastes water you do not have. Several controllers here also provide a lithium activation or BMS wake function, which revives a bank that has dropped into protection mode after sitting unused through a cold winter.

Low-temperature charge cutoff matters just as much. Charging a lithium pack below freezing plates lithium inside the cells, so controllers that block charging below 32F, as the HQST does, are protecting a battery you spent good money on.

Controllers here that handle lithium cleanly

Several units ship with a selectable lithium mode: the LiTime 30A has a dedicated LiFePO4 charging mode, the ECO-WORTHY uses two-stage LiFePO4 charging with an activation function, the HQST combines low-temperature protection with BMS wake, and the Renogy Rover 30A adds lithium reactivation for deeply discharged packs.

The PowMr units are the caution here. Both require you to set absorption and float manually to match the real pack voltage, which is doable but is exactly the kind of step that goes wrong on a site visited twice a year.

Cold Weather, Snow Country and Temperature Compensation

Charge controllers compensate for temperature at a rate of roughly -3mV to -5mV per cell per degree Celsius. In practice that means a controller lowers the charging voltage on a hot battery and raises it on a cold one, keeping the battery at the right state of charge instead of cooking it in August or starving it in January.

The cold-weather numbers you should look for are minimum operating temperature and Voc headroom, in that order. A controller rated for -40F to 149F, as the Rover 30A is, will not stop tracking on a January morning. One specified from -31F to 113F, like the Rover Lite 60A, still covers most northern sites.

Winter generation loss is a design assumption

A horizontal array in a snowy climate can produce a fraction of its summer output in midwinter, partly from low sun angles and partly from snow cover. Every controller in this roundup helps at the margin by tracking efficiently in weak light, but none of them can make panels generate energy that is not there.

Plan for it. A cabin that treats solar as its only source between November and March needs more battery and more array than a summer-only calculation suggests, and shingled or tilted mounting that sheds snow is worth more than any controller upgrade.

Unheated cabins and controller placement

Yes, it is safe to install a controller inside an unheated cabin, with one caveat: it must be rated for the low end of the range your site reaches. Electronics have a minimum operating temperature below which the display goes dark and charging may stop, and the fix is either a rated unit or a heated enclosure.

Mount it away from the inverter, because controllers run warm and inverters run hotter, and keep the battery temperature sensor where it can read the bank rather than the wall. Freezing is a much bigger risk to a flooded or gel bank than to a lithium one, which is another argument for lithium in a cold cabin.

Monitoring a Cabin Battery Bank From Your Phone

If you visit a cabin a handful of times a year, monitoring is the difference between a system and a guessing game. Every controller here displays local readings, but only some hand that data to a phone, and the three approaches differ more than the marketing suggests.

Three monitoring routes, compared

Built-in Bluetooth is the simplest. The LiTime 30A ships with the module integrated, so you pair once and see live charge current, battery voltage, and load draw from anywhere in range, with a documented history period behind it.

Add-on Bluetooth modules like the Renogy BT-2 are cheaper in total only if you never forget to buy one. The Rover 30A and Rover Lite 60A both need the dongle, and buyers regularly flag that as the main drawback of an otherwise excellent controller.

WiFi with a removable dongle, as on the ECO-WORTHY 60A, is the only option in this roundup that reaches beyond Bluetooth range. The catch is that the app is basic, shows monthly rather than daily production, and one buyer reported repeated dropouts within days of setup.

What to actually monitor

Charge current and battery voltage are the two numbers that reveal almost everything. Sustained low charge current on a clear day means shading, snow, or an undersized controller. A resting voltage that sags overnight means loads are outrunning the array. Historical data is what makes this useful, because a single visit cannot show you a trend.

The HQST stores up to 300 days of history, which is the deepest log we found here. For a cabin, that record is how you catch a failing panel or a shading problem before it costs you a whole season.

Installing a Charge Controller in an Unheated Cabin

Installation in a remote cabin is mostly about the things nobody sees. Fusing, cable sizing, surge protection, and controller placement decide whether the system survives ten winters, and all four are cheap relative to a replacement battery.

The pre-install checklist

Fuse the PV run, the battery run, and each load separately, and use the right fuse type for each side. PV conductors need PV-rated fuses because the array can produce fault current whenever light hits it, including on a cloudy day when you think nothing is happening.

Add surge protection on the PV side for a cabin with an overhead array or a long run. The Rover 30A’s 6kV TVS protection is a good example of this done inside the controller, but external protection covers the wiring as well as the device.

Size cables so the controller is not the limiting factor. At 60A on a 48V bank you need heavier conductor than the terminals on some controllers accept, which is a documented complaint on the ECO-WORTHY. Leave headroom rather than matching exactly.

Where the controller goes

Mount it in a dry, ventilated location near the battery bank but away from the inverter’s heat, with cable entry that keeps moisture out. If the site can drop below freezing, confirm the minimum operating temperature covers it or use a heated enclosure, and expect to service the display seasonally if it does not.

For a cabin where water is the main concern, our picks for atmospheric water generators and kerosene heaters cover the other side of the same remote-planning problem, and a self-contained composting toilet completes the minimal cabin build.

Buying Guide: Nine Specs That Decide the Fit

Maximum PV input voltage is the first filter, because it is binary. If your cold-corrected array Voc exceeds it, the controller is unusable no matter what else it offers. A 100V ceiling suits short arrays of 60V panels in parallel; 150V to 200V opens up series strings of three or more.

Charge current against array wattage and bank voltage

Array wattage divided by charging voltage gives the current you need, and 25 percent extra covers a future panel string. A 400W array on 12V pushes a 30A controller past its limit; the same array on 24V sits comfortably inside one. Never size on panel count.

Conversion efficiency is the quiet multiplier. The difference between a genuine 98 percent tracker and an 80 percent hybrid is roughly a fifth of every watt you generate, and on a small array that is the same as buying several more panels.

Battery chemistry support and lithium mode

Confirm the controller has a selectable LiFePO4 profile rather than a generic lithium label, and check whether it offers a low-temperature charge cutoff and a BMS wake function. Both matter more in a cabin than in a house.

Operating temperature range decides whether the display and the tracker survive January. Look for a rated minimum that is below the coldest temperature your site records, with margin.

Monitoring, warranty, and certification

Decide how far away you will be when something goes wrong. Bluetooth is a phone in the same room, WiFi is a phone anywhere on the network, and nothing at all means an LCD readout you must physically visit. Warranty length is a crude proxy for manufacturer confidence: 2 years is common, 3 years is above the norm, and a documented protection suite is what actually determines whether a lighting strike is your problem.

Look for reverse polarity, overcharge, over-current, over-temperature, and short circuit protection, plus FCC, RoHS, and CE certification. Every controller in this roundup claims most of that list, so treat it as a baseline rather than a differentiator, and use headroom, cold rating, and monitoring to break the tie.

Frequently Asked Questions

Conclusion

The best MPPT charge controllers for off grid cabins are not the biggest or the most expensive ones, they are the ones whose max PV input voltage survives your coldest morning and whose lithium profile matches your bank. The Renogy Rover 30A earns the top spot because dual-peak tracking, 100V of Voc headroom, a 3-year warranty, and 4050 ratings at 4.4 cover the widest range of real cabin builds without a capacity ceiling most owners will hit.

Match your controller to the array first, not the other way round. Check cold-corrected Voc against the input ceiling, divide watts by bank voltage for current, add 25 percent headroom, and confirm the chemistry profile matches your battery. Get those four numbers right in 2026 and any of the twelve controllers here will do its job for a decade.
