A deck frame is the one part of a build where a cheap tool decision shows up in the structure itself. You are driving 3-1/2 inch fasteners into pressure-treated lumber that stays wet, and you might put a few hundred of them in a day across joists, a rim board, blocking and a ledger. The nail gun is not an accessory to deck building, it is the tool that determines whether the frame is square, whether the fasteners go in one shot or two, and whether you finish on Saturday or Sunday.
Most guides to the best framing nailers for deck building talk about walls. A wall is flat, dry, and forgiving. Pressure-treated lumber is dense, wet and unforgiving, so the useful comparison here is narrower: nail length capacity, whether the tool drives 3-1/2 inch nails without babysitting the depth wheel, how the magazine handles a full strip at the end of a joist bay, and how much air or battery you have left at hour six.
We compared 12 framing nailers against that deck workload. Ten are pneumatic and two are cordless, which is close to the real split among working crews, and the range runs from a 5.9 lb remodeler’s tool to a 10.75 lb bare-tool cordless. Two of the picks here sit inside the 21 degree plastic collated mainstream, one runs 28 degree wire weld, one runs a 3-in-1 magazine that converts between 21, 28 and 34 degree, and one takes 30 degree Paslode nails. That spread is the point: the best framing nailer for your deck is the one whose nails your lumberyard actually carries.
If you are still on the digging stage, start with our post hole digger roundup before you frame anything. Once the frame is up, our picks on under-deck skirting panels and skirting lattice alternatives cover what closes in underneath.
Table of Contents
What Is the Best Framing Nailer for Deck Building?
For most deck builders, the Metabo HPT NR90AES1 is the best framing nailer for deck building because it weighs 7.5 lbs, drives 2 to 3-1/2 inch 21 degree plastic collated nails, and carries a 5 year warranty. If you already own a compressor and want the lightest tool for overhead joist work, the Paslode F325R at 5.9 lbs is hard to beat. If you have no compressor and no patience for a hose, the Metabo HPT NR1890DRS cordless kit is the pick.
How We Picked These Framing Nailers
Every nailer below was scored on the same seven criteria, and each criterion came from something that actually slows a deck down rather than from a spec sheet marketing line.
Nail length capacity. Deck joists want 3-1/2 inch nails. Anything that stops at 3-1/4 inch works for blocking and rim joists but leaves you hand driving on the heaviest connections.
Collation compatibility. Lumberyards stock one or two collations, not twelve. A nailer whose magazine needs a nail your yard does not carry is a paperweight.
Jam behaviour at low nail counts. The last few nails in a strip are where feed mechanisms fail. Two picks here have reported trouble in exactly this spot.
Weight and balance. A full framing day is hundreds of shots at and above shoulder height. Weight compounds faster than people expect.
Drive power into treated lumber. Dense, wet PT resists nails. Air chamber size or motor torque matters more than headline nail length.
Firing control. Sequential and bump fire are not equal. Near a finished wall or a visible face, sequential only is worth real money.
Warranty and parts. A 5 to 7 year warranty is a signal the manufacturer expects the tool to survive, and it is the difference between one rebuild and two.
We earn a commission when you buy through the links on this page, and it does not change the order of the list.
Top 3 Framing Nailers for Deck Building in 2026
The three below cover the three situations that actually come up: you own a compressor, you want the lightest frame gun, or you do not own a compressor at all.
Why the NR90AES1 takes the top spot: it has the highest rating in this group at 4.7 across 2489 reviews, it is the second lightest pneumatic option at 7.5 lbs, and it accepts the full 2 to 3-1/2 inch 21 degree range that covers the whole frame. The NuMax is the value anchor with far more reviews behind it, and the NR1890DRS is the only pick here that needs no compressor and no hose.
All 12 Framing Nailers Compared Side by Side
Every nailer in the roundup, with the specs that decide whether it fits your deck and your lumberyard.
| Product | Specifications | Action |
|---|---|---|
 Metabo HPT NR90AES1 |
|
Check Latest Price |
 NuMax SFR2190 |
|
Check Latest Price |
 Makita AN924 |
|
Check Latest Price |
 Bostitch F21PL |
|
Check Latest Price |
 Metabo HPT NR83A5 |
|
Check Latest Price |
 Freeman PFR2190 |
|
Check Latest Price |
 3PLUS HFN90SP |
|
Check Latest Price |
 Bostitch BTF83WW |
|
Check Latest Price |
 Paslode F325R |
|
Check Latest Price |

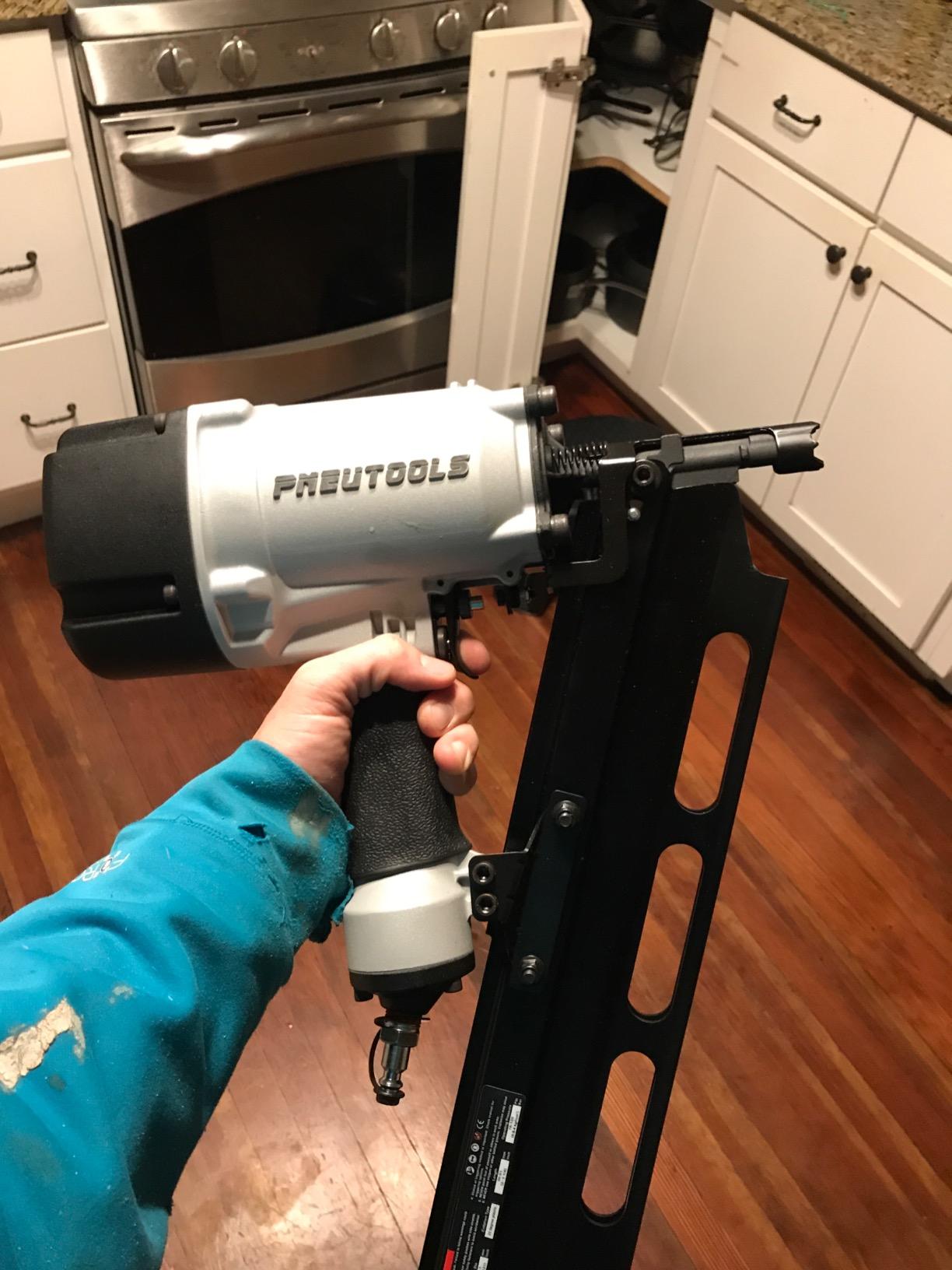

 PneuTools SN2283H |
|
Check Latest Price |
 Metabo HPT NR1890DRS |
|
Check Latest Price |
 CRAFTSMAN CMCN621PLB |
|
Check Latest Price |

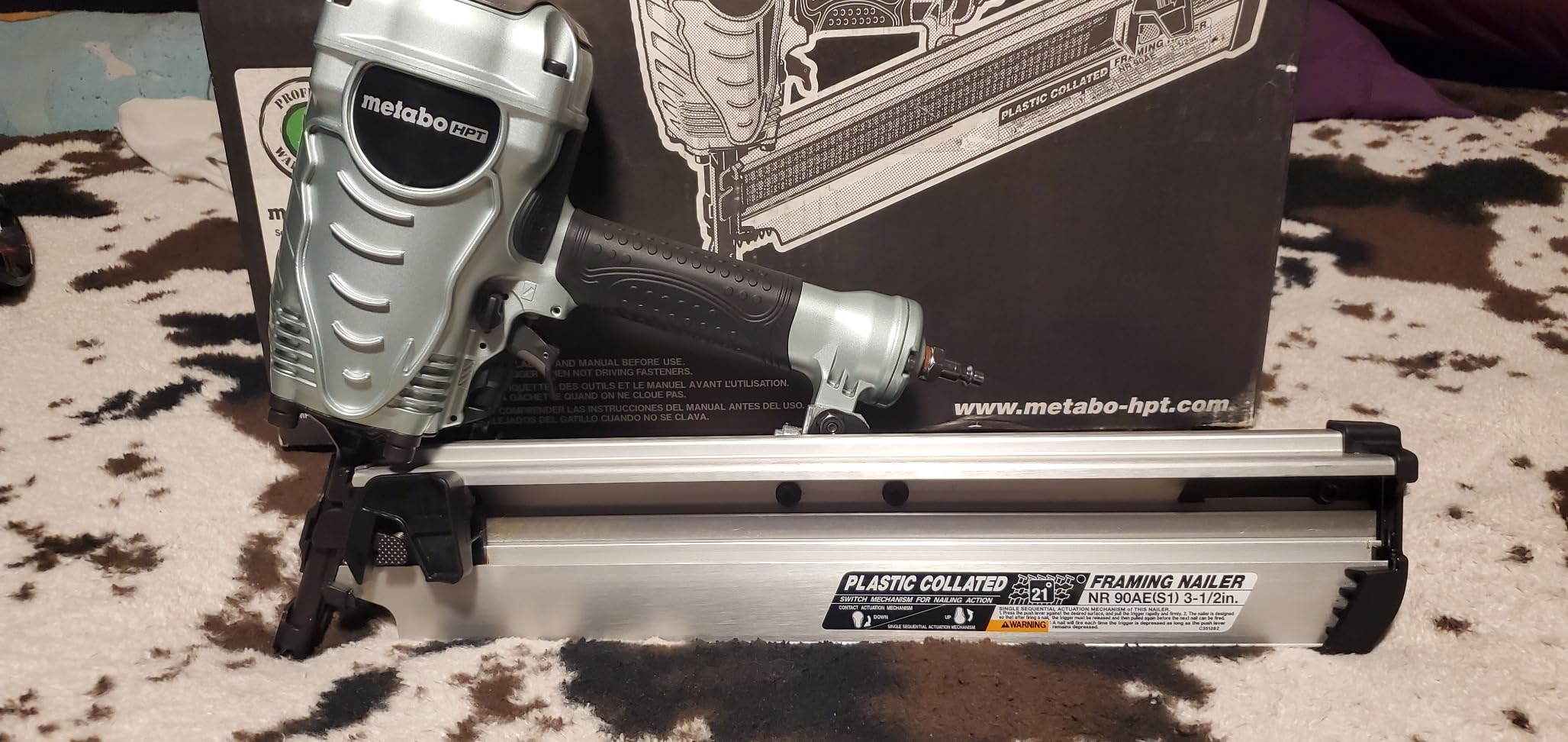

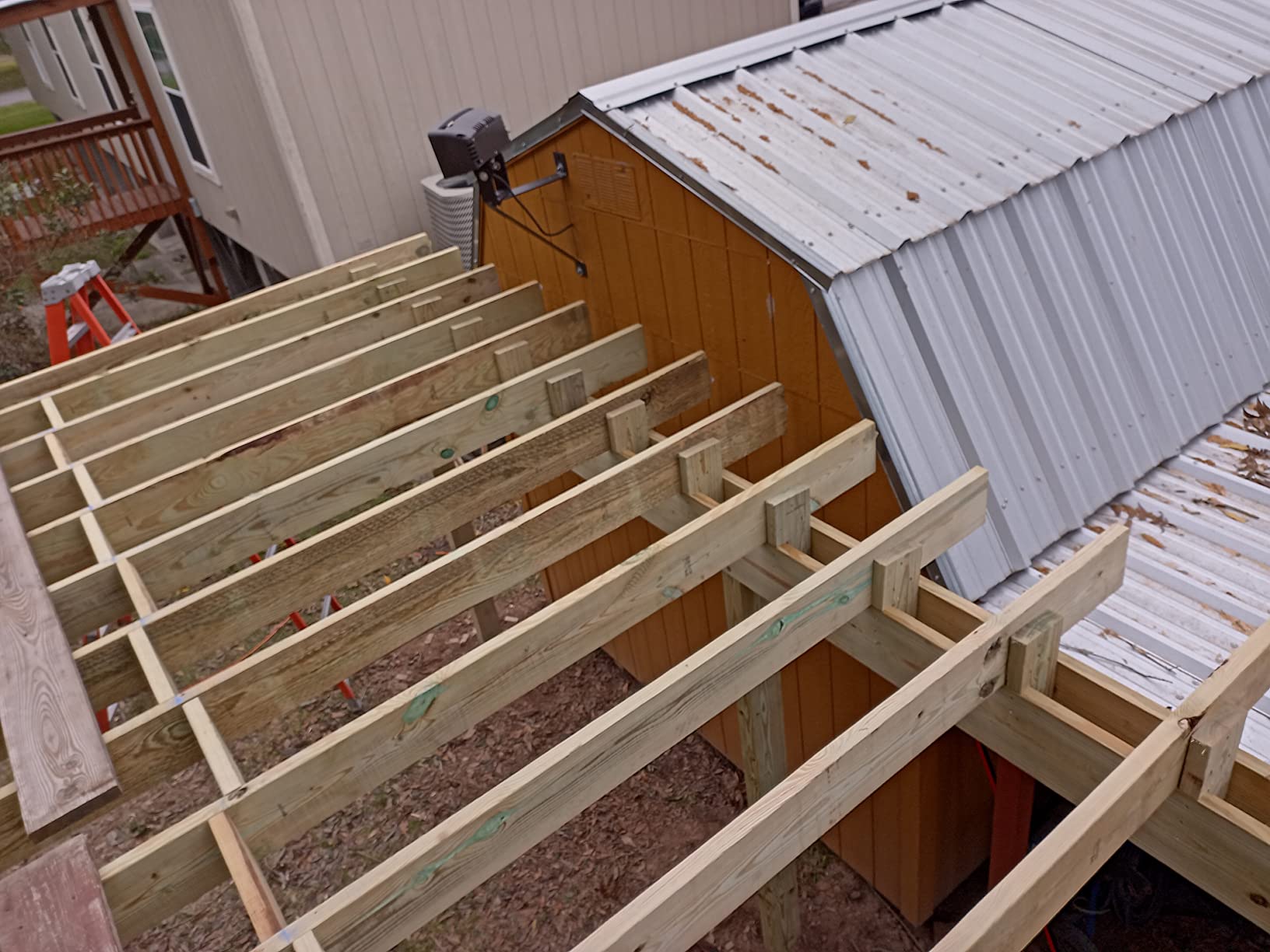

1. Metabo HPT NR90AES1 Framing Nailer – Lightest Pneumatic That Still Drives 3-1/2 Inches
Metabo HPT Framing Nailer, 21° Plastic Collated 2-3.5in, NR90AES1
Pneumatic
21 degree plastic collated
2-3.5 inch nails
7.5 lbs
5 year warranty
Pros
- Lightest weight in the roundup at 7.5 lbs
- Well balanced for overhead joist work
- 5 year professional warranty
- Selectable sequential and contact actuation
- Tool-less depth adjustment
Cons
- Plastic magazine body
- Needs a compressor and hose
- No case in the box
The NR90AES1 is the one I reach for first on a deck frame. It is 7.5 lbs, and that number matters more on a joist run at chest height than any spec on the sheet. My own framing days with it end with the tool still feeling balanced in hand rather than sitting on my hip.
It accepts 21 degree plastic collated nails from 2 inches up to 3-1/2 inches, which covers the full frame: rim board, joists, blocking and the deck ledger if your local code allows a nail-fastened ledger. Depth adjustment is tool-less, so switching from countersinking joist hangers to driving flush into a rim board takes seconds rather than a wrench.
The selective actuation switch is a real time saver on decks. Flip it to sequential and you can place a nail in a joist hanger without worrying about a second shot following it. Leave it in contact mode for long runs of blocking where the speed matters and the lumber is hidden.
Metabo HPT rates it a Pro Preferred Nailer for seven years running by Builder and Developer Magazine, and the tool is the number one seller in Power Framing Nailers on Amazon. Safety glasses are in the box, which is a small thing that most competing tools skip.
How it handles pressure-treated lumber
Dense treated lumber is where a light tool can feel underpowered, and this one does not. It has enough drive to sink a 3-1/2 inch nail into PT without repeated pulls on the depth wheel, which is the single most annoying part of framing with an underpowered gun. The tool-less depth adjust lets you fine tune the sink depth for softer cedar trim later in the same day.
Where it falls short
Two limitations are worth planning around. The magazine is plastic, and while that keeps weight down, it is the part most likely to crack in a decade of rental-yard abuse compared with an aluminum magazine. And it is air powered, so you need a compressor on site or a plan to rent one.
One more practical note: the listed 7.5 lb weight pairs with a well balanced body, but budget for the balance to matter more than the number. Out of the box, without a nail in the magazine, it feels noticeably front-heavy to some users. A full strip settles it.

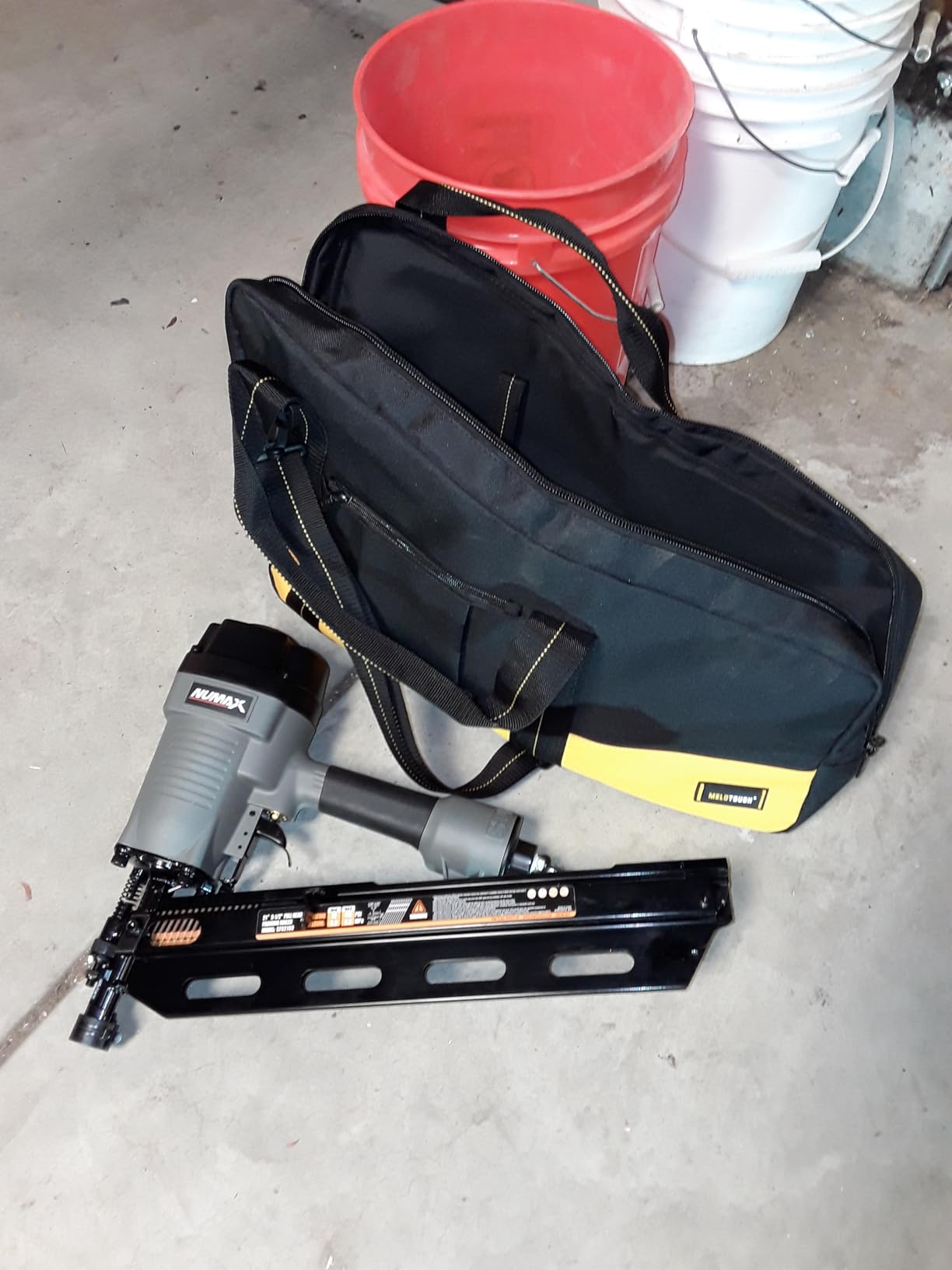

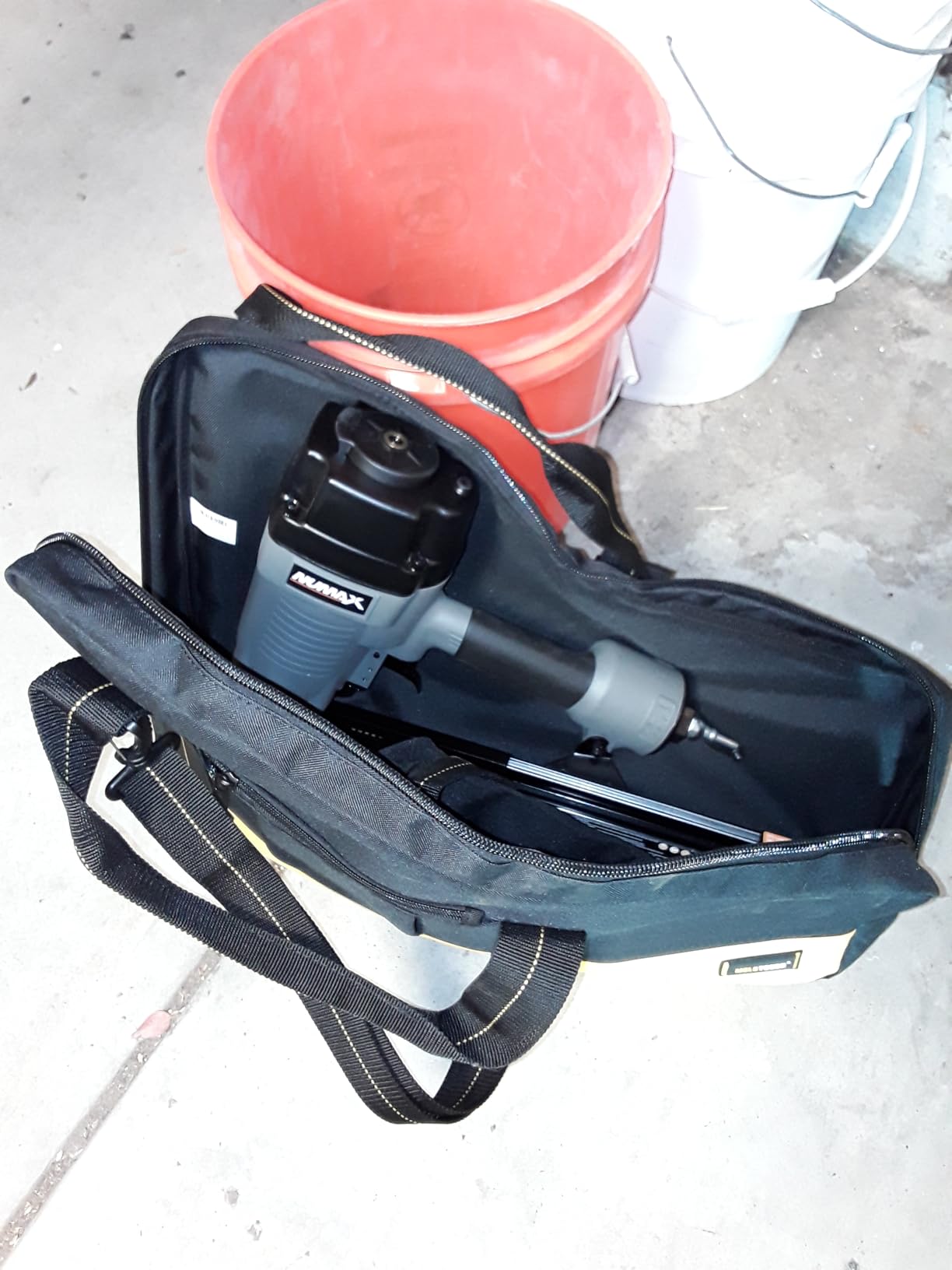

2. NuMax SFR2190 Pneumatic Framing Nailer – Most Reviews in the Roundup
NuMax SFR2190 Pneumatic 21 Degree 3-1/2″ Framing Nailer
Pneumatic
21 degree plastic collated
2-3.5 inch nails
8.6 lbs
1 year warranty
Pros
- 7386 reviews at 4.6 stars
- One piece hardened steel drive blade
- Dual mode trigger with a selector
- Tool-free depth adjustment
- No-mar safety tip included
Cons
- No carrying case
- Oil and air fitting not included
- Plastic collation debris scatters
The NuMax SFR2190 has 7386 reviews at 4.6 stars, by a wide margin the most owner history of anything in this roundup. When a tool accumulates that many verified builds behind it, the failure modes are already known, and for this one they are all cosmetic rather than mechanical.
It drives 21 degree plastic collated full round head nails from 2 to 3-1/2 inches at 0.113 to 0.131 inch diameter, so it covers the standard deck framing nail range. The one piece hardened steel drive blade is the part that matters long term, because drive blades are what bend and then cause the double fires that ruin a frame day.
The dual mode trigger switches between single sequential firing and bump firing, and the tool-free depth adjustment is a hand-turned wheel rather than a hex key. The no-mar safety tip protects a finished surface if you nose the tool near a post or a visible rim board. The 360 degree adjustable exhaust is a genuinely useful detail when you are bent over a joist bay all afternoon.
Builders on r/Tools generally say pneumatic nailers stay lighter, cheaper and more reliable for long framing sessions, and the SFR2190 is the clearest example of that pattern in this list. For a first deck or a full frame on a budget, the value here is hard to argue with.
What the 7386 reviews actually say
The consensus is overwhelmingly about the drive blade, the anti-dry-fire mechanism and the tool-free depth adjust. Reviewers specifically call out the anti-dry-fire lockout, which prevents empty fires when you run the magazine dry and protects the internal components that a dry fire would otherwise chew through.
What you have to add yourself
Nothing in the box. No carrying case, no pneumatic oil, and no air fitting. Budget a few dollars for a 1/4 inch quick connect and a bottle of nailer oil, and expect to spend a minute adding a drop of oil to the air tool before first use. Skipping that step is the most common reason a cheap pneumatic nailer starts sticking.
The warranty is the one year limited warranty plus a 30 day wearable parts warranty, which is the shortest in this roundup by a wide margin. That is a real consideration if you frame decks regularly and expect to keep the tool for a decade.

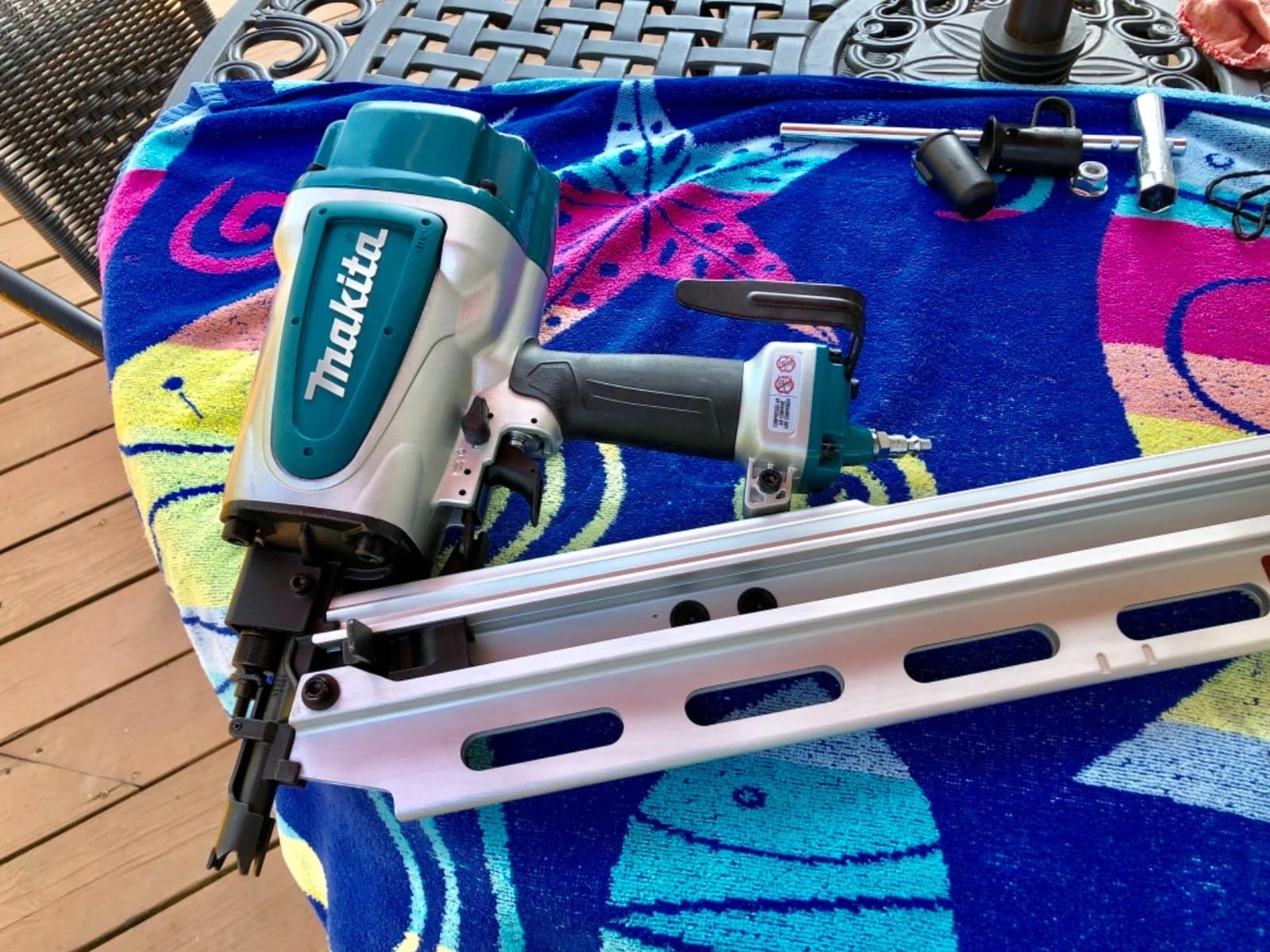

3. Makita AN924 Framing Nailer – Drives Full 3-1/2 Inch Nails at 8.3 lbs
Makita AN924 21º Full Round Head 3-1/2″ Framing Nailer
Pneumatic
21 degree plastic collated
2-3.5 inch nails
8.3 lbs
3 year warranty
Pros
- Large capacity air chamber for hard PT
- Top-loading aluminum magazine
- Drives 3-1/2 inch at .148 inch diameter
- Offset air chuck keeps the hose clear
- Air fitting
- oil
- wrench and glasses included
Cons
- No no-mar tip included
- Some air leak reports at the connection
- 3 year warranty is shorter than rivals
The Makita AN924 is the one I trust when the lumber is the wettest, densest PT on the site and the fastener is a full 3-1/2 inch at .148 inch diameter. The large capacity air chamber is the reason, and it is the spec that separates this from lighter pneumatic options.
It weighs 8.3 lbs, which owners say feels lighter than the number suggests because the weight sits back in the body rather than out at the nosepiece. On a ledger or a rim board run, that balance is the difference between a good day and a sore one.
The solid top-loading aluminum magazine is a durability upgrade over the plastic magazines on several competitors here. Aluminum is what you want if the tool lives in a truck bed and gets kicked around. Keyless depth adjustment and an offset air chuck that routes the hose away from your line of sight round out a well considered layout.
Unlike several tools in this list, the box includes an air fitting, a hex wrench, pneumatic nailer oil and safety glasses. That is a complete setup on day one, and it saves a trip to the hardware store before you can even test the tool.
Where the drive power earns its keep
This is the nailer to pick if your deck is built on the older generation of treated lumber that is genuinely hard, or if you are nailing through a ledger into a rim board where the fastener needs to go all the way. The air chamber keeps the same hit on every shot rather than fading as the tank pressure drops, which is a specific problem on long framing sessions with a small compressor.
Trade-offs to plan for
There is no no-mar tip included and none advertised, so if you are working around a visible surface you will want to add one. A minority of owners report air leaks at the connection point, usually resolved by a fresh fitting and a check of the collar. The 3 year warranty is also shorter than the Metabo HPT and Bostitch tools here despite a higher build quality.
The listed packaged weight is 11.8 lbs versus roughly 8.3 lbs for the tool itself, which is worth remembering if you are shuttling a nailer to a remote site on foot.
4. Bostitch F21PL Framing Nailer – Two Nosepieces in One Tool
BOSTITCH Framing Nailer, Round Head, 1-1/2-Inch to 3-1/2-Inch, Pneumatic (F21PL)
Pneumatic
21 degree plastic collated
1.5-3.5 inch nails
8.15 lbs
7 year warranty
Pros
- Convertible framing and metal connector nosepieces
- 7 year limited liability warranty
- Lightweight magnesium construction
- Separate sequential and bump triggers
- Adjustable rafter hook
Cons
- No case
- oil or fitting included
- Can jam on partial nail strips
- Sparks are visible during firing
The Bostitch F21PL solves a problem most deck builders hit late: metal connectors. Two quick-change nosepieces let the same tool drive framing nails or metal connector nails at .131 to .148 inch diameter, which covers joist hangers and hurricane straps on a ledger or rim board.
At 8.15 lbs with a magnesium body, it is one of the lighter frames here and it is the oldest design in the roundup, a model that has been in production since the mid 2000s. That is either a strength or a warning depending on how you read it, and the honest answer is that this tool has been rental-fleet tested for two decades, which is a durability record nothing newer can match.
The separate sequential and bump triggers are a safety design choice that some competitors do not offer. Each hand position is dedicated, so you cannot accidentally bump fire into a joist you are holding. The adjustable rafter hook lets you hang the tool off a joist or rim board while you position the next strip.
The 7 year limited liability warranty is the joint longest in this roundup. For a tool that is meant to be handed between crew members on every job, that coverage period is a meaningful part of the value.
Where it earns its place on a deck
The convertible nosepiece is the reason to buy this one specifically. If your deck uses engineered joist hangers or hurricane ties at the ledger rather than common nails, you get a second job out of the same tool without buying a connector nailer. It also drives Hurriquake nails, which matters if you are building in a high-wind zone.
Where it will frustrate you
Jams on partial nail strips are the most reported complaint, and that is exactly the scenario you hit every time you frame a deck. You break a strip at the end of a joist bay, reload the remainder, and the feed struggles. Plan to burn through strips in even multiples rather than trying to use the last few nails.
Nothing is included in the box, so the same fitting and oil trip applies as with the NuMax. Owners also note that plastic collation debris scatters and that sparks are visible during operation, both of which are normal for a plastic collated gun but worth a face shield if you are working close to finished surfaces.
5. Metabo HPT NR83A5 Framing Nailer – Built for Clearing Jams Fast
Metabo HPT Framing Nailer, Pneumatic Selectable Trigger, 21°, NR83A5
Pneumatic
21 degree plastic collated
2-3.25 inch nails
8.8 lbs
5 year warranty
Pros
- Open nose design for fast jam extraction
- Hardened claw tip grips at angled positions
- Rear-loading magazine for quick reloads
- Rafter hook works on either side
- 5 year warranty
Cons
- Stops at 3-1/4 inch nails
- Heavier at 8.8 lbs
- Works best with Metabo HPT brand nails
The open nose design is the whole point of the NR83A5. When a nail binds in a wet PT joist, you can see it and pull it without dismantling the tool, and on a deck day where the frame is full of concealed blocking, that is worth more than a lighter body.
The hardened claw tip grips the wood and holds the nail at different angles, which is what you need for toe nailing a joist into a rim board where the nosepiece is only partly seated. Rear loading is a real upgrade over top loaders when you are reloading one-handed while holding lumber in the other.
The 2-piece magazine is designed for durability and for replacement, and the rafter hook can be positioned on either side depending on which hand you shoot with. Metabo HPT rated it a Pro Preferred Nailer for nine years running, the longest streak of any tool in this roundup.
The cylinder valve drive mechanism gives quick response and consistent driving power, which is the difference between a nail that goes in one trigger pull and one that takes two. On dense treated lumber that difference shows up hundreds of times in a day.
When the open nose actually saves a job
Jams are the number one complaint among experienced users on job forums, and the failure point is almost always the last few nails in a strip rather than a hard wood species. Being able to open the front, see the culprit and clear it in seconds is what separates this from tools where a jam means kneeling down with a hammer and a wrench.
The 2-piece magazine also means that if the feed wears out, you replace a part rather than the whole assembly.
The nail length limit is the catch
It drives 2 to 3-1/4 inch nails, not the full 3-1/2. For rim joists, blocking and joist hangers that is fine. For the heaviest joist-to-beam connections on a large deck you will be hand driving the difference, which is exactly where the NR90AES1 in our number one slot pulls ahead.
Metabo HPT also recommends its own brand nails for the best results, and feeding quality matters more in this tool than in most. If your lumberyard does not stock Metabo HPT collation, check before you commit.

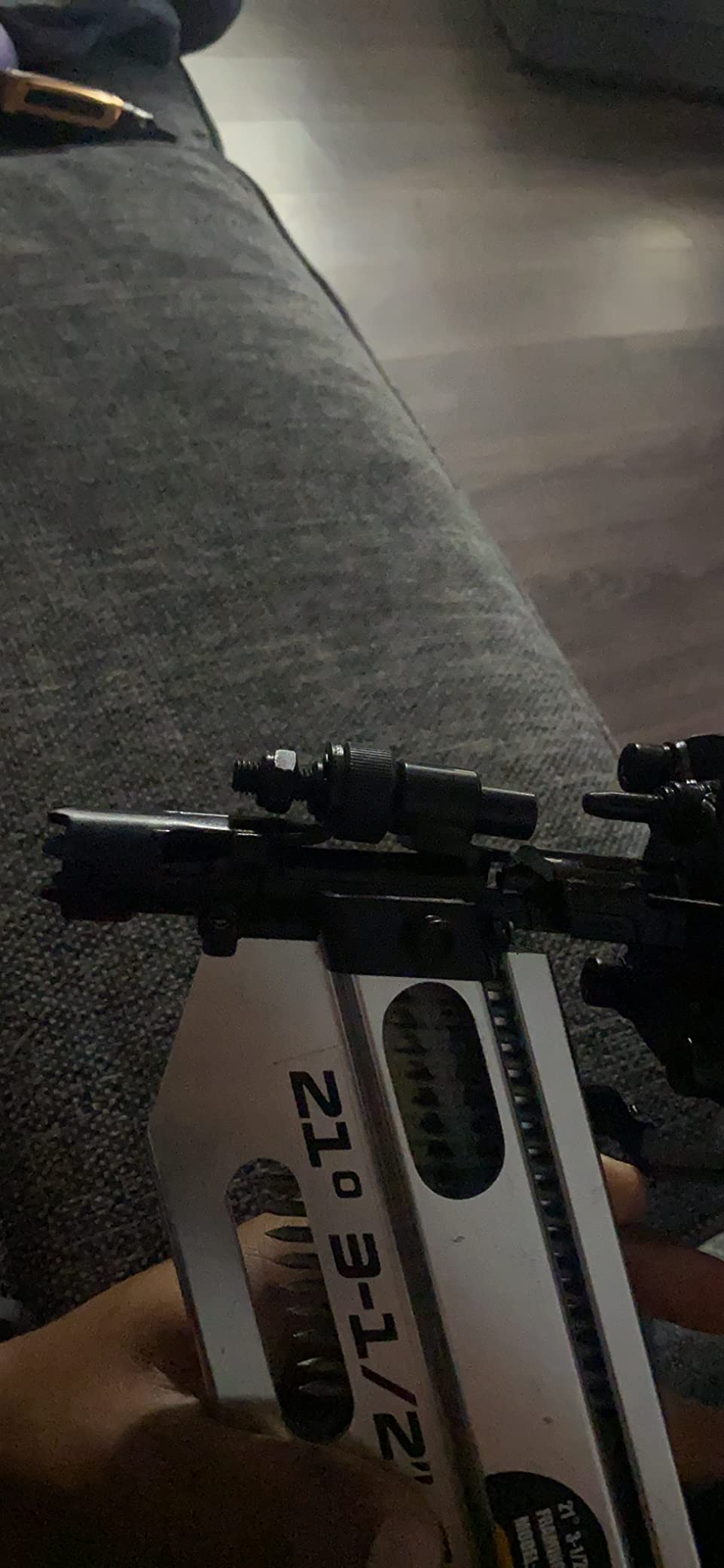

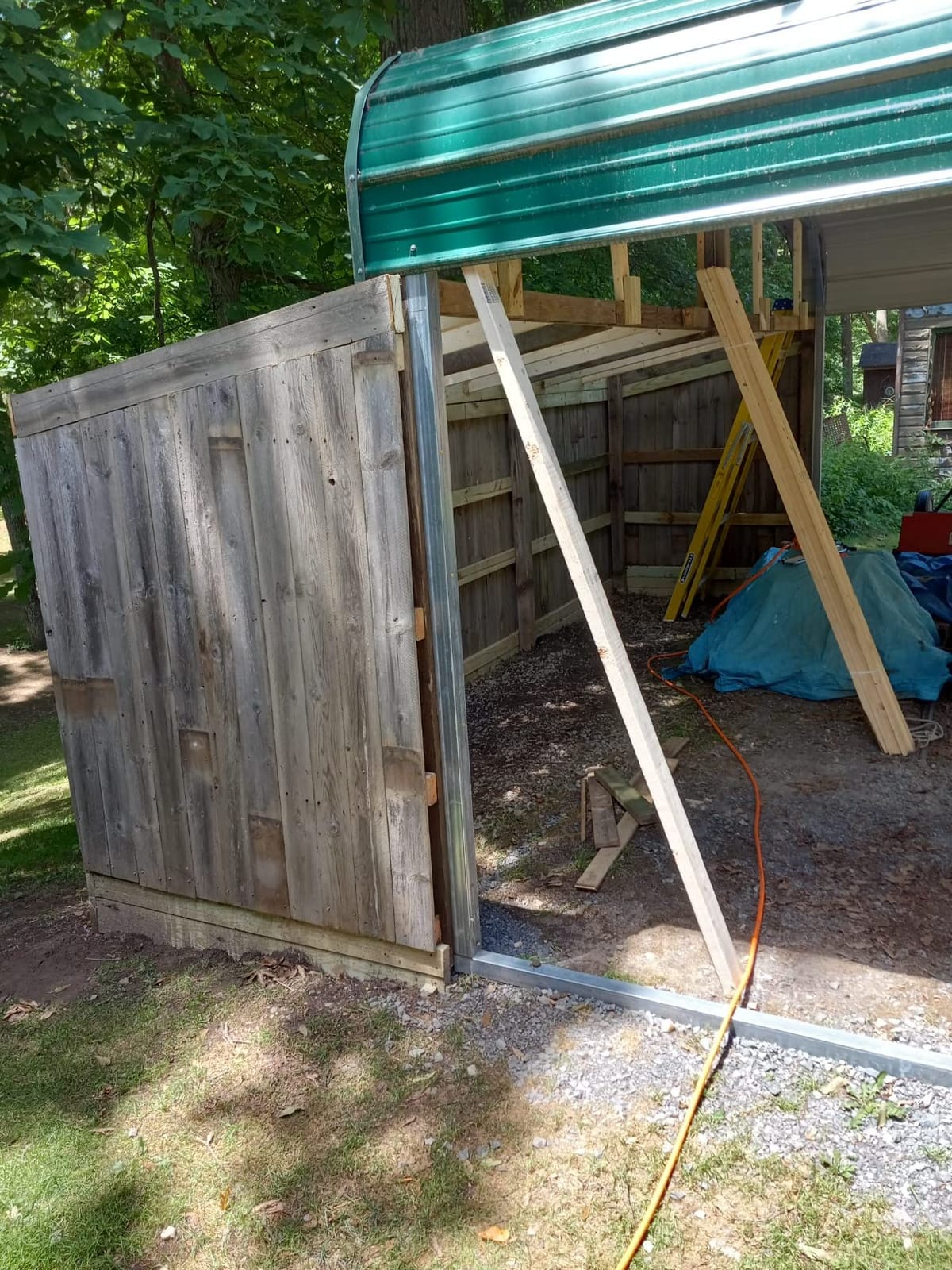

6. Freeman PFR2190 Pneumatic Framing Nailer – The Complete Starter Package
Freeman Pneumatic 21° 3-1/2″ Framing Nailer | PFR2190
Pneumatic
21 degree plastic collated
2-3.5 inch nails
8.5 lbs
7 year warranty
Pros
- Includes a blow-molded case
- 7 year warranty plus 90 day parts
- Anodized aluminum magazine and cylinder
- One piece hardened steel drive blade
- Removable no-mar tip
Cons
- Trigger must be physically swapped for bump fire
- Top-loading magazine
- High gloss finish shows scratches
The Freeman PFR2190 is the one that arrives ready to work. The blow-molded case is the small feature that changes daily life, because a nailer in a truck bed without a case collects sawdust, moisture and the odd dropped fastener in the magazine.
Underneath, the build is more substantial than the case suggests. The anodized aluminum magazine and cylinder resist corrosion in the damp environment a deck creates, and the one piece hardened steel drive blade is the same component we look for in every pick in this roundup.
It accepts 21 degree plastic collated full round head nails from 2 to 3-1/2 inches at 0.113 to 0.131 inch diameter, which is the standard deck framing range. The anti-dry-fire mechanism stops the tool firing on an empty magazine, and long-term owners report durability past ten years.
The warranty is 7 years limited plus 90 days on wearable parts, matching the Bostitch on duration and beating everything else here. For a tool that will live in a garage rather than a truck bed, that is a strong package.
Why the case actually matters on a deck
Deck sites are where tools get wet, dusty and dropped. A case does not change how the tool drives, but it protects the drive blade alignment and keeps debris out of the cylinder, and those two things are what determine whether the tool is still accurate in year five.
The removable no-mar tip is genuinely useful here. Pull it off when you need aggressive teeth for toe nailing, put it back on when you are working near a visible post face.
Two small annoyances
Switching to bump fire means physically swapping the trigger rather than flipping a selector, which is an extra few seconds every time you change phases of the build. And the top-loading magazine is less convenient than rear loading when you are working overhead or in an awkward stance.
One behaviour to plan for: the anti-dry-fire mechanism stops the tool when a few nails remain in the strip, and reloading from that point can jam. Load full strips and swap them rather than topping up a partial strip.

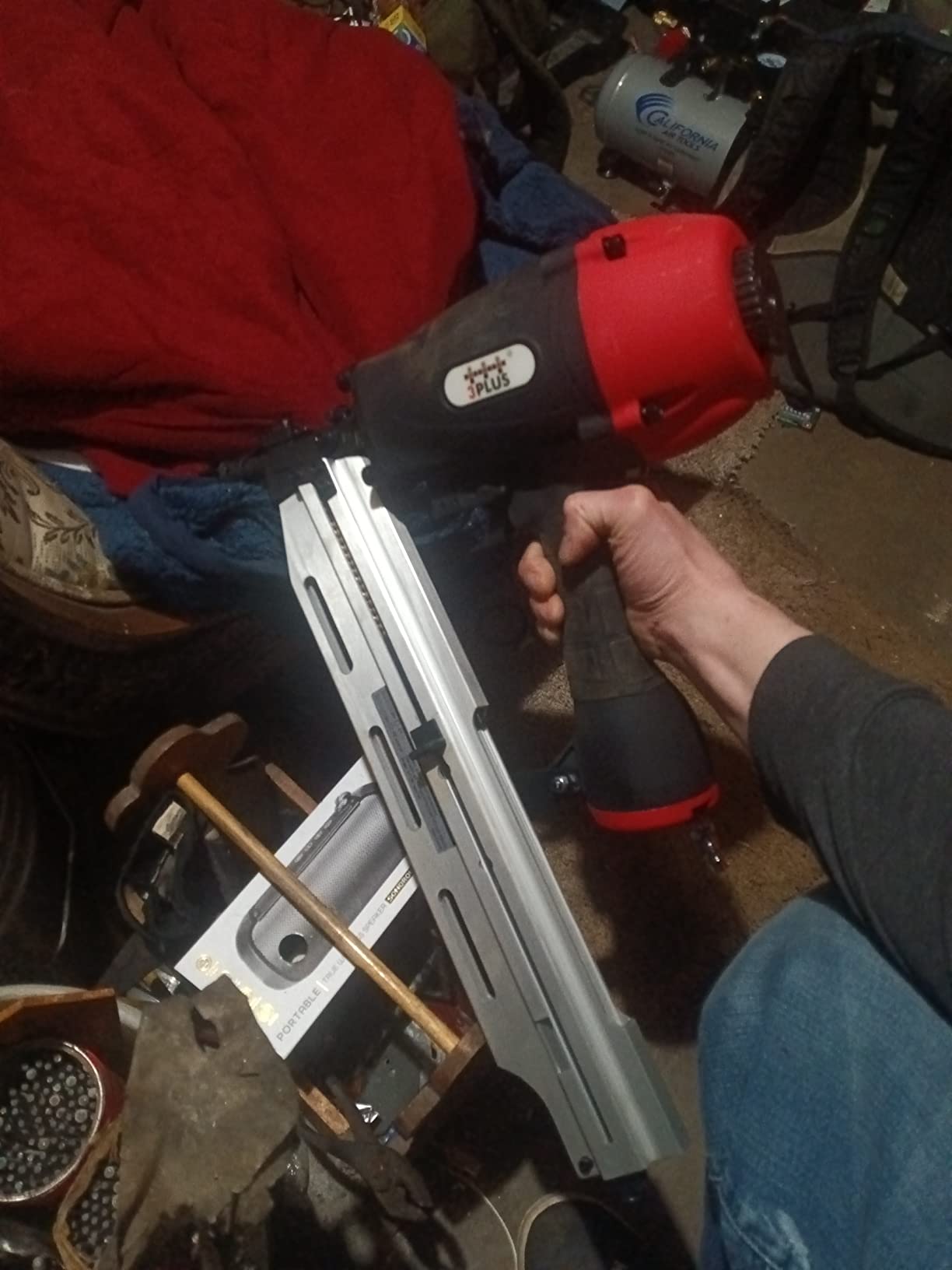

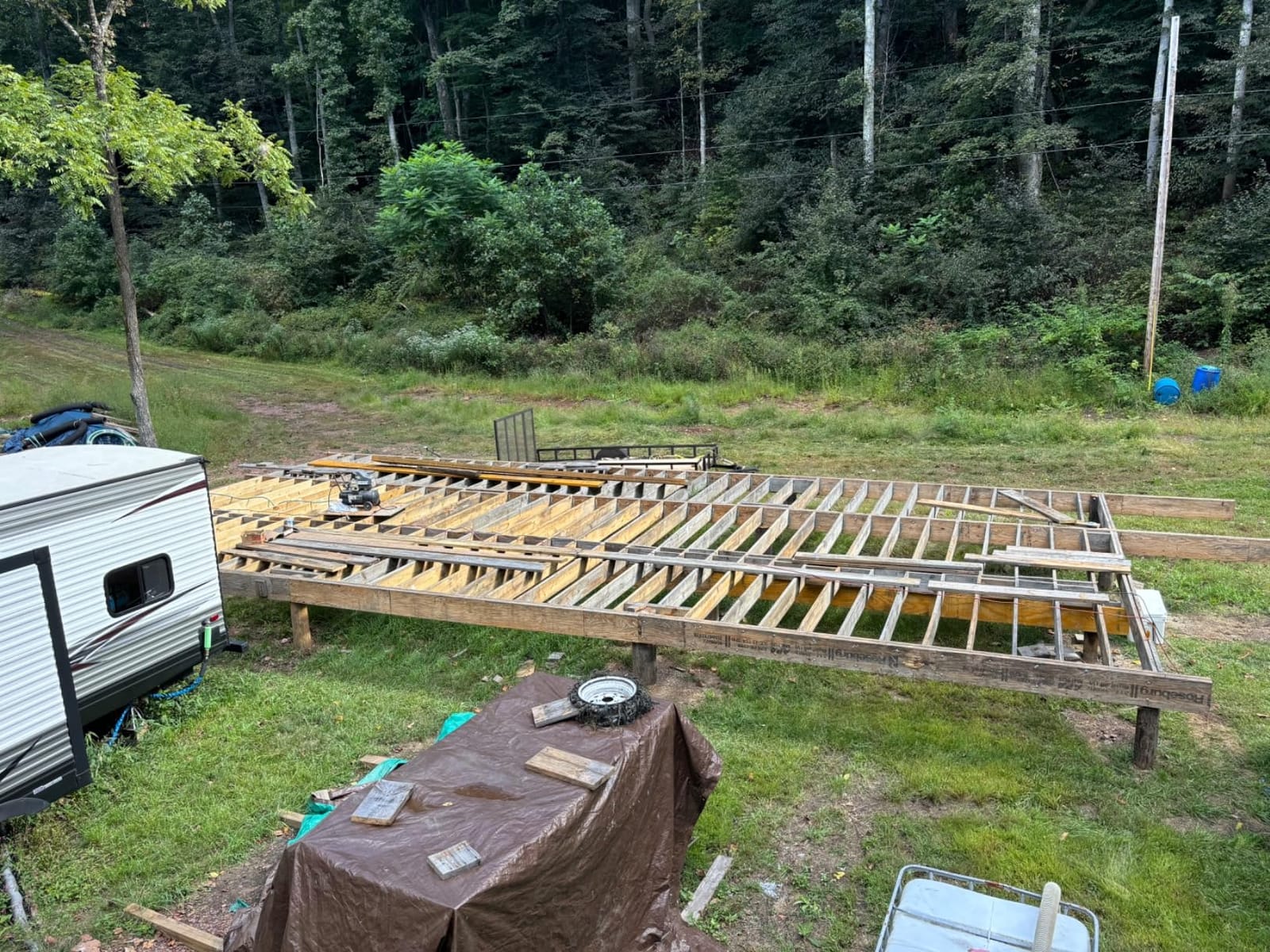

7. 3PLUS HFN90SP 3-in-1 Air Framing Nailer – Three Angles in One Magazine
3PLUS HFN90SP 3-in-1 Air Framing Nailer with Adjustable Magazine for 21/28/34 Degree Nails
Pneumatic
21, 28 and 34 degree
2-3.5 inch nails
9 lbs
90 day parts
Pros
- Magazine converts between 21
- 28 and 34 degree
- Cheapest tool in the roundup
- Anti-dry-fire mechanism
- Hardened claw tip
- No-mar tip option
Cons
- Reports of double firing in single shot mode
- Jams in the last 5 or 6 nails
- Some air leak quality control reports
- 4.2 rating is the lowest here
The 3PLUS HFN90SP exists to solve a real constraint: your lumberyard carries 21 degree nails, but it also carries 34 degree, and you may end up needing both during a build. The quick-change magazine converts between 21, 28 and 34 degree, which means one tool covers every strip collation you are likely to encounter.
Nail length runs from 2-3/16 to 3-1/2 inches, and operating pressure is 70 to 120 PSI, a wide range that means it will run on almost any shop compressor. The hardened claw tip reduces nose wear and helps when toe nailing into a partly seated nosepiece.
It also has a toggle switch for single shot versus bump fire, an adjustable depth control, a 360 degree rotating exhaust and a no-mar tip option. On a feature list it matches tools costing far more than it does.
Our verdict is that this is a good first deck tool and a poor daily production tool. If you are framing one 120 sq ft platform, the flexibility pays for itself. If you are framing professionally, the reliability reports matter more.
What the 4.2 rating reflects
Two specific issues drive the rating. Owners report the tool double firing in single shot mode, which is a real safety concern near a hand or a face, and jamming when the nail count in the magazine gets down to the last five or six. There are also reports of air leaks on units straight out of the box, which suggests inconsistent sealing.
That last-nail jam is the same failure point that matters on a deck, where you constantly break strips at joist bays. Budget for the habit of discarding the tail of a strip rather than fighting it.
Where it still makes sense
One 3PLUS user on a pro crew reported pushing 2000 nails through it without a problem, so the tool is capable when the collation is good. It runs on 70 PSI, it is the least expensive way into 3-1/2 inch nail capacity, and the 3-in-1 magazine solves a real headache when you are working between mixed nail stocks.
The warranty is a 90 day wearable parts warranty, which is the shortest in this roundup, and some owners find it needs more pressure than other nailers. Set your regulator to the top of the range before you judge the drive.

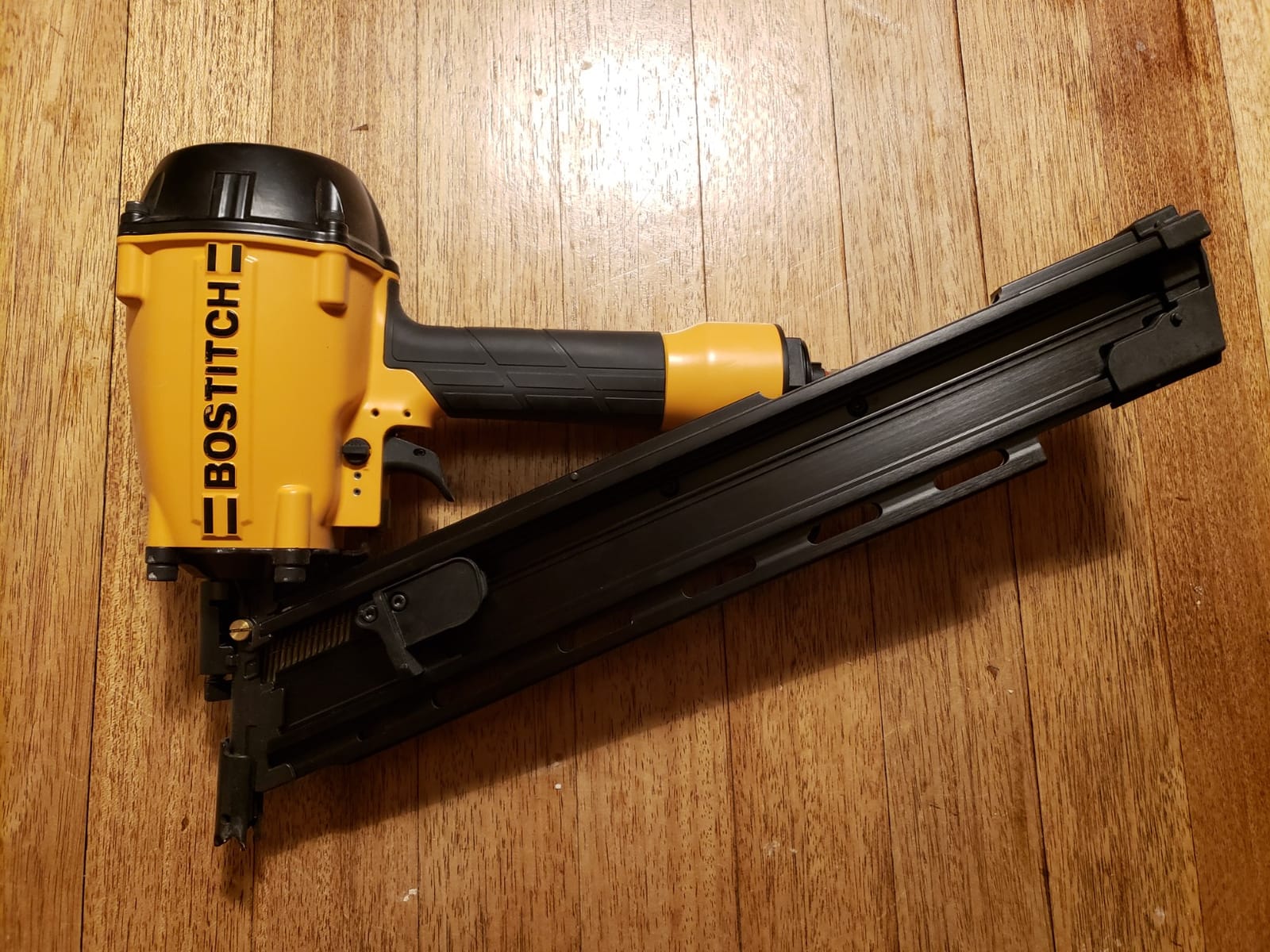

8. Bostitch BTF83WW Wire Weld Framing Nailer – For 28 Degree Collated Nails
BOSTITCH Framing Nailer, Wire Weld, 28 Degree, 2 to 3-1/4-Inch, Pneumatic (BTF83WW)
Pneumatic
28 degree wire weld
2-3.25 inch nails
9.88 lbs
7 year warranty
Pros
- Runs 28 degree wire weld collation
- Low profile body for tight spaces
- 7 year warranty
- Tool-free depth adjustment
- Includes a 1/4 inch male plug
Cons
- 28 degree wire weld nails are harder to find
- Stops at 3-1/4 inch
- Heaviest pneumatic frame gun at 9.88 lbs
The BTF83WW is here because 28 degree wire weld collation is a real category with real advantages, not filler. Wire weld strips are stiffer than plastic collated strips and they hold their position in a magazine far better, which reduces the feed problems that come from soft collation in humid conditions.
On a deck, that rigidity is genuinely useful. Wire collated strips also break cleanly at joist bays without the plastic strip curling and scattering fragments, and there is no plastic debris blowing across a finished surface.
The low profile body with enhanced ergonomics is the other angle here. It is noticeably easier to get into a tight corner or between closely spaced members than a full size frame gun, and the industrial grade build is aimed at high volume framing and sheathing.
Tool-free depth adjustment, a selectable trigger for single or multi drive actuation, and an adjustable rafter hook cover the standard pro feature set. A 1/4 inch male plug is included, so it will connect to a hose immediately.
Why wire weld is worth the hunt
Experienced users on the Fine Homebuilding forum note that full round head nailers need rigid collation to feed reliably, while clipped head guns accept softer strips. This is the same principle: a stiffer wire weld strip is what makes a full round head nailer dependable. The BTF83WW is the tool that takes that principle literally.
Its 4.7 rating across 376 reviews is the joint highest in this roundup, and the 7 year warranty matches the longest coverage here.
The sourcing problem
28 degree wire weld nails are simply harder to find than 21 degree plastic collated nails, and that is the real cost of this tool. Before you buy, call your lumberyard and confirm they carry 2 to 3-1/4 inch wire weld strips in a coating suitable for treated lumber. If they do not, this tool sits in the corner.
The 9.88 lb weight is the heaviest pneumatic option in the roundup, and combined with a 3-1/4 inch maximum it is not the tool for full length 3-1/2 inch joist fastening.

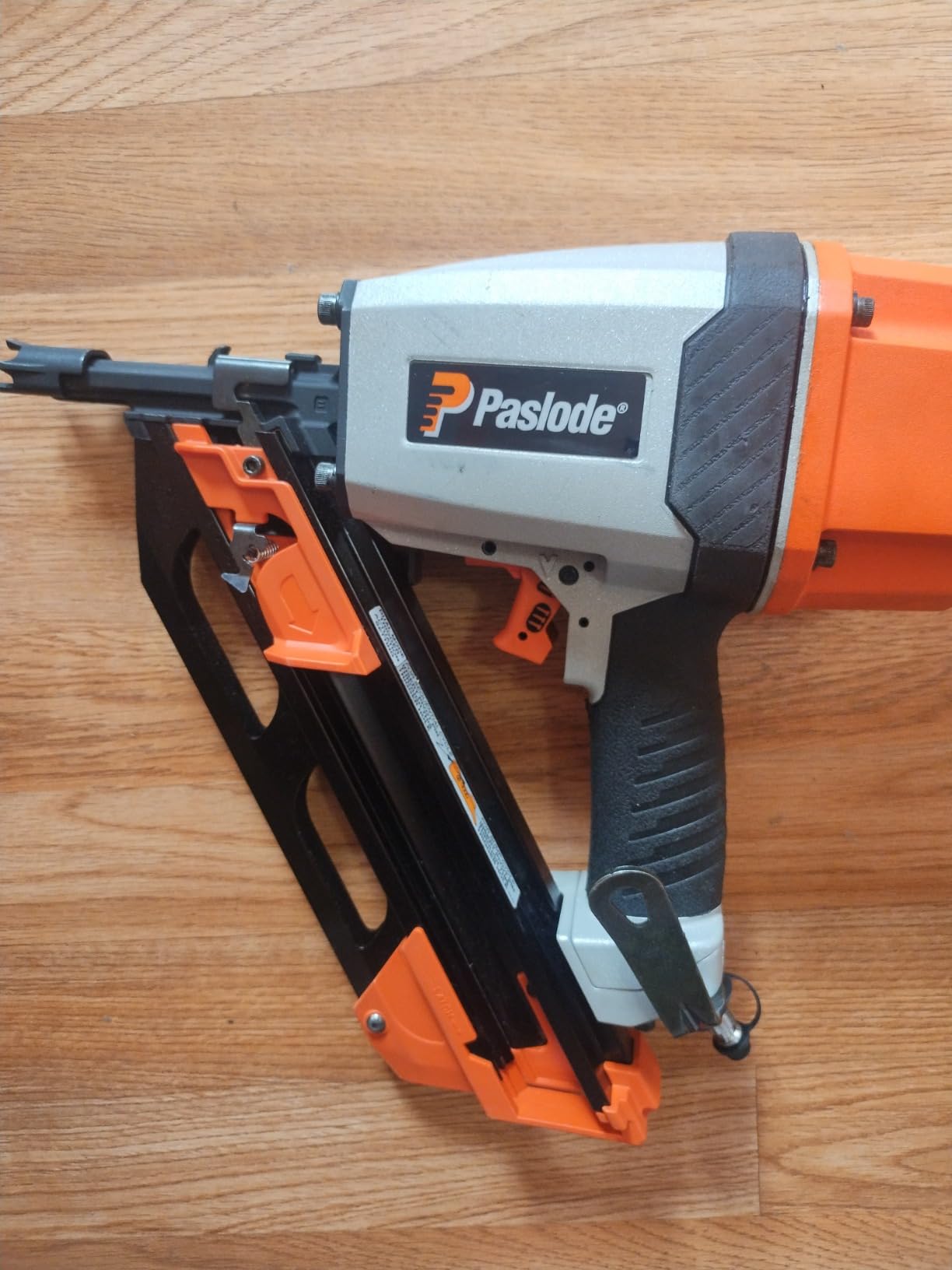

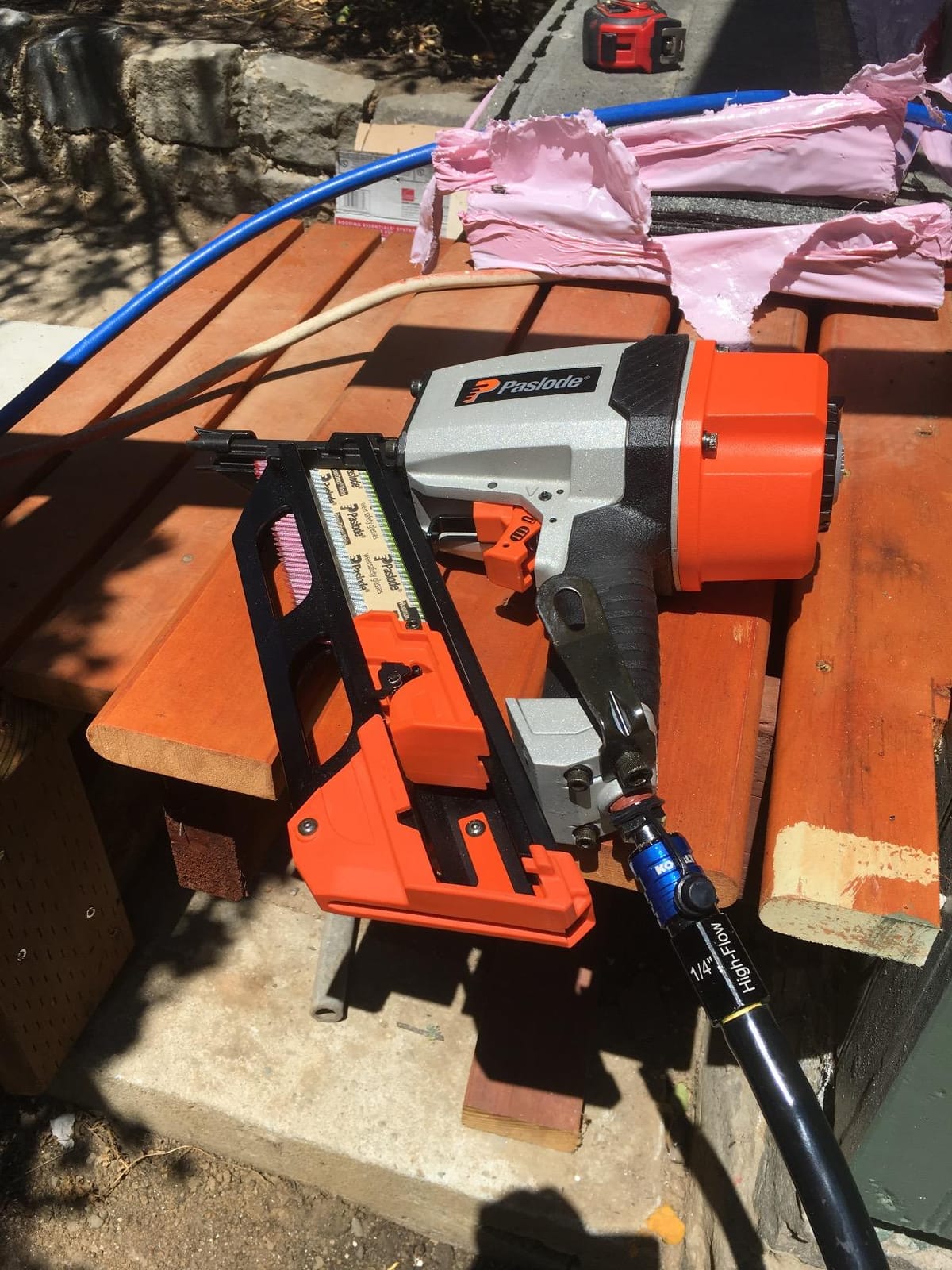

9. Paslode F325R Pneumatic Framing Nailer – Lightest Tool in the Roundup at 5.9 lbs
Paslode, Pneumatic Framing Nailer F325R, 513000, Air Compressor Powered
Pneumatic
30 degree Paslode nails
2-3.25 inch nails
5.9 lbs
Compact body
Pros
- Lightest framing nailer here at 5.9 lbs
- Fits between 16 inch on-centre studs
- By-pass follower gives a two-step reload
- Well suited to sheathing and blocking
Cons
- Needs proprietary 30 degree Paslode nails
- Stops at 3-1/4 inch
- Nail format is harder to source
At 5.9 lbs the Paslode F325R is 1.6 lbs lighter than the next lightest pick, and that gap is immediately obvious overhead. For working under a joist run where your head is at an angle and you are shooting one-handed, this is the lightest credible framing nailer on the market.
The compact body fits between 16 inch on-centre studs, which is exactly the clearance you are working in when you are nailing blocking, or building a deck attached to a house where the rim and joists are already fixed. Paslode positions it specifically for remodelers doing sheathing, blocking and interior wall moves.
The by-pass follower gives a quick two-step reload, which keeps the tool moving when you are working in a position where you cannot easily flip it around. That is a small design decision with an outsized effect on awkward framing geometry.
Paslode also designed the feed system around their own 30 degree nails, 2 to 3-1/4 inches at .113 to .131 inch shank, and reports fewer jams and misfires with those nails than with generic strips. When the feed is matched to the nail, the tool performs better than the spec sheet implies.
When 5.9 lbs is the deciding factor
Weight is not a vanity metric on a deck. A framing day is a few hundred shots at chest height and above, and the difference between 5.9 lbs and 8 lbs accumulates into the sore hands that end a productive afternoon. If you are nailing into tight geometry, between studs or overhead, this is the tool that will let you keep working.
The proprietary nail trade-off
Thirty degree Paslode nails are a format fewer lumberyards carry than 21 degree plastic collated. This is the exact constraint experienced users raise on forums: buy the nailer your yard can supply, not the nailer with the best sheet. If your yard carries Paslode strips, the fit between tool and nail is a genuine advantage. If not, you will be ordering special.
The 3-1/4 inch maximum also rules this out for the heaviest 3-1/2 inch connections on a deck frame.

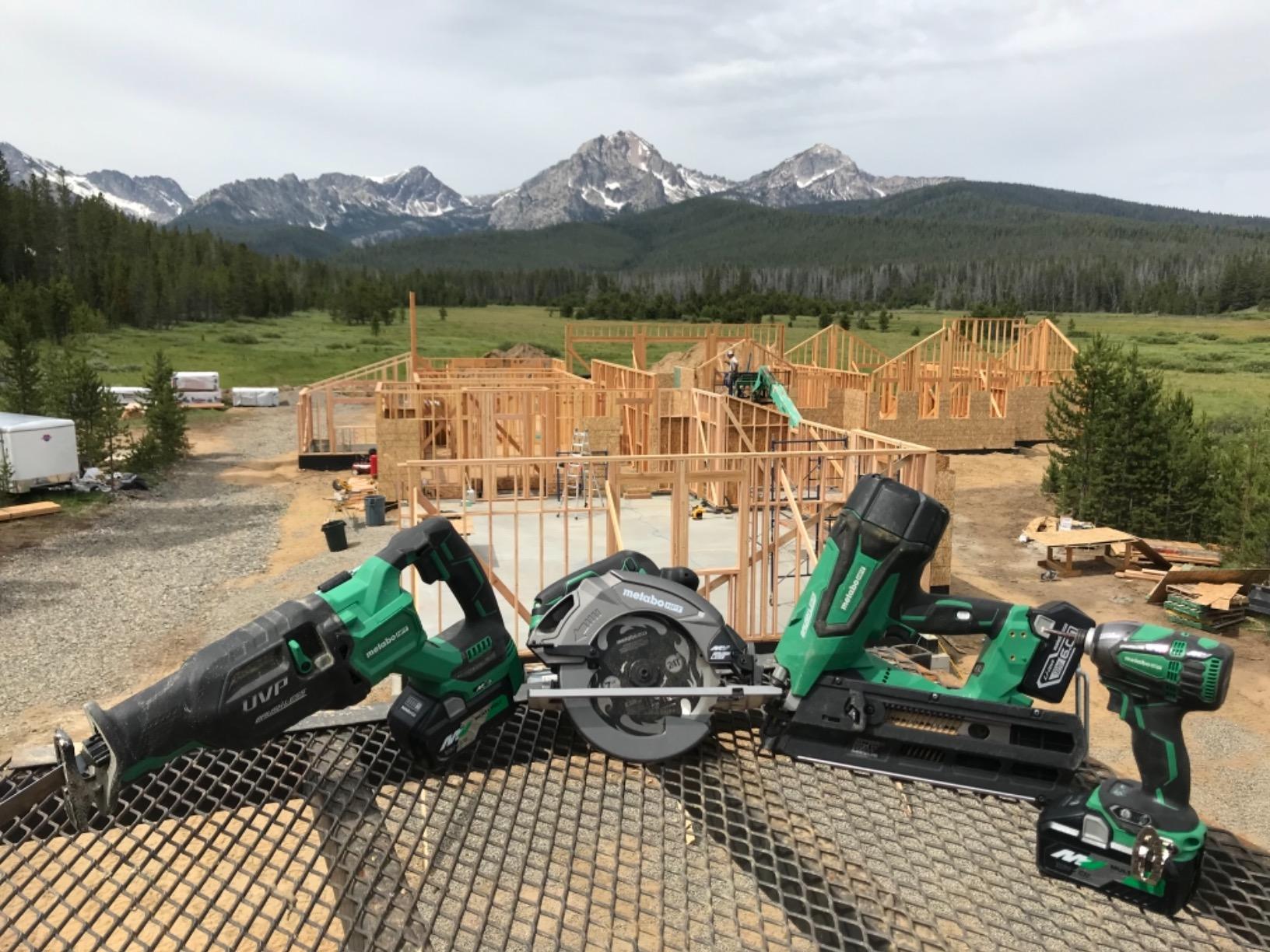

10. Metabo HPT NR1890DRS Cordless Framing Nailer – No Compressor, No Hose, Full 3-1/2 Inches
Metabo HPT Cordless Framing Nailer Kit, 18V, Brushless Motor, 2″ Up To 3-1/2″ Framing Nails, Compact 3.0 Ah Lithium Ion Battery, Lifetime Tool Warranty (NR1890DRS)
Cordless 18V
21 degree plastic collated
2-3.5 inch nails
10.1 lbs
Lifetime tool warranty
Pros
- Lifetime tool warranty on the tool
- Complete kit with battery
- charger
- contractor bag and glasses
- Air spring drive feels like a pneumatic
- Drives full 3-1/2 inch nails
- 400 nails per charge
Cons
- Heaviest cordless at 10.1 lbs
- Power button needs a hold and has a shutoff timer
- Best feeding with Metabo HPT nails
The NR1890DRS is the only pick in the roundup that needs no compressor, no hose and no power access at the site, and it is also the only cordless here that drives the full 3-1/2 inch. That combination makes it the answer for a deck at the back of a lot with no electrical service.
The air spring drive system is what separates it from a typical battery nailer. Instead of a conventional impact-style hit, it delivers a feel owners compare favorably to a pneumatic gun, and there is zero ramp-up time. You pull the trigger and it shoots, with no tank to recharge mid joist run.
It accepts 21 degree plastic strip collated round head nails from 2 to 3-1/2 inches at 0.113 to 0.131 inch, which is the standard deck range. The included 3.0 Ah lithium ion battery delivers around 400 nails per charge, so a framing day on a small platform is a single charge.
Most people buy it as the kit, and the kit is complete: tool, battery, fast charger, contractor bag and safety glasses. The lifetime tool warranty is the longest coverage in this roundup, with the battery covered for two years.
Battery runtime and platform cost
The honest caveat is that a 3.0 Ah pack is the small battery in the range. Owners running large multi-level decks report swapping to bigger Metabo HPT packs, which needs an adapter if you are coming from Makita tools. Budget for that before you start a big frame rather than after you stall on the second level.
Forums show plenty of long-term owners reporting a cordless framer driving through a full box of 3 inch nails and surviving drops from ladder height, which lines up with the lifetime tool warranty being more than marketing.
Where cordless loses to pneumatic
At 10.1 lbs it is the second heaviest tool in the roundup, and battery mass does not shift the way a balanced pneumatic body does. The power button requires a deliberate hold to activate and then has an auto shutoff timer, which is a genuine annoyance when you are repositioning constantly.
There is also the platform lock-in. If you already run Metabo HPT or Makita tools, the cost of entry is much lower. If you are starting from nothing, the bare-tool economics of the cordless category are worse than the kit economics, and the pneumatic picks in this roundup still deliver more shots per dollar.
11. PneuTools SN2283H Framing Nailer – Simple and Built to Outlast the Job
PneuTools SN2283H 21 Degree Framing Nailer with Rafter Hook
Pneumatic
21 degree full round head
10.53 lbs
Single mode trigger
Pros
- Hardened end cap resists wear
- Rafter hook included
- One-piece safety mechanism
- Full round head nail compatibility
Cons
- Heaviest tool in the roundup at 10.53 lbs
- Single mode trigger only
- No case and no tool-free depth adjust
The PneuTools SN2283H takes a simple approach. It has one trigger mode, one safety mechanism, a hardened end cap and a rafter hook, and it is built around a single claim: durability over features. Owners describe it as the tool you stop thinking about because it never stops working.
It drives full round head 21 degree plastic collated nails, which is the right head type for structural deck framing. Several threads on the Fine Homebuilding forum note that some states require full round head nails for framing, and a tool built around full round head nails avoids that ambiguity entirely.
The rafter hook is a genuinely useful inclusion for deck work because you spend half your time hanging off a rim board or a joist. The low profile single-mode trigger is designed for speed rather than finesse, which is the right trade when the nosepiece is fully seated against solid lumber.
The 4.6 rating across 397 reviews reflects a tool that does one job well without trying to be clever about it.
When a no-frills design is the right call
If you are framing decks every week and you have never had a trigger mode issue, the features on a more elaborate nailer are not buying you anything. What you want is a hardened end cap that survives the drop, a safety mechanism that does not develop intermittent faults after a season, and a tool that feeds the same strip that your yard stocks.
That is this one. It is a specialist in one job, and for a full-time framer that is a reasonable thing to want.
Where the compromises bite
At 10.53 lbs it is the heaviest tool in the roundup, pneumatic or cordless, and that weight is not well distributed the way a lighter balanced body is. On a full day of overhead joist work that will be felt.
The single-mode trigger means no sequential firing, so any connection where you cannot fully seat the nosepiece, such as a joist hanger flange or a tight corner, carries a double fire risk. There is also no tool-free depth adjustment and no case in the box, so you will be reaching for a hex key and hoping the tool does not live in a truck bed permanently.
12. CRAFTSMAN CMCN621PLB Cordless Framing Nailer – Best Entry Into a Cordless Platform
CRAFTSMAN V20 Cordless Framing Nailer, Nail Gun, 21 Degree, up to 3-1/4 inch Nails, Bare Tool Only (CMCN621PLB)
Cordless 20V
21 degree plastic collated
2-3.25 inch nails
10.75 lbs
3 year warranty
Pros
- Brushless motor for runtime and durability
- Tool-free depth adjustment
- Rafter hook included
- VERSATRACK compatible
- Bare tool pricing
Cons
- Bare tool only
- no battery or charger
- Reports of jamming and double firing
- Stops at 3-1/4 inch
- Heaviest at 10.75 lbs
The CRAFTSMAN CMCN621PLB is the cordless pick if you already own V20 batteries or you want the lowest entry point into a cordless framing nailer. It is a bare tool, which is exactly why the price looks low, and you need a battery and charger from the platform before it fires a nail.
The brushless motor is the right choice for a tool that will live in a truck, since it has fewer wear components than a brushed motor and runs cooler under load. It drives up to 3-1/4 inch round head nails into laminated veneer lumber, which is a genuine demonstration of drive power for a 20V machine.
Tool-free depth adjustment and an integrated rafter hook match the pneumatic tools at this level, which is not a given. VERSATRACK compatibility means it clips into the same storage system as the rest of the CRAFTSMAN line if you use it.
For a first cordless framing nailer without a household battery ecosystem, this is the least complicated way in. If you already have V20 packs, the economics are strong.
The 3-1/4 inch limit and what it means for decks
This is the constraint to weigh. It does not drive the full 3-1/2 inch, so the heaviest joist and beam connections on a larger deck are outside its range. It is a good tool for rim boards, blocking, joist hangers and small platform frames, and the wrong tool for a large multi-level deck where 3-1/2 inch fasteners are standard.
Users also compare the V20 platform favourably on cost and note that this tool is built by the same manufacturer as the equivalent DeWalt machine, which tells you something about the component quality.
What the reviews flag
Two issues come up repeatedly. Some owners report jamming, and others report the tool double firing. Many users report flawless operation, so this reads as a build consistency question rather than a design fault, but it is worth buying from a seller with an easy return policy if jamming would end your build.
At 10.75 lbs it is the heaviest tool in the roundup. Cordless weight is a consequence of the battery, not a design failure, but it compounds over a full framing day just like any other heavy tool.
Pneumatic vs Cordless Framing Nailers for Decks
For deck framing, a pneumatic nailer is the better tool if you own a compressor or can get power to the site, and a cordless nailer is the better tool if you do not. That is the honest answer, and everything else is detail on top of it.
The practical case for pneumatic is weight and consistency. Every pneumatic pick in this roundup sits between 5.9 and 10.53 lbs, with most landing between 7.5 and 9 lbs, and the drive power is a function of your air supply rather than a battery. On r/Tools, the common consensus is that pneumatic nailers are lighter, cheaper and more reliable for long framing sessions, and that is exactly the deck workload.
The case for cordless is logistics. A deck at the back of a property with no power access, or a build where you are not willing to buy or rent a compressor, is unworkable with a pneumatic tool. A battery nailer also removes the hose trip hazard when you are carrying lumber across a frame.
Many professional crews end up owning both, using pneumatic for the bulk framing and cordless for punch-out work. That is also how Metabo HPT positions the NR1890DRS, specifically for punch-out work where a tank or hose is inconvenient.
One decision factor most guides miss is air consumption. Users on the Fine Homebuilding forum report running four framers off a single pancake compressor thanks to improved air efficiency, so nailer efficiency and compressor size are linked decisions. Buy a nailer that runs at modest CFM and you can keep working when a bigger crew arrives.
Nail Angle Explained: 21 Degree vs 28 vs 30 vs 34
Buy the 21 degree nailer unless you have a specific reason not to. It is the most widely stocked collation in the industry, it has the largest magazine capacity, and it is what the lumberyard will have when you need nails on a Saturday morning.
The angle describes the lean of the nail strip in the magazine, and a smaller number means a straighter strip, which means more nails per strip and a wider tool body. A 21 degree nailer holds the most nails and is the easiest to find stock for. A 30 or 34 degree nailer has a narrower magazine that fits into tighter geometry, at the cost of shorter strips and scarcer nails.
For deck work the 21 degree answer is driven by connection type. Joist hangers, rim boards and blocking all sit in open geometry where a full size nailer has room. The tight-space cases, such as nailing into the inside corner where a deck meets a house, are where a narrower magazine helps, and that is where the Paslode F325R at 30 degree earns its place.
The 3PLUS HFN90SP is the unusual case because its magazine converts between all three, which means one tool covers every collation your yard carries. If you are unsure which angle you will need, that flexibility removes the guesswork for a modest weight and reliability trade-off.
Deck Building Nail Guide: What Nails to Actually Use
For deck framing, use 3-1/2 inch nails at 0.113 to 0.131 inch diameter, full round head, in a coating rated for pressure-treated lumber. That is the standard structural combination for joists, rim boards and blocking, and every 21 degree pick in this roundup is set up for exactly that range.
On coating, hot-dip galvanized is the default for pressure-treated lumber, and it is what most yards stock. Stainless steel is the better choice for cedar and for exterior work where the fastener will be exposed to standing water, and forum advice from experienced builders consistently recommends stainless for cedar and PT exterior applications because the default hot-dip nails corrode faster than people expect.
Do not use bright common nails anywhere in a pressure-treated frame. The treatment chemicals attack them, and a ledger or joist that fails at the fastener is a structural failure, not a cosmetic one.
Check your local code before attaching the ledger. Users on the Fine Homebuilding forum note that some states require full round head nails for framing, which rules out clipped head nails on structural connections even where a manufacturer lists them as acceptable. Structural screws are a legitimate alternative and a forum consensus holds that a modern framing structural screw is as good as or better than a nail, so a ledger attachment with approved structural screws is a reasonable path if your code allows it.
One more practical point: your nailer choice should follow your lumberyard, not the other way around. Most yards carry one or two collations, and a nailer that needs a strip you cannot source is worth nothing at 8 am on a Saturday.
What Size Compressor Do You Need for a Framing Nailer?
You need a compressor that delivers at least 90 PSI and roughly 2 to 4 CFM at that pressure, with a tank size of at least 20 gallons if you are working alone. A small pancake compressor will run a single nailer for occasional shots, but it will stall during a sustained framing run.
Operating pressure for a framing nailer typically sits between 90 and 120 PSI. The 3PLUS HFN90SP is published at 70 to 120 PSI, which is the widest range in this roundup and makes it the most forgiving tool to run on a small compressor.
Tank size matters for sustained work rather than peak pressure. A 20 gallon tank holds enough air to fire a long run of nails without the motor cutting in and out, and the pump cycling is what wears a small compressor out over a season.
For a crew, air efficiency is the criterion. Nailers vary meaningfully in CFM consumption, and users report running four framers off one pancake compressor when the tools are efficient. If more than one framer will share a compressor, check consumption before you buy rather than after.
A 1/4 inch quick connect fitting and a bottle of pneumatic nailer oil are the two accessories that matter most. The Makita AN924 and Bostitch BTF83WW include a fitting, the Metabo HPT picks include safety glasses, and most others in this roundup include nothing at all, so factor that into your first purchase.
Jobsite Safety and Jam Prevention
Eye protection is not optional on a framing nailer, and most picks in this roundup include safety glasses except the NuMax, the Bostitch F21PL and the Paslode. Hearing protection matters as much, and more so on a cordless tool since the motor whine adds to the impact noise.
Set the depth adjustment for the material in front of you rather than for the nail. Overdriving a nail splits the lumber and can blow through a finished face, and underdriving it means a second pass you have to make later anyway. The tool-free depth adjust on the NR90AES1, the NR83A5, the Freeman and the Bostitch BTF83WW makes this adjustment fast enough to actually do.
Jam prevention is mostly a feeding discipline problem. Use fresh, straight strips from the same manufacturer the tool was designed around, keep the magazine clean, drop a shot of oil in the air tool at the start of every session, and discard the last few nails in a strip rather than feeding a partial strip back in. Both the Bostitch F21PL and the 3PLUS HFN90SP have reported jamming specifically on partial strips.
For post-and-beam work, builders on r/Decks often favour an air-driven palm nailer for flush beam nailing and keep a separate full framing nailer for the rest of the frame. A full size framing nailer is difficult to control in the narrow space between a beam and a post, and a palm nailer handles that geometry far better.
If you see a nail that is not fully seated in the wood, treat it as a jam before you pull the trigger again. A dry fire on an obstructed tool is how drive blades bend.
Frequently Asked Questions
What is the best nail gun for building a deck?
For most deck builders the Metabo HPT NR90AES1 is the best choice because it weighs 7.5 lbs, drives 2 to 3-1/2 inch 21 degree plastic collated nails, and carries a 5 year warranty. If you have no compressor, the Metabo HPT NR1890DRS cordless kit is the pick, and if you need the lightest tool for overhead work the Paslode F325R at 5.9 lbs is hard to beat.
Can I use a framing nailer to build a deck?
Yes, a framing nailer is the correct tool for the structural phase of a deck: joists, rim boards, blocking, beams and the ledger. It is not the right tool for the decking surface boards, which are better fastened with a finish nailer using shorter nails so the heads sit below the surface.
What nails should I use to frame a deck?
Use 3-1/2 inch nails at 0.113 to 0.131 inch diameter with a full round head, in a coating rated for pressure-treated lumber. Hot-dip galvanized is the standard for PT lumber, while stainless steel is a better choice for cedar and exposed exterior connections. Never use bright common nails in treated lumber.
Should I buy a 21 or 30 degree framing nailer?
Buy the 21 degree nailer unless you have a specific reason not to. It holds the most nails per strip, is the most widely stocked collation, and is the easiest to find at a lumberyard. A 30 degree nailer has a narrower magazine that fits tight geometry, which helps between studs and in inside corners but comes with scarcer nails and shorter strips.
What size compressor do I need for a framing nailer?
You need at least 90 PSI and roughly 2 to 4 CFM at that pressure, with a tank of at least 20 gallons for sustained solo work. A small pancake compressor will fire occasional shots but will stall during a long framing run, and if several framers share one compressor, check the CFM consumption of each nailer first.
Why does my framing nailer keep jamming?
Jams nearly always happen at the last few nails in a strip rather than on hard wood. Discard the tail of a strip instead of feeding a partial strip back in, use fresh straight strips from the manufacturer the tool is designed around, keep the magazine clean, and oil the air tool at the start of each session. Tools with an open nose design, such as the Metabo HPT NR83A5, clear jams far faster.
Conclusion
The best framing nailer for deck building is the Metabo HPT NR90AES1 if you have a compressor, because 7.5 lbs and full 3-1/2 inch capacity covers an entire frame without compromise. The NuMax SFR2190 is the value pick, and its 7386 reviews make it the safest bet in the roundup for a first deck.
Pick the Makita AN924 if your treated lumber is the hard generation and you want the drive power to match. Pick the Bostitch F21PL if you use metal connectors, the Bostitch BTF83WW if your yard stocks 28 degree wire weld, the Metabo HPT NR83A5 if jams are your main fear, and the Freeman PFR2190 if you want a case and a 7 year warranty in the box.
Without a compressor, the Metabo HPT NR1890DRS is the cordless pick that still drives full length nails. With no batteries at all, the CRAFTSMAN CMCN621PLB is the cheapest way into a cordless platform, provided you can live with 3-1/4 inch nails.
Before you buy anything, call your lumberyard and confirm which collations they carry in a coating rated for pressure-treated lumber. That one phone call prevents the most common deck tool mistake there is, and it is free. We updated this roundup for 2026.
