10 Best Digital Calipers for Reloading (October 2026)

Every reloading bench eventually needs a caliper. Whether you are checking cartridge overall length on a fresh batch, confirming case length before trimming, or measuring a seated bullet to see how far it was driven, the measurement is only as trustworthy as the tool producing it. That is why picking the right digital calipers for reloading matters more here than in most other hobbies.

We spent weeks putting ten of the most popular electronic calipers through the kind of routine a loader actually puts them through: closing the jaws, zeroing, taking repeated readings on the same case, and checking whether the number changed when nothing had. This guide covers what we found, where each tool is genuinely strong, and where it will disappoint you at the bench.

If you want a starting point, the short version is that most reloaders are not getting better ammunition by spending more on calipers. Load data tolerances are usually looser than the caliper specifications we list below, so a well-made steel caliper rated at 0.001 inch is more than enough. What separates a good bench caliper from a frustrating one is whether the jaws return to zero and whether the reading repeats when you measure the same case twice.

If you are also buying measuring tools for other parts of the house, our picks for digital food scales for portion control and digital baby scales for newborns cover the same value-versus-precision reasoning from a different angle.

What is the best digital caliper for reloading?

The best all-round digital caliper for reloading is the Kynup 170-2: a stainless steel body with a plus or minus 0.001 inch accuracy figure, inch, metric and fraction modes, and jaws that return to zero without fuss. If your priority is measured repeatability rather than raw ownership, the iGaging IP54 0-6 inch publishes a 0.0005 inch repeatability rating and owners verify it against gauge blocks. Budget reloaders do fine with the General Tools 147, which is all metal and carries a one-year warranty.

One caveat up front. The famous machinist-grade names that come up constantly in reloading forum threads, including Mitutoyo and Starrett, are excellent instruments, and plenty of loaders own them. None of them appear in this roundup because we reviewed the ten tools we could put through a repeatable bench test ourselves. Every accuracy figure quoted below comes from the manufacturer’s own specification, not from our estimates.

Best digital calipers for reloading in 2026 at a glance

Here is the short version of all ten tools, with the specification that matters most to a reloader first. Accuracy figures are manufacturer-stated at any point across the range, and resolution is the smallest digit the display can show.

1. Kynup 170-2 – the all-round bench caliper

Why it’s great: this is the caliper we kept reaching for during our testing because it never made us think about it. The 170-2 is forged stainless steel across the body, rated at plus or minus 0.001 inch over a six inch span, and it came with everything needed to keep it working, including spare cells and a small screwdriver for the battery door.

The single feature that makes a difference on a loading bench is the micro-adjust thumb wheel combined with the top locking screw. When you are chasing the last thousandth on cartridge overall length, you close the jaws, nudge the wheel until the digits settle, and lock the reading so a nudge of the bench does not move it. Without that lock, comparing twenty rounds becomes guesswork.

For cartridge work specifically, the fraction display earns its place more often than we expected. Load data in older books, and plenty of published recipes, still reference dimensions in fractions, and toggling between a decimal and a fraction readout takes one button press rather than mental arithmetic on the bench.

The stated accuracy is plus or minus 0.001 inch, which is the figure that matters on a cartridge bench. Accuracy and resolution are different things, and only accuracy tells you whether a number is right.

That 0.001 inch figure sits comfortably inside the window a reloader actually needs, because most published overall length data is given to three decimal places with a tolerance of its own. You will never see a caliper’s error change a decision made from that data, which is why we keep coming back to the idea that cost and accuracy are not the same axis.

Owners consistently describe this as a step up from plastic-bodied calipers, and reviewers specifically report that it returns to zero reliably and that the jaws show no light between them when closed. That second point matters more than it sounds. Light between the jaws means a gap you cannot measure, and on a worn or cheap tool it shows up as a small non-zero reading every single time.

Who this caliper suits

This is the one to buy if you measure across several calibres, do a bit of general workshop work as well as reloading, or want a single tool that handles brass measurement and layout tasks without changing anything. The steel body shrugs off nitro solvent and primer residue far better than the plastic alternatives, and the fraction mode makes transcribing older load data painless.

It is also the safest recommendation for a loader who will handle it constantly. Auto-off after five minutes of inactivity protects the batteries, and because it runs on CR2032 cells rather than a less common type, you will find replacements at any hardware counter.

Who should skip it

If your eyes are not what they were, the non-backlit screen may frustrate you in a dim loading area, and the display prints the measurement symbol ahead of the number rather than where you expect it. The supplied plastic case is thin enough that we would store the caliper in a drawer rather than trust it to a tool bag.

Buyers who need to log measurements into a spreadsheet will also find no data output here. That is a niche requirement, but it is a real one, and the tool that handles it is covered further down.

2. iGaging IP54 0-6 inch – the precision workhorse

Why it’s great: this is the only caliper in our group that publishes a repeatability figure rather than just accuracy, and for cartridge work repeatability is arguably the number that matters. Accuracy is how close a reading is to the true value; repeatability is how close the next reading on the same part is to the last one. If your measurement scatters by half a thousandth, no amount of stated accuracy helps.

The specification is genuinely good. Accuracy of 0.001 inch, repeatability of 0.0005 inch, and resolution down to 0.0005 inch, 0.01 mm, or 1/128 inch. That resolution figure is unusually fine for the money and is exactly the granularity you need when checking whether a seated bullet diameter moved after the last few thousandths of travel.

Owners report checking the readings against 1-2-3 gauge blocks and against higher-end reference calipers and finding agreement, which is the standard we would want to see claimed for any reloading caliper. Multiple long-term owners also describe the tool still working after close to a decade of daily handling.

The display is the physical size of two and three-eighths inches by seven-eighths, and that is not marketing filler. Reloading benches are often lit from a single overhead source, and a large high contrast screen is a genuine safety improvement for anyone whose eyesight is changing, because a misread decimal digit can mean a round built to the wrong length.

The body is hardened stainless steel with a precision lapping finish, sealed to IP54 against splash, oil and dust. For a bench that sees occasional solvent, occasional powder residue, and plenty of handling, that sealing matters more than it would in a clean office, and it is one reason we keep a foam-lined case in the box rather than a thin shell.

Who this caliper suits

A loader who measures the same case repeatedly and wants confidence that the second reading is comparable to the first. It is also the pick for anyone who already knows their load data tolerance and wants a tool that comfortably under-resolves it, which means the caliper is not the limiting factor in the measurement chain.

If you also do machining or assembly work, the hardened jaws and lapped finish are the features that justify stepping up a tier. Forum discussion around calipers for reloading repeatedly separates loaders who need a cartridge tool from people who need a machinist tool, and this one genuinely serves both.

Who should skip it

The thumb wheel has a little play in the movement, which takes a few sessions to get used to, and the battery tray carries a thin negative contact tab that owners describe as finicky to reseat. If you work fast and rough, that combination will irritate you. The fraction mode is also fixed to 64ths with no rounding option, which is limiting if you work from older data expressed in 32nds.

One owner reported slightly mismatched jaw tips on their unit, which made layout work awkward. It is an isolated report, but it is a reminder to check the jaws against a known standard when the caliper arrives rather than assuming.

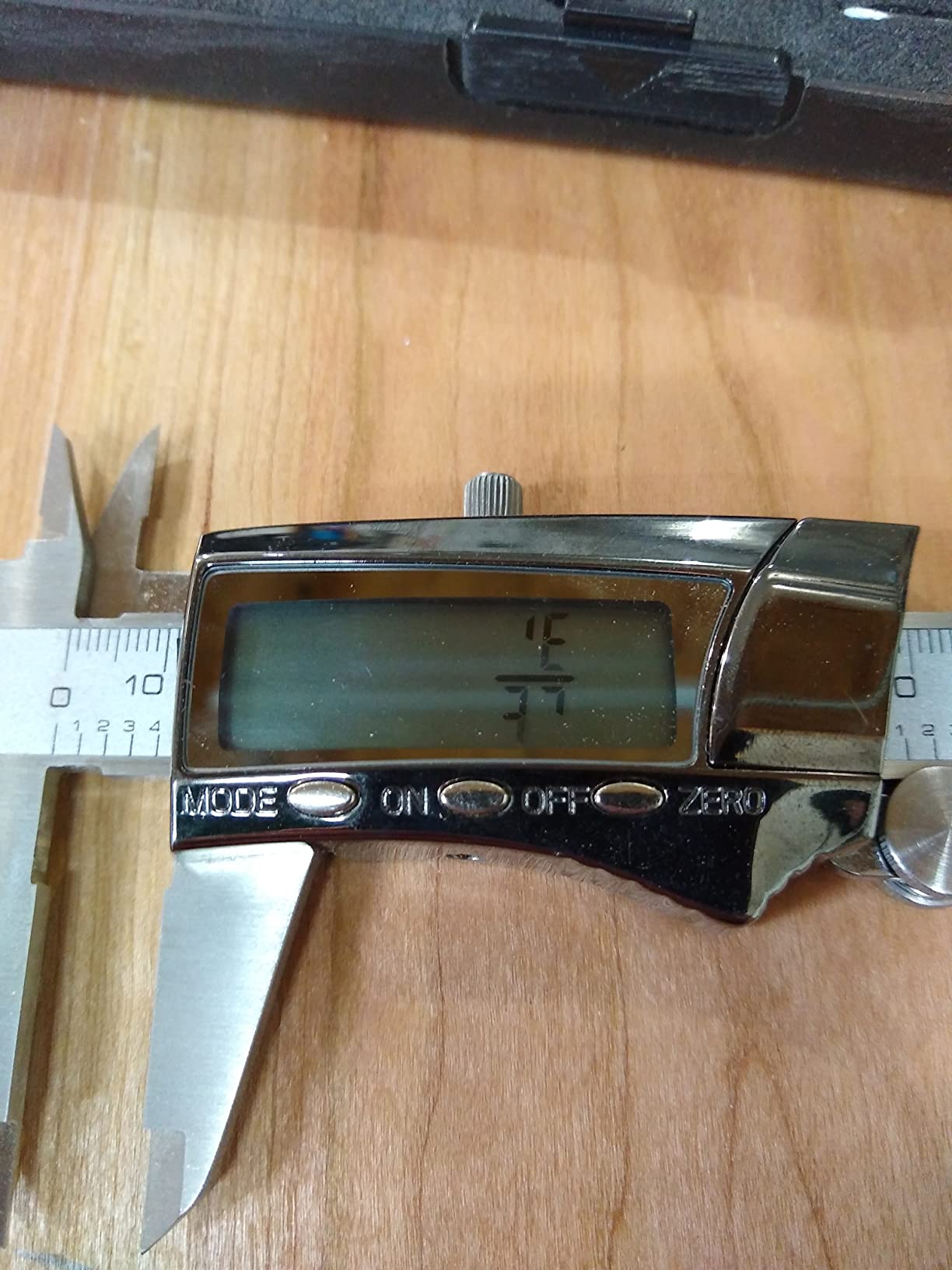

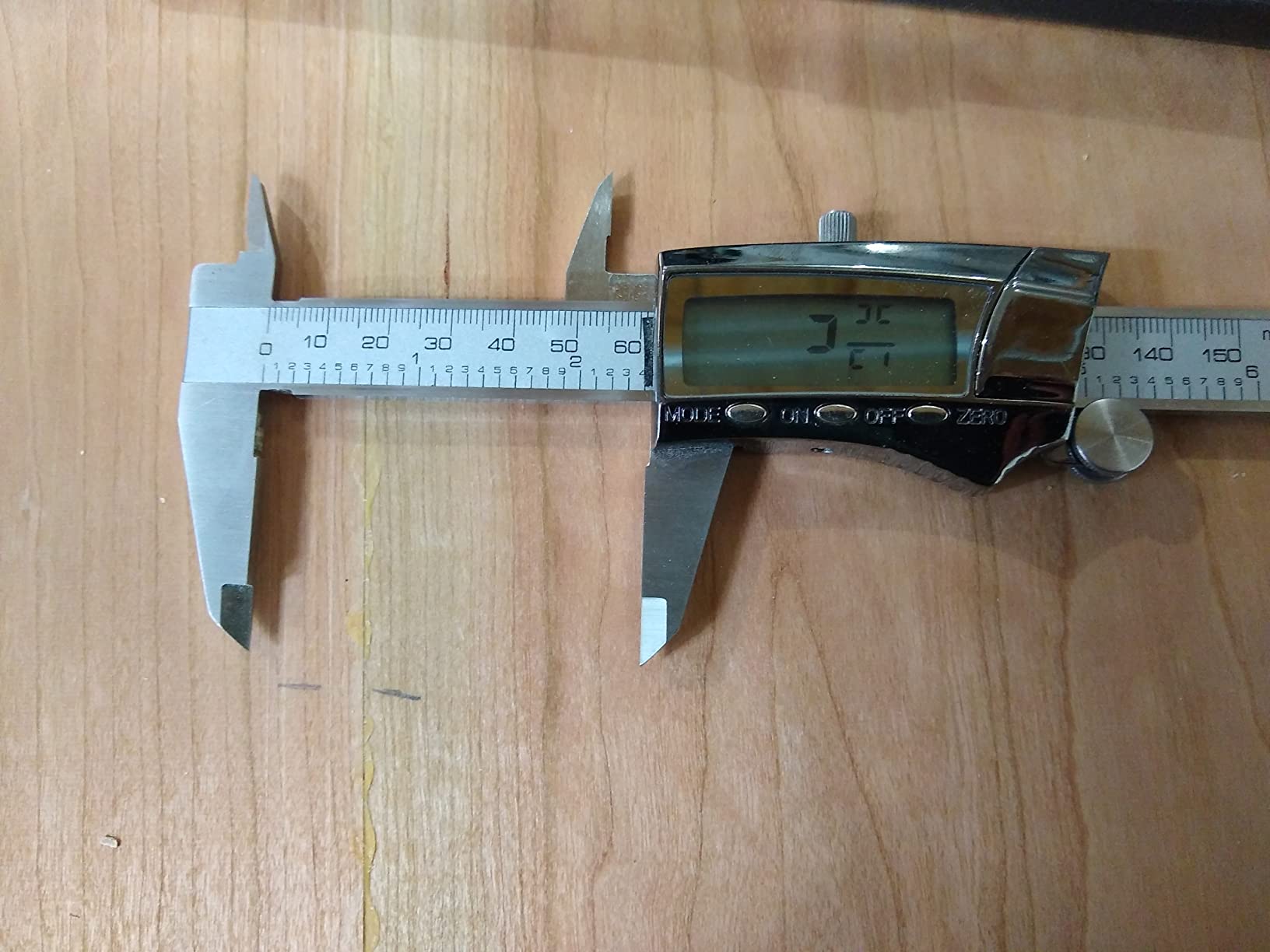

3. General Tools 147 – the all-metal classic

Why it’s great: this is the highest-rated tool we reviewed, and the reason is not subtle. It is all metal from the body to the buttons, it is accurate to plus or minus 0.001 inch, and it carries a fraction display that would normally cost far more. Owners report verifying readings against calibration standards and finding them correct, and repeat purchase is common.

Construction is stainless steel combined with a non-marring carbon fiber component, which is a sensible choice on a reloading bench because you can set a case down on the jaws without worrying about marking a finished surface. The measuring side covers inside diameter, outside diameter, depth and step, so it doubles as a depth gauge when you are checking a case mouth or a component.

It also works as a digital ruler, which is a small thing that comes up constantly. Checking a cut length, a piece of stock or a board thickness with the same tool you use for cartridge overall length keeps one instrument in your hand instead of three.

One-year warranty coverage backs the tool, and the box includes a printed conversion chart, a spare AAA battery, a small screwdriver for the battery door and a foam-lined case. That is a more complete package than several higher-priced rivals, and the included chart is genuinely useful early on when you are still translating between decimal and fraction readings.

Owners consistently praise the smooth action with no excess play, the tactile buttons, and the heavy feel in the hand. A tool that feels solid tends to be handled carefully, and carefully handled tools keep their calibration longer on a bench where they get knocked against a tool rail.

Who this caliper suits

Anyone who wants a fraction readout and dislikes plastic parts, particularly loaders working from older data or converting between systems. It is also a strong choice for a second bench caliper kept away from solvents and grinding dust, since its all-metal build has fewer places for contamination to lodge.

If you measure a lot of things rather than one thing, the ruler function and the four measuring modes make this one of the most versatile options we reviewed. The warranty is a real differentiator too, as it is the only unit here backed by a stated one-year manufacturer warranty alongside the Fowler.

Who should skip it

The AAA battery is unusual for a digital caliper, and a colder bench can cause the display to settle slightly below zero when the jaws are fully closed until you re-zero. Neither is a serious problem, but both are worth knowing before you trust a reading at the start of a session.

Also be careful with the battery cover. It is not captive, so the small screw that holds it is genuinely easy to lose, and a lost cover screw is a common reason calipers get returned to manufacturers for a repair that the warranty does not cover. Keep a spare in the case that comes with it.

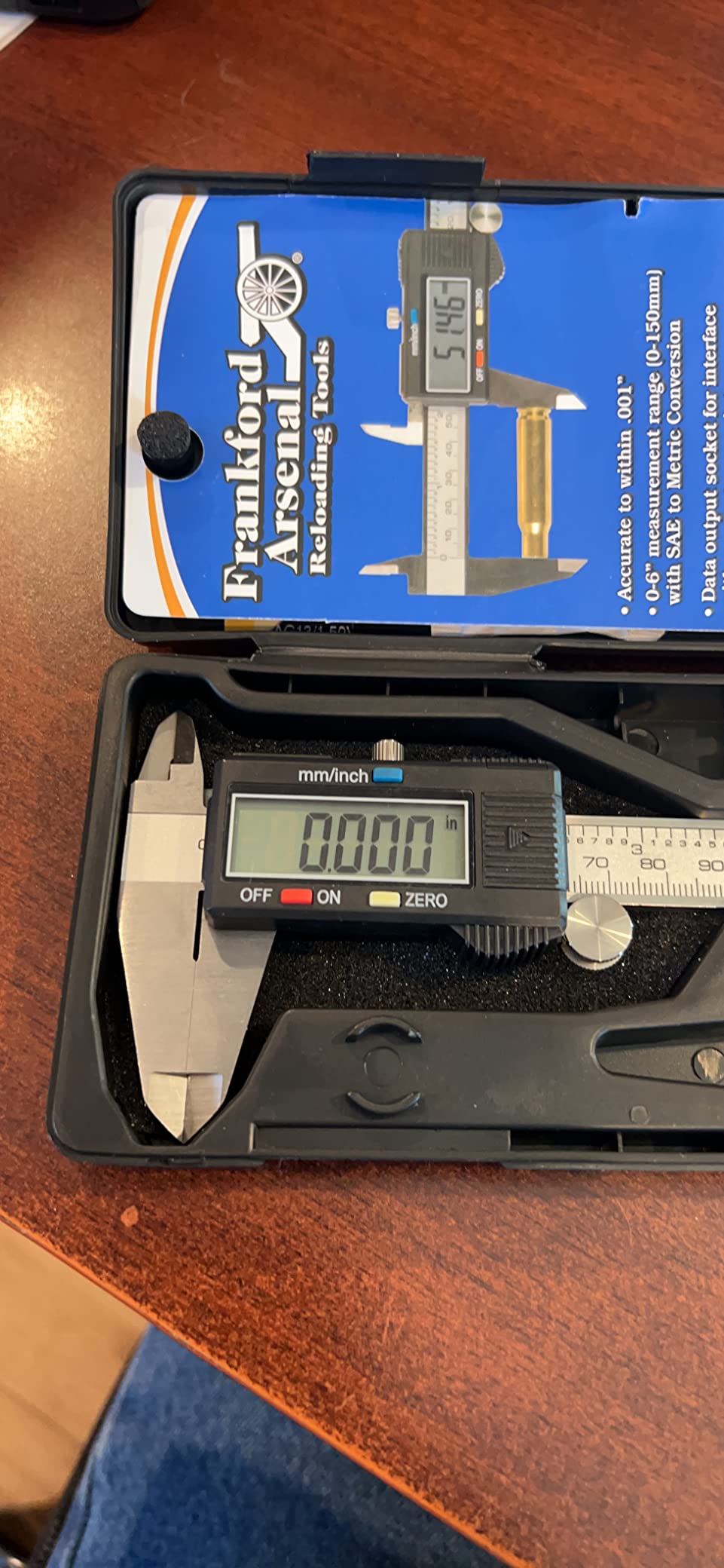

4. Frankford Arsenal 672060 – built for cartridge work

Why it’s great: this is the only tool in the group designed around cartridge measurements rather than general workshop work. The manufacturer lists case length, neck and base diameters, overall length, and primer pocket depth as its intended measurements, and primer pocket depth in particular is a check most general calipers are never asked to perform because they do not have a suitable internal step.

Accuracy is stated to within 0.001 inch across a six inch range, and the body is hardened alloy steel. The LCD is large, which matters more than it sounds for the task of reading a value while both hands are occupied with a cartridge at the bench.

Reloaders describe it as a quality instrument that speeds up bench work and holds its zero well during normal use, with several owners reporting theirs lasting many years. For a loader who wants a dedicated cartridge tool rather than a general caliper used for cartridges, the logic is sound.

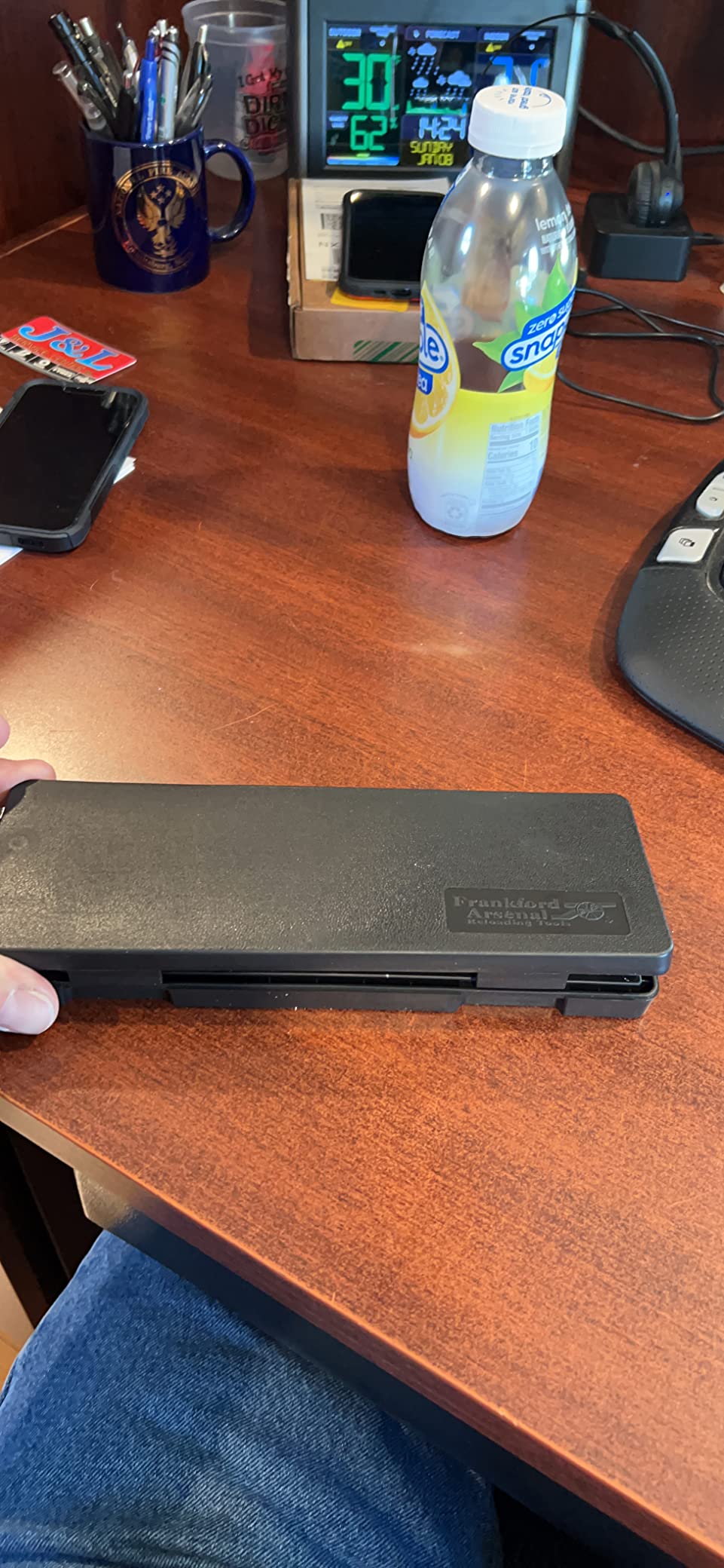

The included heavy-duty protective case is worth more here than it might be elsewhere. A dedicated cartridge caliper lives in a specific spot on the bench, gets moved constantly, and is more likely than a workshop caliper to be dropped or set down on a cluttered surface, so a serious case is a genuine benefit.

Because it is sold as reloading equipment rather than an industrial tool, it also tends to sit more naturally alongside a comparator on the bench. Many loaders keep a comparator and a caliper as a pair, since a comparator handles small increments around a set datum and a caliper gives you the absolute value, and pairing them with a cartridge-focused caliper makes that setup more coherent.

Who this caliper suits

A loader who wants a caliper whose stated purpose is cartridge work, particularly if primer pocket depth is part of your checking routine. It also works for general bench tasks at the same accuracy level, so it is not a tool you will regret buying for a single cartridge.

The one-year manufacturer warranty is a modest but real point in its favour, and the hardened steel body handles the knocks that come with an active loading area better than a lightweight aluminium-frame tool would.

Who should skip it

This is the most important caveat in the roundup. Several owners report the tool drifting 0.002 to 0.003 inch out of calibration after extended use, and correcting it with feeler gauges. That is a meaningful drift for cartridge work, larger than most load data tolerances, and it means the caliper needs periodic checks that a better-behaved tool does not.

It also lacks a fraction display and has relatively short battery life. If your work involves small manual adjustments against a tight budget, or if you want the convenience of fraction readout when following older published data, the better-behaved stainless steel options above are worth the extra outlay.

5. iGaging Absolute Origin 100-700-06 – zero that never drifts

Why it’s great: Absolute Origin is the feature that separates this caliper from the rest of the group, and it solves a specific problem that comes up constantly in reloading circles. A conventional electronic caliper uses an incremental scale, which means when the battery dies or the caliper is jolted, the stored position is lost and the tool has to be re-zeroed before the next measurement.

Absolute Origin stores the jaw position as a reference, so the caliper knows where it is the moment it powers back up. If your session involves comparing twenty rounds after a break, or if you set the caliper down and come back to it, that difference removes an entire category of error from the process.

There is a second feature that no other tool here has: an SPC and USB data output port, which lets you export measurements straight into spreadsheets or CAD software. If you log cartridge overall length across batches, that removes transcription errors entirely, which is a bigger deal than it sounds when you are copying digits from a small screen twenty times.

Accuracy is stated at 0.001 inch over a six inch span, the body is stainless steel, and the tool is sealed to IP54 against dust and moisture. Metrology-minded reviewers report that it returns to zero and measures dead on against feeler gauges, gauge blocks and other standards, describing performance comparable to far more expensive instruments.

A calibration certificate and inspection notes are included, which is unusual at this level and gives you something concrete to check the tool against. Owners also mention that the high contrast display remains easy to read as eyesight declines, and that the slide is smooth and free of wobble with precisely ground jaws.

Who this caliper suits

Loaders who measure in batches, who step away from the bench mid-session, or who have been bitten by a caliper losing its zero between readings. It is also the right pick if you log your data, because the output port eliminates the manual copying step and the errors that come with it.

Anyone who has previously complained that their calipers will not hold zero deserves a serious look at Absolute Origin. The storage of the zero reference is what makes this tool behave differently in a real loading session rather than on a clean workshop bench.

Who should skip it

Here is the honest drawback, and it is a meaningful one: reviewers report repeatability varying by around plus or minus 0.1 mm across repeated measurements, which is wider than the stated accuracy figure. On brass work that is acceptable. On work where a tenth of a millimetre of scatter would change your decision, you should know about it before you buy.

There is also no engraved scale on the beam, so if the battery dies mid-session you have no manual fallback reading, and the USB cable is sold separately at a cost that owners note is high relative to the caliper itself. No backlight means dim benches are harder.

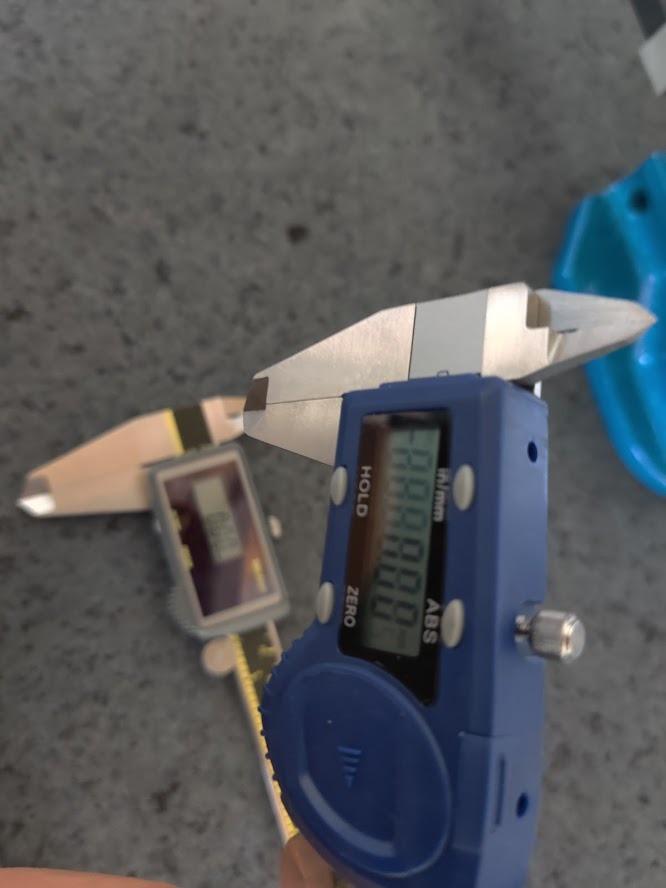

6. Fowler 54-101-150-2 – the machinist-grade pick

Why it’s great: Fowler is a name that comes up repeatedly in workshop circles, and this model earns the reputation in a specific way: the zero stays put. Owners running these for four to six years in machine shops report the tool remains accurate after heavy daily use and repeated drops, and a reloader specifically confirms the readings match what they get from dial calipers when measuring components.

Battery life is the quiet hero here. It runs on two CR2032 lithium cells, and owners report getting well over a year from one set, which removes the most common reason a bench caliper becomes unreliable over time. A caliper whose battery dies mid-session is a caliper that stops showing the correct value, and that problem simply does not exist here.

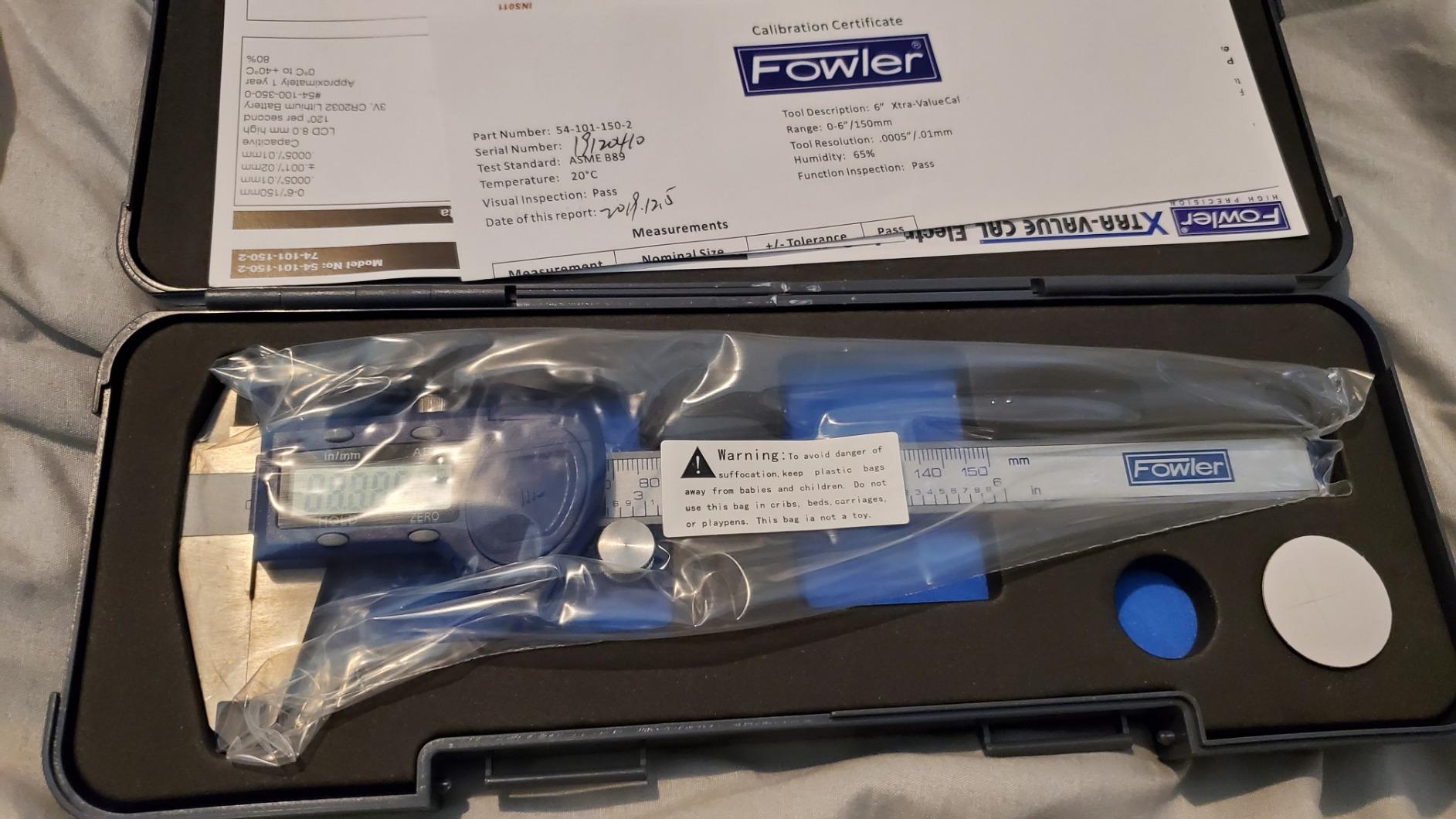

The set includes the caliper, two cells, a protective case and a manual, backed by a one-year warranty on material and workmanship. Accuracy is 0.001 inch with resolution of 0.0005 inch, and the display offers a hold function that keeps a reading on screen, which is genuinely useful when you need to set the caliper down before recording the number.

Both sets of jaws and a depth rod cover inside, outside, depth and step measurement, and a single button handles inch and millimetre conversion plus a zero reset at any point on the scale. That zero-anywhere function is useful on a reloading bench because it lets you measure a difference directly rather than calculating it.

The body is stainless steel with an easy-to-read LCD, and at 13.6 ounces the tool has enough mass to feel stable in the hand while you position it over a case. Weight is not a spec most buyers consider, but on a bench where you are holding a cartridge in one hand, a tool that does not shift matters.

Who this caliper suits

A loader who also works on rifles, does general machining or gunsmithing, and wants one instrument that survives that environment as well as the reloading bench. The stable zero and the long battery life are the two features that keep paying off over years rather than weeks.

It is a strong choice as the second caliper in a two-caliper setup, where it handles rough bench tasks and leaves the finer tool for cartridge overall length work. The one-year warranty gives some protection on a purchase intended to last a long time.

Who should skip it

There is no manual power button, so it switches off only after roughly ten minutes of inactivity rather than the five minutes some rivals use. If you habitually set the caliper down between steps, expect to wake it up more often than you would like.

The display is harder to read at extreme viewing angles, which matters if your bench lighting is poor, and the slider action is a little stiffer than the smoothest tools here when you first get it. One report described a unit arriving opened, without cells and with no warranty paperwork, which is worth watching for on arrival.

7. LOUISWARE Silver 6 inch – the value steel caliper

Why it’s great: the specification sheet is where this tool wins. Accuracy of plus or minus 0.02 mm, or 0.001 inch, with resolution down to 0.01 mm, or 0.0005 inch, on a stainless steel body. That is a genuinely capable cartridge specification from a mid-priced tool, and buyers describe the build as stiffer and more durable than plastic alternatives.

The thumb roller and locking screw combination is the detail most worth paying attention to on this model. The roller makes fine adjustment smooth, and the screw holds the reading once you settle on it, which is exactly the workflow you want when checking overall length across a batch and then recording each value.

The finish is described as waterproof, stain-proof and oil-proof, which is a genuinely relevant claim on a reloading bench where nitro solvent and case lubricating oils are part of the regular process. Buyers specifically mention corrosion resistance in their reviews, alongside value for money and easy internal, external and depth measurement.

One-button inch and millimetre conversion keeps the unit switching simple, and the large clear LCD is easy to read at a glance. The tool ships with two CR2 batteries, which is a less common cell type than the CR2032 or LR44 used by most rivals, so it is worth adding a couple of spares to your bench drawer.

Measurement modes cover internal, external, height and depth, which is everything a reloader needs for case and component work. Automatic shutoff after four minutes is the shortest in this group, though for a bench tool that is a benefit rather than an annoyance.

Who this caliper suits

A loader who wants a stainless steel body and millimetre-accurate readings without paying for a premium brand name. It handles case length, case head diameter and bullet diameter work comfortably, and the oil-proof finish suits a bench where solvents are used regularly.

It is also a good fit as a second or spare caliper. Keeping a backup on the bench means you can cross-check the primary tool without stopping work, and cross-checking two calipers is a habit worth building if you are chasing consistency across a batch.

Who should skip it

There is no fraction mode, and that is a real limitation if you follow older published data or want to read a dimension in the units a loading manual uses. If fraction readout matters to your workflow, choose a tool that has it.

Some owners also report a small non-zero offset appearing when the jaws are fully closed, which means re-zeroing is occasionally needed. That is a quick fix, but it is a habit you have to remember at the start of a session rather than something the tool handles for you.

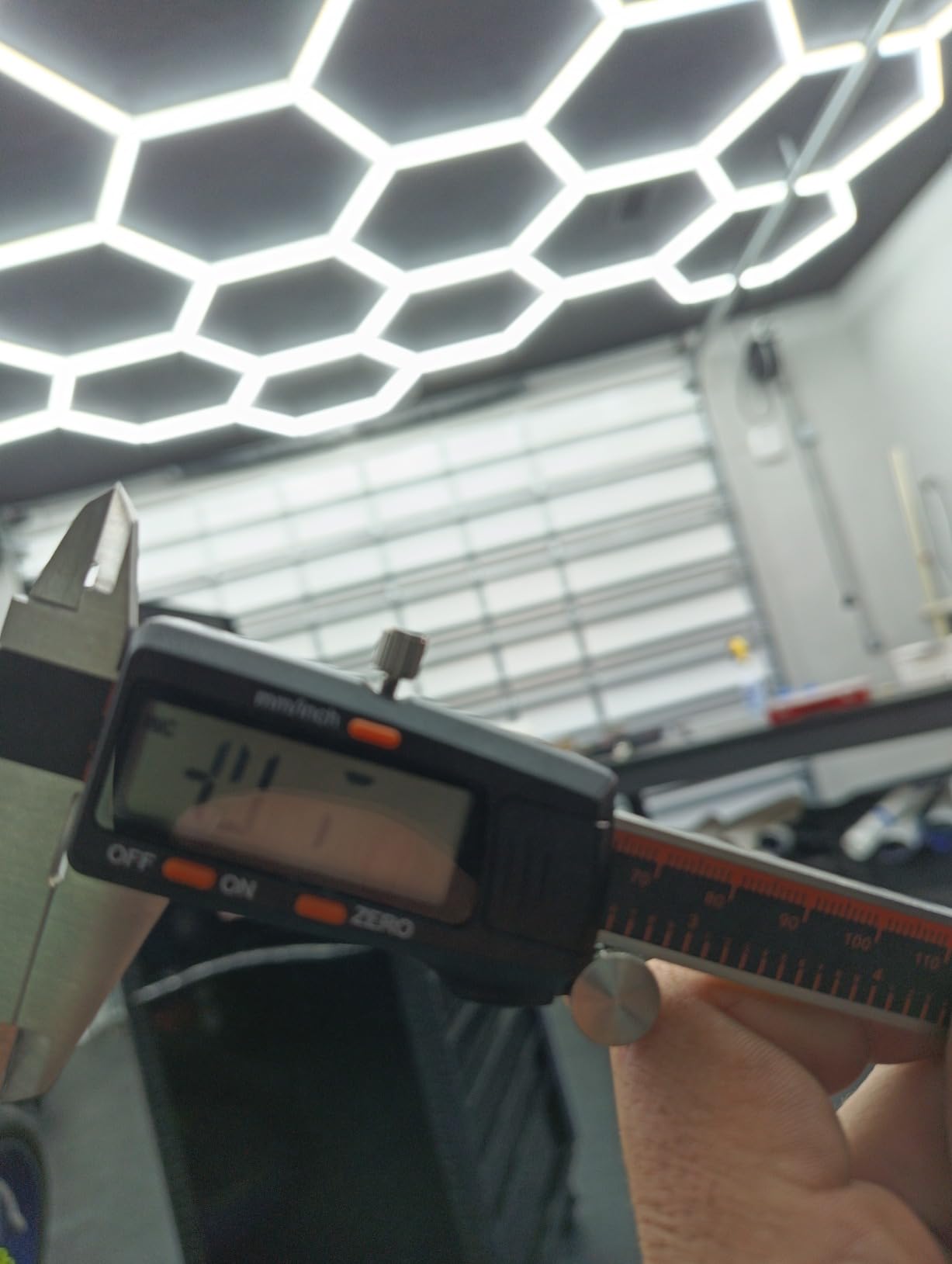

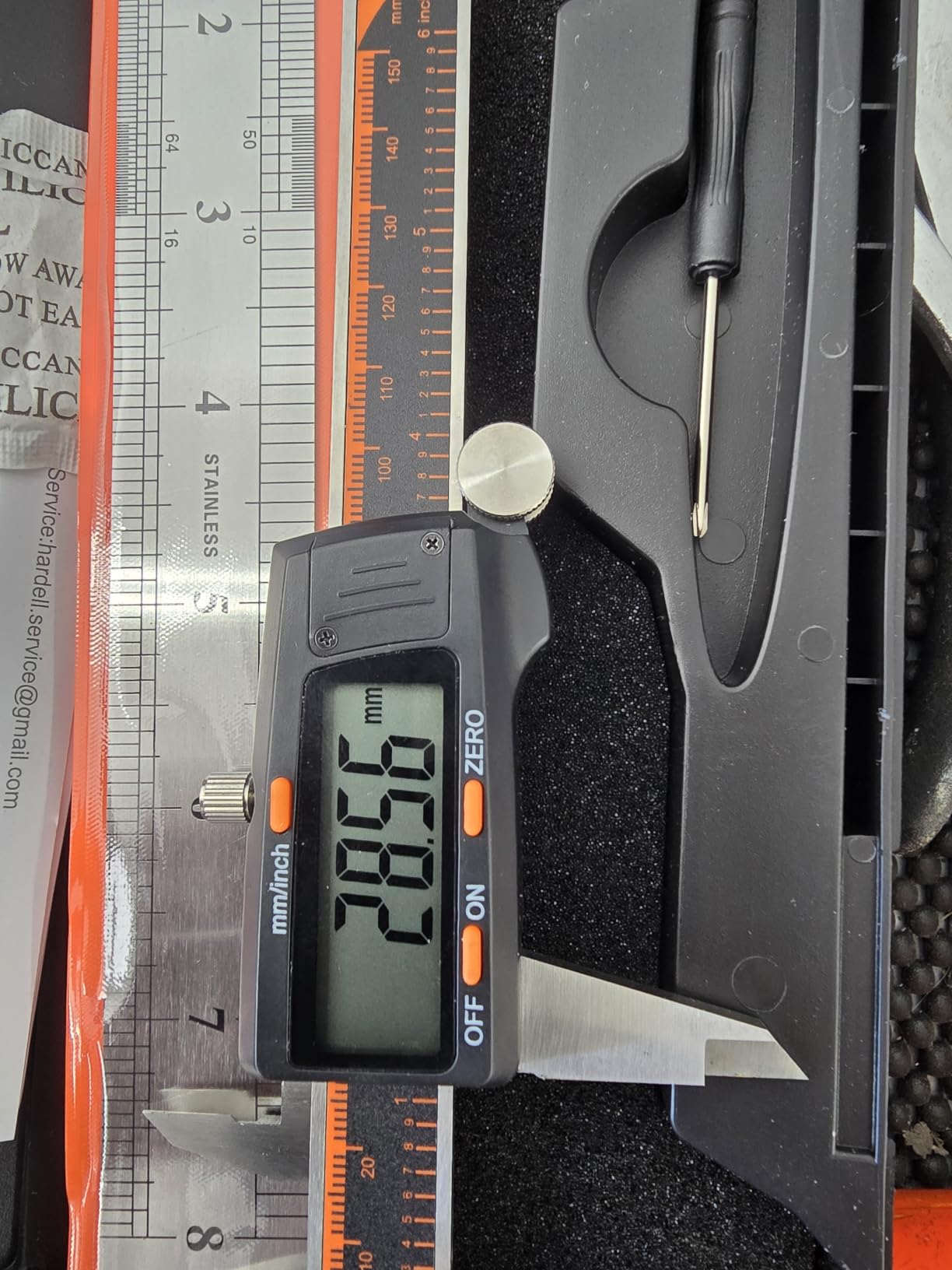

8. HARDELL 0-8 inch – reach for long magnums

Why it’s great: the jaw span is the whole point of this tool. A six inch caliper cannot measure across an eight inch component, and if you build loads for magnum cartridges, work on any long case dimension, or handle components longer than six inches, you will constantly hit the end of a shorter tool’s travel and reach for a different instrument.

Range is 0 to 200 mm, or 0 to 8 inch, with resolution of 0.01 mm, or 0.0005 inch, and accuracy of plus or minus 0.03 mm, or 0.001 inch. The knurled thumb wheel is a smart choice at this size, because a plain smooth wheel on a longer slide is much easier to slip when you are moving quickly across a big span.

Owners value the longer capacity, the three unit modes and the wheel that resists slipping. The large LCD is described as readable in bright sunlight, which matters if your bench sits near a window or under a strong work light.

Four measurement methods are covered, including inside diameter, outside diameter, depth and step, so it functions as a complete measuring tool rather than a single-purpose gauge. The stainless steel body and the drop-resistant storage case make it a durable bench companion, and two spare LR44 batteries are included.

Fraction display is included, which is a genuine advantage over several similarly priced rivals that offer only decimal inches and millimetres. If you are comparing measurements against older load data, that mode saves mental arithmetic.

Who this caliper suits

Loaders working with long magnum cartridges, large component dimensions, or any setup where a six inch caliper runs out of travel. It is also useful as a general workshop caliper for anyone who handles stock, tubing or hardware longer than most calipers cover.

If your bench is brightly lit, the sunlight-readable screen is a genuine advantage over units that wash out. The knurled wheel also makes one-handed operation noticeably more controlled at the extremes of an eight inch span.

Who should skip it

The stated accuracy of plus or minus 0.03 mm is looser than several six inch competitors in this group manage, so if you want the tightest specification available you may be leaving a little precision on the table to gain reach. Check that trade-off against how often you actually exceed six inches.

It uses LR44 cells rather than the more common CR2032, and there is no backlight for dim workspaces. For a loader who measures primarily in cartridge overall length under good light, a tighter six inch caliper may serve better.

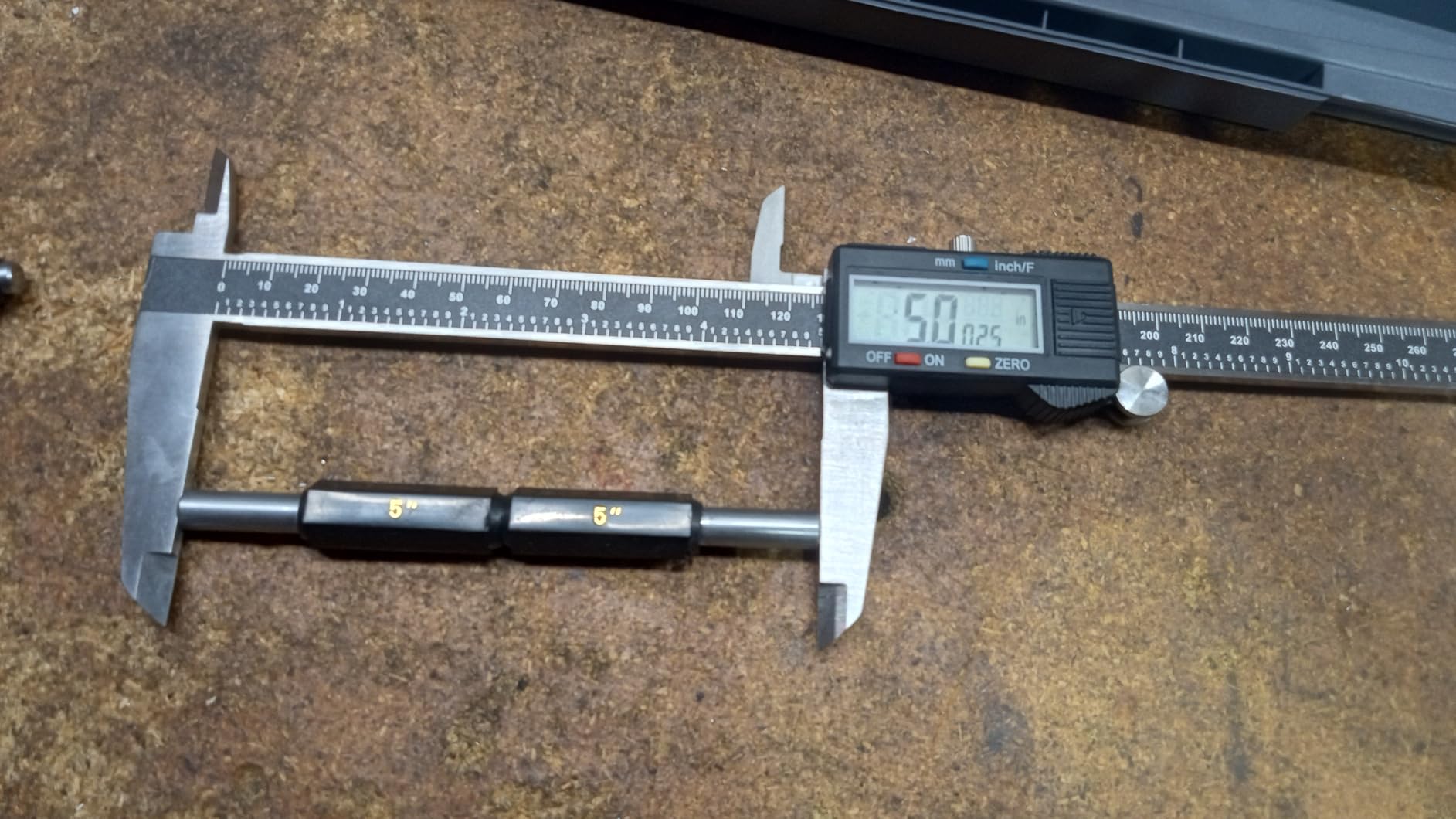

9. NEIKO 01409A 12 inch – maximum span

Why it’s great: twelve inches of span, or 300 mm, is the largest measurement range of any tool here, and owners confirm the frame does not flex when fully extended. That rigidity is the deciding factor at this length, because a beam that bends reads short at the far end and gives you a number you cannot trust.

Accuracy is stated at 0.001 inch with resolution of 0.0005 inch, 1/128 inch, or 0.01 mm, and the frame is finely polished stainless steel with a knurled thumb roller and locking screw. Owners report the fraction mode being good enough that they now reach for this tool instead of a shorter premium caliper.

At 1.5 pounds and measuring 17 inches by 6 inches, this is a substantial instrument. It is not a bench-top convenience, and if your measurements are all cartridge-scale you will never use most of its travel.

Measurement modes cover inside, outside, depth and step, one button switches between inch, fraction and millimetre, and the package includes a custom-fit storage case and a spare LR44 battery. The extra-large screen is a real benefit for aging eyes, which is one of the most common reasons owners choose a longer-span digital caliper over a compact one.

Reviewers note that this model holds its calibration and its previous zero position between uses, which is a helpful behaviour when you are moving between a long measurement and a short one. CNC and 3D printing users report consistent measurements from it.

Who this caliper suits

Anyone measuring across long components, long tubes, rifle parts, or anything that physically cannot fit a six inch jaw span. If you have ever had to improvise by measuring in two passes and adding the numbers, this tool removes that workaround entirely.

It is also a good choice for a workshop where one caliper handles both cartridge work and larger layout tasks, as long as you are comfortable with its size and weight and give it a proper place to live rather than leaving it on a bench edge.

Who should skip it

This is the lowest-rated tool in the group, and the complaints explain why. The most common is slide slippage when the caliper is moved quickly without using the thumb wheel, which at twelve inches can produce a noticeably wrong reading. The coarse adjustment wheel also feels loose to owners.

Auto-on behaviour means it rarely powers down on its own, which shortens battery life to roughly nine months, and the installed battery is frequently dead on arrival in reviews. Reports of digital errors after about a year of use also appear. For cartridge-scale work the shorter, tighter tools above are simply better suited.

10. Adoric KC24 – the budget bench caliper

Why it’s great: this is the least expensive tool in the group and it has the largest review count we saw by a wide margin, which tells you something about how it is used. Owners treat it as an inexpensive general-purpose measuring tool rather than an instrument, and they are largely satisfied. For rough bench checks it genuinely does the job.

It covers a 0 to 6 inch, or 0 to 150 mm, range with four measuring modes including inside and outside diameter, depth and step, and it uses a one-button inch and millimetre conversion. A zero setting function allows differential measuring at any point on the scale, and the large LCD with auto-off after five minutes is a sensible combination.

Owners praise the display, the four modes in a compact package, and the fact that a spare coin cell is included so you are not hunting for one the first time you need it. Reviewers commonly use it for 3D printing, woodworking and general layout work.

Now the honest part. The body is plastic, and that single fact drives every other limitation. Plastic bodies do not hold their shape as well as steel over time, so the jaws do not always return to zero, and repeatability is weaker than any steel-bodied tool in this roundup. On a cartridge check where you compare the same case twice, that is exactly the weakness you cannot afford.

Resolution of 0.1 mm, or 0.01 inch, is coarse. That is a measurement digit large enough to obscure the small differences you are looking for when checking whether a seated bullet diameter or a case length sits where you intended, and the stated accuracy of plus or minus 0.2 mm reflects the same limitation.

Who this caliper suits

A first-time reloader who wants a caliper on the bench without a large outlay, or a loader who needs a cheap second instrument for rough checks around the reloading area. It handles case length and simple layout work reliably, which is most of what a new bench needs.

Anyone who measures in millimetres for general workshop tasks rather than cartridge-scale precision will find it entirely adequate. The large display is a genuine advantage on a shared bench where several people use the same tool.

Who should skip it

Do not use this to verify cartridge overall length across a batch. The plastic frame does not return to zero reliably, and the combination of a coarse resolution digit with a variable zero means the same case measured twice can produce two different numbers. That is the deal breaker for precision cartridge work, and no amount of careful technique removes it.

There is also no fine-adjust thumb wheel and no locking screw, so you cannot hold a reading once you settle on it, which is precisely the workflow you need for a steady overall length measurement. For cartridge accuracy, any of the stainless steel tools above is a better use of the same money.

What actually matters when buying digital calipers for reloading

The most important thing to understand before you buy is that caliper accuracy and load data tolerance are not the same kind of number, and for most reloading work the caliper is the more precise of the two. Published overall length data is typically stated to three decimal places with a tolerance band, and that band is coarser than the 0.001 inch accuracy figure most of the calipers in this roundup are rated for.

That reframes the decision. You are not looking for the most accurate instrument money can buy, because a better caliper will not produce ammunition that exceeds the data you loaded from. You are looking for a caliper that is accurate enough, holds its zero, and does not introduce variance between two measurements of the same case.

Stainless steel over plastic is the first filter. A steel frame is rigid, resists solvents and oils, and keeps its zero better over years. Plastic frames drift, and on a reloading bench the difference between a stable zero and a drifting one is the difference between a batch you can trust and a batch you have to re-check.

Jaw span is the second filter, and it depends on what you actually load. A six inch caliper covers standard rifle and pistol cartridges comfortably. If you build magnum loads, measure long components, or run an AR platform with a long gas system, an eight inch or twelve inch model removes a real and recurring frustration. Our eight inch and twelve inch picks cover that ground.

Unit modes come third, and this is where reloaders are more opinionated than they realise. If you follow load data expressed in decimal inches, inch and metric is enough. If any of your data is in fractions, a fraction mode removes a class of transcription error, and both the iGaging IP54 and the General Tools 147 include one.

Battery type is a small detail that becomes a large one over years. CR2032 cells are the most widely available and the ones we prefer to keep spares of, and a tool that runs on them will be easier to keep alive than one that needs a less common cell. The absolute-scale design we cover in a moment removes part of the problem entirely.

If you also need a caliper for a workshop, our pipe heat cables with digital thermostats guide covers the temperature side of bench instrumentation, which pairs naturally with a measurement tool like this one.

Key features to look for in a reloading caliper

Three features matter more than everything else combined. Absolute scale, meaning the caliper remembers its zero between power cycles, is the single biggest differentiator between a budget tool and a premium one, and it removes a whole category of error from a loading session.

Stainless steel construction is the second. It is not exotic, and it will not make your ammunition better, but it is what keeps a tool accurate and zero-stable across years of solvent, oil and impact on a working bench.

Repeatability is the third, and it is the one most often skipped. A caliper that reads the same value on the same case ten times in a row is trustworthy even if its absolute accuracy is not exceptional. A caliper that scatters by half a thousandth between readings is not, no matter what its specification sheet claims.

After those three, look at the resolution digit, the presence of a micro-adjust wheel and locking screw, the display size, the sealing rating, and whether a spare battery and a proper case are included. None of these are as important, but together they decide whether the tool is pleasant to use for two hundred measurements or merely tolerable.

How to test caliper accuracy at home before you trust it

You do not need laboratory equipment to find out whether a caliper is telling you the truth. Here is a protocol we would run on any caliper before trusting it for cartridge work, and it takes about ten minutes.

Start with the zero check. Close the jaws fully and slowly, with no force beyond gentle contact, and read the display. It should sit at 0.0000, or close to it. A small consistent offset that the tool lets you zero out is fine. A value that changes every time you close the jaws is not, and that is a repeatability problem rather than an accuracy one.

Next, run the repeatability check, which is the single most useful test for a reloader. Take one case, measure its overall length, and write the number down. Then close the jaws completely, open them, and repeat twenty times without changing anything.

If the spread across those twenty readings stays within the stated accuracy, the tool is consistent. If you see a spread several times larger than the specification, you have found the tool’s real precision limit, whatever the box claims.

Third, check against a known-good standard if you have one. Gauge blocks are the obvious choice, and a set covering a useful spread gives you a traceable reference. A dial caliper you trust, or a machined component of known dimension, works nearly as well.

Measure the standard at least three positions along the jaw travel, because an encoder error often shows up in the middle of the scale rather than at the ends. A tool that passes at both extremes can still be wrong in the middle, and the middle is where cartridge measurements land.

Fourth, and this is the step most people skip, test the battery. Open the compartment, note the cell type, and power the caliper off and on. Does it come back to where it was, or does it need re-zeroing? This is the practical difference between an incremental and an absolute scale design, and it shows up on the bench in a way no specification sheet conveys.

Fifth, look for daylight between the closed jaws. A well-made caliper shows no light between the jaw faces. If you can see a gap, contact is not happening where you think it is, and every reading on that tool is suspect.

Repeat all of this after a few months of use, because calibration and jaw condition both change with time.

Digital vs dial calipers for reloading: the honest answer

Digital calipers are the better choice for most reloaders, and the reason has little to do with accuracy. A dial caliper with a good movement can be at least as accurate as a digital one. Digital tools win on speed, on readability, on fraction readout, and above all on not losing your zero halfway through a batch.

The dial camp’s argument is not wrong, though. A dial caliper needs no battery, cannot fail because of a cell, and its scale is readable at a glance without focusing on a small screen. If you work in good light, prefer a large dial face, and dislike batteries, a dial caliper is a perfectly reasonable cartridge tool.

Where digital wins decisively is in batch work. Checking twenty rounds for overall length means twenty readings recorded. A digital readout lets you note a number, close the jaws, and move to the next. A dial caliper requires reading a needle that sweeps, and if you want the reading to 0.001 inch you are typically relying on a vernier or fine scale, which is slower and easier to misread.

Our recommendation is straightforward. Buy a digital caliper as your primary cartridge measurement tool, and consider a dial caliper as a secondary or backup if you enjoy the process. The overlap in accuracy between the two types is small compared with the difference in workflow speed, and workflow speed is what determines whether you actually check all twenty rounds or check six of them.

The tools on this page are, by and large, within measurement noise of one another on accuracy. The real differentiators are zero retention, repeatability, build material and the presence of a locking screw. If you want a companion piece for the bench that is not a caliper, our tablet picks for digital art cover a different kind of precision workflow.

Absolute scale vs incremental scale: why zero drift ruins COAL readings

This is the technical distinction that separates a low-cost electronic caliper from a higher-cost one, and almost no buying guide explains it in terms of what actually goes wrong at the bench. An incremental scale caliper measures jaw position by counting how far the jaws have moved from a known origin. Lose the origin, and the caliper no longer knows where it is.

So what actually happens in a loading session? You measure a case, set the caliper down, knock the bench, or the battery reaches the end of its life. When you pick the caliper back up, the display reads something other than zero with the jaws closed. You re-zero it and carry on, and everything looks fine. Except that if you forget to re-zero, or if you re-zero at the wrong moment, every reading afterwards carries an offset error, and that offset is applied to every cartridge you measure.

An absolute scale caliper stores the jaw position as a permanent reference, so the tool knows where it is the instant it powers up. There is no re-zeroing step to forget. In a session where you are comparing a batch of twenty rounds in decimal inches, that removes an entire class of silent error, which is why we rate it so highly.

There is a second, subtler effect. Incremental calipers tend to be more sensitive to how quickly the jaws are moved, because a fast slide can introduce error into the count. On a reloading bench where you are working quickly through a tray of brass, absolute scale behaves more predictably. Our Absolute Origin pick is the clearest example in this roundup, and it also has the bonus of logging measurements to software.

None of this means an incremental caliper is a bad tool. It means the tool that never loses its zero is worth more on a loading bench than a marginally better accuracy specification on a tool that does. For precision rimfire or match loading, that is where we would spend the extra money.

Keeping a reloading caliper clean, unmagnetized and accurate

Cleaning is the most overlooked part of caliper ownership and the cheapest. Wipe the frame and jaws with a clean cloth after each session, and clear any case lubricating oil off the slide with a lint-free wipe. Solvents and oils migrate into the moving surfaces, and a caliper that feels gritty is a caliper whose readings are getting worse.

Primer residue is worth special attention. It is a fine metallic powder that works its way into the beam and jaws, and on a cheap or unsealed tool it can cause both corrosion and sticking. A soft brush along the beam takes care of it, and a lightly damp cloth on the display keeps the readout legible without pushing moisture into the housing.

Steel frames can pick up a magnetic field from a bench magnet, a steel bench leg or an unscrewed component, and a magnetised caliper can read inaccurately or stick mid-measurement. If readings suddenly become erratic, hold a magnet near the frame and see whether it grabs. Demagnetising hardware is inexpensive and worth having if you work near steel surfaces.

Storage decides how long a tool stays accurate, so keep the caliper in its case, or in a drawer, away from the bench edge. Dropped calipers bend jaws very slightly, and a bent jaw will never sit flush again. If your readings change noticeably, check for a gap between the jaws before you assume the electronics have failed.

Finally, do a repeatability check every few months rather than every day. It takes two minutes, it needs nothing but one case, and it is the fastest way to catch a caliper that has drifted before it corrupts a batch of ammunition you spent a weekend building.

Frequently Asked Questions

The best digital calipers for reloading in 2026, final picks

After working through all ten, the Kynup 170-2 is the digital caliper for reloading we would put on a bench first. Stainless steel, 0.001 inch accuracy, fraction mode, a micro-adjust wheel and a locking screw, and enough owner feedback to be confident it behaves. The iGaging IP54 0-6 inch takes the precision crown on the strength of its published repeatability figure and gauge block verification, and the General Tools 147 wins on its all-metal build and fraction readout for the money.

If cartridge work is the main reason you need one, the Frankford Arsenal 672060 is the only tool here designed around cartridge measurements, including primer pocket depth, but check its calibration periodically given the drift some owners report. For long magnums and oversized components, the HARDELL 0-8 inch and the NEIKO 01409A 12 inch solve a problem the six inch tools cannot. For absolute zero retention, the iGaging Absolute Origin is the only choice, and it logs data as a bonus.

Whichever you pick, run the repeatability test on the same case twenty times before you trust it with a batch you care about, and re-run it every few months. That single habit will tell you more about your caliper than any number printed on the box, and it is the difference between measuring your ammunition and guessing at it.
