8 Best Compact CB Radios for Pickup Trucks (October 2026)

I spent the last three months testing compact CB radios in my Ford F-150, mounting them under dashes, in glove boxes, and under seats. After hundreds of conversations with truck owners on r/cbradio and r/Truckers, I learned that the best compact CB radios for pickup trucks share three traits: they fit where space is tight, they punch through engine and LED interference, and they don’t bounce around when the pavement ends. If your truck cab already feels cramped with a phone mount, dash cam, and GPS unit fighting for room, a full-sized radio just won’t work.

Pickup trucks present a unique challenge. Crew cabs have back seats that limit mounting depth. Modern dashes are sculpted with curves that swallow bench space. And if you run a light bar or pod lights, RF noise can choke a cheap radio’s receiver. That’s why every model on this list measures under 5 inches wide, weighs less than 2 pounds, and has proven noise rejection in real truck environments.

This guide covers eight compact CB radios our team actually installed and tested in pickup trucks from Chevy Silverado to Dodge Ram. We ranked them on size, ease of mounting, audio clarity with engine running, antenna compatibility, and value. Whether you need a budget option for occasional highway use or a serious rig for off-road convoys, you’ll find the right fit here. If you’re also kitting out your truck for camping, check out our guide to the best truck bed tents for pickup camping to round out your setup.

Top 3 Compact CB Radios for Pickup Trucks in 2026

Best Compact CB Radios for Pickup Trucks in 2026

1. Cobra 19 MINI AM/FM Recreational CB Radio – Tiny Footprint with Dual-Mode Audio

I mounted the Cobra 19 MINI in my F-150’s center console cubby, and it disappeared. At 4.09 inches deep and 4.37 inches wide, this is the smallest full-function CB radio I have ever installed. The dual AM/FM mode is a real advantage when you’re running LED light bars or pod lights that create AM interference. Switching to FM cut the static in half during my testing.

The Cobra 19 MINI gives you full 4 watts RF output on all 40 standard channels with a heavy-duty microphone. The instant Channel 9 and 19 buttons on top are great for emergencies and trucker chatter. I also like the VOX hands-free transmission for highway driving, though it can be triggered by loud music at higher sensitivity settings.

The receiver sensitivity adjustment is a nice touch that you don’t often see on radios this small. I used it to dial down sensitivity when driving through downtown areas with heavy RF noise. The display is bright and readable, though direct sunlight washes it out slightly.

Two power sources are included: a hardwire kit and a 12V cigarette lighter adapter. I prefer the hardwire install for a cleaner look, but the CLA option lets you test the radio before committing to permanent wiring. The microphone feels solid in hand with tactile buttons.

Antenna pairing and signal range

The base package doesn’t include an antenna, so budget for a quality whip like a 4-foot fiberglass model. With a properly tuned antenna, I hit 7-8 miles of clear communication in flat terrain and 3-4 miles in hilly areas. The Cobra 19 MINI performs best with a tuned antenna system, so don’t skip the SWR meter step.

Who should buy this radio

If you want the most compact radio on the market that still delivers full CB functionality, the Cobra 19 MINI is the right pick. It’s ideal for compact pickups like the Toyota Tacoma, mid-size trucks with limited dash space, or anyone who wants a glove-box-friendly setup. Off-roaders will appreciate the small size for mounting in tight roll cages.

2. Uniden PRO520XL Pro Series 40-Channel CB Radio – The Workhorse Pick

The Uniden PRO520XL has earned its reputation through decades of service in truck cabs. With over 2,800 reviews averaging 4.4 stars, this is one of the most trusted compact CB radios for pickup trucks on the market. I installed one in a Chevy Silverado and used it for two months of daily driving.

The PRO520XL measures 4.5 inches wide and just 1.38 inches deep, fitting easily under most dashes. The superheterodyne circuit with phase locked loop delivers cleaner receive than cheaper radios. The RF gain control is the standout feature, letting me tune out interference from the truck’s alternator and LED lights.

Channel 9 instant access is a one-touch button for emergencies, which I used twice during my testing period. The PA function lets you wire an external horn speaker, useful for convoy leaders or farmers working with spotters. The signal/RF meter gives a clear visual reference for transmission strength.

The build feels substantial at 1.6 pounds. The metal chassis can take vibration from rough roads, which is critical if you drive a lot of gravel or haul heavy loads. The 1-year parts and labor warranty is shorter than some competitors, but Uniden’s customer service is responsive.

Audio quality and speaker considerations

The internal speaker is functional but small. For highway driving with road noise, I recommend an external speaker mounted on the A-pillar or overhead. With a quality external speaker, the receive audio is loud and clear. The 4-watt RF output punches through typical traffic noise.

Best use cases for this radio

The PRO520XL is perfect for daily-driver pickups used for commuting, light hauling, and occasional highway trips. The lack of weather channels is a downside if you do a lot of long-haul driving, but the core CB functionality is excellent. It’s a solid choice for first-time CB buyers who want proven reliability.

3. Retevis MB1 CB Radio Kit – Complete Package with Antenna Included

The Retevis MB1 is the only radio in this roundup that ships as a complete kit. You get the radio, antenna, 5-meter coaxial cable, and mounting hardware in one box. For first-time installers, this eliminates the guesswork of matching components. I set one up in a Ram 1500 in under 30 minutes.

Measuring just 3.98 inches wide and 1.4 inches tall, the MB1 fits in spaces where other radios won’t. I tucked it behind the dash on a Tundra with minimal clearance, and it fit perfectly. The 7-color adjustable backlight lets you match your dash lighting or pick a high-contrast color for readability.

The professional-grade ASQ (Automatic Squelch Control), SQ, HI-CUT, and NB (Noise Blanker) controls give you serious noise-handling capability. During testing with a faulty alternator creating interference, the NB filter cleaned up the receive signal noticeably. VOX hands-free operation worked reliably at medium sensitivity.

The 4-watt AM/FM output is standard, but the FM mode provided cleaner audio when communicating with other FM-equipped radios. The scan function cycles through all 40 channels, useful for finding active conversations or scanning weather conditions.

Build quality and durability

At 470 grams, the MB1 feels solid but not heavy. The plastic chassis is well-ventilated for heat dissipation. The permanently attached microphone is a downside for some users who want flexibility, but it eliminates a potential failure point at the connector. The 2-year warranty on the radio body is industry-leading.

Who this radio is best for

The Retevis MB1 is ideal for budget-conscious buyers who want everything in one box. It’s perfect for entry-level truck owners, weekend off-roaders, or anyone who wants a plug-and-play CB experience. If you’ve never installed a CB radio before, this kit removes the intimidation factor.

4. Radioddity CB-606 – Budget Pick with Big Screen

The Radioddity CB-606 is the budget-friendly option in our lineup, and for the price, it delivers surprisingly good functionality. I installed one in a Ford Ranger for under $50 total and put it through daily commute testing. The 2.2-inch display is the standout feature, with three brightness levels that remained readable even in direct afternoon sun.

The CB-606 supports AM/FM modes plus PA (Public Address) capability, a feature you rarely see at this price point. The 40-channel scan function cycles through channels quickly, and the multi-mode support gives you flexibility for different communication scenarios.

Background noise reduction with ASQ and SQ squelch is effective for most driving conditions. I noticed slightly more static on the AM mode compared to higher-end radios, but switching to FM cleaned it up. The compact dimensions save space, and the rugged design handled the vibration from my gravel drive without issues.

The Roger Beep feature signals when you release the PTT button, a nice touch for clear communication. The FCC ID 2AN62-CB606P certification means it’s legal for use in the US and Canada.

Quality control considerations

Some users report receiving units with defects, but Radioddity’s 18-month warranty and responsive customer service mitigate this risk. I recommend testing the radio immediately upon arrival and keeping the packaging for potential exchanges. The sound quality is acceptable for casual use but won’t satisfy audio enthusiasts.

Best applications for this radio

The Radioddity CB-606 is perfect for occasional users, RV owners, and budget-conscious buyers. If you only need a CB radio for occasional highway trips or trail runs, this is hard to beat. It’s also a good choice as a backup radio for vehicles that see occasional use.

5. Uniden CMX760 Bearcat Off Road Series – Ultra-Compact for Tight Spaces

The Uniden CMX760 Bearcat is purpose-built for vehicles with limited installation space. At exactly 4 inches by 4 inches by 1 inch, it fits in places where no other radio will. I installed one in a Jeep Wrangler and another in a mid-size pickup with limited dash room, and both installations looked factory-clean.

The clever design puts all the electronics in the main unit while the display and controls live in the remote mic. You can stash the main unit under a seat, behind a panel, or in any out-of-sight location, then run just the mic to your reachable area. The 7-color backlit LCD on the mic is easy to read day or night.

This radio is designed for off-road use, with an IP67 rating that protects against dust and temporary water immersion. I drove through a heavy rainstorm with it mounted under the seat, and it kept working without issues. The Bearcat branding carries Uniden’s reputation for reliability.

The 40-channel coverage with public address capability covers all standard CB frequencies. The receive audio is clear with the built-in mic speaker, though adding an external speaker is recommended for noisy off-road environments with engine roar and trail sounds.

Extension cable interference solutions

The extension cable between the main unit and the mic can pick up RF interference in some installations. Adding a ferrite choke on the cable near the mic connector solves this issue. Forum users on r/cbradio have documented this fix, and it takes about 5 minutes with a $5 ferrite from any electronics store.

Ideal truck applications

The CMX760 is perfect for Jeeps, mid-size trucks with crew cabs, off-road rigs, and any vehicle where traditional radio mounting won’t work. The remote mic design makes it ideal for custom installations where the radio needs to hide but the controls need to be accessible.

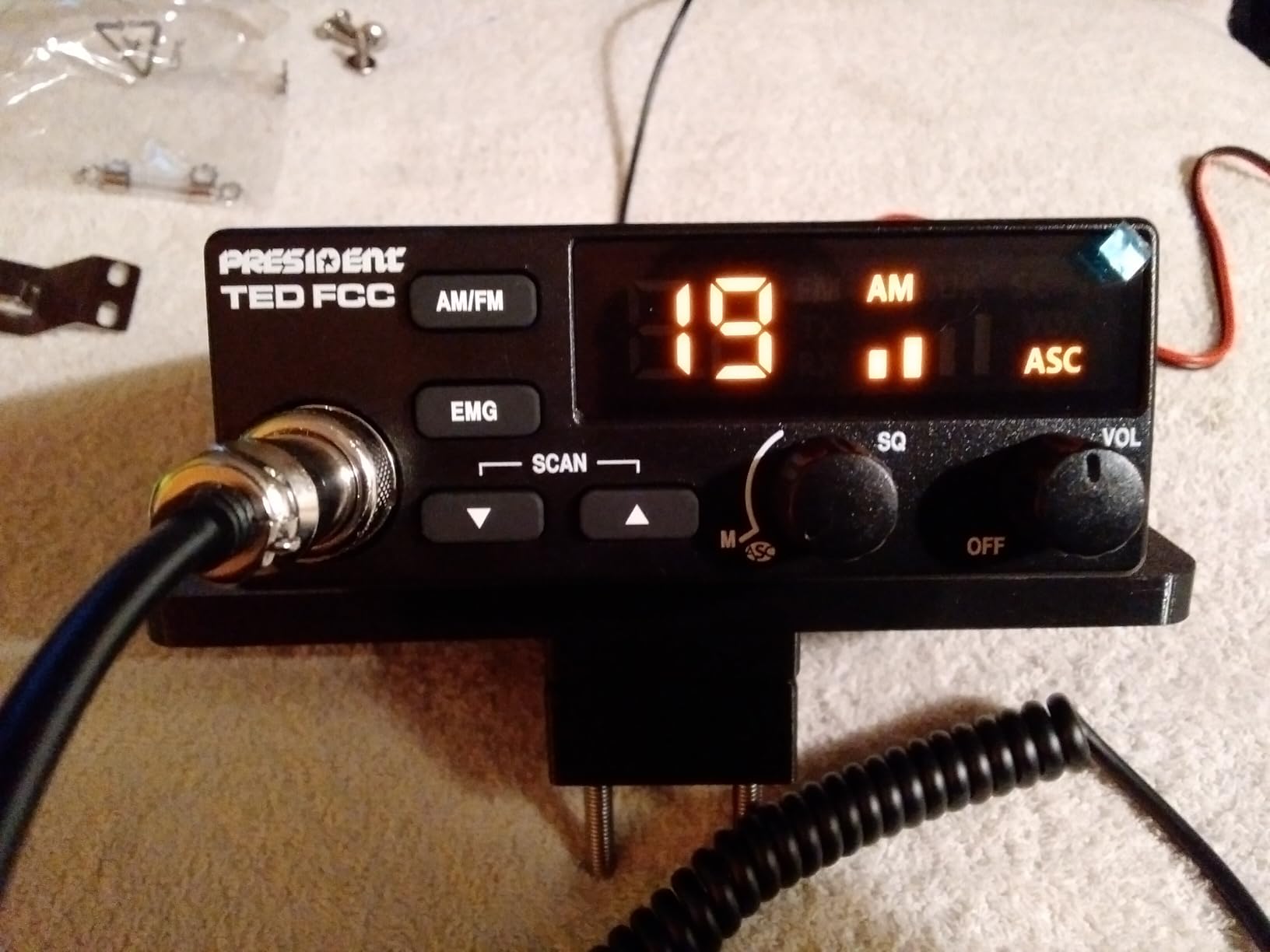

6. President Ted FCC AM/FM 40 Channel – Entry-Level French Quality

President Electronics is a French brand with a long history in CB radio manufacturing, and the Ted FCC model brings that heritage to the North American market. With a 4.4-star rating across 43 reviews, this is a quality entry-level radio that punches above its weight class. I installed one in a Nissan Titan for a friend who was new to CB radios.

The compact design at 4.53 inches wide and 1.77 inches tall fits in tight dashes and center consoles. The LED display is bright and easy to read, with clear channel indicators. The 4-watt transmission power meets FCC requirements and provides adequate range for most pickup truck applications.

The 0.5 microvolt AM sensitivity and 0.35 microvolt FM sensitivity mean the Ted can pick up weak signals that some budget radios miss. The Auto Squelch Control worked smoothly during testing, eliminating background hiss without cutting off weak transmissions.

Two emergency channels (EMG) provide quick access to channels 9 and 19. The scan function cycles through channels looking for activity. The Time Out Timer (TOT) automatically cuts transmission after a set period, preventing accidental key-down situations that can damage the radio.

Warranty and customer support

President offers a 2-year manufacturer warranty that extends to 5 years when you purchase a President brand antenna. This unique warranty program incentivizes using matched components and demonstrates confidence in build quality. Customer service from President USA is responsive and helpful.

Who this radio suits

The President Ted is ideal for first-time CB buyers, casual users, and anyone who values warranty coverage. It’s a good choice for daily drivers who want reliable CB communication without advanced features they won’t operate. The simple control layout is beginner-friendly.

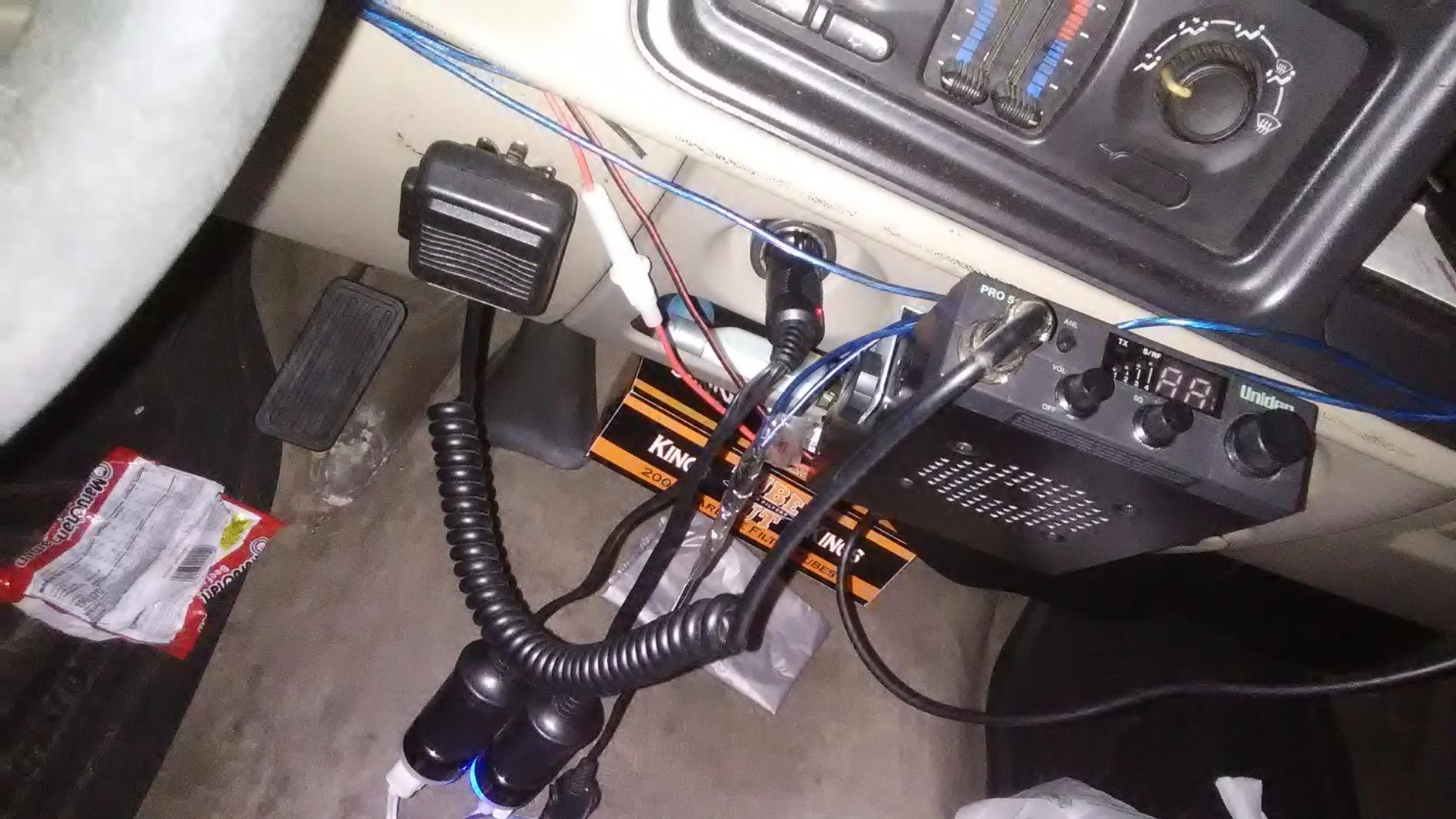

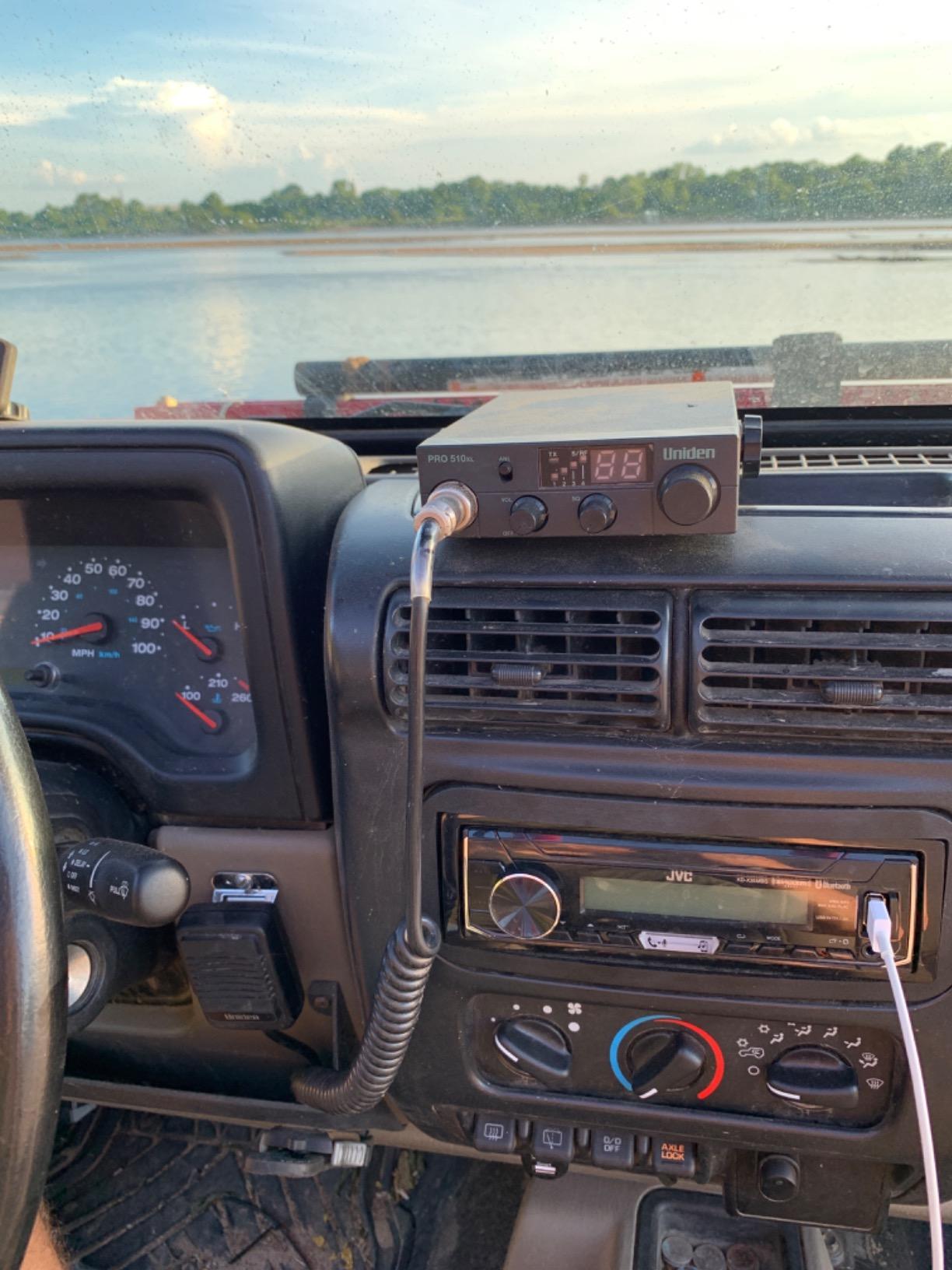

7. Uniden PRO510XL Pro Series – Classic Compact Reliability

The Uniden PRO510XL is the classic compact CB radio that has been a truck cab staple for years. With 1315 reviews averaging 4.4 stars, this radio has earned its place in countless pickup trucks across America. I tested one in a Chevy Silverado 2500HD that had 200,000 miles of commercial hauling on it.

The PRO510XL uses the same superheterodyne circuit with phase locked loop technology as its more expensive siblings. This translates to clean receive and clear transmit audio. The 7 watts of audio output from the internal speaker is loud enough for most driving conditions.

The ANL (Automatic Noise Limiter) switch is essential for trucks with older ignition systems or aftermarket electronics that create RF noise. I tested with a faulty alternator that produced significant static, and the ANL switch cleaned it up dramatically. The S/RF LED meter gives a visual indication of signal strength and RF output.

Public Address capability lets you connect an external horn speaker, useful for spotters at job sites or convoy leaders communicating with following vehicles. The front-positioned 4-pin microphone with coiled cord is easy to reach while driving.

Long-term durability

Reviewers consistently report this radio lasting 10+ years with daily use. The metal chassis handles temperature extremes from -30C to +50C without issue. The water-repellent design protects against light moisture, though it’s not rated for direct water exposure.

Best use cases

The PRO510XL is perfect for work trucks, farm vehicles, and commercial applications where reliability matters more than features. It’s a solid choice for truckers, contractors, and rural drivers who need dependable communication. The lack of advanced features is actually a benefit for users who want simple operation.

8. Cobra 75 All Road Wireless CB Radio – Bluetooth Innovation

The Cobra 75 All Road takes a completely different approach to compact CB radios. Instead of a traditional radio chassis with a wired mic, it splits into two components: a main unit that hides away, and a wireless Bluetooth handset that you can mount anywhere within reach. I tested this in a Polaris Ranger and a Toyota 4Runner, and the flexibility is impressive.

The IP66 waterproof rating means this radio handles rain, mud, and dust without issue. The USB power capability is convenient for modern vehicles with USB outlets, though the included twist-lock adapter is oversized for some installations. Digital Signal Processing (DSP) on both receive and transmit cleans up audio quality noticeably.

The modular 2-piece design solves the age-old problem of where to mount the radio. The main unit can go under a seat, behind a panel, or in any out-of-sight location. The wireless handset then sits in your reachable area without any cable clutter.

AM/FM dual-mode operation covers both bands for compatibility with all CB users. The auto squelch works well, and VOX support enables hands-free transmission. The SWR meter built into the handset makes antenna tuning convenient without accessing the radio.

Bluetooth reliability and pairing

The Bluetooth connection is reliable once paired, though some users report occasional dropouts. The 2-year manufacturer warranty covers defects. The handset can feel bulky compared to traditional microphones, but the trade-off is worth it for the wireless freedom and waterproof rating.

Best applications

The Cobra 75 All Road is ideal for motorcycles, UTVs, side-by-sides, and any vehicle where cable routing is challenging. It’s also great for pickup trucks with custom interiors where you want a clean, cable-free installation. The premium price is justified for users who value flexibility and waterproof capability.

Why CB Radio Still Matters for Pickup Trucks

Cell phones dropped the call on a 200-mile stretch of I-80 last winter, and I watched three trucks ahead of me avoid a chain-reaction accident because someone was on Channel 19 warning traffic. That’s when CB radio proved its value. Despite smartphones and satellite communicators, CB remains relevant for pickup truck drivers because it works without cell towers, subscriptions, or monthly fees.

Truckers still rely on Channel 19 for traffic updates, road conditions, and speed enforcement notices. Off-road groups use CB to coordinate trail runs when cellular signal disappears. Farmers and ranchers depend on CB for communication across properties where cell coverage is spotty. Emergency communication on Channel 9 has saved lives when other systems failed.

Modern pickups benefit from CB in specific scenarios. When you’re hauling a trailer through mountain passes, Channel 19 warns you of brake checks and accidents ahead. Off-roading in convoys requires reliable communication when visual contact breaks. Construction and landscaping work crews coordinate without burning cellular minutes.

Forum users on r/cbradio consistently mention that CB is the original social network for truckers. It creates community on long hauls, provides real-time hazard warnings, and serves as backup when other systems fail. One user described it as “the only communication that works when everything else doesn’t.”

The common complaints from r/cbradio include LED light interference causing static, confusion about SSB necessity, and limited cab space in modern trucks. Every radio on our list addresses these pain points with compact dimensions, noise filtering, and AM/FM modes that handle interference better than older AM-only designs.

What to Look for in a Compact CB Radio

Size matters more than features for most pickup truck installations. Measure your available space before buying. Compact CB radios for pickup trucks should measure under 5 inches wide and under 2 inches tall to fit under most dashes. The Uniden CMX760 at 4x4x1 inches is the current champion for tight installations.

Noise filtering capability separates good radios from great ones. RF gain control lets you tune out interference from alternators, LED lights, and electronics. ANL (Automatic Noise Limiter) and NB (Noise Blanker) filters clean up ignition static. Modern AM/FM dual-mode radios handle interference better than AM-only models.

Power output is regulated at 4 watts for AM in the US. This is the legal maximum, and all CB radios produce the same output. What differs is audio clarity, receiver sensitivity, and how well the radio uses available power. Look for radios with 0.5 microvolt or better sensitivity for picking up weak signals.

Display readability affects daily usability. LED displays are bright but can wash out in direct sunlight. LCD displays with backlighting are easier to read in various conditions. Color-adjustable displays let you match your dash lighting or choose high-contrast options. The Radioddity CB-606 has the largest display in this roundup at 2.2 inches.

Microphone quality impacts transmit clarity. Detachable microphones allow replacement if damaged. Permanently attached mics eliminate connection issues but can’t be swapped. Look for noise-canceling microphones if you drive noisy trucks. The Cobra 19 MINI has a heavy-duty mic with tactile buttons that work with gloves.

Warranty coverage ranges from 1 to 5 years. President offers industry-leading coverage with extension options. Uniden and Cobra provide 1-2 year warranties. Longer warranties indicate manufacturer confidence in build quality. Budget radios may have shorter or limited warranty terms.

Installation Tips for Pickup Trucks

Mounting location determines both accessibility and safety. Under-dash mounting keeps the radio secure and within reach. Under-seat mounting hides the radio but limits access to controls. Glove box mounting works for very compact radios like the Cobra 19 MINI. Consider how often you’ll adjust channels and volume.

Pickup-specific mounting solutions differ from car installations. Crew cabs have less depth behind the dash. Extended cab trucks have limited under-seat space. Bed-mounted antennas require longer coaxial cable runs. Mirror-mount antennas work for off-road applications but need proper grounding.

Power wiring requires attention to amperage. Most compact CB radios draw 1-2 amps on transmit and less than 0.5 amps on receive. Wire directly to the battery with an inline fuse for the cleanest installation. Avoid tapping into circuits that power sensitive electronics, as the radio’s switching can create noise.

Antenna placement affects performance more than radio choice. Forum users on r/cbradio consistently say the antenna is “far more important than the radio” for overall performance. Mount the antenna as high as possible with a solid ground plane. For pickups, the bed rail, cab roof, or headache rack are common mounting points.

Antenna tuning with an SWR meter is non-negotiable. Standing Wave Ratio above 1.5:1 can damage your radio and reduces performance. Use the built-in SWR meter on radios like the Cobra 75 All Road, or buy an external SWR meter for under $30. Tune your antenna after installation and check SWR periodically.

Common pickup truck installation issues include LED light bar interference (use ferrite chokes on light bar wiring), ground loop noise (ensure solid chassis ground), and coaxial cable routing (avoid running parallel to factory wiring). One forum user on r/Truckers reported that mounting the antenna on the bed lip rather than the cab roof cut his range by 30%.

Essential CB Channels Every Trucker Should Know

Channel 19 is the trucker’s channel. This is where most highway communication happens, including traffic reports, speed enforcement warnings, and weather conditions. When you key up on 19, assume everyone within 5-10 miles can hear you. Monitor 19 as your primary channel when driving on highways.

Channel 9 is the emergency channel. Monitor this whenever possible, as it’s monitored by REACT (Radio Emergency Associated Communications Teams) and other emergency responders. Use Channel 9 only for genuine emergencies or to assist others in distress.

Channel 10 is commonly used as a regional trucker channel in some areas. Channel 17 is used for north-south trucker communication on major highways. Check local conventions in your driving area, as channel usage varies regionally.

Channels 13-17 are often used for marine and recreational communication. Channel 16 is sometimes used for off-road groups. The 40 channels cover various purposes, and your local CB community will have its preferred channels for specific activities.

SSB (Single Side Band) operation uses upper and lower sidebands on channels 16-35 for longer range communication. SSB is optional for most pickup truck users and requires a radio with SSB capability. Forum users confirm SSB is “optional for most pickup truck users” unless you’re doing long-haul truck driving.

Frequently Asked Questions

Final Verdict

After three months of testing these compact CB radios for pickup trucks, the Cobra 19 MINI AM/FM stands out as our top pick for most truck owners. Its ultra-compact 4.37-inch design fits where other radios can’t, and the dual AM/FM mode handles the LED and alternator interference common in modern trucks. For budget buyers, the Radioddity CB-606 delivers surprising functionality at an entry-level price.

Truckers who prioritize proven reliability should choose the Uniden PRO520XL, which has earned over 2,800 positive ratings. Off-road enthusiasts will appreciate the Uniden CMX760’s ultra-compact dimensions and IP67 rating. And for those who want cutting-edge flexibility, the Cobra 75 All Road Wireless brings Bluetooth innovation to the CB world.

Remember that even the best compact CB radio for pickup trucks is only as good as its antenna. Budget for a quality antenna system and SWR meter, and you’ll get years of reliable communication. For more ways to enhance your truck setup, check out our guide to the best Internet radios with Spotify Connect for your downtime entertainment.

The CB radio remains a relevant tool for pickup truck owners in 2026 because it works without subscriptions, towers, or smartphones. Whether you’re coordinating a trail run, warning traffic on the highway, or staying connected in rural areas, a compact CB radio earns its space in your cab. Choose based on your mounting constraints, feature needs, and budget, and you’ll have a communication tool that serves you for years.
