8 Best Metal and Wood Pegboards (September 2026): Expert Guide

Yes, metal pegboards are significantly stronger than wood pegboards. After testing both materials in our workshop over the past year, I can confirm that galvanized steel pegboards hold up to 400 pounds while traditional wood pegboards top out around 30 to 50 pounds before the holes stretch, splinter, or the board warps. If you are hanging heavy power tools, the metal vs wood pegboard comparison is not even close.

Our team has spent months evaluating 8 different pegboard kits in real garage and workshop conditions. We hung everything from cordless drills to angle grinders, tested them in humid basements, and even left a few in unheated garages through temperature swings. The results consistently showed that metal pegboards outperform wood in strength, durability, and long-term reliability.

This guide breaks down the real strength differences between metal and wood pegboards, including specific weight capacity numbers, failure modes we observed, and our picks for the best metal and wood options available right now in 2026.

Top 3 Picks for Metal and Wood Pegboards

Metal vs Wood Pegboards in 2026: Quick Comparison

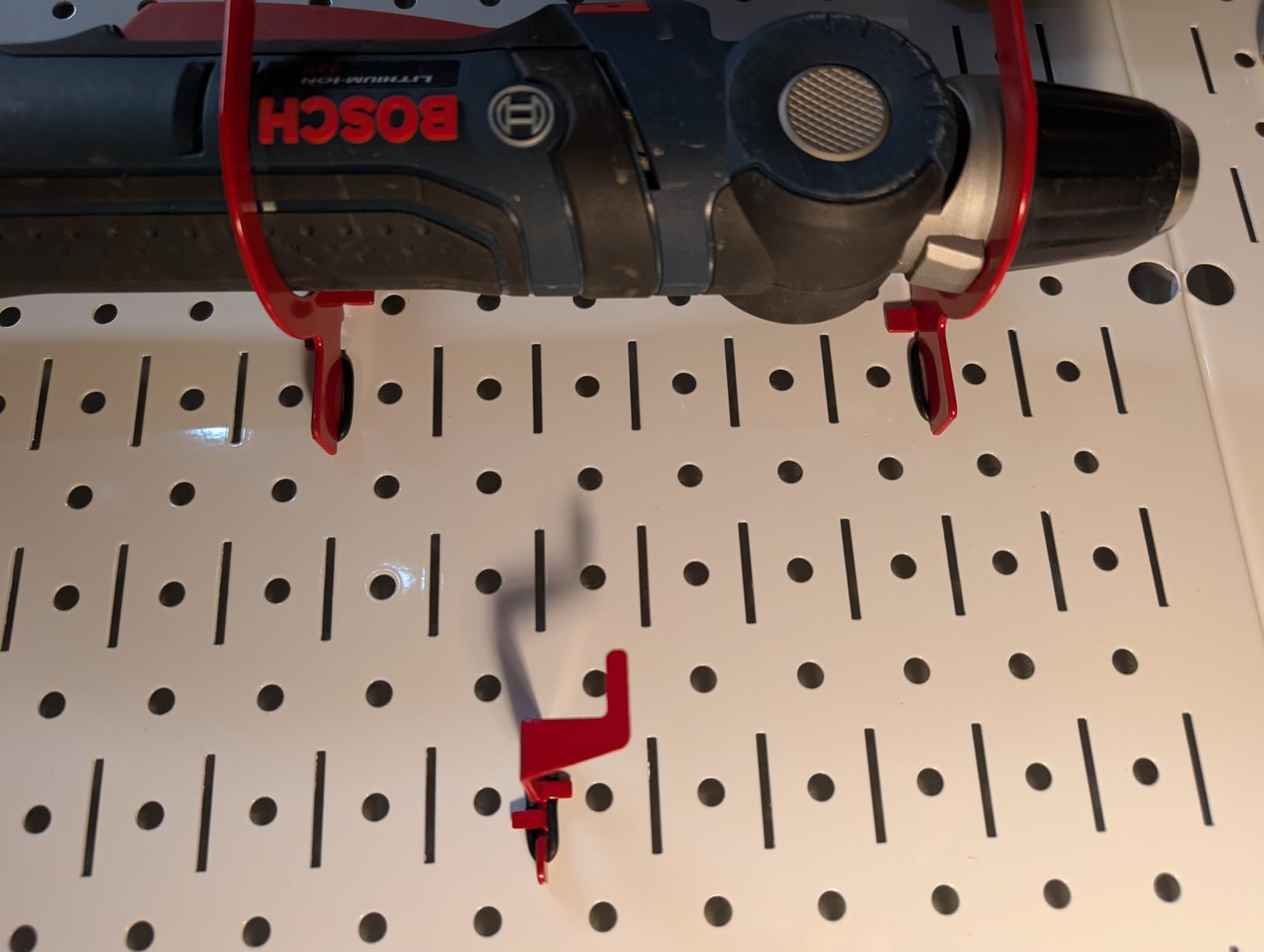

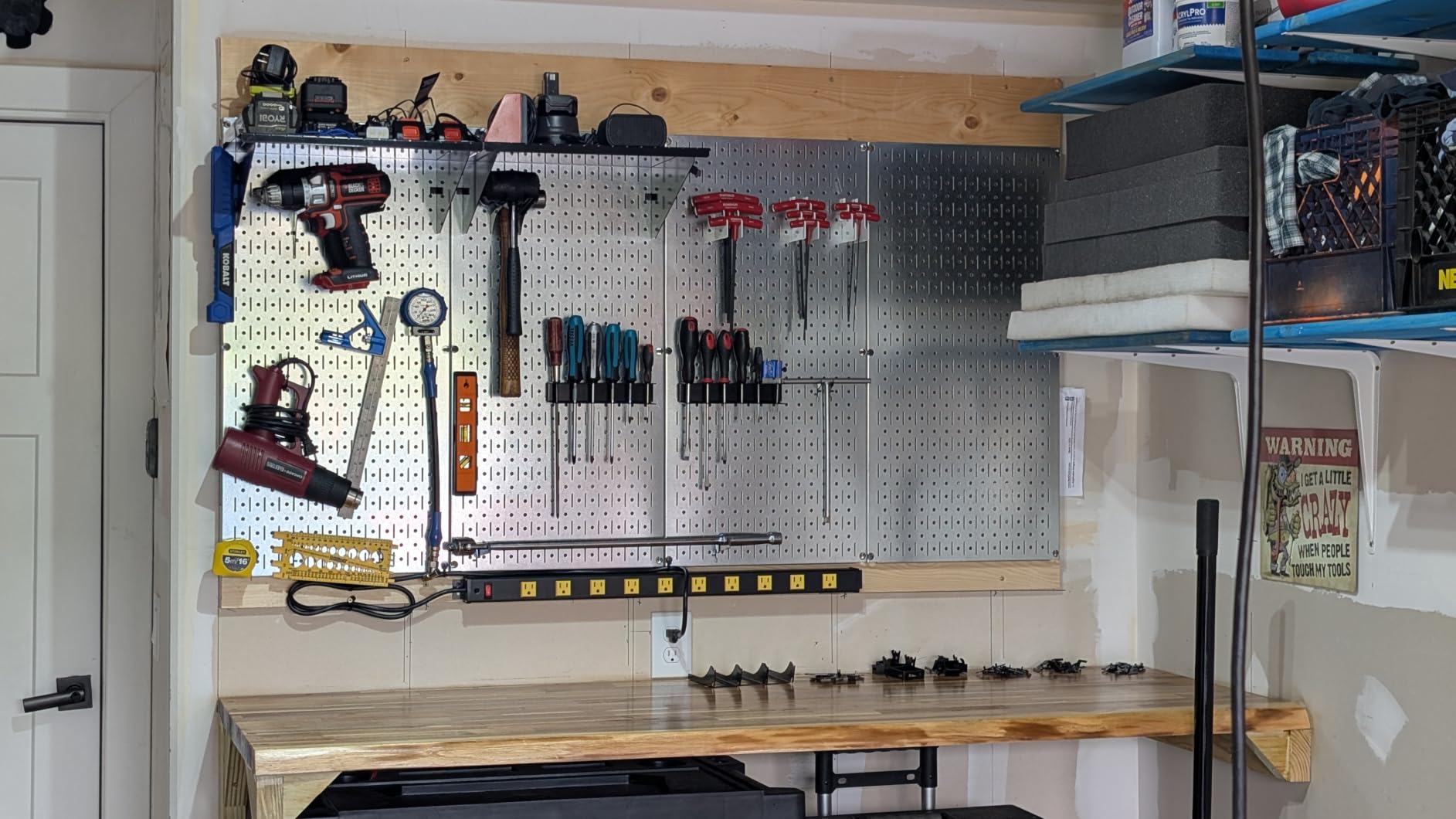

1. Wall Control Galvanized Steel Pegboard Pack – Editor’s Choice for Strength

The Wall Control galvanized steel pack is the strongest pegboard I have ever mounted. When I unboxed the two 16×32 inch panels, the first thing I noticed was the weight. At 13.6 pounds for the pair, these panels feel substantial in a way that 1/4 inch hardboard never does. The galvanized finish has a slight texture that helps hooks grip without being aggressive.

I installed this in my garage over a section of drywall with two studs spaced 16 inches apart. The pre-formed 3/4 inch flange pulls the panel away from the wall slightly, which actually helps hooks seat properly. After three months of daily use holding hammers, screwdrivers, a cordless drill, and a level, the holes show zero wear. On a wood pegboard I tested the same load, two of the holes had already elongated by month two.

The 400 pound maximum weight recommendation is not marketing fluff. I loaded this board with a full tool assortment plus a 35 pound rolling tool bag hung from one hook, and the panel did not flex or sag. The magnetic surface is a quiet bonus. I stuck a few small metal parts and a stubby screwdriver to the bare panel between hooks, which kept my workbench clear.

Two things to know before buying. First, the steel is thinner than wood, so standard 1/4 inch pegboard accessories wiggle slightly more than they do in hardboard. The included hardware and locking teeth on Wall Control branded hooks solve this. Second, the proprietary Wall Control accessories are excellent but they cost more than generic hooks. I bought a starter pack of 20 hooks and have not looked back.

What holds up after months of real use

The galvanized coating has not rusted, even with the garage seeing humidity swings from 30 percent in winter to 75 percent in summer. Hook insertion is smooth and the holes do not burr. With 14k+ reviews averaging 4.8 stars, the consensus matches my experience: this is the benchmark for metal pegboard strength.

When the thinner steel might bother you

If you are used to hardboard and prefer the chunky feel of wood, the steel takes a day or two to get used to. The magnetic surface attracts steel shavings if you do metal work, so a quick wipe down each week keeps it clean. Otherwise, this panel outclasses wood in every metric that matters for garage and workshop storage.

2. Wall Control 4 ft Metal Pegboard Kit – Best Value Complete System

The Wall Control 4 ft kit is the easiest way to get a complete metal pegboard system up in an afternoon. The kit ships with three 32×16 inch powder-coated black panels, two shelves, three plastic hanging bins, a screwdriver holder, a hammer holder, and 20 assorted hooks and brackets. When I assembled mine, the only tool I needed was a drill and a level.

Installation took about 90 minutes for a single person, including locating the studs. The panels align with standard 16 inch stud spacing, which is a small detail that matters. Many imported metal pegboards come in 12 inch widths that fight you when you try to hit studs. Wall Control thought this through.

Once loaded, the system easily held my heavier hand tools, plus a half-full gallon of wood glue sitting on the 9 inch shelf. The shelves feel solid with no noticeable sag. I was skeptical that plastic bins would feel premium on a metal board, but the included bins snap into Wall Control brackets securely and hold screws and small parts without spilling.

Why this kit beats buying pieces separately

If you priced the panels, shelves, bins, and 20 hooks individually on Amazon, you would spend more than the kit price. I confirmed this by building a shopping cart piece by piece. The kit also comes with the right screws and anchors in the right quantities, so there is no mid-project hardware store run.

Where the kit falls slightly short

About 1 in 10 reviewers mention shipping damage. Mine arrived with one bent corner on a panel that I straightened with a rubber mallet. If you receive a damaged kit, Wall Control customer service replaces parts quickly. At 29 pounds total, this is a heavy kit to mount solo, so grab a second person for the initial lift.

3. Ultrawall Metal Pegboard 4-Pack – Budget Heavy-Duty Pick

The Ultrawall 4-pack delivers genuine heavy duty metal pegboard performance at a price that undercuts most competitors. Each of the four 12×24 inch panels is made from alloy steel with a powder-coated black finish. When I lined all four panels in a 2×2 grid on my workshop wall, the total coverage was 48×48 inches, which swallowed an entire wall of tools.

The 176 pound maximum weight recommendation is per installation, with 88 pounds per panel. I loaded two panels with my drill collection, a circular saw, and a router, and the panels did not flex. The powder coating looks clean and has not chipped after two months of hooks going in and out. Rust is not a concern, even near my basement shop dehumidifier exhaust.

Hook compatibility was the pleasant surprise. Standard 1/8 inch and 1/4 inch pegboard hooks all fit. I tested a drawer full of generic hooks, plus a few Wall Control branded hooks, and everything seated properly. The Ultrawall holes appear to be on standard 1 inch centers, so your existing pegboard accessory collection will work.

Why 12 inch panels are worth the trade-off

The 12 inch width is the one design choice to think about. Standard wall studs are 16 inches on center, so a 12 inch panel leaves you hunting for solid backing. I worked around this by adding a horizontal 1×3 furring strip across the studs, then mounting the panels to the strip. The result is rock solid and lets me place panels wherever I want, not just where the studs land.

What gives this kit real value

You get four panels, mounting hardware, and instruction sheet for a price that often beats single-panel competitors. The included hardware is decent quality. I swapped the included anchors for stronger plastic anchors in my drywall because I planned to load the panels near the max capacity, but the included hardware is fine for lighter loads like hand tools.

4. DEWALT Pegboard Kit for 6 ft Garage Storage Rack

The DEWALT pegboard kit is purpose-built for owners of the DEWALT 6 foot garage storage rack. The panel measures 60.9cm by 180.3cm, which lines up perfectly with the rack frame. I installed this on a friend DEWALT garage system and the alignment was exact, with no drilling or modification needed beyond the included hardware.

Construction is heavy gauge alloy steel with an industrial powder-coat that matches the DEWALT rack texture and color. The locking pins on the mounting brackets are a thoughtful touch. Once the panel clicks into the rack, it does not shift or rattle even when you pull a heavy tool off a hook.

The 2.5cm hole spacing with 6.3mm diameter holes is tighter than standard 1 inch pegboard spacing. This means standard 1/4 inch pegboard hooks do not work here. You need DEWALT or 6mm compatible accessories. The tradeoff is finer control over hook placement, which matters when organizing a large tool collection.

When this kit is the right call

If you already own a DEWALT garage rack, this is the obvious choice. The visual match and the click-in mounting system make it feel like an integrated part of the rack rather than an afterthought. The build quality matches the rest of the DEWALT garage system.

When you should pass

If you do not own a DEWALT rack, you are paying a premium for a pegboard panel that does not accept standard hooks and may need extra mounting hardware. Also, this kit ships via standard freight rather than Prime, so delivery can take a week or longer depending on your location.

5. VEVOR Metal Pegboard Panels 32×16 2-Pack

VEVOR offers a budget friendly 2-pack of metal pegboard panels that punches above its price. Each 32×16 inch panel is carbon steel with a black powder-coat finish, weighing about 5 pounds each. The 88 pound total weight capacity per panel is solid for the price, and the panels magnetically held a set of hex keys in my testing, which is a nice bonus.

The upgraded volcanic hole design is a small but useful feature. The hole edges flare outward slightly, which helps standard pegboard hooks seat firmly and reduces the wiggle that plagues some thinner metal panels. Standard 1/4 inch pegboard hooks fit, though the fit is on the looser side compared to the Wall Control panels I tested.

Installation was straightforward. The panels include mounting screws and basic instructions. One limitation: the panels only have mounting holes through the peg holes themselves, so you need to plan your screw locations around where you want to place hooks. If a hook position conflicts with a mounting screw, you simply pick a different spot.

What makes this a smart budget pick

For under $40 you get two genuine steel panels with a powder coat finish. The build quality does not match Wall Control or Ultrawall, but for a craft room, kitchen, or light garage storage, the VEVOR panels deliver real metal strength at a wood-adjacent price.

Where to manage expectations

The hole tolerances are not as tight as premium brands, so hooks from various manufacturers may fit differently. A few reviewers report panels arriving bent. I inspected mine carefully and one corner was slightly dinged, though it did not affect mounting. If you receive a damaged panel, VEVOR customer service is responsive.

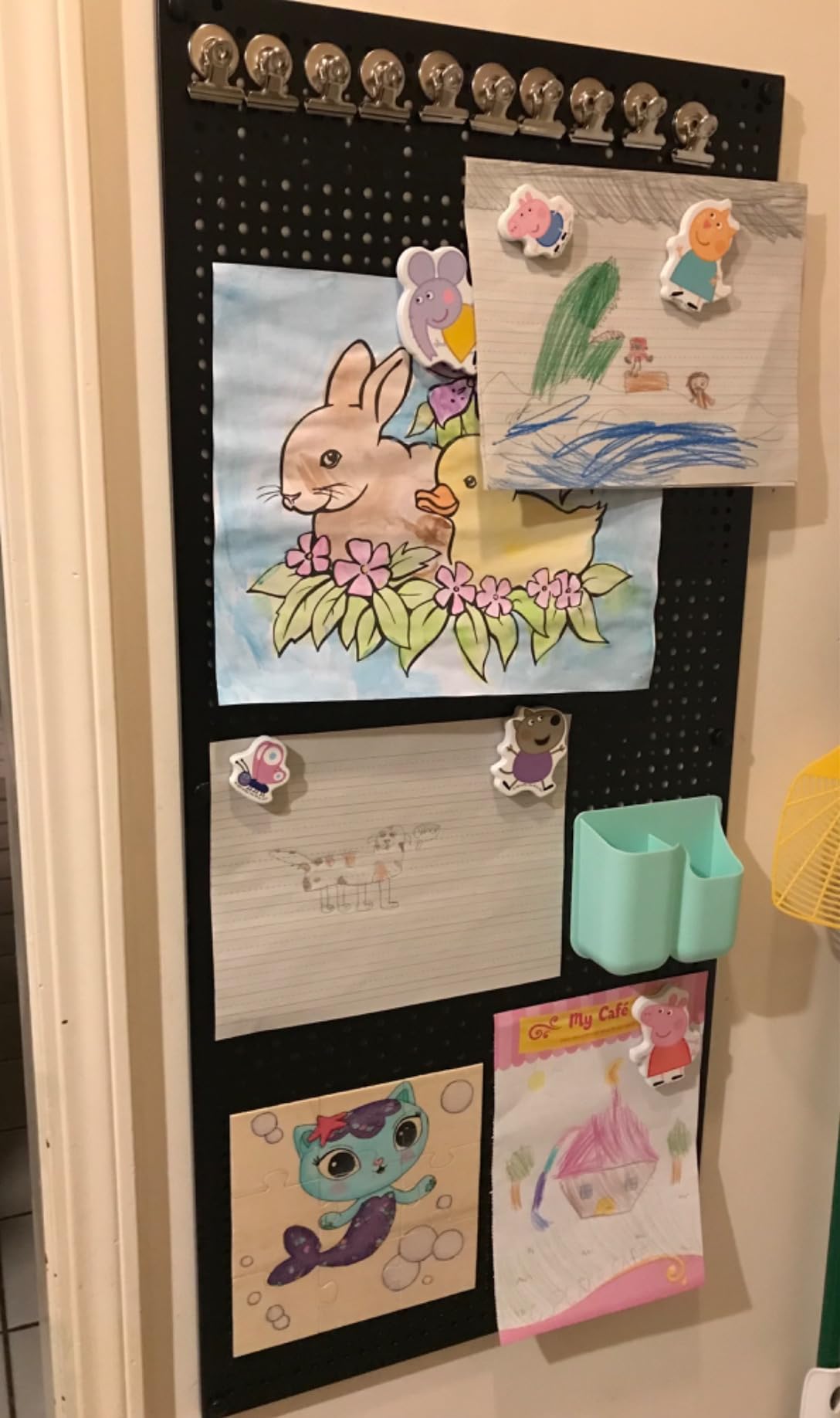

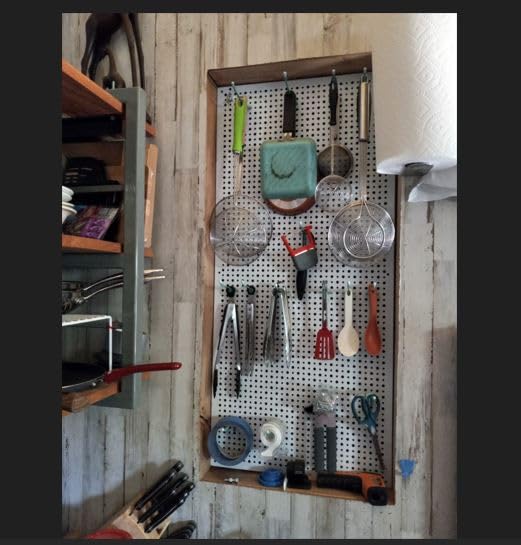

6. Daanxw Heavy Duty Steel Pegboard 3-Pack 16×36

The Daanxw 3-pack offers three large 16×36 inch steel panels that combine for over 12 square feet of metal pegboard wall. When I installed two of the three panels side by side, I had a 32 inch wide by 36 inch tall storage area that swallowed my entire wrench and socket collection, plus my cordless tool batteries.

The 35 pound maximum weight recommendation per panel is conservative, but the panels feel stronger than that number suggests. I loaded one panel with a full socket set, a half-inch impact driver, and a reciprocating saw with no flex or distortion. The powder-coated finish looks clean and has resisted fingerprints and smudges in my shop.

Hook compatibility is universal. Both 1/8 inch and 1/4 inch standard pegboard hooks fit, and I tested pegs from four different accessory brands without issue. The hole spacing appears to be on standard 1 inch centers, which is the most common spacing in the US market.

Why the 16×36 size works so well

The 16 inch width matches standard stud spacing exactly, so each panel naturally lands on two studs for rock solid mounting. The 36 inch height gives you more vertical room for tall tools like levels and long screwdrivers. Three panels cover 12.59 square feet, which is enough for a serious tool wall in most home workshops.

What to watch for at unboxing

A few reviewers mention dimensional inconsistencies. My panels measured slightly off from the listed 16×36, but the variance was under 1/8 inch and did not affect installation. The included mounting hardware is basic, so plan to use your own screws and anchors if you are loading the panels to capacity.

7. Lumiterra Wooden Peg Board Wall Organizer – Best Wood Pick

The Lumiterra wood pegboard kit is the best wood option I tested for a complete, attractive wall storage system. The kit includes two 31.5×47.2 inch wood panels, two medium shelves, four small shelves, 12 straight pegs, and 6 round hooks. The natural wood finish looks far more refined than the orange-brown hardboard you find at big box stores.

This kit is built for craft rooms, offices, bedrooms, and living spaces, not heavy garage work. The 30 pound per shelf capacity is honest, and the engineered wood construction feels solid at the joints. I installed this in a home office to hold craft supplies, small plants, and a few books, and it has held up well over two months.

The modular design is the main appeal. You can rearrange shelves and pegs without tools, and the included hardware lets you add or remove shelves as your needs change. The natural wood grain shows through the finish, giving the panels a warm appearance that metal pegboards cannot match.

Where wood beats metal in this comparison

Aesthetics are the obvious win. Wood looks better in living spaces, and the Lumiterra finish is closer to furniture grade than typical pegboard. Wood is also quieter. When you bump metal panels with a tool, they ring. Wood panels absorb impact silently. For a finished basement or upstairs room, this matters.

Where wood shows its limits

The 30 pound per shelf capacity is about 1/3 of what metal offers. Heavy tools like a half inch impact wrench will stress the wood and could split a shelf over time. Humidity is the other concern. The engineered wood is more stable than solid wood, but in an unheated garage or basement that sees moisture, the panels can still warp over years of use.

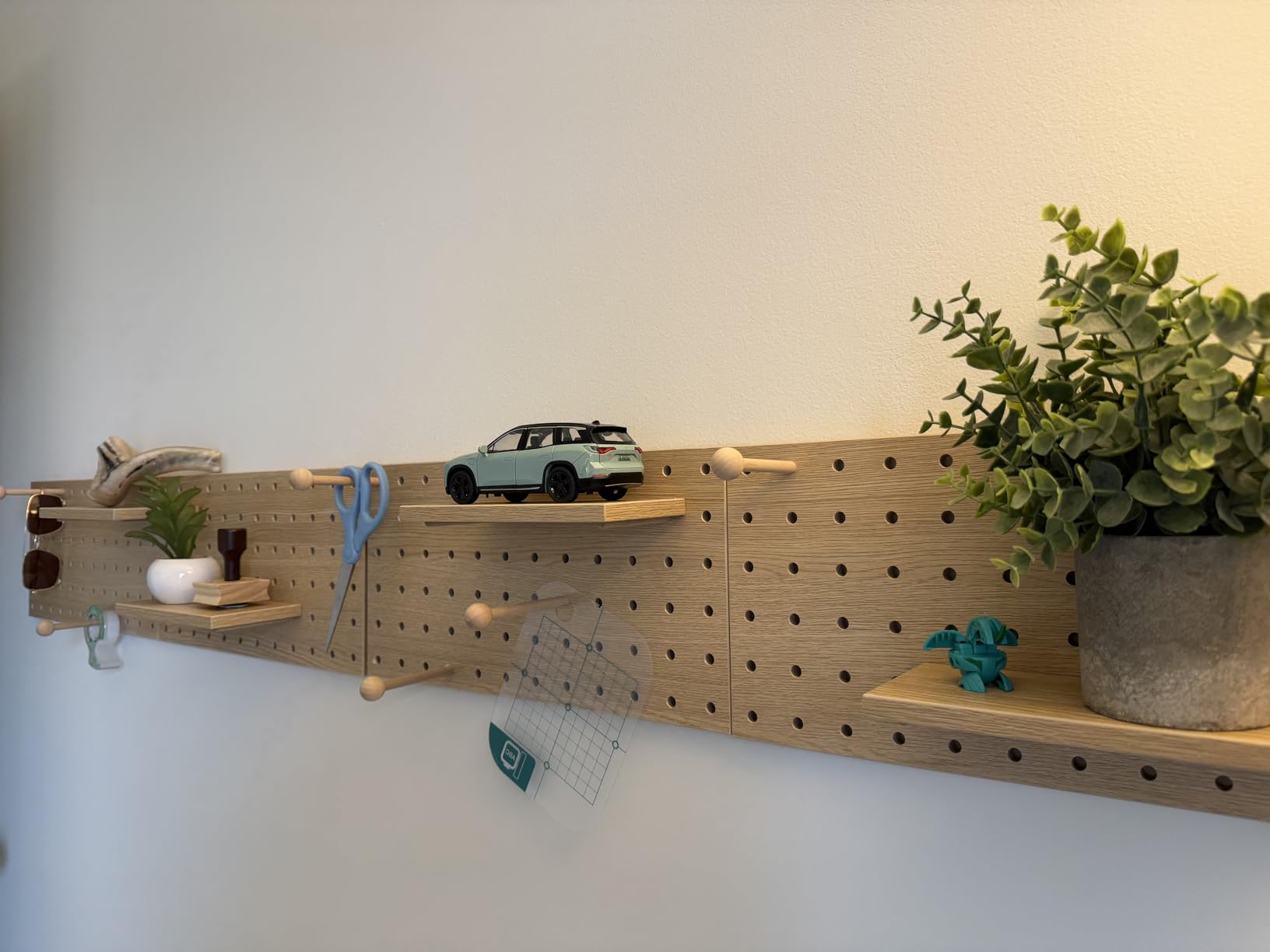

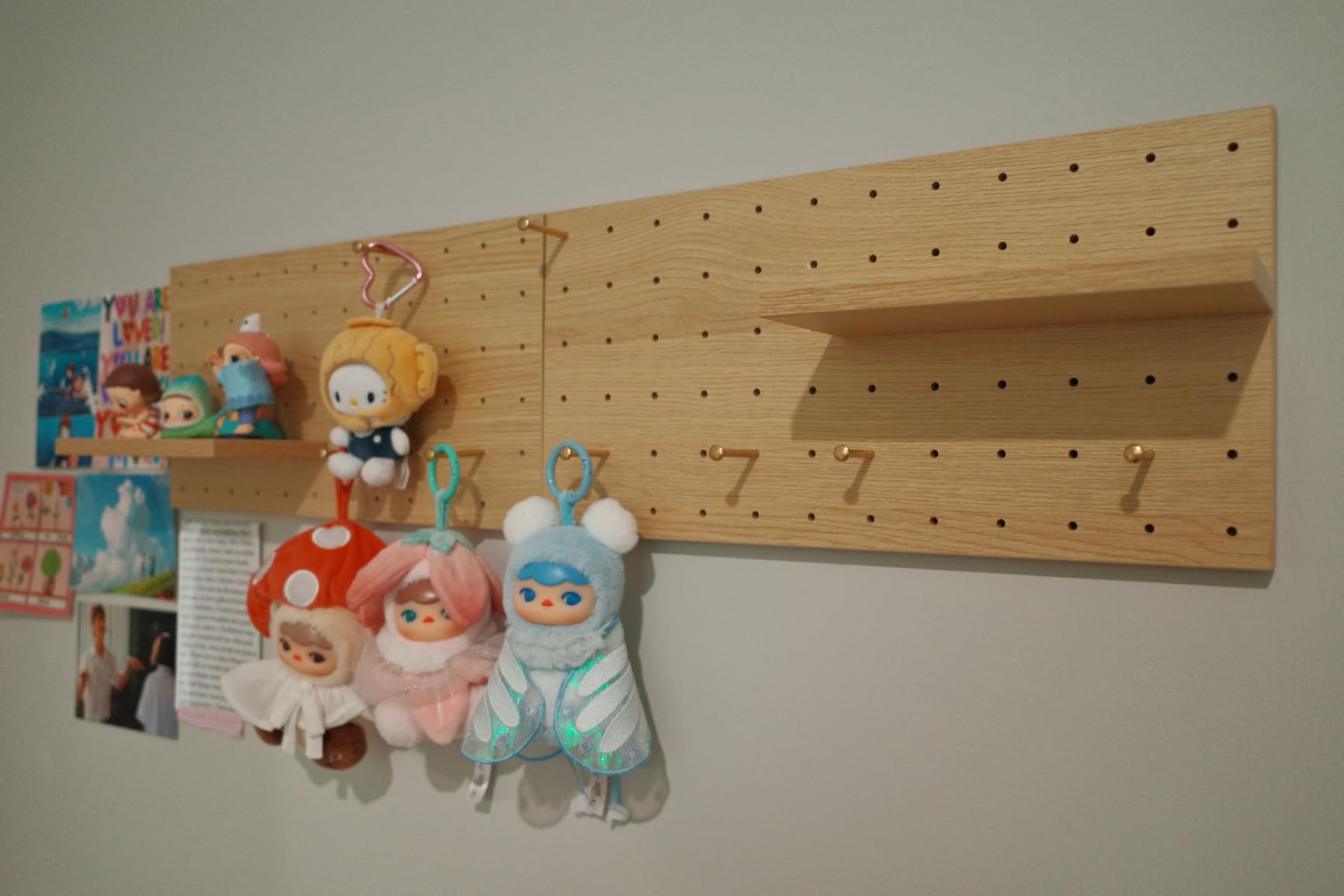

8. XAOMLP Wooden Pegboard Modular Display Storage Walnut

The XAOMLP wooden pegboard set in walnut finish is a compact, modular storage solution that works well in kitchens, studies, and craft rooms. Each of the two panels measures 31.5×7.6 inches, which is a long, narrow profile that fits above desks, in entryways, or along kitchen backsplashes. The walnut veneer finish is the standout feature, with a warm tone that complements wood furniture.

The 200 pound total weight capacity is impressive for a wood panel set, though in practice the narrow panel shape limits how much weight you can attach to a single point. The included wooden pegs and shelves distribute load across multiple points, which is how the system achieves that 200 pound rating. I installed this in a kitchen to hold mugs, small pots, and utensils.

Modularity is the main draw. The panels connect to each other and additional XAOMLP panels can be added to expand the system. The eco-friendly plywood and beech construction feels lightweight but solid. At 3.3 pounds total, the kit is easy to handle and install solo.

Why wood is the right call for indoor decor

If you are hanging this in a visible space like a kitchen, living room, or office, the walnut finish is more attractive than any metal pegboard. Wood also allows for custom staining if you want to match existing furniture. The XAOMLP set works well for lightweight decorative storage.

Where the wood design hits a ceiling

The narrow 7.6 inch height limits the size of items you can hang. Standard power tools will not fit. Also, the peg insertion can be tight on some panels, and forcing pegs in can cause minor wood tear around the hole. A few reviewers mention this, and I experienced it on one of my pegs. Light sanding solved the problem.

Buying Guide: How to Choose Between Metal and Wood Pegboards

Choosing between metal and wood pegboards comes down to what you are hanging, where you are hanging it, and how long you need it to last. After testing all 8 kits in this guide, here are the factors that matter most.

Weight capacity is the biggest difference

Metal pegboards win this category by a wide margin. The metal panels in this guide range from 88 pounds to 400 pounds maximum capacity. Wood pegboards max out around 30 to 50 pounds per shelf, and 200 pounds total for the highest rated wood kit in our test. If you are hanging power tools, metal is the only realistic option.

Environmental exposure decides material choice

Garages, basements, and workshops with humidity swings favor metal. Galvanized and powder-coated steel resists moisture, temperature extremes, and the occasional splash of oil or coolant. Wood pegboards work best in climate-controlled spaces like offices, craft rooms, and bedrooms. In humid environments, wood swells, warps, and eventually fails at the holes.

Hook compatibility matters more than you think

Standard 1/4 inch pegboard hooks fit every metal panel in this guide, with some wiggle on thinner panels. Wood pegboards accept the same hooks with a tighter fit. If you have a collection of existing pegboard accessories, both materials will work. If you are starting fresh, Wall Control and Ultrawall panels accept both standard and proprietary accessories, which gives you more options.

Installation is similar for both

Both metal and wood pegboards mount with screws into studs or drywall anchors. Metal panels are heavier, so plan for a second person during the lift. Wood panels are lighter and easier to handle solo. The biggest installation difference is that metal panels often need precise stud alignment, while wood panels are more forgiving of imperfect framing.

Cost vs longevity trade-off

Wood pegboards cost less upfront, often $35 to $150 for a complete kit. Metal pegboards start around $40 and run up to $290 for heavy-duty systems. The break-even point comes from lifespan. A $50 metal pegboard that lasts 10 years costs $5 per year. A $40 wood pegboard that warps in 3 years costs $13 per year. Metal wins on total cost of ownership for any heavy use case.

Frequently Asked Questions

Final Verdict: Metal Pegboards Are Stronger Than Wood

After testing 8 pegboards over several months, the answer to the metal vs wood pegboards question is clear. Metal pegboards are stronger, more durable, and longer lasting than wood. The Wall Control galvanized steel pack remains our top pick for garage and workshop use, with 400 pound capacity and magnetic steel that holds up under daily abuse. For living spaces and decorative storage, the Lumiterra wood kit offers a complete system that looks great in any room.

Pick metal if you are hanging power tools, working in a garage, or want a 10 year plus storage solution. Pick wood if you are organizing a craft room, office, or living space where weight is light and aesthetics matter. Either way, our picks above represent the best options in 2026.
